Lefroy Brooks CW-4071 Montageanleitung
INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
CW-4071
WHITE LEVER ARCHIPELAGO PRESSURE BALANCE MIXING VALVE TRIM ONLY,
TO SUIT M1-4100 ROUGH
2
Contents
Dimensions 3
InstalLation Procedure 4
Parts List 8
Fault Finder 9
Safety Tips, Care and Maintenance 10
Guarantee 11
2 3/16"
(55mm)
1 5/8"
(42mm)
Ø3"
(Ø76mm)
Ø 6 3/4"
(Ø171mm)
3 1/4"
(82.5mm)
3 7/16"
(88mm)
1 13/16"
(45.5mm)
W3/16-24
3

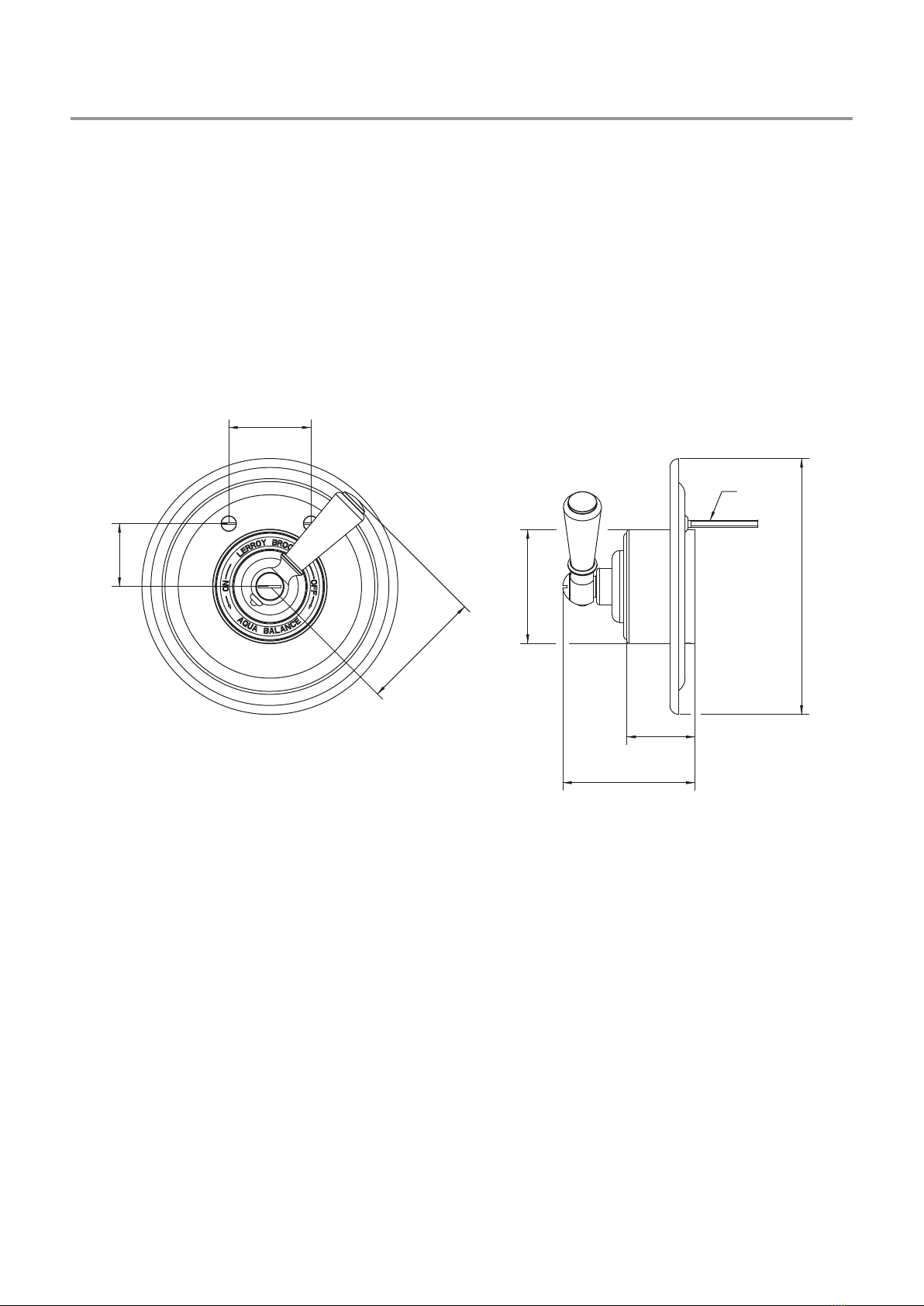

Dimensions in Inches (& Millimetres)
Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without
notice as part of the company’s product development process.
82~107mm
wall surface
Note: Plaster guard
Keep a distance of
7mm at least from
the wall surface to
the front of the
plaster guard so
that the trim kit
CW-4070 &
CB-4070 can be
fitted successfully.
HOT WATER - IN
COLD WATER - IN
mixed water out
12
4
Steps 1-2
InstallationProcedure
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.
1Position valve into the wall as shown.
2Connect the valve to the water pipes.
34
Ø145~150mm
5
Stopper A
(marked #049000)
Stopper B
(marked #049001)
Washer C
5
InstallationProcedure Steps 3-5
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.
3Cut a hole on the wall surface for fitting the trim kit. The hole dimension is as shown in figure 3.
4Throw away the protective cap only when the building construction is completed and you are
ready to fit the trim kit.
REMOVE CAP ONLY, KEEP THE REST OF THE MUD GUARD AS IT IS NEEDED TO HOLD THE
TRIM FIXING SCREWS.
5Temperature Limiting Device:
Remove washer C, then take off stopper A & B.
9
10 11
Stopper A
(marked #049000) Stopper B
(marked #049001)
0 tooth
8 teeth
12 teeth
HIGHT TEMPERATURE SETTING
(with 150° operation range)
AVERAGE TEMPERATURE SETTING
(with 90° operation range)
LOW TEMPERATURE SETTING
(with 60° operation range)
6
InstallationProcedure Steps 9-11
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.
9Figures I, II, III show how to adjust the temperature limit stop.
Having this open at eight notches is recommended.
10 Install washer.
11 Install adjusting ring and canopy.
12 13
7
InstallationProcedure Steps 12-13
Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.
Shut off main water supply before installation.
12 Position valve into the wall as shown.
13 Install handle.
1 Seal (013007)
2 Front plate (006225)
3 Screw (008101)
4 Adjusting ring (104292)
5 Canopy (018394)
6 Set screw (065086)
7 Ceramic ring (023660-50)
8 O-ring (004623R)
9 Canopy (018251)
10 Screw (008109)
11 Canopy (205003)
12 Set screw (075018)
13 Handle head (205002)
14 Handle adaptor (109377)
15 Set screw (292556)
16 Screw head (008291)
17 Handle stem (017094)
18 Handle sleeve (108924)
19 Handle-end cap (109376)
20 Allen key (031003)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
8

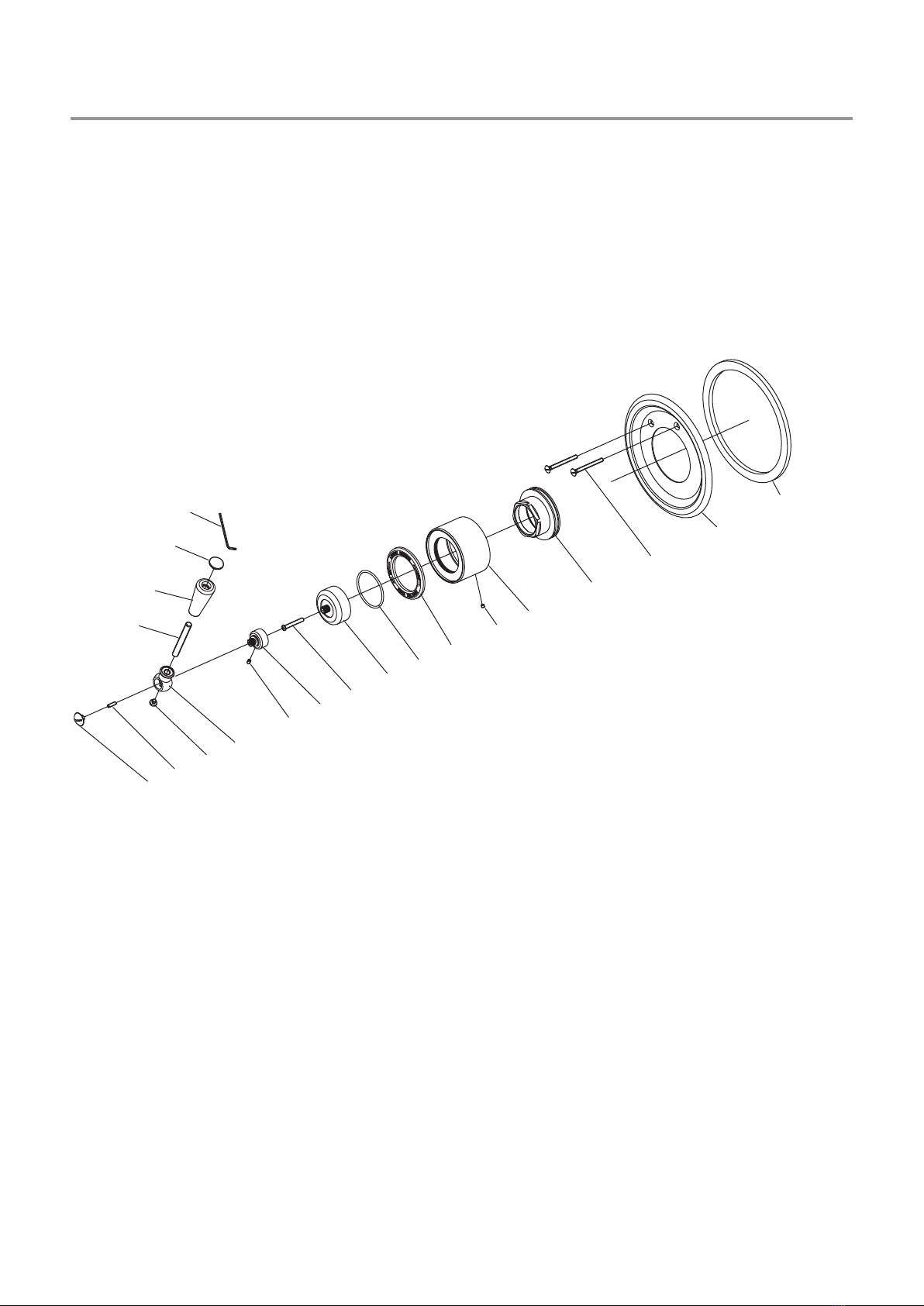

PartsList Exploded view
9
FaultFinder
Fault Cause Rectification
Wobbling of handle. The fixing screw comes loose. Check for fixing screw and
re-tighten it properly.
Wobbling of canopy. The canopy comes loose. Check and tighten the canopy.
10
SafetyTips,CareandMaintenance
Safety Tips
If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to
applying flame, otherwise you will void the warranty.
Cover drain openings to avoid losing small parts.
When cutting or soldering pipe, use safety glasses to protect your eyes.
Important Points
Prior to beginning installation. turn off the cold and hot water lines and open the old faucet to release
built-up pressure.
Overtightening nuts may cause damage.
Wrap all threaded connections with pipe tape available at your local plumbing supply store.
Always wrap in a clockwise direction. The fittings should be installed by a state-licenced plumber.
Please note:
When there is a difference in water pressure between hot and cold supplies to the mixing valve, the
pressures should be equalized by a plumber in accordance with best practice and legislation.
Maintenance
Your new bathroom faucet is designed for years of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid abrasive cleaners, wire wool and harsh chemicals as
these will dull the finish and void your warranty.
Routine Maintenance
The frequency and extent of attention required will vary according to prevailing site and operational
conditions, however a 12 monthly maintenance schedule is recommended.
If the product has operated satisfactorily for some time, but performance has been degraded, please
check the Fault Finder section to identify the problem.
Maintenance Check List
s 7ORNORDAMAGEDSEALSANDWASHERS
s $AMAGEDSEALFACES
s 4HREADWEAR
s )NCORRECTADJUSTMENT
s #OMPONENTFAILURE
s $EBRISORLIMESCALEBUILDUP
