Legend L1949 Bedienungsanleitung

Please read this manual carefully before using this TV set and keep it for future reference.

L1949

Thank you forchoosing Legend.

Need help fast?

Legend

LEGEND

24 Hours a Day/ 7 Day a Week

WARNING AND CAUTION

RISK ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of

uninsulated dangerous voltage within the product s

enclosure that may be of sufficient magnitude to constitute a

risk of electric shock.

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS

POLARIZED PLUG WITH AN EXTENSION CORD,

RECEPTACLE OR OTHER OUTLET UNLESS THE

BLADES CAN BE FULLY INSERTED TO PREVENT

BLADE EXPOSURE.

CAUTION: These servicing instructions are for use by qualified service

personnel only. To reduce the risk of electric shock, do not perform any

servicing other than that contained in the operating instructions unless

you are qualified to do so.

IMPORTANT SAFETY INSTRUCTIONS

Important Safety Instructions

1) Read theseinstructions.

2) Keep theseinstructions.

3) Heed allwarnings.

4) Follow allinstructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

8) Do notinstall near anyheat sources suchas radiators, heat registers, stoves,

or other apparatus(including amplifiers) thatproduce heat.

9) Protect the power cord from being walkedon or pinchedparticularly at plugs,

convenience receptacles, andthe point wherethey exit from the apparatus.

10) Only useattachments/accessories specified bythe manufacturer.

11) Use only withthe cart, stand,tripod, bracket, ortable specified by the

manufacturer, orsold with theapparatus. When acart is used, use caution when

moving the cart/apparatuscombination to avoidinjury from tip-over.

12) Unplug this apparatus during lightning storms or when unused for long

periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-supply cord or plug

is damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

14)The apparatus shall not be exposed to dripping or splashing and that no

objects filled withliquids, such asvases, shall beplaced on the apparatus.

15)The mains plug or appliance inlet is used as the disconnect device, remain it

readily operable during the apparatus normal use.

CONTENT

Safety Notice Items...................................................................................

Front Panel Controls..................................................................................

Connection Options...................................................................................

Remote Control ........................................................................................

Remote Control Key Functions....................................................................

Connection Instructions.............................................................................

External equipment Connections..............................................................

Antenna Connection.............................................................................

VGA Setup.............................................................................................

Component Setup................................................................................

VCR Setup...........................................................................................

HDMI Input.........................................................................................

Cable TV Setup....................................................................................

External Component Source Setup.......................................................

Basic Operating Instructions.......................................................................

Switch On/Off the TV set..........................................................................

Choose the input source..........................................................................

Audio Control..........................................................................................

Mute......................................................................................................

INFO.....................................................................................................

Select the TV Channel You Want.............................................................

Picture Mode...........................................................................................

Audio Mode............................................................................................

Sleep.....................................................................................................

GUIDE...................................................................................................

ARC button.............................................................................................

.Button...................................................................................................

CH.LIST button.......................................................................................

FAVORITE button......................................................................................

Menu Operations.......................................................................................

Video Menu Options...............................................................................

Video Menu Options Continued...............................................................

Audio Menu Options................................................................................

Audio Menu Options Continued................................................................

Channel Menu Options.............................................................................

Channel Menu Options Continued..............................................................

Function Menu Options.............................................................................

Function Menu Options Continued..............................................................

Lock Menu Options ..................................................................................

Lock Menu Options Continued..................................................................

PC Menu Options....................................................................................

PC Menu Options Continued....................................................................

............................................................

Troubleshooting Guide...............................................................................

Specifications...........................................................................................

Stream media broadcast system

Safety Notice Items

Incorrect usage maycause fire orelectric shock.

ensure

Please keep this manual for later use;

Please comply strictlywith the warninginstructions on themachine and

in this book;

Before operation, pleasemake sure thatthe operating voltageof your unit is

correct;

Do not remove the back cover. If service is needed, please contact an

Authorized service technician.

To prevent this, please do as

required when you are installing, using and cleaning this machine. To

your safety and extend the life-span of LCD-TV, please readthe following items

carefully before using:

lPlease read andunderstand all theinstructions before operation;

lPlease comply with the instructions provided;

lPlease do not use additional devices that are not recommended by

manufacturer:

lDo not placethe unit onunstable, dusty andhumid places;

lNever put theunit in directsunlight or nearheat sources;

lAllow enough space for proper ventilation;

lPlease keep water away from the LCD-TV . If water comes in contact with the

LCD-TV, disconnect the power cord from the power source, then wipe the set

with a dry soft cloth;

Front Panel Controls

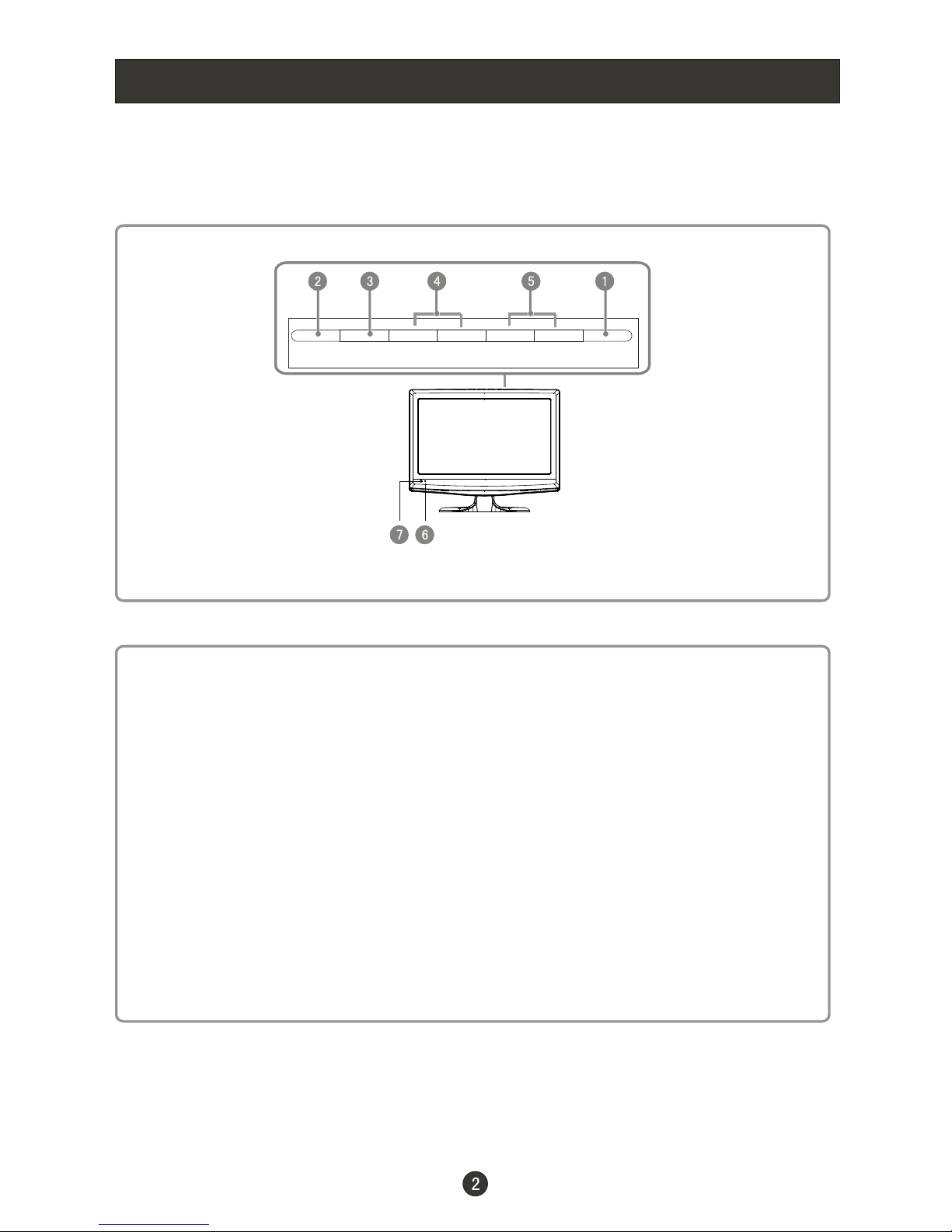

Control Panel Function

1. POWER Press to turnon and off the TV.

2. INPUT Selects the input signals.

3. MENU Menu display. Press to access the on-screen menu display.

4. VOL- Volume down / Left button to adjust the item in the OSD.

VOL+ Volume up/ Right buttonto adjust theitem in theOSD

/Press to enter.

5. CH- TV channel down / to select the item in the menu.

CH+ TV channel up / to select the item in the menu.

6. Power indicator

7. Remote Sensor Receivers IR signals from the remote control.

Do not put anything near the sensor ,which may

block the remote control signal.

INPUT MENU VOL- VOL+ CH- CH+ POWER

COMPONENT IN

Pr Pb Y

ATN IN R-AUDIO-L R-AUDIO IN-L

PC AUDIO IN

VGA INUSB HDMI

S-VIDEO IN

VIDEO

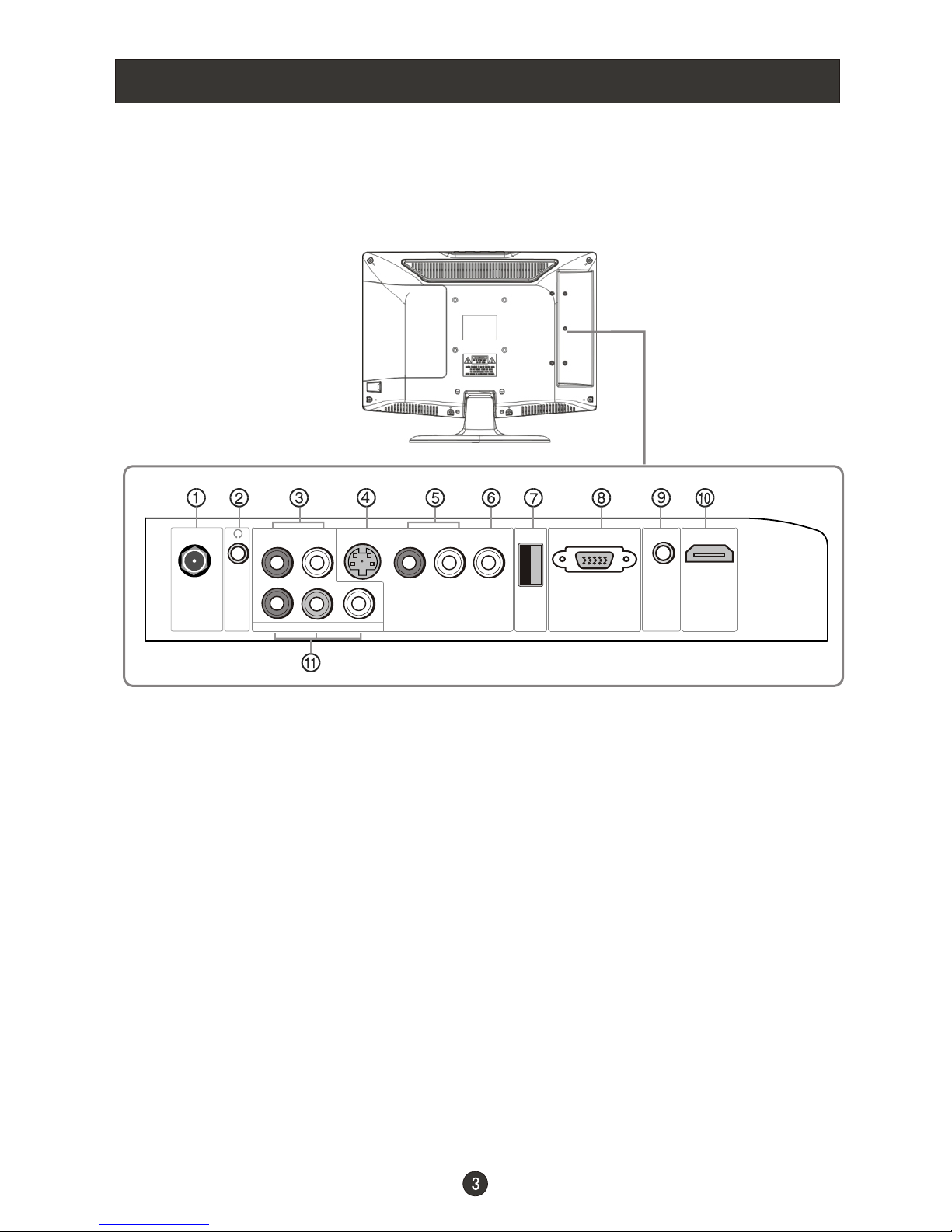

Connection Options

1.ANT IN(Antenna Input) Connect cable or antenna signals to the TV, either

directly or through your cable box.

2.Headphone jack :Headphone audio output terminal.

3.Audio in Connect audio outputfrom an external device tothese jacks.

4.S-VIDEO Connect S-Video out from an S-Video device to the jacks.

5.Audio in Connect audio outputfrom an external device tothese jacks.

6.Video in Connect video outputfrom an external device to this jack.

7.USB input Connect a USBflash drive toview JPEG imagesor listen toMP3

songs.

8.VGA Connect to theVGA 15PINanalog output connectorof a PC

graphics card to use set as a PC display.

9.PC audio in Connect the audiooutput from thepc to thePC audio inputport.

10. HDMI: Connect a HDMI device to receive digital audio and uncompressed

digital video.

11. Component Input Connect a component video device tothese jacks.

Remote Control

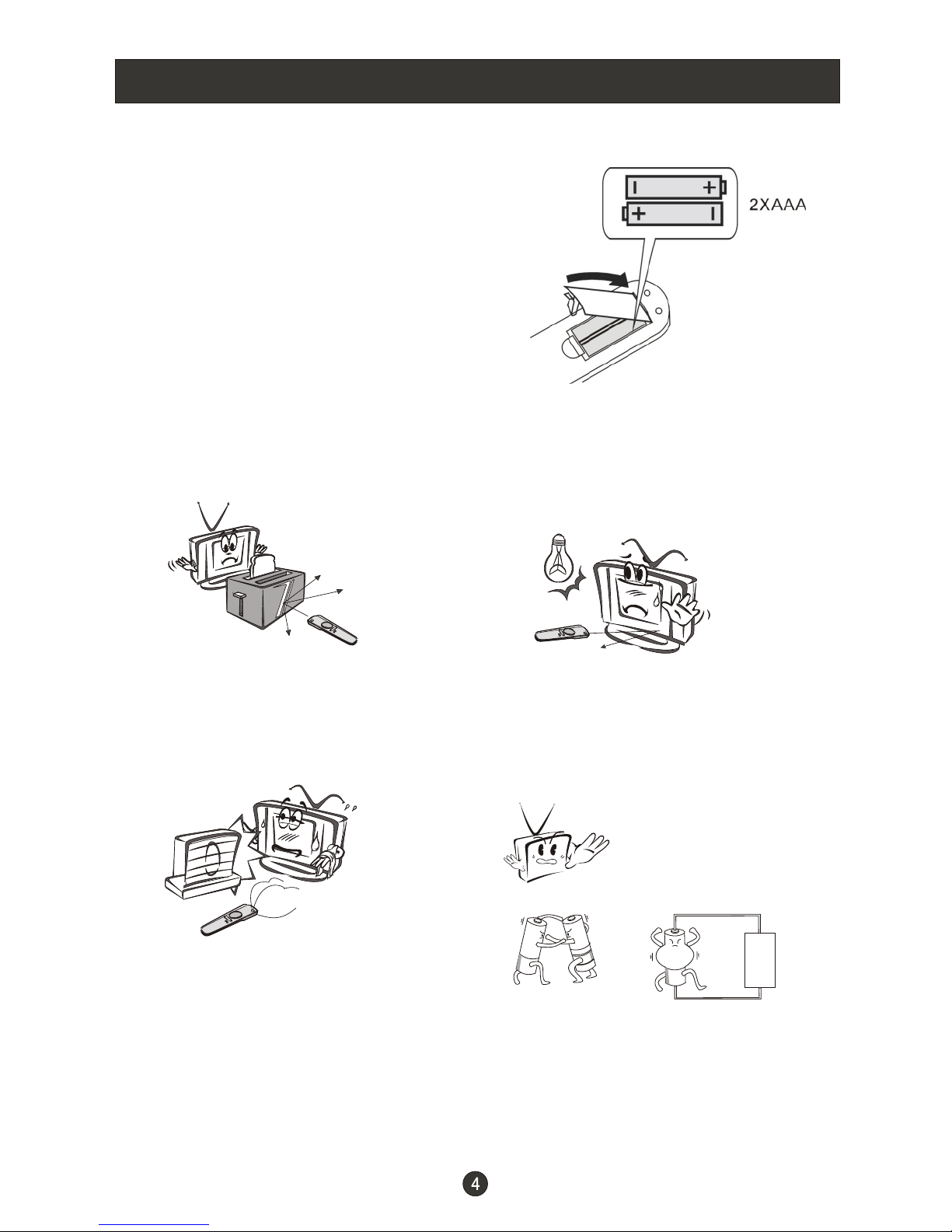

Installing Batteries

Remove the battery cover.

Insert two size AAA batteries matching

the +/-polarities of the battery to the +/-

marks inside the battery compartment.

Precautions

Make sure that there is no

obstacle between theremote

controller and televisionset.

As strong light may interfere with the

signals, change yourposition to

operate the remote control if

the television cannot be turned

on or off as expected.

Keep the remote control

away from heat sources or

humid areas toensure

effective performance of

the remote.

Make sure thattwo AA1.5V orAAA

depending up the model alkaline

batteries are loaded. The batteries

must be of the same type, must be

inserted properly, and must not be

rechargeable.

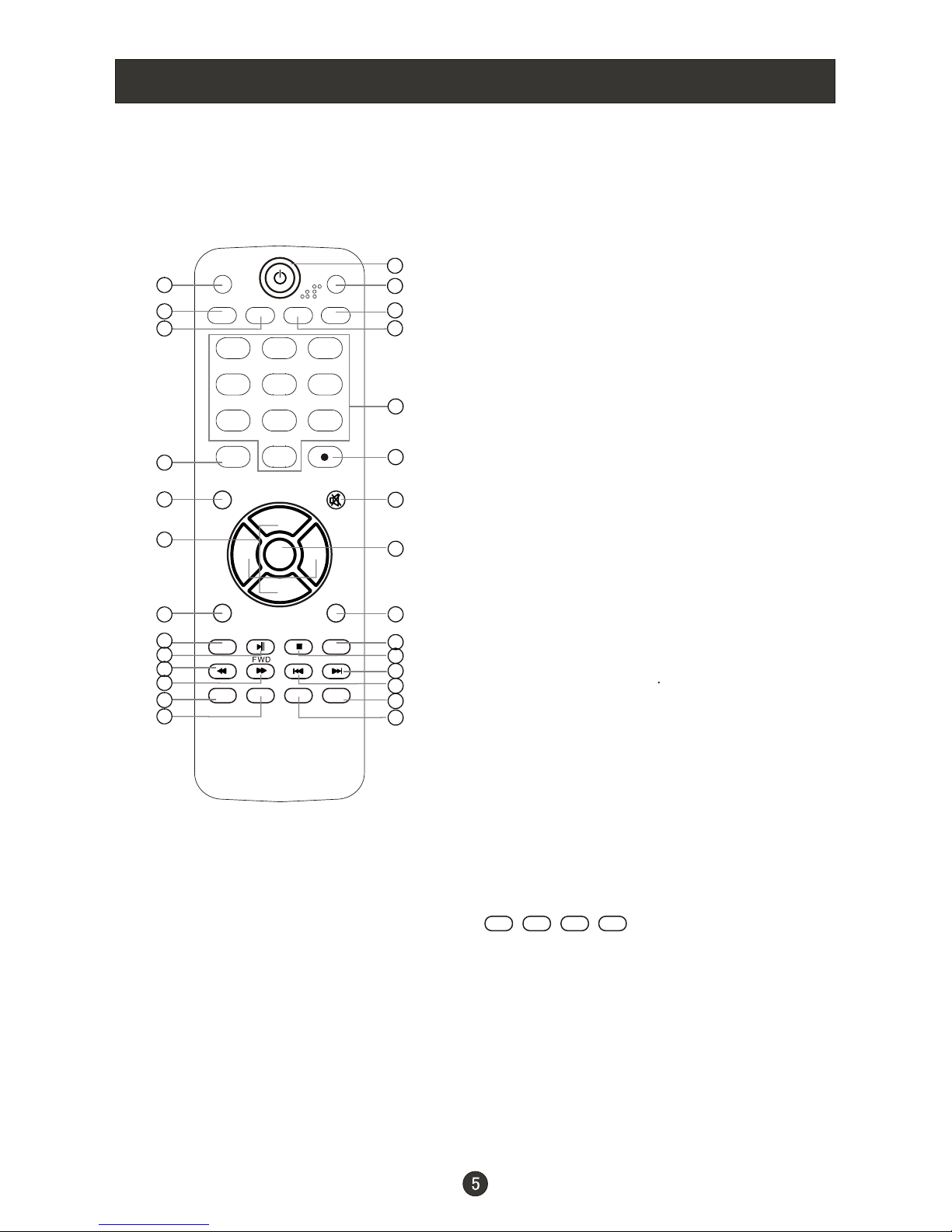

Remote Control Key Functions

When using the remote control, aim it

towards the remotesensor on theTV

(For TV withoutDVD)


CCD

INPUT

ARC

VOL-

EXIT

USB

PLAY/PAUSE

REV

DISPLAY GUIDE

1 2 3

4 5 6

7 8 9

MTS/SAP

CH+

CH-

VOL+

ENTER

STOP

FAVORITE

AUDIO

SLEEP

REPEAT

CH.LIST

MUTE

RECALL

1.Press repeatedly to cycle through the available

picture modes

2.Press to change the aspect ratio

3.Select a closed caption option

4.Show the input source

5.Press to open the on-screen menu

6.Volume/Channel Selection

7.Exit On Screen Display

8.Press to switch input source to USB in

9.USB PLAY/PAUSE

10.USB fast reverse

11.USB fast forward

12.Press to display the TV status information on the top

of the TV screen

13.Shows program schedule in TV

14.Press to turn on and off the TV

15.Press to cycle through different sound settings

16.Press to display the sleep timer option

17.Select MONO, STEREO, SAP in NTSC system

18.Press to change a channel

19.Press to select digital channels. For example, to

enter “54-3”, press “54”, “ ” and “3”.

20.Switches the TV sound on or off

21.Accesses the highlighted item in the on-screen menu

22.Press to jump back and forth between two channels

23.USB REPEAT

24.USB STOP

25.USB Next Chapter

26.USB Previous Chapter

27.Open the channel list in TV

28.Open the favorite channel list in TV

Red

UP DOWN LEFT RIGHT

Green

Yellow

Blue

Color buttons

When functions are attached to the color buttons,

the color buttons are shown on screen.

Connection Instructions

External Equipment Connections

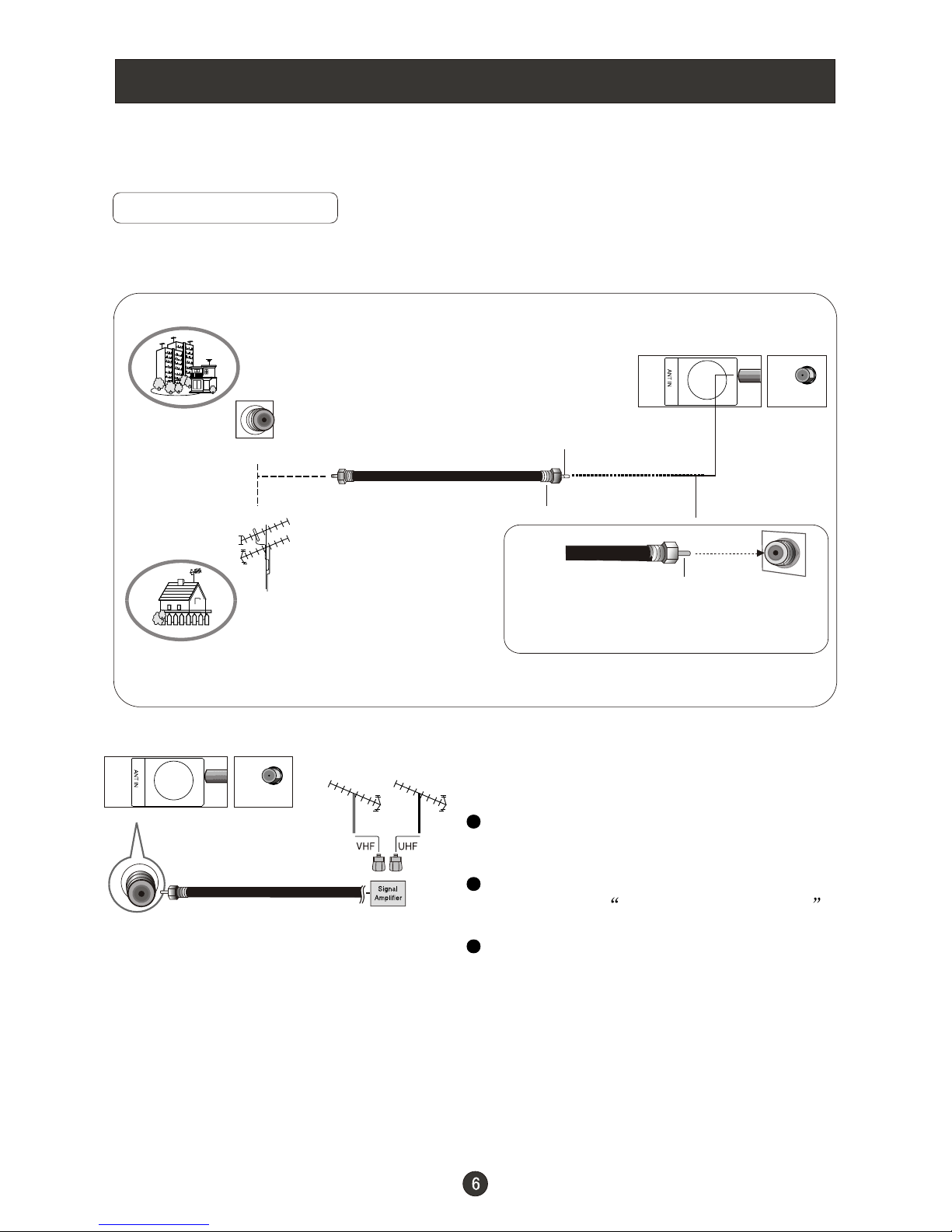

Antenna Connection

Multi-family Dwellings/Apartments

(Connect to wallantenna socket)

wall antenna

socket

VHF antenna

UHF antenna

outdoor

antenna

Single-family Dwellings /Houses

(Connect to wall jack for outdoor antenna)

Bronze Wire

Be careful notto bend the bronze

wire when connecting the antenna.

Bronze Wire

Turn clockwise to tighten.

RF coaxial wire(75 ohm)

To improve picture quality in a poor

signal area, purchase and install a

signal amplifier.

If the antenna needs to be split for two

Tvs, install a 2-Way Signal Splitter

in the connections.

If the antenna is not installed properly,

contact your dealer for assistance.

NOTE: Cables shownare not included with the TV

Over-the-air TV reception will depend on your antennatype, antenna location

and antenna positioning.

Inhaltsverzeichnis

Andere Legend LCD-Fernseher Handbücher

Legend

Legend L4210 Bedienungsanleitung

Beliebte LCD-Fernseher Handbücher anderer Marken

LG 32LC4R* Bedienungsanleitung

ViewSonic

ViewSonic N4200w-1 VS10945-1M Bedienungsanleitung

Salora

Salora 22LED1600 Bedienungsanleitung

Samsung

Samsung LA32E420 Leitfaden

Dell

Dell W1900 19 Gebrauchsanweisung

Samsung

Samsung LN40C670M1F Bedienungsanleitung

Samsung

Samsung Series 4+ Bedienungsanleitung

Samsung

Samsung 5 Series Bedienungsanleitung

Grundig

Grundig 40 VLE 8230 BP Bedienungsanleitung

Philips

Philips 43PFL4901/F7 Bedienungsanleitung

Sony

Sony Bravia XBR-43X830C Bedienungsanleitung

LG 32LS350 Bedienungsanleitung

VIORE

VIORE LED32VF60 Bedienungsanleitung

Toshiba

Toshiba Regza 42HL167 Bedienungsanleitung

JVC

JVC LT-32A220 Bedienungsanleitung

Philips

Philips 20TA1000/93 Bedienungsanleitung

Philips

Philips 32PFL3158T/12 Bedienungsanleitung

Sony

Sony Bravia KDL-V32XBR2 Bedienungsanleitung
