Unity System
Technical Manual
www.legrand.us/onq
P/N 1308112 Revision B
Software Version 2.2.x
Page 99
301 Fulling Mill Road, Suite G ©Copyright 2010 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.onqlegrand.com
VI. Unity User’s Guide
This section describes the basic usage techniques to successfully navigate and enjoy a Unity System
along with specific walkthroughs of the individual Unity functions.
A.Basic Navigation:
Above is a description of the various buttons on the front of the Unity LCD Console. Each softkey
corresponds to the tab shown directly above it in the display. Similarly, the compass keys correspond to
the associated arrow indicators shown in the display. For instance, in this particular screen, the left and
right compass keys would move the Icon Wheel to the left or right accordingly.
To navigate throughout the Unity System, from the main screen shown above, use the Left and Right
compass keys to spin the icon wheel, and then use the Talk/Select button to choose the desired function.
Alternatively, use the softkeys to choose the shortcut to the desired function. The Home softkey will
always bring the Unity system back to this main screen. Pressing the Home key a second time will center
the Icon Wheel on the Intercom icon. The power button will put the current display into standby mode.
The display will be automatically activate if it is ever the target of an intercom call (including an ALL call
and/or Door Event). To prevent this, place the unit in standby then press the mute button.
Left arrow
indicator
Right arrow
indicator
Softkeys
Compass
keys
Power button
Page 100
301 Fulling Mill Road, Suite G ©Copyright 2010 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.onqlegrand.com
B.Unity Functions:
The following is a list of walkthroughs on using each function of the Unity system.
1. Using the Intercom
To enter the Intercom function, use the Left and Right compass keys until the Icon Wheel is
over the Intercom Icon, and then press Talk/Select . A list of intercom units should be
displayed.
Page 101
301 Fulling Mill Road, Suite G ©Copyright 2010 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.onqlegrand.com
Basics
As indicated on the display, the Up and Down compass keys will move the highlight box. To
call an intercom unit, highlight that unit, then press and hold the Talk/Select button. The Unity
Intercom is a ‘press and hold’ intercom. This means to make an intercom call, the Talk/Select
button must be HELD when talking TO the highlighted unit. When the Talk/Select button is
released, the highlighted unit will have a number of seconds (15 seconds by default, but
adjustable in Settings -> Intercom) to respond in what is called ‘talk hands free’ mode. During
this mode, the unit being CALLED may respond to the CALLER without any specific intercom
interaction. After talk hands free mode times out, the intercom will return to the state it was in
upon entering the intercom screen. An audible tone will sound to indicate the transition
between the states mentioned above. A typical intercom conversation will go as follows:
•User presses (and holds) Talk/Select
•A tone sounds to indicate it is OK to start talking
•User talks TO selected unit
•User releases Talk/Select
•A tone sounds to indicate transition to ‘talk hands free’ mode
•Selected unit has some number of seconds (15 seconds default) to talk BACK to
caller
•A tone sounds to indicate end of conversation
Monitor
Pressing softkey 3 will place the unit into monitor mode. When a unit is in monitor all other
units on the system will be able to hear it.
Send Message
Pressing softkey 4 from the intercom menu will open the messaging menu.
Page 102
301 Fulling Mill Road, Suite G ©Copyright 2010 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.onqlegrand.com
From this menu, messages may be sent to one, many, or all other intercom units. For full
information on sending messages, please refer to the Using Messages section of the Unity
Users Guide.
Page 103
301 Fulling Mill Road, Suite G ©Copyright 2010 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.onqlegrand.com
2.Using the Player
To enter the Player function, use the Left and Right compass keys until the Icon Wheel is over the Player
Icon, and then press Talk/Select. The player menu should be displayed. The following sections describe
the individual player sub menus. In general, the Up and Down compass keys are used to navigate the
current menu, and Talk/Select is used to select the current menu item (either bringing up another sub
menu, or redirecting to Now Playing).
Page 104
301 Fulling Mill Road, Suite G ©Copyright 2010 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.onqlegrand.com
Playlists
Songs
Click Playlists
List of playlists
Selection chain:
•Playlists – list of playlists.
•Specific playlist – list of songs on
playlists.
•Song – leads to Now Playing
Clicking Playlists will display all playlists that
have been cataloged by the Unity system.
Selecting a specific playlist from the list of
playlists will display all songs on that playlist.
Selecting a song from that playlist will play the
song and lead to the Now Playing screen.
List of songs on playlist
Page 105
301 Fulling Mill Road, Suite G ©Copyright 2010 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.onqlegrand.com
Selection chain:
•Songs – list of songs.
•Specific song – leads to Now
Playing.
Clicking Songs will display a list of all songs
cataloged by the Unity system. Clicking on an
individual song will play that song and direct the
display to the Now Playing screen.
At any time (i.e. in any Player sub menu),
softkey 3 will open up an alphabetic search
window. The cursor keys and talk/select button
operate the mini keypad. The search is
incremental, meaning that any letter that is
input will further narrow the search. To close
the box, press softkey 3 again. The alphabetic
search box will ONLY search in the current sub
menu. For example, if the current sub menu is
Songs, the alphabetic search box will narrow
down the Songs list based on the characters
input. If the current sub menu is Artists, only
the Artist list will be narrowed down. It will still
be necessary to select an artist to view Albums
and Songs by that Artist.
Full Songs List
Alphabetic search
Page 106
301 Fulling Mill Road, Suite G ©Copyright 2010 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.onqlegrand.com

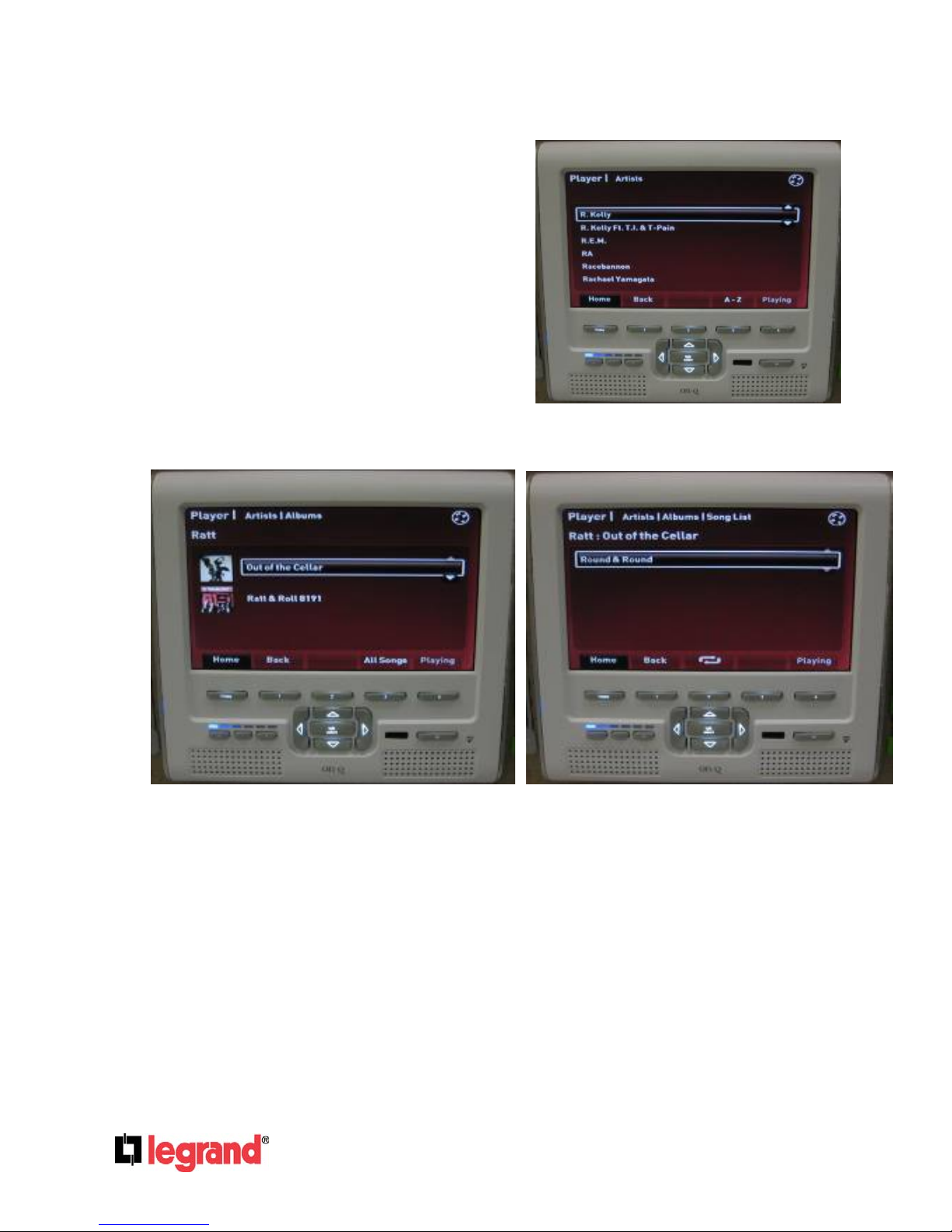

Artists
Artists
Albums by artist Songs on album
Selection chain:
•Artists – list of artists.
•Specific artist – albums by artist.
•Album – songs on album.
•Song – leads to Now Playing.
Clicking Artists will display a list of artists
currently cataloged. Clicking a specific artist will
display a list of Albums by that Artist. Clicking
an album will display songs on that album.
Clicking a song will lead to the Now Playing
screen.
Page 107
301 Fulling Mill Road, Suite G ©Copyright 2010 by Legrand,
Middletown, PA 17057 Inc All Rights Reserved.
(800)-321-2343 www.onqlegrand.com
Albums
Albums
Songs on album
Selection chain:
•Albums – list of albums.
•Specific album– songs on album
•Song – leads to Now Playing.
Clicking albums will display the list of albums
currently cataloged by the Unity System.
Clicking a specific album will display the list of
songs on that album. Clicking a song will lead
to the Now Playing screen.
