LEGRAND 7" Video Touch Screen Bedienungsanleitung
369300/369310/369305/369315
7" Video Touch Screen
User guide
07/12-01 CN
2
User guide
7" VIDEO KIT TOUCH SCREEN
3
Table of contents
1. Calling Function 6
2. Entrance Panel Activation
6
3. Intercom calling
4. Work Mode
6. Guest Photos
7. Digital Photos Frame
8. Settings
6
7
8
8
9
9
10
10
8.1 Ring Setting
10
8.2 Video Setting
10
8.3 Date Time Setting
8.4 Touch Screen Calibration Setting
8.5 Welcome message
5. Guest records 7
4
IMPORTANT WARNING
On the rights of people involved in the taking of pictures and the recording of sounds.
•The
7" video kit touch screen
which you have purchased contains technological devices
which allow the taking of images.
•
the subject of copyright or other rights of intellectual ownership by third parties.
•Consequently, anyone using the equipment is obliged to respect:
– legislation regarding the protection of personal data;
– data security obligations;
– picture and portrait rights, as well as the regulations on copyright and
intellectual and industrial property.
• Legrand is not responsible for the illegitimate use of its equipment by its customers.
The images, sounds, voice and names are personal data - sometimes sensitive - and can be
5
8
1
2
4
9
10
6
7
3
5
1.Speaker
2.Intercom
3.Entrance panel switching ON key / Answering key
4.Call LED
5.Power LED
6.Optional button (G+/G- connector)
7.Door lock button (L+/L- connector)
8.Microphone
9.USB
10.SD
Entrance panel activation
Your
7" VIDEO KIT TOUCH SCREEN
Main screen:
7:04pm
25-12- 2011 Detection of SD cardDate
Time
Intercom Call
Guest Voice Record
Guest Photo Record
Digital Photo Frame
Settings
Answering machine activation
Stand-by
Mute
User guide
When a call arrives, internal unit switch on showing
video from Entrance camera.
Press to answer.
: When pressed, ending talking and return to
main screen.
: When pressed, you can unlock the optional
gatelock.
: When pressed, you can unlock doorlock.
: When pressed, the video change to fullscreen;
touch the screen to came back to normal view.
: When pressed, You can take photo and save
to Guest Photo.
6
1. Calling Function
When press in main screen, you will activate
the entrance panel camera. Press to activate a
call with entrance panel.
2. Entrance Panel activation
When press in main screen, you will call the
other internal units:
Press just to end your calling and return to main
screen.
3. Intercom calling
7

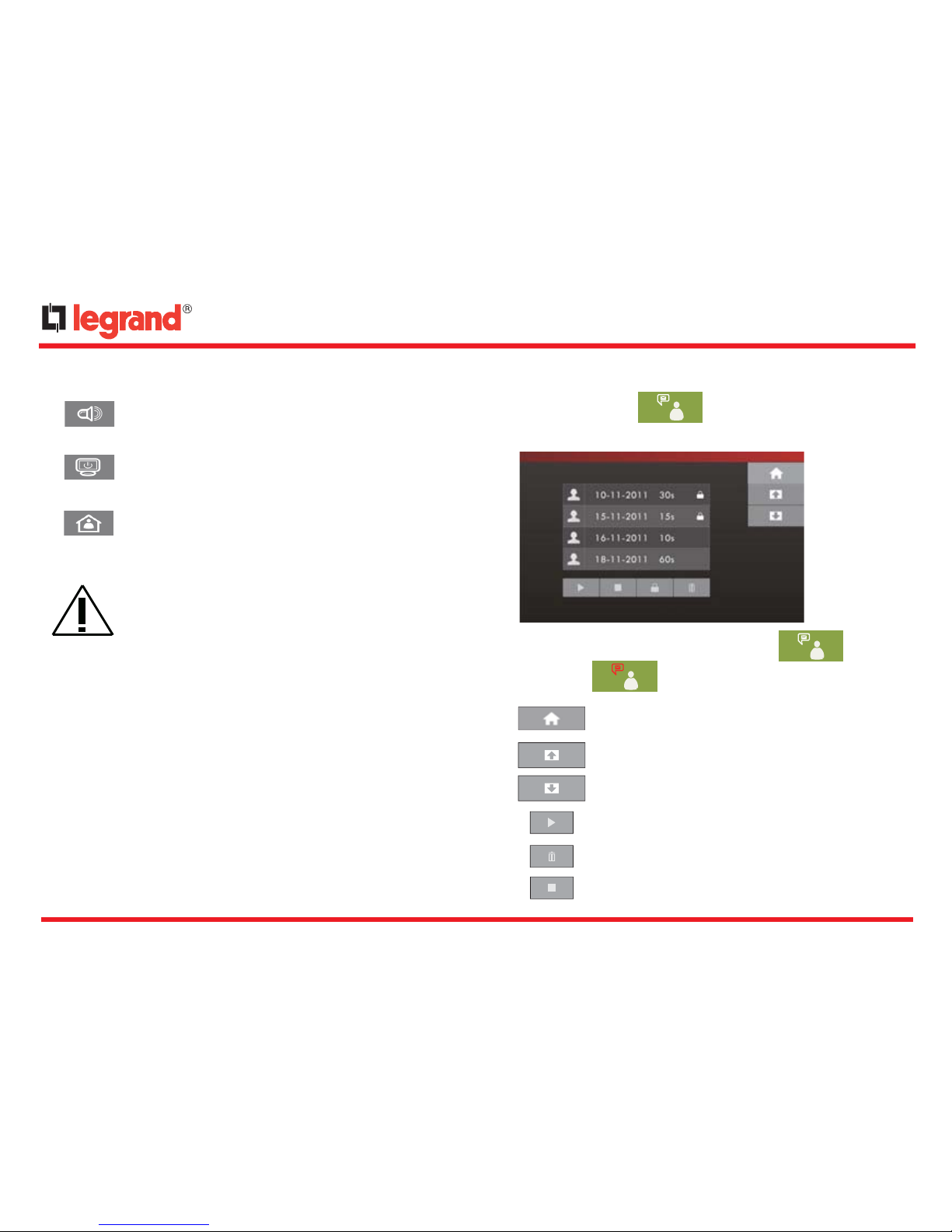

5. Guest Records
When you press in main screen, you enter in
the guest record menu:
Note: when having new record , icon will
change to .
: Quit and return to main page.
: Click this icon, you can check previous record.
: Click this icon, you can check next record.
: Play guest voice records.
: Delete guest records.
: Stop playing voice record.
4. Work Mode
: Select this icon in main screen to set all calls to
mute (without ring).
: Select this icon in main screen to go to standby
and power off screen.
: Select this icon to activate answering machine.
Note: the answering machine can be activated
just in one internal unit for apartment.
User guide
7:04
p
: Go to see the vistor photo that link to the
record.
: Lock voice record to avoid to delete.
When press in main screen, you enter in the
guest photos menu:
6. Guest Photos
: Quit and return to main page.
: Select one picture and double click ,you will
enter single mode.
: Delete selected photo.
: move to previous guests photo page.
: move to next guests photo page.
8
7. Digital Photo Frame
: Return to main screen.
: Select one picture and double click ,you will
enter single mode.
: Delete selected photo.
: Move to previous photos.
: Move to next photos.
: Enter slideshow.
In order to see photos you must have inserted a SD card,
you can see icon on top right corner in main
screen. When press in main screen, you will see
alll the available photos:
9
8.1 Ring Setting
:Select entrance panel ring.
: Enter Ring setting.
: Enter Video setting.
: Display Date Time setting.
: Enter the touch screen calibratation.
: Enter the leaving message setting.
: Quit and return to main page.
8. Settings
When press in main screen, you will enter in the
settings menu:
: Increasing volume setting.
: Decreasing volume setting.
:Move with arrows to select song for this ring.
:Select intercom ring.
:Move with arrows to select song for this ring.
User guide
10
8.2 Video Setting
: Increasing color, brightness or contrast setting.
: Decreasing color, brightness or contrast setting.
8.3 Date Time Setting
: Increasing year/month/day/hour/minute.
: Decreasing year/month/day/hour/minute.
8.4 Touch Screen Calibration Setting
: Coordinates calibration, 3 points to calibrate the
screen.
You can record more than one message, but only the
selected one will be performed.
8.5 Welcome message
: Record welcome message.
