LenelS2 Slimline 5000 Series Bedienungsanleitung
Installation guide
LenelS2 Readers -
5000 Series Slimline
Installation guide
Lenel Readers -
5000 Series Slimline
2LenelS2 Readers - 5000 Series
Slimline 13.56 MHz
- Technical specifications
Operating frequency 13.56 MHz.
Reading technologies
NFC/BLE, MIFARE CSN 4 byte, MIFARE CSN 7 byte, MIFARE Classic, MIFARE Plus,
MIFARE DESFire 0.6, MIFARE DESFire EV1, MIFARE DESFire EV2**, MIFARE DESFire
EV3**, MIFARE Random CSN and iCLASS CSN 8 byte. Also supports other ISO 14443
A/B* compatible cards.
*Not all ISO14443 B cards have been implemented in the reader, please contact
LenelS2 for more details on current status.
**Application coding must be in accordance with EV1.
MIFARE is a registered trademark of NXP B.V. and is used under license.
Secure Access Module
(SAM):
MIFARE SAM AV2, external SIM card
connection slot.
Communication protocols Wiegand, Clock/Data, OSDP 1, OSDP 2 (including Secure channel),
RS232 and RS485.
Reading output format 24 to 1024 (excluding parity bits)
Keypad output format Wiegand 4 bit, Wiegand 8 bit (Dorado), Wiegand 26 bit, OSDP ASCII format.
Keypad
12 digit keypad in 6 rows of 2 keys in each row with configurable
backlight in blue color. Control features On/Off/Auto indicators.
Light itensity can be adjusted.
Indicators LED, Green, Red and Yellow. Backlight in blue color. Buzzer.
Power supply 9 to 30 VDC
Current consumption
24 VDC idle mode with heater inactive 40 mA**
12 VDC, idle mode with heater inactive 50 mA**
**Current consumption differs depending on functionality used
and can also be limited in the reader configuration.
Input/Output
4 input for LED- and buzzer control and 2 configurable General Purpose
Input/Output (GPI/O). The GPI/O’s are push/pull type which provides 3.3 VDC
as output when “high” on each respective GPI/O connection pin.
Tamper alarm Built-in mechanical tamperswitch which allows for
indication break off protection and/or opening of the reader.
Operating temperature
-40° to +70°C
When installing readers in environments with extreme heat
(above +50°C) it is recommended to utilize the climate protection
LNL-R50000-WRW which provides additional shading to the reader.
Heater Thermostat controlled embedded heater.
Operating humidity 0 to 95% RHNC
(Relative Humidity No Condensation)
IP rating IP65/IK07
Dimension (W x H x D) 48 x 141 x 25
Configuration method Configuration card, reader tool software or factory configured readers.
Compliances
3LenelS2 Readers - 5000 Series
Slimline 13.56 MHz SF/2F
- Technical specifications
Operating frequency 13.56 MHz.
Reading technologies
NFC/BLE, MIFARE CSN 4 byte, MIFARE CSN 7 byte, MIFARE Classic, MIFARE Plus,
MIFARE DESFire 0.6, MIFARE DESFire EV1, MIFARE DESFire EV2**, MIFARE DESFire
EV3**, MIFARE Random CSN and iCLASS CSN 8 byte. Also supports other ISO 14443
A/B* compatible cards.
*Not all ISO14443 B cards have been implemented in the reader, please contact
LenelS2 for more details on current status.
**Application coding must be in accordance with EV1.
MIFARE is a registered trademark of NXP B.V. and is used under license.
Secure Access Module
(SAM):
MIFARE SAM AV2, external SIM card
connection slot.
Communication protocols Wiegand, OSDP 1, OSDP 2 (including Secure channel), Superviced F2/F
RS232 and RS485.
Reading output format 24 to 1024 (excluding parity bits)
Keypad output format Wiegand 4 bit, Wiegand 8 bit (Dorado), Wiegand 26 bit, OSDP ASCII format.
Keypad
12 digit keypad in 6 rows of 2 keys in each row with configurable
backlight in blue color. Control features On/Off/Auto indicators.
Light itensity can be adjusted.
Indicators LED, Green, Red and Yellow. Backlight in blue color. Buzzer.
Power supply 9 to 30 VDC
Current consumption
24 VDC idle mode with heater inactive 40 mA**
12 VDC, idle mode with heater inactive 50 mA**
**Current consumption differs depending on functionality used
and can also be limited in the reader configuration.
Input/Output
4 input for LED- and buzzer control and 2 configurable General Purpose
Input/Output (GPI/O). The GPI/O’s are push/pull type which provides 3.3 VDC
as output when “high” on each respective GPI/O connection pin.
Tamper alarm Built-in mechanical tamperswitch which allows for
indication break off protection and/or opening of the reader.
Operating temperature
-40° to +70°C
When installing readers in environments with extreme heat
(above +50°C) it is recommended to utilize the climate protection
LNL-R50000-WRW which provides additional shading to the reader.
Heater Thermostat controlled embedded heater.
Operating humidity 0 to 95% RHNC
(Relative Humidity No Condensation)
IP rating IP65/IK07
Dimension (W x H x D) 48 x 141 x 25
Configuration method Configuration card, reader tool software or factory configured readers.
Compliances
4Power Consumption
Power Consumption LED-Brightness Current draw (idle) Current draw (peak)
Model: LenelS2 Readers - 5000 Series LED-Bar Backlight 12 VDC 24 VDC 12 VDC 24 VDC
Standard 13.56 MHz with keypad Low Low 50 mA 40 mA 147 mA 99 mA
Standard 13.56 MHz with keypad Medium Low 50 mA 40 mA 184 mA 116 mA
Standard 13.56 MHz without keypad Low Low 50 mA 40 mA 135 mA 94 mA
Standard 13.56 MHz without keypad Medium Low 50 mA 40 mA 172 mA 111 mA
Standard 13.56 MHz/125 kHz with keypad Low Low 90 mA 60 mA 187 mA 119 mA
Standard 13.56 MHz/125 kHz with keypad Medium Low 90 mA 60 mA 224 mA 136 mA
Standard 13.56 MHz/125 kHz without keypad Low Low 90 mA 60 mA 175 mA 114 mA
Standard 13.56 MHz/125 kHz without keypad Medium Low 90 mA 60 mA 212 mA 131 mA
Standard 13.56 MHz/125 kHz SF/2F version with keypad Low Low 90 mA 45 mA 163 mA 91 mA
Standard 13.56 MHz/125 kHz SF/2F version with keypad Medium Low 90 mA 45 mA 181 mA 94 mA
Standard 13.56 MHz/125 kHz SF/2F version without
keypad Low Low 90 mA 45 mA 159 mA 89 mA
Standard 13.56 MHz/125 kHz SF/2F version without
keypad Medium Low 90 mA 45 mA 177 mA 92 mA
Slimline 13.56 MHz with keypad Low Low 50 mA 40 mA 164 mA 108 mA
Slimline 13.56 MHz with keypad Medium Low 50 mA 40 mA 217 mA 135 mA
Slimline 13.56 MHz without keypad Low Low 50 mA 40 mA 152 mA 103 mA
Slimline 13.56 MHz without keypad Medium Low 50 mA 40 mA 205 mA 130 mA
Slimline 13.56 MHz SF/2F version with keypad Low Low 75 mA 40 mA 127 mA 63 mA
Slimline 13.56 MHz SF/2F version with keypad Medium Low 75 mA 40 mA 127 mA 67 mA
Slimline 13.56 MHz SF/2F version without keypad Low Low 70 mA 40 mA 111 mA 58 mA
Slimline 13.56 MHz SF/2F version without keypad Medium Low 70 mA 40 mA 110 mA 59 mA
Slimline Economy 13.56 MHz without keypad Low Low 35 mA N/A 92 mA N/A
Slimline Economy 13.56 MHz without keypad Medium Low 35 mA N/A 114 mA N/A
The above values are excluding heater consumption which is variable and depending on configuration settings.
Default value is 220 mA at 12 VDC but can be configured in 20 mA intervals from minimum 120 mA to maximum
300 mA. When the heater is set in automatic mode, the heater will be activated when the internal temperature of the
reader is below +1°C, the heater will automatically deactivate when the internal temperature exceeds +5°C. Depend-
ing on the heater consumption setting the time it will take for the reader to exceed +5°C will vary- a higher power
consumption setting will reduce the time required to heat
the reader.
Current draw (idle) is defined as reader connected to power, no LED’s lit, buzzer is not sounding and no reading of
credential or key pressing is processed by the reader. Current draw (peak) is defined as reader powered with both
backlight and LED frame lit (Yellow), buzzer is sounding and reader is reading a credential while simultaneously a
key pressing is processed.
5
• 1pc Installation plate
• 1pc Reader module with front plate
• 1pc Front cover
• 2pcs Terminal connector (8-pin)
• 2pcs Installation screws
• 2pcs Screw plugs
• 1pc Cable strip
• 1pc Fixing screw
• 1pc Quick installation guide

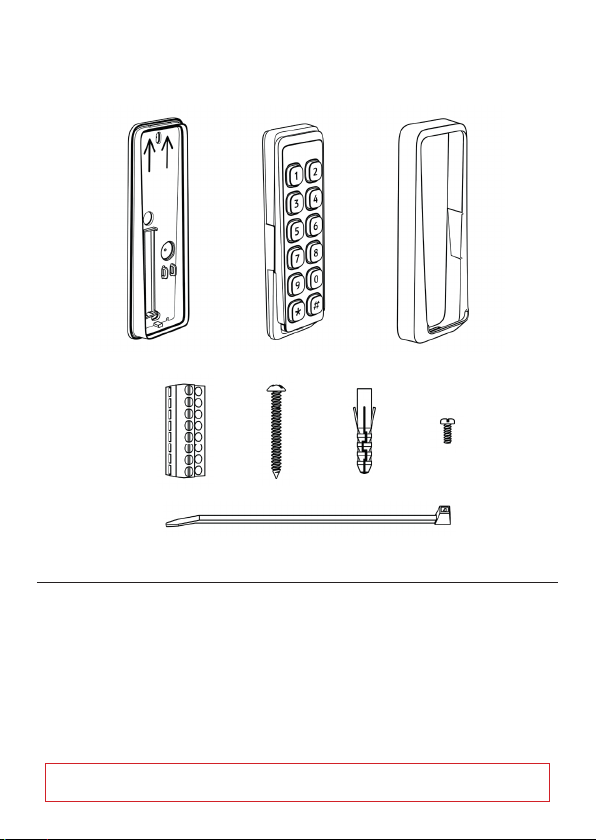

Package content:
* Please note that all pictures in this manual are illustrations and do not represent the actual sizes and form of the
components.
4
1 x
2 x 2 x 2 x 1 x
• 1pc Installation plate
• 1pc Reader module with front plate
• 1pc Front cover
• 2pcs Terminal connector (8-pin)
• 2pcs Installation screws
• 2pcs Screw plugs
• 1pc Cable strip
• 1pc Fixing screw
• 1pc Quick installation guide
Package content:
* Please note that all pictures in this manual are illustrations and do not represent the actual sizes and form
of the components.
6
~20 cm
In order to facilitate installation a cable length of 20 cm
is recommended.
7

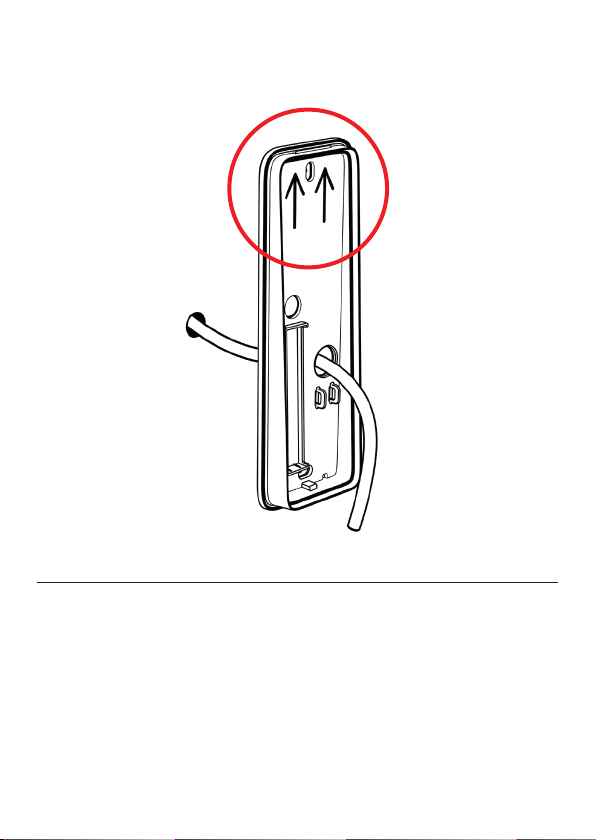

Ensure that the installation plate is fixed in the correct direction, i.e.
the arrows pointing upwards.
6
Ensure that the installation plate is xed in the correct direction, i.e.
the arrows pointing upwards.
8
Ensure that the area behind the tamper switch bulb of the in-stallation
plate is flat, to be able to push the bulb for correct tamper alarm func-
tionality. If it is not flat enough, you will find accessories in this manual
that will assist with improving this functionality.
9
When installing directly to wall or door, use the installation holes as
picture describes. If using other screws than the ones supplied with the
reader, make sure to use a flat headed screw with a maximum height of
2.8 mm and a maximum diameter of 7.8 mm on the screw head.
Make sure not to tighten the screws too hard as doing so will deform
and skew the installation plate. This may affect the tamper switch func-
tionality of the reader. Countersunk screws should never be used.
8
When installing directly to wall or door, use the installation holes
as picture describes. If using other screws than the ones supplied
with the reader, make sure to use a at headed screw with a maxi-
mum height of 2.8 mm and a maximum diameter of 7.8 mm on the
screw head.
Make sure not to tighten the screws too hard as doing so will
deform and skew the installation plate. This may aect the tamper
switch functionality of the reader. Countersunk screws should
never be used.
44 mm
113 mm
10 mm
10
Make sure to place the terminal connectors with the fastening screws fac-
ing towards you.
9
Make sure to place the terminal connectors with the fastening screws
facing towards you.
P1 - Blue socket
P2 - Black socket
