Lennox XC21 Dimensionsleitfaden

AIR CONDITIONERS

XC21

DAVE LENNOX SIGNATURE® COLLECTION

R-410A - Two-Stage Compressor - SilentComfort™ Technology

Bulletin No. 210586

October 2010

Supersedes September 2010

ENGINEERING DATA

SEER up to 21.00

2 to 5 Tons

Cooling Capacity - 23,200 to 59,500 Btuh

MODEL NUMBER IDENTIFICATION

x c 21 - 036 - 230 - 5

Nominal SEER

Unit Type

C = Air Conditioner

Refrigerant Type

X = R-410A

Nominal Cooling Capacity

024 = 2 tons

036 = 3 tons

048 = 4 tons

060 = 5 tons

Minor Revision Number

Voltage

230 = 208/230V-1ph-60hz

XC21 - 2 to 5 Ton Air Conditioner / Page 2

FEATURES

Equipment Warranty

Compressor - ten year limited warranty in residential

installations and ve years in non-residential installations.

All other covered components - ten years in

residential installations and one year in non-residential

installations.

Refer to Lennox Equipment Limited Warranty certicate

included with unit for specic details.

ApplicationS

SEER up to 21.00.

2 through 5 ton.

Single phase power supply.

Sound levels as low as 69 dB.

Vertical air discharge allows concealment behind shrubs

at grade level or out of sight on a roof.

Matching add-on furnace indoor coils or air handlers

provide a wide range of cooling capacities and

applications. See AHRI System Matches.

See Indoor Coils and Air Handlers tab sections for data.

Units shipped completely factory assembled, piped, and

wired. Each unit is test operated at the factory insuring

proper operation.

Installer must set air conditioner, connect refrigerant

lines, and make electrical connections to complete job.

Approvals

Certied in accordance with USE certication program

which is based on AHRI Standard 210/240-2008.

Sound rated in Lennox reverberant sound test room

in accordance with test conditions included in AHRI

Standard 270-2008.

Tested in the Lennox Research Laboratory

environmental test room.

Rated according to U.S. Department of Energy (DOE)

test procedures.

Air conditioners and components within bonded for

grounding to meet safety standards for servicing

required by ETL, NEC, and CEC.

Units are ETL listed for the US and Canada.

ISO 9001 Registered Manufacturing Quality System.

EnErgy Star® certied units are designed to use less

energy, help save money on utility bills, and help protect

the environment.

All models are listed in the GreenSpec® Directory, a

leading resource of environmentally responsible products.

For expanded ratings, see www.lennoxdavenet.com.

REFRIGERATION SYSTEM

R-410A Refrigerant

Non-chlorine, ozone friendly, R-410A.

Unit pre-charged with refrigerant.

See Specication table.

Outdoor Coil Fan with SilentComfort™ Technology

Specially-designed, SilentComfort™ fan guard uses

Passive Vortex Suppression to reduce air noise.

Constructed of corrosion-resistant PVC (polyvinyl

chloride) coated steel.

Specially designed fan

blades reduce operating

sound levels. Direct drive fan

moves large air volumes

uniformly through entire

condenser coil for high

refrigerant cooling capacity.

Vertical air discharge

minimizes operating sounds

and eliminates damage to

lawn and shrubs.

Fan motor is inherently protected.

All models have a variable-speed outdoor fan motor for

quiet operation.

Motor totally enclosed for maximum protection from

weather, dust and corrosion.

Fan service access accomplished by removal of fan

guard.

A B

Contents

AHRI System Matches................................................14

Dimensions .................................................................12

Electrical Data ............................................................10

Features........................................................................2

Field Wiring .................................................................11

Installation Clearances ...............................................11

Model Number Identication .........................................1

Optional Accessories ..................................................10

Outdoor Sound Data ...................................................11

Specications..............................................................10

Sunsource® Home Energy System - Components .......7

XC21 - 2 to 5 Ton Air Conditioner / Page 3

Copper Tube/Enhanced Fin Coil

Lennox designed and fabricated coil.

Ripple-edged aluminum ns.

Copper tube construction.

Lanced ns provide maximum exposure of n surface to

air stream resulting in excellent heat transfer.

Fin collars grip tubing for maximum contact area.

Flared shoulder tubing connections/silver soldering

construction.

Coil is factory tested under high pressure to insure

leakproof construction.

Entire coil is accessible for cleaning.

High Pressure Switch

Shuts off unit if abnormal operating conditions cause the

discharge pressure to rise above setting.

Protects compressor from excessive condensing

pressure.

Automatic reset.

Low Pressure Switch

Shuts off unit if suction pressure falls below setting.

Provides loss of charge and freeze-up protection.

Automatic reset.

Hi-Capacity Liquid Line Drier

Factory installed in the liquid line, the drier traps

moisture or dirt that could contaminate the refrigerant

system.

100% molecular-sieve bead type drier.

OPTIONS

Expansion Valve Kits

Must be ordered extra and eld installed on certain

indoor units. See TXV Usage table on page 13.

Chatleff style tting.

Freezestat

Installs on or near the discharge line of the indoor coil or

on the suction line.

Senses suction line temperature and cycles the

compressor off when suction line temperature falls

below it’s setpoint.

Opens at 29°F and closes at 58°F.

Refrigerant Line Kits

Refrigerant lines (suction & liquid) are shipped

refrigeration clean. Lines are cleaned, dried,

pressurized, and sealed at factory.

Suction line fully insulated.

L15 lines are stubbed at both ends.

See Specications table for selection.

Not available for -060 model and must be eld

fabricated.

COMPRESSOR

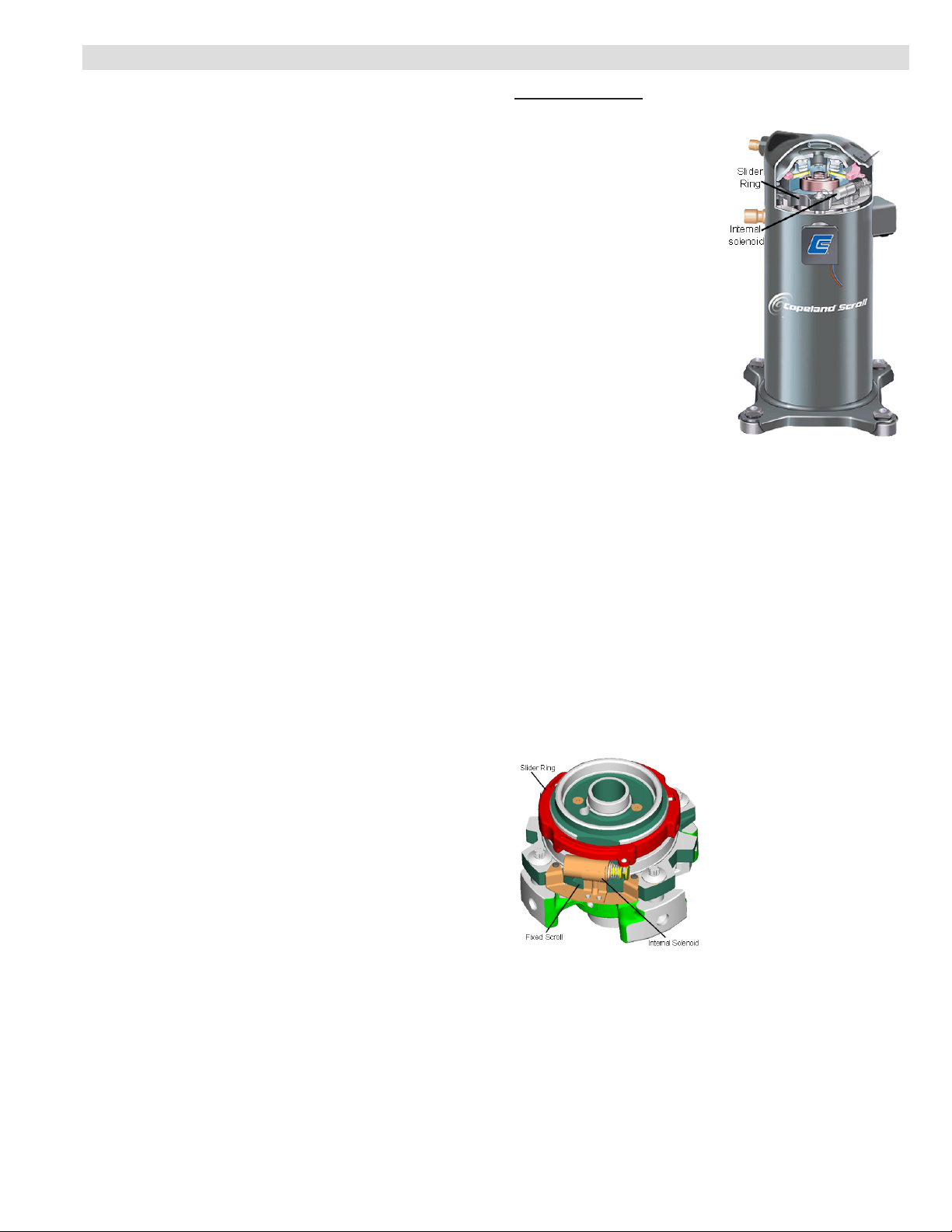

Copeland Scroll Ultra Tech™ Two-Stage Compressor

Compressor features high

efciency with uniform

suction ow, constant

discharge ow and high

volumetric efciency and

quiet operation.

Compressor consists of

two involute spiral scrolls

matched together to generate

a series of crescent shaped

gas pockets between them.

During compression, one

scroll remains stationary

while the other scroll orbits

around it.

Gas is drawn into the outer

pocket, the pocket is sealed

as the scroll rotates.

As the spiral movement continues, gas pockets are

pushed to the center of the scrolls. Volume between the

pockets is simultaneously reduced.

When pocket reaches the center, gas is now at high

pressure and is forced out of a port located in the

center of the xed scrolls. During compression, several

pockets are compressed simultaneously resulting in a

smooth continuous compression cycle.

Continuous ank contact, maintained by centrifugal

force, minimizes gas leakage and maximizes efciency.

Scroll compressor is tolerant to the effects of slugging

and contaminants. If this occurs, scrolls separate,

allowing liquid or contaminants to to be worked toward

the center and discharged.

On the xed scroll there are two bypass ports in the rst

suction pocket. On the

outside of the xed scroll

there is a “slider ring” that

is controlled by an internal

solenoid that will rotate and

cover the bypass ports.

When the thermostat calls

for rst-stage cooling, the

bypass ports are open and

the compressor operates

at 67% capacity, creating

more cost-effective and efcient compressor operation.

The bypassed refrigerant is returned to the compressor

housing through the bypass ports. When the thermostat

calls for second-stage cooling, the internal solenoid is

energized, the slider ring rotates and covers the bypass

ports, and the compressor operates at full capacity.

Low gas pulses during compression reduces

operational sound levels.

Compressor motor is internally protected from

excessive current and temperature.

FEATURES

XC21 - 2 to 5 Ton Air Conditioner / Page 4

COMPRESSOR (CONTINUED)

Compressor is installed in the unit on specially

formulated, resilient rubber mounts for better sound

dampening and vibration free operation.

Crankcase Heater

Crankcase heater prevents migration of liquid

refrigerant into compressor and ensures proper

compressor lubrication.

CONTROLS

icomfort™ Control

Advanced control communicates

information about various

operating parameters in

the air conditioner to the

optional icomfort Touch™

Communicating Thermostat to

constantly maintain the highest

level of comfort, performance and

efciency available.

Connections for connecting a

conventional heating/cooling

thermostat are also provided on

the control.

Auto Conguration - On start-up the control

automatically sends a description of the unit to

the optional icomfort Touch™ Communicating

Thermostat to automatically congure the number of

stages and features available.

Control also features:

• Compressor anti-short cycle delay. User selectable

with communicating thermostat - 1, 2, 3, 4 or 5

minutes. Default setting is 5 minutes.

Compressor must operate in rst stage a minimum

of 5 seconds before second stage operation is

permitted.

• Low voltage protection prevents 2nd stage

compressor operation when voltage is not within the

specied range.

• High and low pressure switch monitoring with

provisions for lockout.

• Five-Strike lockout protection protects compressor.

• Discharge line temperature and sensor monitoring.

• Lennox Humiditrol® Whole Home Dehumidication

System (EDA) compatible.

• EEPROM storage of all local congurations.

Lennox Systems Operations Monitor

(icomfort™ Control Feature)

Onboard Lennox® Systems Operations Monitor (LSOM)

provides detailed information for proper preventative

maintenance and fast, easy servicing.

Displays the most common fault conditions (electrical

and mechanical) through the icomfort Touch™

Communicating Thermostat or through the ALERT

and TRIP lights on the control. ALERT LED (yellow) -

communicates an abnormal system condition through a

unique ash code. The ALERT LED will ash a number

of times consecutively, pause and then repeat the

process. The number of consecutive ashes, dened

as the Flash Code, correlates to a particular abnormal

condition. The codes can indicate one of the following:

long run time, system pressure trip (discharge or suction

pressure out-of-limits or compressor overloaded), short

cycling, locked rotor, open circuit, open start circuit

(current present only in run circuit), open run circuit

(current present only in start circuit), welded contactor

(compressor runs continuously), or low voltage (control

circuit < 17VAC). TRIP LED (red) - indicates there is a

demand signal from the thermostat but no current to the

compressor is detected by the monitor.

OPTIONS

Compressor Low Ambient Cut-Off

Non-adjustable switch (low ambient cut-out) prevents

compressor operation when outdoor temperature is

below 35°F.

Compressor Hard Start Kit

Single-phase units are equipped with a PSC

compressor motor.

This type of motor normally does not need a potential

relay and start capacitor.

In conditions such as low voltage, kit may be required to

increase the compressor starting torque.

Indoor Blower Off Delay Relay

Delays the indoor blower-off time during the cooling

cycle. Required if outdoor unit is used with a

conventional heating-cooling thermostat and air handler

(not icomfort™ control). See furnace or air handler

specications to determine if relay is needed.

Indoor Blower Speed Relay Kit

Relay kit provides optimum humidity control conditions

by automatically reducing indoor blower speed during

continuous fan or rst-stage compressor operation.

Low Ambient Kit

Air conditioner will operate satisfactorily down to 45°F

outdoor air temperature without any additional controls.

Kit can be added in the eld enabling unit to operate

properly down to 30°F.

A Freezestat should be installed on compressors

equipped with a low ambient kit.

A Compressor Low Ambient Cut-Off should be added to

terminate compressor operation below recommended

operation conditions.

FEATURES

XC21 - 2 to 5 Ton Air Conditioner / Page 5

FEATURES

CONTROLS (CONTINUED)

icomfort Touch™ Communicating Thermostat

(part of the icomfort™ Residential Communicating

Control System)

The icomfort Touch™

Communicating

Thermostat recognizes and

connects to all icomfort™-

enabled products to

automatically congure and

control the system (based on

user-specied settings) for

the highest level of comfort,

performance and efciency. Also recognizes model

and serial number information for icomfort™-enabled

products to simplify installation.

Large full color touchscreen - no hidden buttons or

doors.

A simple easy-to-use menu-driven touchscreen allows

complete system conguration. Scheduled maintenance

alerts, system warnings and troubleshooting are also

displayed in simple English on thermostat screen.

Conventional products (not icomfort™-enabled) can

easily be added and controlled by the icomfort Touch™

Communicating Thermostat.

A tabbed interface lists all programming options on the

screen.

Installer setup screens allow quick and simple system

conguration without a manual, Installer can also run

tests on complete system or individual components for

easy maintenance and troubleshooting.

Serial communications bus (RSBus), with less wiring

than a conventional heating/cooling system, allows

system communication. Uses 4-wire, 18-gauge

standard thermostat wiring.

See the icomfort Touch™ Communicating Thermostat

Engineering Handbook bulletin in the Controls section

for more information.

Discharge Air Temperature Sensor

Used with icomfort Touch™ Communicating

Thermostat.

When installed in the supply air plenum, the discharge

air temperature sensor allows the icomfort Touch™

Communicating Thermostat to control low and high

stage heating temperatures. Sensor is auto-detected

when connected to thermostat.

ComfortSense® 7000 Touchscreen Thermostat

Electronic 7-day, universal, multi-stage, programmable,

touchscreen thermostat.

4 Heat/2 Cool.

Auto-changeover.

Controls humidity during

cooling mode.

Offers enhanced capabilities

including humidication /

dehumidication / dewpoint

measurement and control, Humiditrol® control, and

equipment maintenance reminders.

Easy-to-use, menu driven thermostat with a back-lit,

LCD touchscreen.

Remote outdoor temperature sensor (optional) allows

the thermostat to display outdoor temperature. Required

in dual-fuel and Humiditrol® applications.

See the ComfortSense® 7000 Engineering Handbook

bulletin in the Controls section for more information.

Outdoor Temperature Sensor

Used with icomfort Touch™

Communicating Thermostat and

ComfortSense® 7000 thermostat.

When installed outdoors, sensor

allows thermostat to display outdoor

temperature.

NOTE - Sensor is required for

Humiditrol® applications.

Thermostat

Thermostat (icomfort Touch™ Communicating

Thermostat, or programmable/non-programmable) is

not furnished with unit.

See Thermostat bulletins in Controls Section and

Lennox Price Book for selection.

INDOOR RH 26%

WED AN 21 12:35AM

MODE

AUTO

HOME SCHEDULE OPTIONS

SET AT

HEAT

COOL

SCHED

XC21 - 2 to 5 Ton Air Conditioner / Page 6

FEATURES

Cabinet

Heavy-gauge steel construction

Pre-painted cabinet nish.

Painted base section.

Compressor and control box located in a separate

compartment, insulated with thick berglass insulation.

Compartment provides protection from the weather and

keeps sound transmission at a minimum.

Control box is conveniently located with all controls

factory wired.

Large removable panel provides service access.

Drainage holes are provided in base section for

moisture removal.

High density polyethylene unit support feet raise the

unit off of the mounting surface, away from damaging

moisture.

SmartHinge™ Louvered Coil Protection

Steel louvered panels

provides complete coil

protection.

Panels are hinged to

allow easy cleaning and

servicing of coils.

Panels may be

completely removed.

Interlocking tabs and

slots assure tight t on

cabinet.

Refrigerant Line

Connections, Electrical Inlets and Service Valves

Suction and liquid lines are located on corner of unit

cabinet and are made with sweat connections. See

dimension drawing.

Fully serviceable brass service valves prevent corrosion

and provide access to refrigerant system. Suction valve

can be fully shut off, while liquid valve may be front

seated to manage refrigerant charge while servicing

system.

Suction and liquid line service valves and gauge ports

are located inside the cabinet.

Refrigerant line connections and eld wiring inlets

are located in one central area of the cabinet. See

dimension drawing.

XC21 - 2 to 5 Ton Air Conditioner / Page 7

SUNSOURCE® HOME ENERGY SYSTEM - COMPONENTS

SYSTEM OVERVIEW

All Dave Lennox Signature®

Collection air conditioners and

heat pumps are equipped at the

factory for upgrading to the

SunSource® Home Energy System.

Units can be upgraded at the time of installation or in

the future.

Solar energy is rst used to meet cooling/heating

demands. When the cooling/heating system is not

operating, the system powers lighting, appliances and

other electronic devices in the home. And in some

locations, any surplus power is sent back to the utility

company for a possible credit (check with your local

utility company for availability).

The SolarSync™ Package consists of the following

components:

• Lennox Solar Subpanel eld installed in a Dave

Lennox Signature® Collection air conditioner or heat

pump unit.

• Solar Modules (1 to 15 may be used to vary the

amount of electricity generated).

• Envoy Communications Gateway that monitors home

energy usage.

All components must be ordered separately.

Wiring from the roof mounted solar modules is routed to

the outdoor unit. From there power travels to the home

electrical service panel using the existing outdoor unit

power wiring.

NOTE - Refer to separate Engineering Handbook

Bulletin for the SunSource® Home Energy System

for more detailed information. See section Solar - Kits/

Accessories.

Also refer to SunSource® Home Energy System

Applications and Design Guidelines Manual (Corp.

1021-L3) for complete information on designing, sizing

and installing a complete system.

APPROVALS

The SunSource® Home Energy System meets the

requirements for federal tax credits listed under the

U.S. Emergency Economic Stabilization Act of 2008,

covering 30% of the cost of the solar modules, including

installation.

LENNOX® SOLAR SUBPANEL

The Lennox® Solar Subpanel replaces the

factory piping panel on the outdoor unit and

provides circuit breaker protection and power

entry for both HVAC (line) and solar power

wiring.

Subpanel is equipped with separate circuit

breakers for both HVAC (line) voltage and

solar power.

Equipped with pigtail connections for easy

eld wiring.

Subpanel is an ETL listed accessory.

Split design (upper/lower panel) allows installation on

different size outdoor units. Subpanel is furnished with

three separate lower panels. See Outdoor Unit Usage

table for correct lower panel size.

Note - Subpanel is not backwards compatible with older

Dave Lennox Signature® Collection outdoor units.

Disconnects for HVAC (line) and solar power wiring are

not furnished and must be eld provided.

SOLAR MODULES

Converts solar energy

into electricity.

Built-in racking

hardware, wiring,

grounding and

microinverters.

Microinverters produce AC power synchronized to the

utility grid.

Modules operate independently from each other

allowing modules that are not shaded or dirty to operate

with optimum performance.

Racking system is built-in to the module frame.

Painted at black frame.

Four modules furnished per order.

Solar modules are UL listed, CSA certied and meet

National Electrical Code requirements.

Solar Modules

Future

Modules

Air Conditioner

or Heat Pump

Standard

Outlet

Communication

Gateway

Performance

Monitoring

Website

Broadband

Internet

Connection

Electrical

Panel

Unit

XC21 - 2 to 5 Ton Air Conditioner / Page 8

SUNSOURCE® HOME ENERGY SYSTEM - COMPONENTS

SOLAR MODULES (CONTINUED)

Roof Mounting Kits

Several roof mounting kits for mounting Solar Modules

are available for a variety of different roof styles. All

kits contain enough hardware for mounting four solar

modules.

Composition (Asphalt) Shingle Roof Mounting Kit

Kit includes: (6 each) Composition ashing mounts,

serrated L-brackets, solar module splices, serrated

T-bolts, ange nuts, lag bolts, fender washers, (2) wire

spring clips, (1) ground lug w/screw, (1) installation

wrench.

S or Barrel Tile Roof Mounting Kit

Kit includes: (6 each) S/Barrel tile mounts, mount foots,

6 in. aluminum posts, serrated L-brackets, solar module

splices, serrated T-bolts, ange nuts, washers, hex

bolts, (2) Wire spring clips, (1) ground lug w/screw, (1)

installation wrench.

Flat (Cement) Tile Roof Mounting Kit

Kit includes: (6 each) at tile bracket, universal tile

bracket, solar module splices, T-bolts, (36) ange nuts,

(12) fender washers, (12) washers, (12) lag bolts, (2)

wire spring clips, (1) ground lug w/screw, (1) installation

wrench.

Standing Seam Roof Mounting Kit

Kit includes: (8 each) S-5!™ standing seam clamps,

ip clips, mounting spacers, hex bolts, (6) solar module

splices, (2) wire spring clips, (1) ground lug w/screw, (1)

installation wrench.

Installation Kits and Tools

AC System Kit (Required - One per each outdoor unit)

Kit includes interconnection cable required to connect

the eld installed wiring from the solar modules to the

outdoor unit. Also includes the end cap to place on

the last microinverter connection in the row. One kit

required per outdoor unit.

Kit contains 6 ft. AC interconnection cable and end cap.

AC 6 Foot Extension Cable

Six foot extension cable for connecting one row of

modules to the next if they are further than the standard

interconnection cable can reach (second row above or

below, etc.). Only required for multiple rows.

Rooftop Junction Box

Flash mounted rooftop junction box is used to transition

from interconnection cable to wiring/conduit to the

outside HVAC unit. Use one for each outdoor unit.

Professional Installer Tool Kit

Installer tools to aid in installation. Includes driver to

tighten splices with ratchet from opposite side of module

(in place of wrench) and step block to support module

while until splices and mounting points are installed.

Includes (2) Splice drivers and (2) Step Blocks

Solar Module Splices

Required if installing a second row of solar modules

above or below an existing row or adding additional 4

packs of modules end to end.

Splices used in top and bottom applications are not a

grounding component and only act as a rigid attachment

to support the upper or lower module frame of the

second row to the module frame of the existing row.

Allows for fewer roof penetrations by supporting the

upper and lower solar modules in a two-row application

with a common roof mount in-between.

Kit contains 10 splices.

SYSTEM MONITORING

Envoy Communications Gateway

The Envoy Communications Gateway monitors

microinverter (on solar

modules) performance

and can be connected

to a broadband internet

connection to send

data to the Enphase

Enlighten™ web site

for online monitoring by the homeowner. The Envoy

Communications Gateway is not required, but must be

used if system performance monitoring is desired.

System monitoring is also available locally with the

Envoy Communications Gateway and a personal

computer if no internet connection is available.

Various Event Messages are also available when

monitoring the system via a personal computer locally.

Contents - (1) Envoy Communications Gateway, (1) 6 ft.

power cord, (1) 10 ft. Ethernet cable.

CSA (US/C) listed.

Enphase Enlighten™ Performance Monitoring Website

Communications Gateway,

the Enphase Enlighten™

Performance Monitoring

website allows the

homeowner to keep track

of home energy usage and

see environmental benets

in real time.

See demos, view reference

installations and other additional information at:

http://enlighten.enphaseenergy.com/

Communications Booster

Ethernet bridge signal booster for the Envoy

Communications Gateway. Booster is only needed if the

communications gateway is installed and signal is not

strong enough in the installed location. Allows the unit to

be plugged into an outlet closer to the distribution panel,

yet still plug into the broadband router.

XC21 - 2 to 5 Ton Air Conditioner / Page 9

SUNSOURCE® HOME ENERGY SYSTEM - COMPONENTS

Description Catalog Number

OUTDOOR UNIT COMPONENTS

Lennox® Solar Subpanel

(see table below for lower subpanel usage)

67W83

SOLAR COMPONENTS

Solar Module (4-pack)

175 W, single-phase 240 VAC. Weight - 46 lbs. (each module)

Y3303

Dimensions (L x W x D)

62-5/8 x 32-1/4 x 2-3/4 in. (1590 x 819 x 70 mm)

ROOF MOUNTING KITS FOR SOLAR MODULES (Kits contain enough hardware for mounting four solar modules)

Composition (Asphalt) Shingle Y3306

Flat (Cement) Tile Y3307

S or Barrel Tile Y3308

Standing Seam Y3309

INSTALLATION KITS AND TOOLS

AC System Kit (Required - One per each outdoor unit) Y3310

AC 6 Foot Extension Cable Y3313

Rooftop Junction Box Y3312

Professional Installer Tool Kit Y3314

Solar Module Splices (10-pack) Y3311

MONITORING CONTROLS

Envoy Communications Gateway Y3304

Communications Booster Y3305

LENNOX® SOLAR SUBPANEL - OUTDOOR UNIT USAGE

Outdoor Unit Model No. Lower Subpanel Height - in. (mm)

27 (686)

XC21 (All Sizes) X

XC21 - 2 to 5 Ton Air Conditioner / Page 10

SPECIFICATIONS

General

Data

Model No. XC21-024 XC21-036 XC21-048 XC21-060

Nominal Tonnage 2 3 4 5

Connections

(sweat)

Liquid line (o.d.) - in. 3/8 3/8 3/8 3/8

Suction line (o.d.) - in. 7/8 7/8 7/8 1-1/8

Refrigerant 1 R-410A charge furnished 11 lbs. 12 oz. 12 lbs. 5 oz. 13 lbs. 0 oz. 13 lbs. 0 oz.

Outdoor

Coil

Net face area - sq. ft. Outer coil 27.21 27.21 27.21 27.21

Inner coil 26.36 26.36 26.36 26.36

Tube diameter - in. 5/16 5/16 5/16 5/16

No. of rows 2 2 2 2

Fins per inch 22 22 22 22

Outdoor

Fan

Diameter - in. 26 26 26 26

No. of blades 5 5 5 5

Motor hp 1/4 1/4 1/4 1/4

Cfm - 1st stage 3030 3350 3825 3825

2nd stage 3500 3845 4230 4230

Rpm - 1st stage 475 525 600 600

2nd stage 550 600 675 675

Watts - 1st stage 70 90 135 135

2nd stage 105 125 185 185

Shipping Data - lbs. - 1 pkg. 314 331 337 357

ELECTRICAL DATA

Line voltage data - 60hz 208/230V-1ph 208/230V-1ph 208/230V-1ph 208/230V-1ph

3 Maximum overcurrent protection (amps) 25 35 45 50

2 Minimum circuit ampacity 14.9 23.7 28.5 34.1

Compressor Rated load amps 10.3 16.7 21.2 25.7

Locked rotor amps 52 82 96 118

Power factor 0.98 0.98 0.98 0.98

Outdoor Fan Motor - Full load amps 2.8 2.8 2.8 2.8

CONTROLS

icomfort Touch™ Communicating Thermostat 49W95 49W95 49W95 49W95

4 Remote Outdoor Sensor (for Humiditrol®) X2658 X2658 X2658 X2658

5 Discharge Temperature Sensor 88K38 88K38 88K38 88K38

ComfortSense® 7000 Thermostat Y0349 Y0349 Y0349 Y0349

Remote Outdoor Sensor (for Humiditrol®) X2658 X2658 X2658 X2658

OPTIONAL ACCESSORIES - MUST BE ORDERED EXTRA

Compressor Hard Start Kit 10J42  

81J69  

Compressor Low Ambient Cut-Off 45F08    

Freezestat 3/8 in. tubing 93G35    

5/8 in. tubing 50A93    

Indoor Blower Speed Relay Kit 40K58    

Low Ambient Kit 68M04    

Refrigerant

Line Sets

L15-65-30

L15-65-40

L15-65-50

   

Field Fabricate    

Indoor Blower Off Delay Relay 58M81    

NOTE - Extremes of operating range are plus 10% and minus 5% of line voltage.

1 Refrigerant charge sufcient for 15 ft. length of refrigerant lines.

2 Refer to National or Canadian Electrical Code manual to determine wire, fuse and disconnect size requirements.

3 HACR type breaker or fuse.

4 Remote Outdoor Sensor may be used with an icomfort™-enabled outdoor unit for a secondary (alternate) sensor reading. Sensor may also be used with a conventional

Andere Handbücher für XC21

Inhaltsverzeichnis

Andere Lennox Luftkompressor Handbücher

Lennox

Lennox HS29-072 Bedienungsanleitung

Beliebte Luftkompressor Handbücher anderer Marken

Sparmax

Sparmax DC-25XR Bedienungsanleitung

KAESER

KAESER M122 Bedienungsanleitung

GMC

GMC GAC1500 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Air Compressor Bedienungsanleitung

Fini

Fini F3GST2TK Bedienungsanleitung

Industrial Air

Industrial Air CP1580325 Programmierhandbuch

Campbell Hausfeld

Campbell Hausfeld RP3300 Kurzanleitung

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Bedienungsanleitung

Hitachi

Hitachi EC99S Bedienerhandbuch

Parkside

Parkside PKO 270 A1 Bedienungsanleitung

Sullair

Sullair 185 Bedienungsanleitung

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Bedienungsanleitung

Ferm

Ferm CRM1046 Bedienungsanleitung

BE AC153 Bedienungsanleitung

RIDGID

RIDGID OF25150A Bedienungsanleitung

Johnson Controls

Johnson Controls QUANTUM LX Handbuch

Sears

Sears Craftsman 919.167463 Bedienungsanleitung

Ring Automotive

Ring Automotive RAC700 Bedienungsanleitung
