Lennox VRF F1943L-3P Montageanleitung

The F1943L-3P (19B16) is a wired local touchscreen

controller for VRF Heat Recovery, VRF Heat Pump and

Mini-VRF Systems.

Remote control via Wi-Fi is available with the free VRF

Controller App. See page 7.

NOTE - Refer to the Controller Installation Instructions and

the App User Manual for additional information.

Touchscreen Display

• 4 in. capacitive touchscreen with full color LCD display

and intuitive navigation

• Screen is illuminated when touched and remains lit

during control access

Dimensions

• 3-5/8 x 5 x 7/8 in. (H x W x D)

• Wallplate and additional hardware is furnished for

installation

Wiring

• Controller uses low voltage 4-wire 18AWG shielded cable

(not furnished) for easy connection to the indoor unit

Grouping

• Controller can control up to 16 indoor units on the same

system

F1943L-3P

Touchscreen Wi-Fi Controller

60 Hz

Bulletin No. 210967

July 2023

Supersedes April 2022

VARIABLE REFRIGERANT FLOW SYSTEMS

COMMERCIAL

PRODUCT SPECIFICATIONS

VRF

F1943L-3P TOUCHSCREEN WI-FI CONTROLLER

CONTROLLER USER SETTINGS

HOME SCREEN (Thermostat ON) Notes

Touch blank screen to turn on the backlight

if brightness setting is set to 0%.

ACTUAL TEMPERATURE DISPLAY Touch the MODE button on the upper-right

of the home screen to access the Main

Menu screen.

UP/DOWN ARROWS ADJUST

TEMPERATURE

62°F to 86°F

TEMPERATURE “SET TO” DISPLAY

RELATIVE HUMIDITY DISPLAY

MODE HEAT

COOL

OFF

F1943L-3P Wi-Fi Programmable Controller / Page 2

CONTROLLER USER SETTINGS

MAIN MENU SCREEN Notes

SETTINGS (Gear Icon) Touch the gear icon on the upper-right of the

screen to access the Settings screen. See

page 2.

SYSTEM MODE OFF Touch a button to switch unit operation.

HEAT

COOL

AUTO

DRY

FAN OPERATION

(ALWAYS ON)

OFF

FAN SPEED LOW

MED

MAX

AUTO

SETTINGS SCREEN Notes

FAHRENHEIT / CELSIUS

TEMPERATURE

ON Touch button to switch between Fahrenheit

(default) and Celsius.

OFF

NETWORK Touch to set up network connection. Refer

to the VRF Wi-Fi Controller Mobile App

User Manual for complete Wi-Fi setup

instructions. See page 7.

DISPLAY BRIGHTNESS 0 to 100% Touch to adjust brightness.

0% setting turns off screen after 30

seconds.

ADDITIONAL SETTINGS Touch to access Additional Setting screen.

See page 3.

V0STAT51P-3 Wi-Fi Programmable Controller / Page 3

CONTROLLER USER SETTINGS

ADDITIONAL SETTINGS SCREEN Notes

SERVICE MENU Touch to access Service Menu screen, see

page 3. Passcode protected.

INFO SCREEN Displays controller information (rmware,

etc.).

REBOOT DEVICE BUTTON Reboots Controller

SERVICE MENU SCREEN (Passcode Required) Notes

ARTIFICIAL CALIBRATION -5°F to 5°F Touch to adjust temperature.

AUXILIARY HEAT SETUP Touch for Aux Setup screen. See page 3.

CHANGE PASSCODE Touch to change passcode. Enter a new

passcode (4 digits). Touch Save to store.

INDOOR UNIT SETTINGS Touch for Indoor Unit Settings screen. See

page 6.

AUXILIARY HEAT SETUP Notes

NONE

ELECTRIC HEAT IDU/DUCTING Touch to select Heating type. Touch Next to

go to the Aux/Alt Heat Options screen. See

page 4.

GAS HEAT

OTHER HEAT

F1943L-3P Wi-Fi Programmable Controller / Page 4

CONTROLLER USER SETTINGS

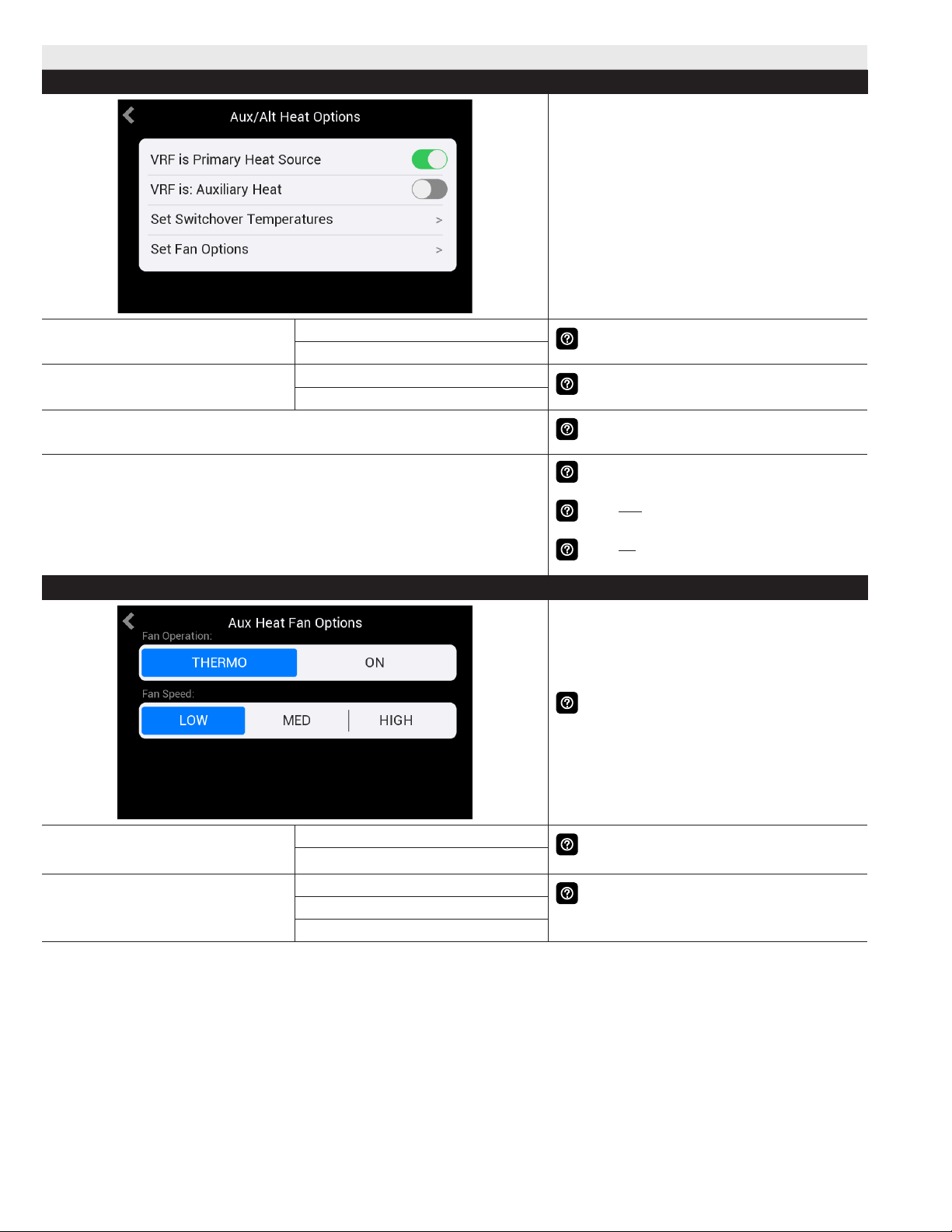

AUX/ALT HEAT OPTIONS SCREEN Notes

VRF is PRIMARY HEAT SOURCE ON (default) Touch button to switch.

OFF

VRF is AUXILIARY HEAT ON Touch button to switch.

OFF (default)

SET SWITCHOVER TEMPERATURE Touch for Set Switchover Temperatures

screen. See page 5.

SET FAN OPTIONS The Set Fan Options screen displayed is

dependent on the heat type selected.

See Aux Heat Fan Options screen for Electric

Heat on page 4.

See Alt Heat Fan Options screen for Gas Heat

or Other on page 5.

AUX HEAT FAN OPTIONS SCREEN Notes

This screen is for Electric Heat fan settings.

FAN OPERATION THERMO Touch to switch.

FAN SPEED LOW Touch to switch.

MED

HIGH

V0STAT51P-3 Wi-Fi Programmable Controller / Page 5

CONTROLLER USER SETTINGS

ALT HEAT FAN OPTIONS SCREEN Notes

This screen is for Gas Heat or Other Heat

source fan settings.

FAN OPERATION OFF Touch to switch.

THERMO

FAN SPEED LOW Touch to switch.

MED

HIGH

SWITCHOVER TEMPERATURES SCREEN Notes

SET AUX/ALT DELTA TEMPERATURE –20°F to 0°F Touch to adjust temperature.

SET SWITCHOVER TEMPERATURE –8°F to 80°F Touch to adjust temperature.

F1943L-3P Wi-Fi Programmable Controller / Page 6

CONTROLLER USER SETTINGS

INDOOR UNIT SETTINGS SCREEN Notes

STATIC PRESSURE SETTING 0.00 to 1.00 in. w.g. Touch up/down arrows to adjust. Touch

Save button to store.

SWING SETTINGS Vertical Swing Settings Touch to set Swing Settings. See page 6.

Horizontal Swing Settings

SET INDOOR UNIT ADDRESS 1 to 16 Touch up/down arrows to adjust. Touch

Save button to store.

TEMPERATURE SENSOR USE Controller (default) Touch to switch.

Individual Indoor Unit

SWING SETTINGS SCREEN Notes

VERTICAL SWING SETTINGS Swing Touch Swing to activate up/down louver

operation. Louvers oscillate up and down

automatically.

Touch a Position number to set the louvers

at one of ve different xed airow angles.

Pos1

Pos2

Pos3

Pos4

Pos5

HORIZONTAL SWING SETTINGS ON Touch to activate left/right louver operation.

Louvers swing left and right automatically.

OFF

Reset Button

• Reset button is hidden behind the rst grill on the top right of

the controller.

• Single Press - Reboots the controller without changes to the

stored information.

• Long Press - Holding the switch down for more than Five

Seconds enables a factory reset.

NOTE - Factory reset does not erase network connection

information.

V0STAT51P-3 Wi-Fi Programmable Controller / Page 7

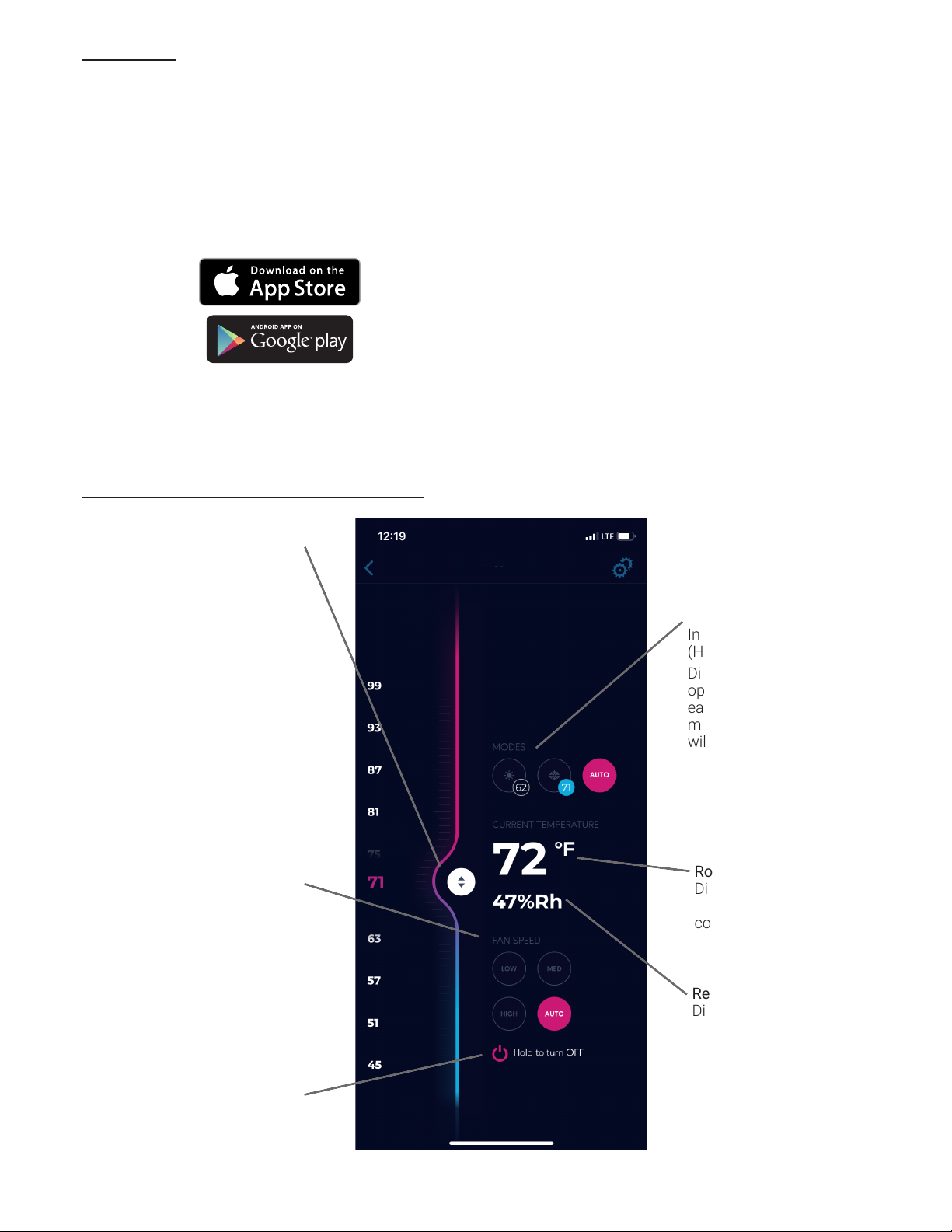

Power

Press and Hold to turn the

indoor unit on or off.

Setpoint Adjustment

Slide Up or Down to adjust

the setpoint for the currently

selected mode of operation.

To set the setpoints for Auto

mode, select each Cooling and

Heating setpoint separately

and set the setpoints for each

one, then select Auto Mode.

Room Temperature Display

Displays the temperature of

the temperature sensor in the

controller.

Mode Selection

Indoor unit mode of operation

(Heat/Cool/Auto).

Displays the mode of

operation and setpoint for

each mode. When in Auto

mode, each mode of operation

will display its own setpoint.

Relative Humidity Display

Displays the relative humidity

reading of the humidity

sensor in the controller (not

adjustable).

Fan Speed Selection

Indoor unit fan speed

(Low/Med/High/Auto).

MOBILE APP CONTROLLER SCREEN SETTINGS

MOBILE APP

The free VRF Controller app is available for use on

iPhone®and iPad®, Android™ devices.

Control cooling/heating temperatures, operating mode,

fan operation and power for multiple units.

Allows remote control of VRF systems directly from a

smartphone. The intuitive design gives you direct control

over your system and comfort control, all in an easy-to-

use layout.

NOTE - Refer to the VRF Wi-Fi Controller Mobile App User

Manual for complete Wi-Fi setup instructions.

Apple, the Apple logo, iPhone and iPad are trademarks of Apple Inc. registered in

the US and other countries.

Android is a trademark of Google Inc. Use of this trademark is subject to Google

permission.

NOTE - Due to Lennox’ ongoing commitment to quality, Specications, Ratings and Dimensions subject to change without notice and without incurring liability.

Improper installation, adjustment, alteration, service or maintenance can cause property damage or personal injury.

Visit us at www.Lennox.com

For the latest technical information, www.LennoxCommercial.com

REVISIONS

Sections Description of Change

Document Additional features added.
