INSTALLATION INSTRUCTIONS FOR TRIM KITS

FOR USE WITH MODELS MPE-33R AND MPE-36R ELECTRIC FIREPLACE

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Page 1 of 2

LENN

X HEARTH PR

KITS AND ACCESSORIES

Cat. No. Model Description

H1538 TK3-36BL 3-pc. Black Trim Kit, MPE-36R,

H1539 TK3-36PB 3-pc. Brass Trim Kit, MPE-36R

H1540 TK3-36BS 3-pc. Stainless Trim Kit, MPE-36R

H3435 TK3-33BL 3-pc. Black Trim Kit, MPE-33R

H3436 TK3-33PB 3-pc. Brass Trim Kit, MPE-33R

H1932 TK3-33BS 3-pc. Stainless Trim Kit, MPE-33R

775,175M REV. B

12/2005

* KIT CONTENTS:

1 ea. Top Panel

1 ea. Left Side Panel

1 ea. Right Side Panel

6 ea. Magnets

* Note: Trim Kits with Brass and Stainless Finishes also include:

1 ea. Left Side Channel

1 ea. Right Side Channel

1 ea. Top Channel

Double-sided tape on panels

(If the kit you purchased includes channels and double-sided tape, they

should be used)

TOOLS REQUIRED:

None

INSTALLATION INSTRUCTIONS:

This kit contains trim panels used to finish the gaps between the wall-

board or optional mantel and the fireplace, providing the appliance a fin-

ished built-in look.

ENSURE FIREPLACE IS COOL TO THE TOUCH BEFORE STARTING IN-

STALLATION OF THE TRIM KIT

Step 1. Place 2 magnets on each side of the fireplace, placed at approxi-

mately 8” from the top and 8” from the base. See Figure 2.

Step 2.

 Brass and Stainless Trim Kits - Proceed to Step 3.

 Black Trim Kits - Proceed to Step 4.

Step 3. Place the side channels over the magnets (See Figure 3 ).

Ensure that the two side channels are flush with the bottom of the

fireplace. The wider side of the side channel should be on the front of

the fireplace face after installation.

Step 3. Peel off the backing on the double-sided tape on the backside

of each side trim panel (see Figure 4 ). Avoid touching the sticky

surface of the tape.

CAUTION: CAREFULLY SEPARATE THE MAGNETS BY TWISTING

THEM APART. BE VERY CAREFUL WHEN HANDLING, BECAUSE

THE MAGNETS ARE VERY POWERFUL AND CAN SNAP TO-

GETHER UNEXPECTEDLY AND POSSIBLY PINCH THE SKIN OR

FRACTURE THE MAGNETS.

Left Panel

Right Panel

Top Panel

*Side Channels

Magnets

8”

Figure 1

Figure 2

Ensure

Channel is

Flush with

Base

Side

Channel

Figure 3

Approximate

Magnet

Placement

*Top Channel

Printed in U.S.A Lennox Hearth Products 2004

P/N 775,175M REV. B, 12/2005 Page 2 of 2 1110 West Taft Avenue •Orange, CA 92865

LENNOX reserves the right to make changes at any time, without notice, in design, materials,

specifications, prices and also to discontinued colors, styles and products.

Consult your local distributor for fireplace code information.

Completed Trim Panel Installation

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Step 4. Install the side trim panels onto each side of fireplace face as

follows:

 Brass and Stainless Trim Kits – Place side trim over channels,

then press firmly so double sided tape adheres panels to chan-

nels (see Figure 5 ).

 Black Trim Kits – Place side trim panels over magnets on each

side of the fireplace face as shown in Figure 5.

Note: Magnets were installed on Step 1, Figure 2.

Step 5.

 Brass and Stainless Trim Kits - Peel off the backing on double-

sided tape on the backside of the top trim panel. Press fit the top

channel against the top trim panel as shown in Figure 6.

 Black Trim Kits – Proceed to Step 6.

Step 6. Place 2 magnets on the backside of the top trim panel as shown in

Figure 6.

Step 7. Place the Top Trim Panel over the Side Trim Panels as shown

in Figure 7.

 Brass and Stainless Trim Kits – The metal channel should

go behind the side trim panels. Squeeze top and side trim

pieces together.

 Black Trim Kits – The magnets act as support to hold the

trim panel in place.

Figure 4

Backing

Double

Sided

Tape

Figure 5

Backside of Side

Trim Panel

Figure 7

Right Side

Trim P

Magnet

Backside of Top

Trim Panel

♦

Black Trim kits do not include channels or doubl

sided

e. See Note on

e 1.

♦Top Channel

Figure 6

♦Double-sided Tape

~ 3”

Typical

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Lennox Kaminzubehör Handbücher

Lennox

Lennox ADAGIO-IG Bedienungsanleitung

Lennox

Lennox WS-PED Bedienungsanleitung

Lennox

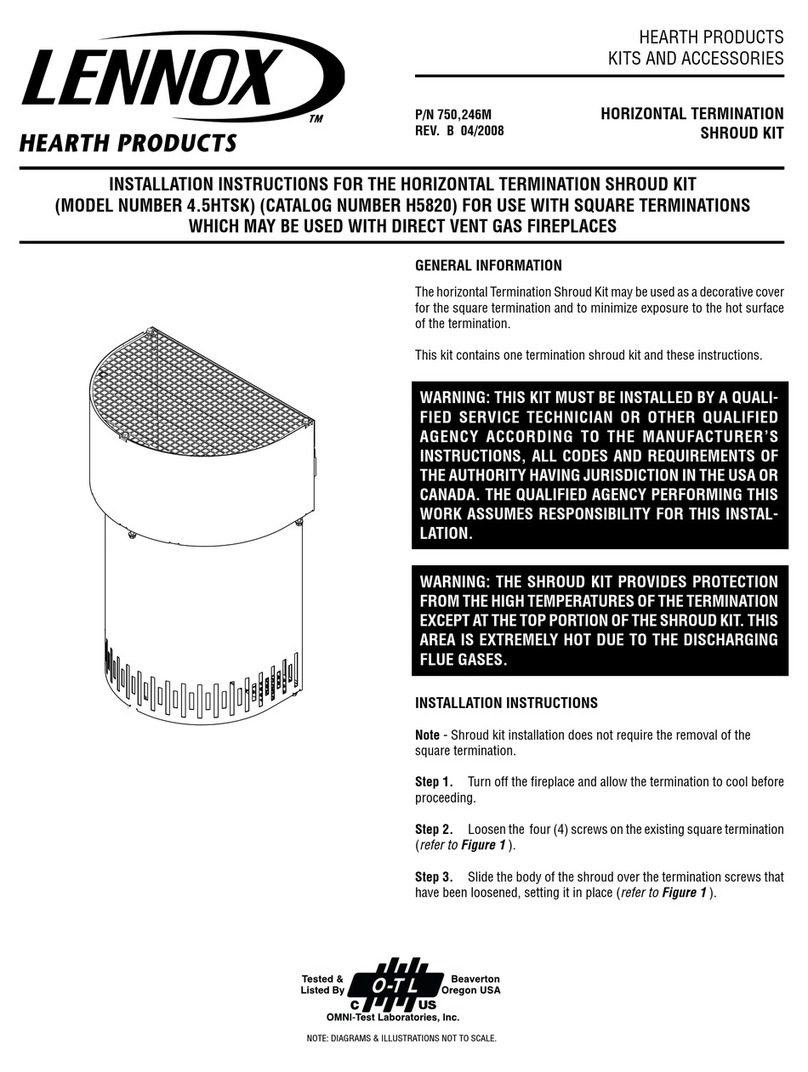

Lennox 4.5HTSK Bedienungsanleitung
