XP15 Heat Pump ◆Up to 16.70 SEER and 9.00 HSPF

Home Comfort Systems

XP15

The quietest heat pump you can buy.*

Compatible with the exclusive Humiditrol®

whole-home dehumidification system—

indoor air quality you can feel

Innovation never felt so good.

™

THE QUIETEST HEAT PUMP YOU CAN BUY*

The XP15 not only provides peace and quiet—it also offers peace of mind. The

exclusive Lennox®System Operations Monitor continually monitors system

performance, helping technicians solve problems faster and more accurately.

And, like all Lennox products, the XP15 is built to deliver exceptional reliability

with a promise of quality you can count on—season after season, year after year.

Dave Lennox Signature®Collection XP15 Heat Pump

*Air conditioners/heat pumps have sound ratings established per ARI’s test standard: ARI 270.

Size for size, as a product family, these heat pumps have the lowest published sound ratings

of any major U.S. brand of air conditioning/heat pump equipment.

Patented SilentComfort™

technology provides smooth,

quiet cooling and heating

Efficient design can result in

significant energy savings

Ozone-responsible

R410A meets the EPA’s

(Environmental Protection

Agency) most stringent

environmental guidelines

Lennox®System Operations

Monitor reviews system

performance for additional

peace of mind and faster,

easier servicing

Compatible with the exclusive

Humiditrol®whole-home

dehumidification system

ENERGY STAR®qualified

Efficient Compared to

an older heat pump, the XP15

heat pump can save you

hundreds of dollars each year.

The XP15 heat pump provides

cooling efficiencies of up to 16.70

SEER and heating efficiencies of up

to 9.00 HSPF. The higher the

efficiency rating, the higher your

energy savings. In the case of the

XP15 heat pump, those savings can

translate to hundreds of dollars

each year.

EFFICIENCY RATING

Up to 16.70 SEER (Seasonal

Energy Efficiency Ratio) and

9.00 HSPF (Heating Season

Performance Factor).

WARRANTY**

10-year limited warranty

on the compressor and

all remaining covered

components.

SOUND INTENSITY

Note: Manufacturers’ public ratings. Typical 80 dB air conditioner/heat pump vs. XP15-024 or 030.

It would take 40 XP15s

(running at full speed)

to equal the sound from

one typical heat pump.

**Applies to residential applications only.

See actual warranty certificate for details.

seer

16.00 vs. 10.0 16.00 vs. 13.00

$1200

$1000

$800

$600

$400

16.00 SEER XP15 heat pump,

compared to older, less efficient units

5-YEAR COOLING SAVINGS

This chart compares the 5-year savings you can expect from

a 16 SEER heat pump vs. units with lower efficiency ratings.

The regions used to calculate household fuel and utility costs

reflect a cross-section of cities in the U.S. using 2006

Department of Energy national average energy rates. In

addition to geography, cooling costs are based on 3-ton

capacity specifications, with 1,600 cooling hours per year.

Your actual costs will vary depending on the weather, local

fuel rates, systems settings and your personal lifestyle.

$1190

$455

Dave Lennox Signature®Collection XP15 Specifications

XP15 024 030 036 042 048 060

SEER Up to 16.70 Up to 15.50 Up to 15.20 Up to 14.00 Up to 15.50 Up to 14.20

HSPF Up to 8.70 Up to 8.50 Up to 9.00 Up to 7.20 Up to 8.70 Up to 8.70

Sound Rating*** – dB 63 63 68 68 70 70

Dimensions HxWxD (in.) 37 x 35-1/2 x 39-2/5 37 x 35-1/2 x 39-2/5 37 x 35-1/2 x 39-2/5 37 x 35-1/2 x 39-2/5 47 x 35-1/2 x 39-2/5 47 x 35-1/2 x 39-2/5

HxWxD (mm) 940 x 902 x 1001 940 x 902 x 1001 940 x 902 x 1001 940 x 902 x 1001 1194 x 902 x 1001 1194 x 902 x 1001

***Preliminary sound data

Note: Due to Lennox’ ongoing commitment to quality, all specifications, ratings and dimensions are subject to change without notice.

SilentComfort™Fan Grill –

Uses patent-pending, vortex-suppression

technology to reduce sound of airflow exiting unit.

Factory-Installed Lennox®System

Operations Monitor – Continually reviews

system performance to allow fast troubleshooting.

Precision-Balanced, Direct-Drive Fan –

Delivers ultra-quiet operation with a

patent-pending fan design.

High-Efficiency Outdoor Coil –

Provides exceptional heat transfer and low air

resistance for high-efficiency operation.

Dependable Scroll Compressor

with SilentComfort™Technology –

Provides smooth, efficient and reliable operation.

Durable Steel Cabinet –

Made to last with superior high-quality, pre-painted steel and

textured finish. Tested to withstand the harshest environments.

OUTSTANDING FEATURES FOR EXCEPTIONAL COMFORT AND EFFICIENCY

XP15

Up to 16.70 SEER

and 9.00 HSPF

The quietest heat

pump you can buy.*

13.0-16.70

21.013.0

THIS MODEL

Quality you can trust.

Constructed of heavy-gauge, pre-painted

steel and tested in the most extreme

environments to ensure maximum durability.

Proper sizing and installation of equipment

is critical to achieve optimal performance.

Split system air conditioners and heat

pumps must be matched with appropriate

coil components to meet ENERGY STAR®

criteria. Ask your Lennox dealer for details,

or visit www.energystar.gov.

Lennox is proud of the

fact that these products

have earned the Good

Housekeeping Seal.

Visit us at www.lennox.com, or contact us at 1-800-9-LENNOX. PC53871(14W57) XP15 04/08

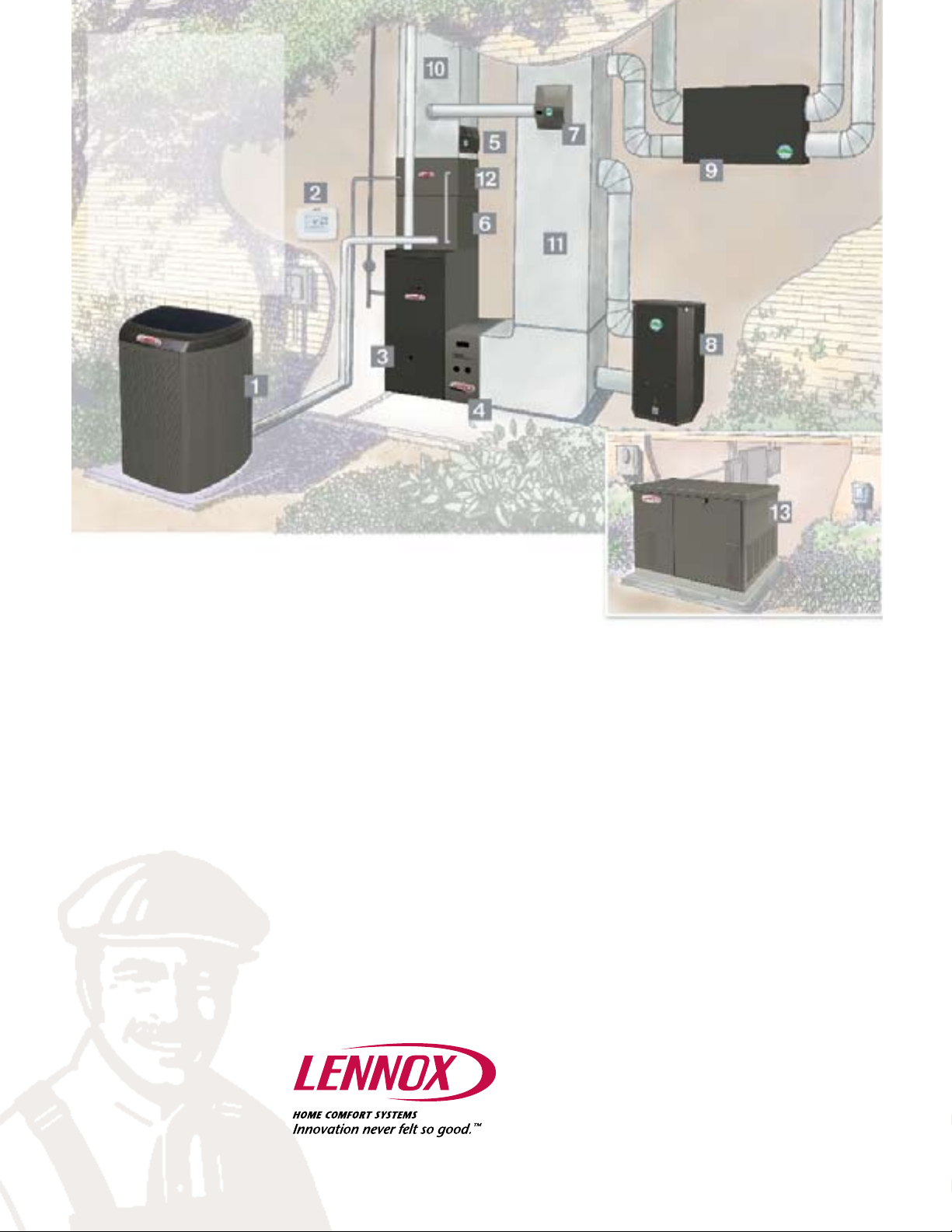

1Air conditioner or heat pump

2Thermostat

3Furnace or air handler

4Filtration device

5Germicidal light

6Indoor coil

7Humidifier

8HEPA bypass filtration system

9Energy recovery ventilator

 Supply duct

 Return duct

 Dehumidifier system

 Residential generator

CUSTOMIZE YOUR COMFORT

Lennox®heating, cooling and indoor air quality products are designed to

provide efficient, economical comfort—not only as individual units, but also

together as an integrated system. This combined network of products delivers

on every comfort count, from consistent temperatures and balanced humidity to improved indoor air quality. Lennox

also offers a line of residential generators, which provide safe, reliable standby power in the event of outages.

DEALERS YOU CAN COUNT ON

Choosing the right dealer for your home’s heating, cooling and air quality needs is every bit as important as choosing the

right brand. We think you’ll agree our independent dealers are a big reason you can count on quality customer service

whenever you call. Your Lennox dealer’s dedication to quality shows in his knowledge, training and expertise in designing

the right system for your home, installing it properly and keeping it running perfectly for many years to come.
