Lenovo ThinkVision T27q-20 Gebrauchsanweisung

T27q-20 Simplified service manual for dismantling

Model Name: Lenovo T27q-20

Exploded Diagram

1. Precaution

Please read the precaution as follows to prevent any damages to the LCD Monitor.

Make sure all power connector is removed. Be sure that the LCD Monitor is in power off status.

Prepare soft cloth and

sponge as working

platform to place LCD

monitor horizontally.

Hold LCD by the side

carefully and DON’T touch

or press panel directly.

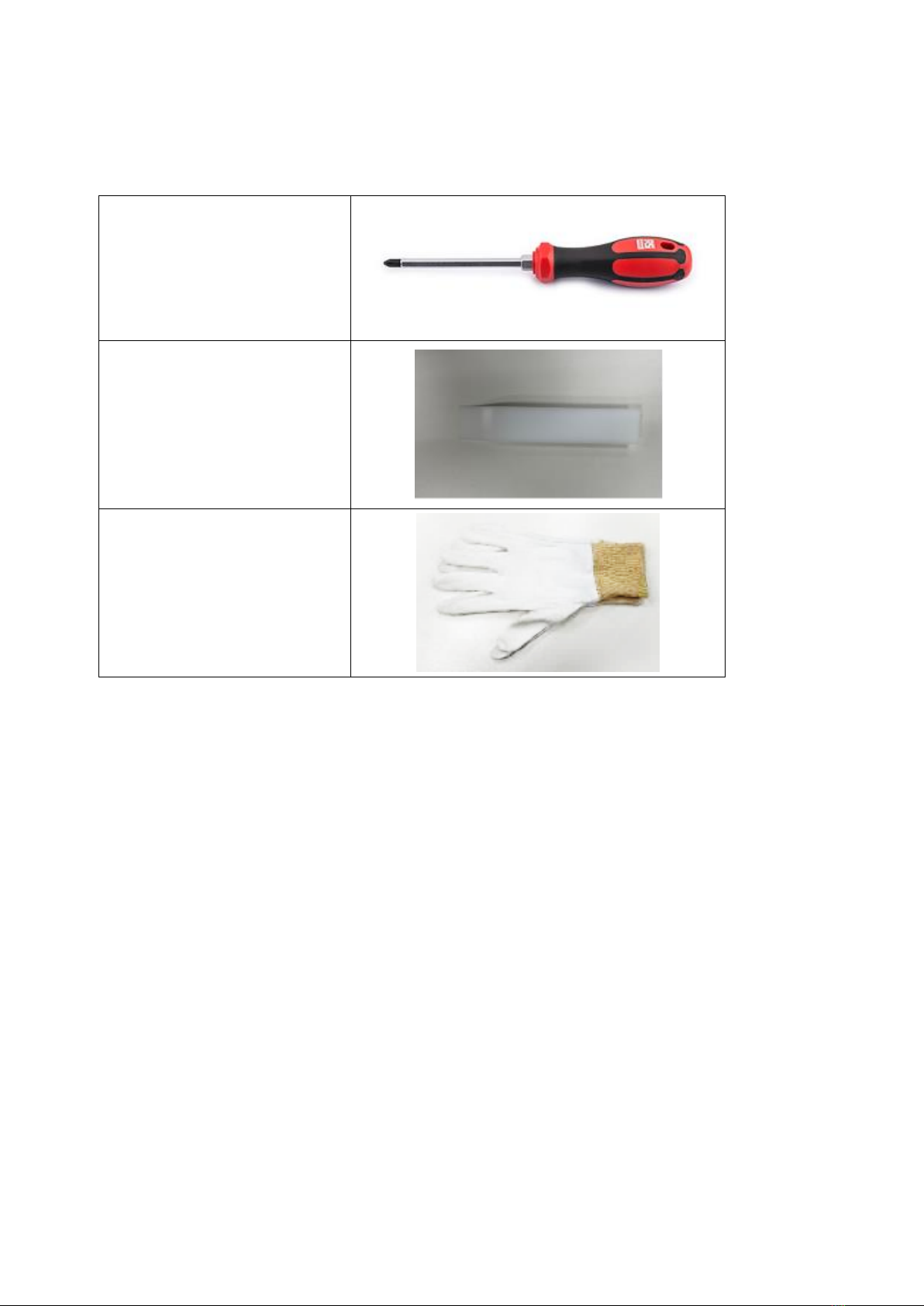

2. Appropriate tools

Select the Appropriate tools for disassembly and re-assembly.

Phillips screwdriver (#2)

C/D disassembly tool

Gloves or soft cloth

3. Disassembly SOP

Put the monitor on a flat surface

(Put the EPE on under the

monitor)

Depress the release button to

remove the stand base

Remove the screw * 4pcs

Tool : Screwdriver #2

Use the C/D disassembly tool to

release Rear cover hook from

disassemble hole on bottom

Wedge your fingers between the

rear cover and the middle frame on

the corners of the top side of the

monitor to release the rear cover

Tool: Gloves

Tear off all the aluminum foil

Unplug the panel lamp cable and

OSD key cable

Remove all screw.

Tool : Screwdriver #2

Unplug two LVDS cable from the

panel, remove the main chassis

Tear off key cable for releasing the

middle frame with panel

Release the keypad board from the

middle frame

Take out the mylar sheet from

main chassis

Remove 8pcs screws.

Tool : Screwdriver #2

Take out PCB and peel off all

mylar.

Take out the Thermal pads from

Power PCB
