Lenovo IdeaTab K3011W

User Guide v1.0

Re ad t he sa f et y no t ice s a nd im po rt ant t ips in t he

include d m anua ls be f o re us ing yo ur co m put er.

Notes

Bef ore using the product, be sure to read Important Safety and Handling

Information f irst.

Some instructions in this guide may assume that you are using Windows® 8. If you are using

another Windows operating system, some operations may be slightly dif f erent. If you are using

another operating system, some operations may not apply to you.

The f eatures described in this guide are common to most models. Some f eatures may not be

available on your computer or your computer may include f eatures that are not described in this

user guide.

The illustrations in this manual may dif f er f rom the actual product. Please ref er to the actual product.

Regulatory Not ice

The Regulatory Notice provides inf ormation about the radio f requency and saf ety standards. Be sure to

read it bef ore using wireless devices on your computer.

To ref er to it, go to http://support.lenovo.com/ and click Guides & Manuals.

First Edition (July 2012)

LIMITED AND RESTRICTED RIGHTS NOT ICE: If data or sof tware is delivered pursuant a General Services

Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set f orth in Contract

No. GS-35F-05925.

Chapter 1

Getting to know your computer

Tablet f ront view

Note: T he dashed areas indicate parts that are not visible externally.

Int egrated camera

Use the camera f or video communication and taking photos.

Wireless LAN antennas

Connect to the wireless LAN adapter to send and receive wireless radio.

Multi-touch screen

Functions as both the visual display as well as one of the two primary input methods.

Note: For details, see “Touch screen operation”.

Windows button

Press this button to:

Toggle between the current view and the Start screen.

-or-

Wake up the computer f rom sleep mode.

Tablet lef t -side view

Screen rotation lock button

Keeps the screen locked in portrait or landscape orientation.

Volume button

Increases/Decreases volume level.

Speaker

Provides audio output.

Tablet right-side view

Speaker

Provides audio output.

Micro HDMI port

Connects to devices with HDMI inputs such as a T V or an external display.

Combo audio jack

Connects to headsets.

Notes:

The combo audio jack does not support conventional microphones.

The recording f unction may not be supported if third-party headphones or headsets are connected, due

to dif f erent industry standards.

Tablet t op view

Power button

Press this button to turn on the computer.

Power status indicator (on tablet)

Symbol Indicator status Meaning

On (solid white) The tablet is connected to the AC adapter and is f ully charged.

On (solid amber) The tablet is charging.

Blinking (white and

amber alternately)

The tablet is connected to the AC adapter, but the charging process has been

paused. T here may be a problem with the battery or battery connection.

Of f The tablet is disconnected f rom the AC adapter.

Micro SD card slot

Insert a micro SD card (not supplied) here.

Note: For details, see “Using a micro Secure Digital (SD) card (not supplied)”.

Built-in microphone

Captures sound which can be used f or video conf erencing, voice narration, or audio recording.

Using a micro Secure Digit al (SD) card (not supplied)

Your computer supports micro Secure Digital (SD) cards.

Notes:

Insert only one card in the slot at a time.

This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).

A micro SD prying pin was provided with your computer. It was designed to assist with removing the micro

SD card. If you don't have this tool, you may be able to use the end of a small paper clip instead.

Inserting a micro SD card

To insert a micro SD card:

1Turn of f the tablet, and then disconnect the AC adapter and any cable(s) f rom the tablet.

2Open the slot cover.

3Insert the micro SD card until it clicks into place.

4Close the slot cover.

Note: Do not insert or remove the micro SD card while the computer is turned on. Doing so may damage the

micro SD card reader.

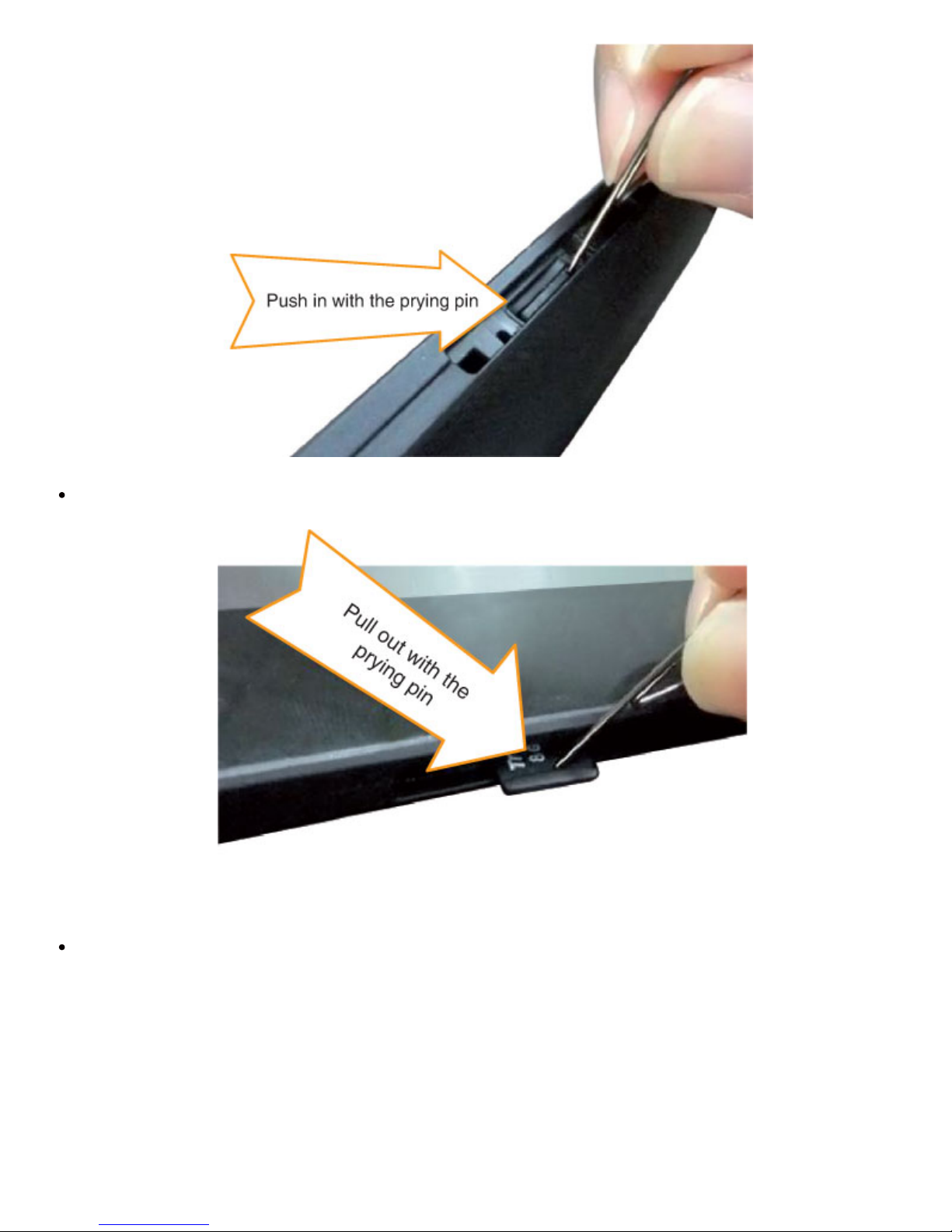

Removing a micro SD card

To remove a micro SD card:

1Turn of f the tablet, and then disconnect the AC adapter and any cable(s) f rom the tablet.

2 Open the slot cover.

3 Use the provided micro SD prying pin to push the micro SD card in until you hear a click. When you

release the pressure, the spring- loaded micro SD card will pop out of the slot slightly.

4 Use the micro SD prying pin to pull out the micro SD card.

5 Close the slot cover.

Note: Bef ore removing the micro SD card, disable it by using the Windows saf ely remove hardware and eject

media utility to avoid data corruption.

Tablet bottom view

Tablet-docking latch

Connects the tablet to the dock and keeps the tablet secured in place.

Note: For details, see “Combination of tablet and dock”.

Multi-function connect or

Connects to the AC power adapter, the USB cable or the dock.

Dock Front view

Tablet-docking latch

Attaches the tablet to the dock keeping the tablet secured in place.

Note: For details, see “Combination of tablet and dock”.

Tablet connector

Connects the tablet to the dock.

Note: For details, see “Combination of tablet and dock”.

Tablet release butt on (spring loaded)

Press and hold the spring-loaded button to release the tablet and detach it f rom the dock.

Note: For details, see “Detaching the tablet”.

Keypad

The keypad f unctions as a conventional keyboard.

Touchpad

The touchpad f unctions as a conventional mouse.

Touchpad: To move the pointer on the screen, slide your f ingertip over the pad in the direction in which you

want the pointer to move.

Touchpad buttons: The f unctions of the lef t/right side correspond to that of the lef t/right mouse button on a

conventional mouse.

Keyboard funct ion keys

You can access certain system settings quickly by pressing the appropriate f unction keys.

Mutes/unmutes the sound. Toggles the display between the

computer and an external device.

Decreases the volume level. Decreases display brightness.

Increases the volume level. Increases display brightness.

Closes the currently active

window.

Displays the Settings charm.

Ref reshes the desktop or the

currently active window.

Displays the Search charm.

Turns on/of f the backlight of the

LCD screen.

Displays all currently active apps.

Enables/disables wireless

f unction.

Displays all apps with the Search

charm.

Frequent ly used Windows Hotkey

To use the Windows hotkey f unction, press and hold Windows key 1 ; then press one of the hotkeys.

Windows

key

Toggles between displaying the Start screen and the most recently opened app. (If there are

no currently open apps, it will alternate between the Start screen and the desktop.)

Windows

key + Fn +

Opens Windows Help and Support.

Windows

key + C

Opens the Charms.
