Lenovo TAB 2 A8-50

Safety, Warranty & Quick Start

Guide V1.0

Lenovo TAB 2 A8-50F

Lenovo TAB 2 A8-50L

Lenovo TAB 2 A8-50LC

English/Čeština

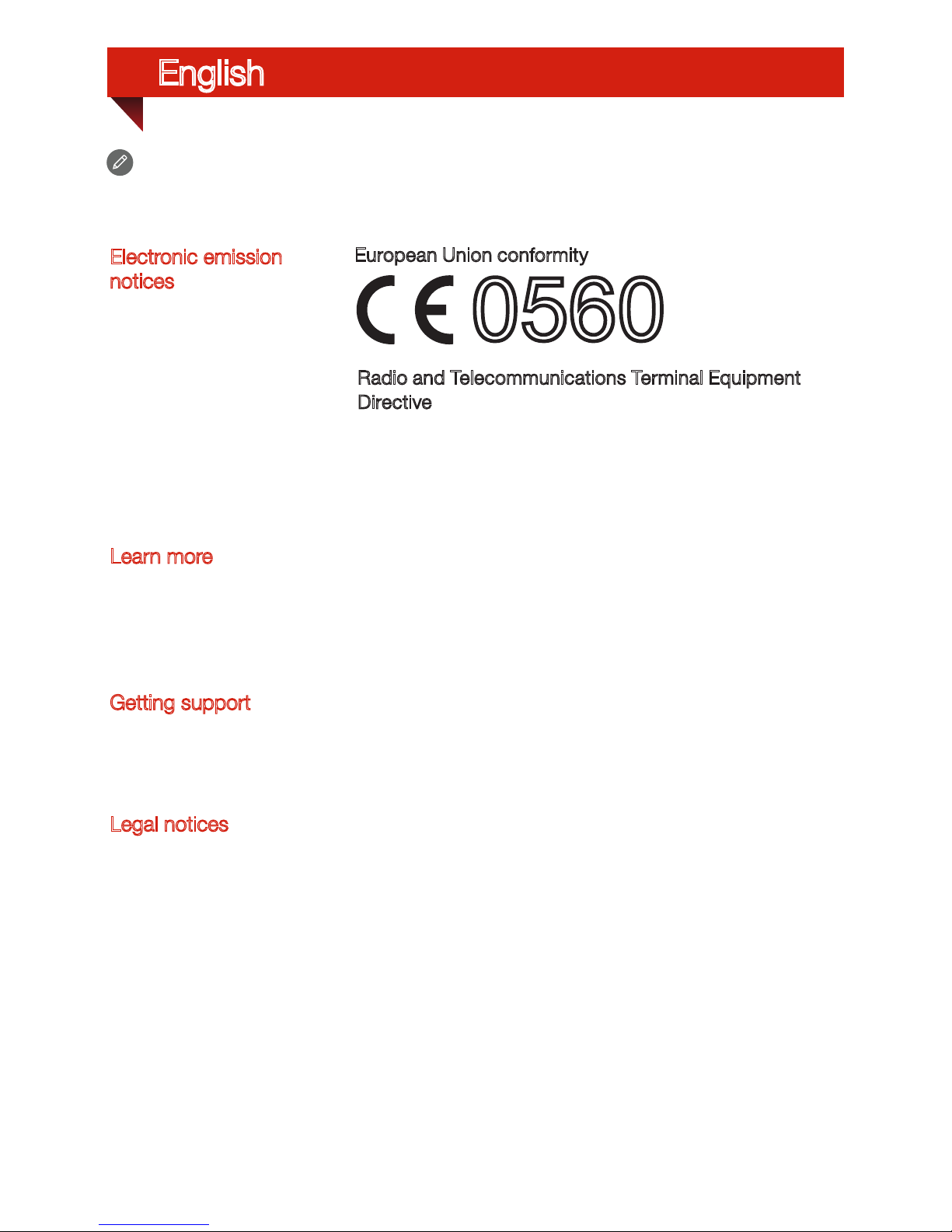

English

Electronic emission

notices

Learn more

Legal notices Lenovo and the Lenovo logo are trademarks of Lenovo in

the United States, other countries, or both.

Other company, product, or service names may be

trademarks or service marks of others.

Manufactured under license from Dolby Laboratories.

Dolby, Dolby Atmos, and the double-D symbol are

trademarks of Dolby Laboratories.

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or

software is delivered pursuant a General Services

Administration “GSA” contract, use, reproduction, or

disclosure is subject to restrictions set forth in Contract

No. GS-35F-05925.

To learn more information about your Lenovo TAB 2

A8-50 functions, please access “User Guide” from the

Browser favorites in your tablet.

To obtain the “Regulatory Notices”, go to

http://support.lenovo.com/.

Getting support For support on network service and billing, contact your

wireless network operator. For instructions on how to

use your Lenovo TAB 2 A8-50, go to

http://support.lenovo.com/.

Read this guide carefully before using your Lenovo TAB 2 A8-50.

All information labeled with * in this guide refers only to the LTE model

(Lenovo TAB 2 A8-50L/Lenovo TAB 2 A8-50LC).

Radio and Telecommunications Terminal Equipment

Directive

This product is in compliance with the essential

requirements and other relevant provisions of the Radio

and Telecommunications Terminal Equipment Directive,

1999/5/EC.

European Union conformity

0560

Technical speciﬁcations

MTK MT8161, Quad Core 1.3 GHz

*MTK MT8735, Quad Core 1.3 GHz

4290 mAh

Model & version

Camera

Battery

Display

Wireless

communication

5 megapixels AF (back) + 2 megapixels FF (front)

Size: 8 inches

Resolution: 1280 × 800

Bluetooth 4.0 WLAN 802.11 b/g/n GPS/GLONASS

①*LTE, WCDMA, GSM

① Your Lenovo TAB 2 A8-50L/Lenovo TAB 2 A8-50LC supports LTE Band 1, 3, 7,

8 and 20. But in some countries,LTE is not supported. To know if your Lenovo

TAB 2 A8-50L/Lenovo TAB 2 A8-50LC works with LTE networks in your

country, contact your carrier.

CPU

Lenovo TAB 2 A8-50

Version: WLAN

Android

*Version: LTE (Voice)*Model: Lenovo TAB 2 A8-50LC;

*Version: LTE*Model: Lenovo TAB 2 A8-50L;

Model: Lenovo TAB 2 A8-50F;

System

Speaker/*Receiver

789

Volume key

On/Off button Speaker Back camera

Micro USB Earphone jack *Micro SIM card slot

MicrophoneMicro SD card slot

The WLAN model (Lenovo TAB 2 A8-50F) does not have a Micro SIM card slot.

Only LTE (Voice) model (Lenovo TAB 2 A8-50LC) has a receiver.

First glance

Front camera

You can use cellular services with the LTE model (Lenovo TAB 2 A8-50L/Lenovo TAB 2

A8-50LC) by inserting the Micro SIM card provided by your carrier.

Install the Micro SIM card and the Micro SD card as shown.

Step 1. Open the card slot cover.

Step 2.

Step 3. Carefully replace the slot cover.

Only Micro SIM card works with your

Lenovo TAB 2 A8-50L/Lenovo TAB 2 A8-50LC

Micro

SIM 2

SIM 1

Pull out the Micro-SIM-card tray

and position the Micro SIM card

into the tray in correct orientation,

then carefully insert the tray with

the installed Micro SIM card back

into the Micro SIM card slot.

Insert the Micro SD card into the

Micro SD slot.

Preparing your Lenovo TAB 2 A8-50

Turning on/off

Before using your Lenovo TAB 2 A8-50, you might need to charge the battery.

Charge the battery as shown.

Method 1. Connect your Lenovo TAB 2 A8-50 to a power outlet using the included

cable and USB power adapter.

Method 2. Charge the battery using a computer.

Low battery Fully charged Charging

Turn on: Press and hold the On/Off button until the

Lenovo logo appears.

Turn off: Press and hold the On/Off button for a few

seconds, then tap Power off.

Starting to use your Lenovo TAB 2 A8-50

Taking screenshots

Press and hold the On/Off button and the volume down button at the same time.

Read before using your tablet

Read ﬁrst-Regulatory information

The following sections provide critical safety and regulatory information for Lenovo

tablets and instructions on how to access electronic versions of the publications

developed for your tablet.

Downloading publications

Accessing your User Guide

The following information describes the technical support that is available for your

product, during the warranty period or throughout the life of your product. Refer to the

Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. See “Lenovo

Limited Warranty notice” later in this document for details on accessing the full

warranty.

Online technical support

Online technical support is available during the lifetime of a product at

http://www.lenovo.com/support.

You can get help and information from the Customer Support Center by telephone.

Before contacting a Lenovo technical support representative, please have the following

information available: model and serial number, the exact wording of any error

message, and a description of the problem.

Your technical support representative might want to walk you through the problem

while you are at your device during the call.

Device models equipped with wireless communications comply with the radio frequency

and safety standards of any country or region in which it has been approved for wireless

use. In addition, if your product contains a telecom modem, it complies with the

requirements for connection to the telephone network in your country.

Be sure to read the Regulatory Notice for your country or region before using the wireless

devices contained in your device. To obtain a PDF version of the Regulatory Notice, refer

to the “Downloading publications” section below.

Electronic versions of your publications are available from the http://support.lenovo.com.

To download the publications for your device, go to: http://support.lenovo.com and follow

the instructions on the screen.

Your User Guide contains detailed information about your device. To access your User

Guide, go to: http://support.lenovo.com and follow the instructions on the screen.

Service and Support information

Telephone technical support

WARNING: Handling the cord on this product or cords associated with accessories

sold with this product will expose you to lead, a chemical known to the State of

California to cause cancer, and birth defects or other reproductive harm. Wash hands

after handling.

Polyvinyl Chloride (PVC) cable and cord notice

Built-in rechargeable battery notice

Prevent hearing damage

Your device has a headphone connector. Always use the headphone connector for

headphones (also called a headset) or earphones.

Worldwide Lenovo Support telephone list

DANGER:

Do not attempt to replace the internal rechargeable lithium ion battery. Contact Lenovo

Support for factory replacement.

CAUTION:

Excessive sound pressure from earphones and headphones can cause hearing loss.

Adjustment of the equalizer to maximum increases the earphone and headphone

output voltage and the sound pressure level. Therefore, to protect your hearing, adjust

the equalizer to an appropriate level.

Excessive use of headphones or earphones for a long period of time at high volume

can be dangerous if the output of the headphone or earphone connectors do not

comply with speciﬁcations of EN 50332-2.

The headphone output connector of your device complies with EN 50332-2 Sub

clause 7. This speciﬁcation limits the device's maximum wide band true RMS output

voltage to 150 mV. To help protect against hearing loss, ensure that the headphones or

earphones you use also comply with EN 50332-2 (Clause 7 limits) for a wide band

characteristic voltage of 75 mV. Using headphones that do not comply with EN

50332-2 can be dangerous due to excessive sound pressure levels.

If the telephone number for your country or region is not listed, contact your Lenovo

reseller or Lenovo marketing representative.

Important safety and handling information

Plastic bag notice

DANGER:

Plastic bags can be dangerous. Keep plastic bags away from babies and children to

avoid danger of suffocation.

Important: Telephone numbers are subject to change without notice. The most

up-to-date telephone list for the Customer Support Center is always available at

http://www.lenovo.com/support/phone.

Warning statement:

To prevent possible hearing damage, do not listen at high volume levels for a long

period of time.

Lenovo Limited Warranty notice

This product is covered by the terms of the Lenovo Limited Warranty, version

L505-0010-02 08/2011. Read the Lenovo Limited Warranty (LLW) at

http://www.lenovo.com/warranty/llw_02. You can view the LLW in a number of

languages from this Web site. If you cannot view the LLW from the Web site, contact

your local Lenovo ofﬁce or reseller to obtain a printed version of the LLW.

Lenovo TAB 2 A8-50

Model & Version

Model Version

WLAN

LTE

Lenovo TAB 2 A8-50F

Lenovo TAB 2 A8-50L

Lenovo TAB 2 A8-50LC LTE (Voice)

Sound pressure warning statement

For the device that is tested in accordance with EN 60950-1:

2006+A11:2009+A1:2010+A12:2011, it is mandatory to perform audio tests for

EN50332.

This device has been tested to comply with the Sound Pressure Level requirement laid

down in the applicable EN 50332-1 and/or EN 50332-2 standards. Permanent hearing

loss may occur if earphones or headphones are used at high volume for prolonged

periods of time.

Warranty information

If your device came with headphones or earphones in the package, as a set, the

combination of the headphones or earphones and the device already complies with

the speciﬁcations of EN 50332-1. If different headphones or earphones are used,

ensure that they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using

headphones that do not comply with EN 50332-1 can be dangerous due to excessive

sound pressure levels.

* Excludes some components. 90-day limited warranty for power adapters, keyboards,

plastics and hinges.

Warranty period and type of Warranty service

Country or Region Purchase Warranty Period

France, Germany, Italy, Austria,

United Kingdom, Israel, Australia,

New Zealand

parts and labor - 1 year

Battery Pack - 1 year 1,3

Serbia, Costa Rica, Venezuela, Peru,

Uruguay, Ecuador, Colombia, Chile, Argentina,

Indonesia, Vietnam, India, Malaysia, Thailand,

Philippines, Singapore, Hong Kong

parts and labor - 1 year

Battery Pack - 1 year 1,4

Russia, Ukraine, Egypt, Lebanon, Morocco,

South Africa, Tunisia, Mauritius, Mozambique,

United Arab Emirates, Jordan, Kenya, Nigeria,

Uganda, Ghana, Oman,Tanzania, Namibia

parts and labor - 1 year

Battery Pack - 1 year 4

Poland, Hungary, Romania, Bulgaria, Greece,

Croatia, Slovenia, Slovakia, Cyprus, United

States of America, Canada, Mexico, Japan

parts and labor - 1 year

Battery Pack - 1 year 1,5

Panama

parts and labor - 1 year

Battery Pack - 1 year 2,4

Taiwan, South Korea parts and labor - 1 year

Battery Pack - 1 year 3,4

Brazil parts and labor - 1 year

Battery Pack - 1 year 2,5

Spain, Switzerland, Portugal, Netherlands,

Belgium, Sweden, Denmark, Norway, Finland,

Estonia, Latvia, Lithuania, Iceland

parts and labor - 2 year

Battery Pack - 1 year 1,3

Czech Republic parts and labor - 2 year

Battery Pack - 1 year 1,5

Turkey parts and labor - 2 year

Battery Pack - 1 year 3,4

parts and labor - 2 year

Battery Pack - 1 year4

Saudi Arabia

Type of Warranty

Service

Andere Handbücher für TAB 2 A8-50F

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Lenovo Tablette Handbücher

Lenovo

Lenovo A3300-H Bedienungsanleitung

Lenovo

Lenovo TB-8505F Bedienungsanleitung

Lenovo

Lenovo TAB3 7 Andy Betriebsanleitung

Lenovo

Lenovo IdeaPad Duet Chromebook CT-X636F Anleitung zur Verwendung

Lenovo

Lenovo Tab P11 Anleitung zur Verwendung

Lenovo

Lenovo Lenovo S5000 Bedienungsanleitung

Lenovo

Lenovo IdeaTab S6000L Betriebsanleitung

Lenovo

Lenovo Lenovo S5000 Bedienungsanleitung

Lenovo

Lenovo 42963L5 Bedienungsanleitung

Lenovo

Lenovo TAB4 10 Plus Anleitung zur Verwendung

Lenovo

Lenovo TAB4 7 Essential Anleitung zur Verwendung

Lenovo

Lenovo YOGA Tab 3 10" YT3-X50F Anleitung zur Verwendung

Lenovo

Lenovo ThinkPad X200 Tablet 7453 Bedienungsanleitung

Lenovo

Lenovo 744943U Bedienungsanleitung

Lenovo

Lenovo ThinkPad 10 Betriebsanleitung

Lenovo

Lenovo TB-X704Y Bedienungs- und Wartungshandbuch

Lenovo

Lenovo YOGA Tab 3 YT3-850F Betriebsanleitung

Lenovo

Lenovo YOGA Tablet 2-830F Anleitung zur Verwendung

Lenovo

Lenovo TAB 2 A7-30 series Anleitung zur Verwendung

Lenovo

Lenovo ThinkPad Hard Disk Drive Betriebsanleitung

Lenovo

Lenovo YOGA Tab 3 8 Bedienungsanleitung

Lenovo

Lenovo ideapad MIIX 320 Bedienungsanleitung

Lenovo

Lenovo TAB 2 A7-10F Bedienungsanleitung

Lenovo

Lenovo TB-7304I Anleitung zur Verwendung

Beliebte Tablette Handbücher anderer Marken

Laser

Laser MID-1060 Benutzerhandbuch

MUNBYN

MUNBYN IRT09J Kurzanleitung

Motorola

Motorola MC3090R - Win CE 5.0 Professional 520 MHz Bedienungsanleitung

Dell

Dell Latitude ST Betriebsanleitung

Venturer

Venturer WT9L11 Bedienungsanleitung

EDUGEAR

EDUGEAR UnoBook Bedienungsanleitung

Philips

Philips PI3210G/58 Bedienungsanleitung

ADLINK Technology

ADLINK Technology IMT-BT Bedienungsanleitung

TwinMOS

TwinMOS TwinTAB-T102D1 Bedienungsanleitung

Archos

Archos 9.7 xenon Bedienungsanleitung

Getac

Getac E100 Bedienungsanleitung

HANNspree

HANNspree HANNspad SN70T3 Bedienungsanleitung

Philips

Philips PI3105W2/55 Bedienungsanleitung

LG LG-V935 Bedienungsanleitung

Zeki

Zeki TBDB763B Bedienungsanleitung

Ricoh

Ricoh eQuill Bedienungsanleitung

DT Research

DT Research DT365CT Montageanleitung

MaxWest

MaxWest Nitro Phablet 9 Bedienungsanleitung
