Lenovo TAB3 7 Essential Anleitung zur Verwendung

Lenovo TAB3 7 Essential

Safety, Warranty & Quick Start Guide

Lenovo TB3-710F

Lenovo TB3-710I

English/Français

English ......................................................................................... 1

Français...................................................................................... 11

........................................................................................... 21

Contents

ﺔﻴﺑﺮﻌﻟﺍ

Read this guide carefully before using your Lenovo TAB3 7 Essential.

All information labeled with * in this guide refers only to the WCDMA model

(Lenovo TB3-710I).

Read ﬁrst-Regulatory information

Device models equipped with wireless communications comply with the radio frequency

and safety standards of any country or region in which it has been approved for wireless

use. In addition, if your product contains a telecom modem, it complies with the

requirements for connection to the telephone network in your country.

Be sure to read the Regulatory Notice for your country or region before using the wireless

devices contained in your device. To obtain a PDF version of the Regulatory Notice, refer

to the “Downloading publications” section below.

Getting support

To get support on network service and billing, contact your wireless network operator.

To learn how to use your tablet and view its technical speciﬁcations, go to

http://support.lenovo.com.

Downloading publications

Electronic versions of your publications are available from http://support.lenovo.com. To

download the publications for your tablet, go to http://support.lenovo.com and follow the

instructions on the screen.

Accessing your User Guide

Your User Guide contains detailed information about your tablet. To access your User

Guide, go to http://support.lenovo.com and follow the instructions on the screen.

Legal notices

Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other

countries, or both.

Other company, product, or service names may be trademarks or service marks of

others.

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant

a General Services Administration “GSA” contract, use, reproduction, or disclosure is

subject to restrictions set forth in Contract No. GS-35F-05925.

English

Speaker/*Receiver2

789

1On/Off button

Volume button Rear camera Earphone jack

Micro USB connector *Micro SIM card slot microSD card slot

Microphone

Only WCDMA model (Lenovo TB3-710I) has a receiver.

The WLAN model (Lenovo TB3-710F) does not have a Micro SIM card slot.

Front camera

3 4

Lenovo TAB3 7 Essential overview

Model Version

WLAN

WCDMA (Voice)

Lenovo TB3-710F

Lenovo TB3-710I

You can use cellular services with the WCDMA model (Lenovo TB3-710I) by inserting the

Micro SIM card provided by your carrier.

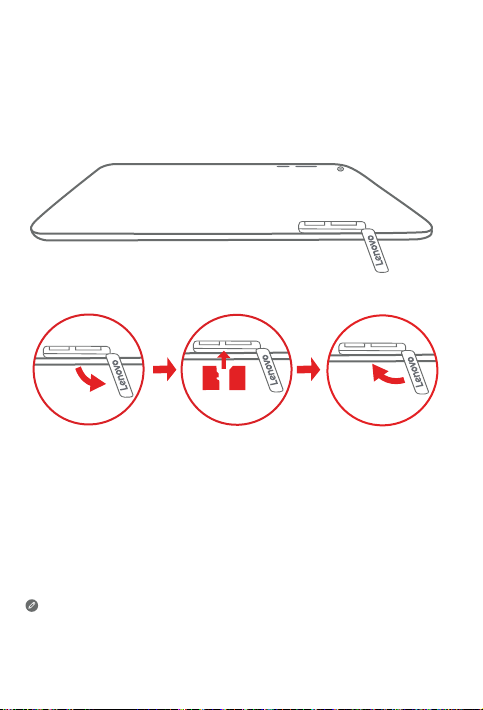

Install the Micro SIM and microSD cards as shown.

Step 1. Open the card slot cover.

Step 2. Insert the Micro SIM and microSD cards as shown.

Step 3. Replace the card slot cover.

Only Micro SIM card works with your tablet.

!!! DO not insert or remove the Micro SIM card while your tablet is turned on. Doing

so can permanently damage your Micro SIM card or tablet.

To remove the microSD card, press the card until it ejects and then pull it out.

Micro

SIM

microSD

Preparing your tablet

Turning on/off

Connect your tablet to a power outlet using the included cable and USB power adapter.

*When the WCDMA model (Lenovo TB3-710I) is charging, the indicator light of it will light

up.

You might need to charge the battery before using your tablet.

Charge the battery as shown.

Low battery Fully charged Charging

Turn on: Press and hold the On/Off button until the

Lenovo logo appears.

Turn off: Press and hold the On/Off button for a few

seconds, then tap Power off.

Restart: Press and hold the On/Off button for about

10 seconds.

Starting to use your tablet

Taking screenshots

Press and hold the On/Off button and the volume down button at the same time.

Lenovo TAB3 7 Essential

ﻊﻳﺮﺴﻟﺍ ﻞﻴﻐﺸﺘﻟﺍ ءﺪﺑﻭ ﻥﺎﻤﻀﻟﺍﻭ ﺔﻣﻼﺴﻟﺍ ﻞﻴﻟﺩ

Important safety and handling information

Plastic bag notice

DANGER: Plastic bags can be dangerous. Keep plastic bags away from babies and

children to avoid danger of suffocation.

Built-in rechargeable battery notice

DANGER: Do not attempt to replace the internal rechargeable lithium ion battery. Risk of

explosion if the battery is replaced with an incorrect type. Contact Lenovo Support for

factory replacement.

Polyvinyl Chloride (PVC) cable and cord notice

WARNING: Handling the cord on this product or cords associated with accessories sold

with this product will expose you to lead, a chemical known to the State of California to

cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

Prevent hearing damage

Your device has a headphone connector. Always use the headphone connector for

headphones (also called a headset) or earphones.

CAUTION: Excessive sound pressure from earphones and headphones can cause

hearing loss. Adjustment of the equalizer to maximum increases the earphone and

headphone output voltage and the sound pressure level. Therefore, to protect your

hearing, adjust the equalizer to an appropriate level.

Excessive use of headphones or earphones for a long period of time at high volume can

be dangerous if the output of the headphone or earphone connectors do not comply with

speciﬁcations of EN 50332-2.

The headphone output connector of your device complies with EN 50332-2 Sub clause

7. This speciﬁcation limits the device's maximum wide band true RMS output voltage to

150 mV. To help protect against hearing loss, ensure that the headphones or earphones

you use also comply with EN 50332-2 (Clause 7 limits) for a wide band characteristic

voltage of 75 mV. Using headphones that do not comply with EN 50332-2 can be

dangerous due to excessive sound pressure levels.

If your device came with headphones or earphones in the package, as a set, the

combination of the headphones or earphones and the device already complies with the

speciﬁcations of EN 50332-1. If different headphones or earphones are used, ensure that

they comply with EN 50332-1 (Clause 6.5 Limitation Values). Using headphones that do

not comply with EN 50332-1 can be dangerous due to excessive sound pressure levels.

Warning statement: To prevent possible hearing damage, do not listen at high volume

levels for a long period of time.

European Union Compliance Statement

Radio and Telecommunications Terminal Equipment Directive

0560

Lenovo declares that this product is in compliance with:

The Declaration of Conformity information is located in the Regulatory Notice. To obtain

a PDF version of the Regulatory Notice, go to http://support.lenovo.com.

Service and Support information

The following information describes the technical support that is available for your

product, during the warranty period or throughout the life of your product. Refer to the

Lenovo Limited Warranty for a full explanation of Lenovo warranty terms. See “Lenovo

Limited Warranty notice” later in this document for details on accessing the full warranty.

● The essential requirements and other relevant provisions of the Radio and

Telecommunications Terminal Equipment Directive, 1999/5/EC

● All other relevant EU directives

Sound pressure warning statement

For the device that is tested in accordance with EN 60950-1:

2006+A11:2009+A1:2010+A12:2011+A2:2013, it is mandatory to perform audio tests for

EN 50332.

This device has been tested to comply with the Sound Pressure Level requirement laid

down in the applicable EN 50332-1 and/or EN 50332-2 standards. Permanent hearing

loss may occur if earphones or headphones are used at high volume for prolonged

periods of time.

France, Germany, Italy, Austria, United Kingdom,

Israel, Australia, New Zealand

Online technical support

Online technical support is available during the lifetime of a product at:

http://www.lenovo.com/support

Telephone technical support

You can get help and information from the Customer Support Center by telephone. Before

contacting a Lenovo technical support representative, please have the following

information available: model and serial number, the exact wording of any error message,

and a description of the problem.

Your technical support representative might want to walk you through the problem while

you are at your device during the call.

Worldwide Lenovo Support telephone list

Important: Telephone numbers are subject to change without notice. The most up-to-date

telephone list for the Customer Support Center is always available at:

http://www.lenovo.com/support/phone

If the telephone number for your country or region is not listed, contact your Lenovo

reseller or Lenovo marketing representative.

Warranty information

Lenovo Limited Warranty notice

This product is covered by the terms of the Lenovo Limited Warranty, version

L505-0010-02 08/2011. Read the Lenovo Limited Warranty (LLW) at

http://www.lenovo.com/warranty/llw_02. You can view the LLW in a number of languages

from this Web site. If you cannot view the LLW from the Web site, contact your local

Lenovo ofﬁce or reseller to obtain a printed version of the LLW.

Warranty period and type of Warranty service

Country or Region Purchase Warranty Period

Parts and Labor - 1 year

Battery Pack - 1 year 1,3

Type of Warranty

Service

Guatemala, Costa Rica, Venezuela, Peru,

Uruguay, Ecuador, Colombia, Chile, Argentina,

Indonesia, Vietnam, India, Malaysia, Thailand,

Philippines, Singapore, Hong Kong, El Salvador

Parts and Labor - 1 year

Battery Pack - 1 year 1,4

Parts and Labor - 1 year

Battery Pack - 1 year 1,5

Mexico, Japan

* Excludes some components. 90-day limited warranty for power adapters, keyboards,

plastics and hinges.

Czech Republic, Hungary, Romania, Bulgaria,

Greece, Croatia, Slovenia, Slovakia, Cyprus,

Poland

Spain, Switzerland, Portugal, Netherlands,

Belgium, Sweden, Denmark, Norway, Finland,

Estonia, Latvia, Lithuania, Iceland

Russia, Ukraine, Egypt, Lebanon, Morocco,

South Africa, Tunisia, Mauritius, Mozambique,

United Arab Emirates, Jordan, Kenya, Nigeria,

Uganda, Ghana, Oman,Tanzania, Namibia

Country or Region Purchase Warranty Period

Parts and Labor - 1 year

Battery Pack - 1 year 4

1,5

Panama Parts and Labor - 1 year

Battery Pack - 1 year 2,4

Taiwan, South Korea Parts and Labor - 1 year

Battery Pack - 1 year 3,4

Brazil Parts and Labor - 1 year

Battery Pack - 1 year 2,5

Parts and Labor - 2 years

Battery Pack - 1 year 1,3

Parts and Labor - 2 years

Battery Pack - 1 year 1,5

Turkey Parts and Labor - 2 years

Battery Pack - 2 years 3,4

Parts and Labor - 2 years

Battery Pack - 2 years 4Saudi Arabia

Parts and Labor - 2 years

Battery Pack - 1 year

Serbia 1,4

Types of Warranty Service

1. Customer Replaceable Unit (“CRU”) Service

2. On-site Service

3. Courier or Depot Service

4. Customer Carry-In Service

5. Mail-in Service

6. Customer Two-Way Mail-in Service

7. Product Exchange Service

For a full explanation of the types of warranty service, refer to the full warranty. See

“Lenovo Limited Warranty notice” for details on accessing the full warranty.

Type of Warranty

Service

United States of America, Canada Parts and Labor - 3 months

Battery Pack - 3 months

Andere Handbücher für TAB3 7 Essential

Inhaltsverzeichnis

Sprachen:

Andere Lenovo Tablette Handbücher

Lenovo

Lenovo IdeaTab S2109A-F Bedienungsanleitung

Lenovo

Lenovo IdeaPad MIIX 720-12IKB Bedienungsanleitung

Lenovo

Lenovo YOGA BOOK YB1-X90F Anleitung zur Verwendung

Lenovo

Lenovo IdeaPad A1-07 Bedienungsanleitung

Lenovo

Lenovo ThinkPad X220 Tablet 4298 Betriebsanleitung

Lenovo

Lenovo TAB S8-50 Anleitung zur Verwendung

Lenovo

Lenovo YOGA Tablet 2 Pro-1380F Anleitung zur Verwendung

Lenovo

Lenovo YOGA TABLET 8 Technisches Handbuch

Lenovo

Lenovo 1869CSU Bedienungsanleitung

Lenovo

Lenovo TAB 2 A8-50F Anleitung zur Verwendung

Lenovo

Lenovo TAB S8-50 Anleitung zur Verwendung

Lenovo

Lenovo ThinkPad X1 Betriebsanleitung

Lenovo

Lenovo TAB 2 A7-30 series Anleitung zur Verwendung

Lenovo

Lenovo YOGA Tablet 2 Pro-1380F Anleitung zur Verwendung

Lenovo

Lenovo Yoga Tab 3 Pro Anleitung zur Verwendung

Lenovo

Lenovo Tab P11 2nd Gen Anleitung zur Verwendung

Lenovo

Lenovo TB350XU Bedienungsanleitung

Lenovo

Lenovo YOGA Tab 3 8 Anleitung zur Verwendung

Lenovo

Lenovo Tab P10 Series Betriebsanleitung

Lenovo

Lenovo TAB 2 A10-30 Anleitung zur Verwendung

Lenovo

Lenovo Yoga Smart Tab YT-X705F Anleitung zur Verwendung

Lenovo

Lenovo IdeaPad Miix 10 Bedienungsanleitung

Lenovo

Lenovo ideapad MIIX 510-12ISK Betriebsanleitung

Lenovo

Lenovo ThinkPad X1 Bedienungsanleitung

Beliebte Tablette Handbücher anderer Marken

Laser

Laser MID-1060 Benutzerhandbuch

MUNBYN

MUNBYN IRT09J Kurzanleitung

Motorola

Motorola MC3090R - Win CE 5.0 Professional 520 MHz Bedienungsanleitung

Dell

Dell Latitude ST Betriebsanleitung

Venturer

Venturer WT9L11 Bedienungsanleitung

EDUGEAR

EDUGEAR UnoBook Bedienungsanleitung

Philips

Philips PI3210G/58 Bedienungsanleitung

ADLINK Technology

ADLINK Technology IMT-BT Bedienungsanleitung

TwinMOS

TwinMOS TwinTAB-T102D1 Bedienungsanleitung

Archos

Archos 9.7 xenon Bedienungsanleitung

Getac

Getac E100 Bedienungsanleitung

HANNspree

HANNspree HANNspad SN70T3 Bedienungsanleitung

Philips

Philips PI3105W2/55 Bedienungsanleitung

LG LG-V935 Bedienungsanleitung

Zeki

Zeki TBDB763B Bedienungsanleitung

Ricoh

Ricoh eQuill Bedienungsanleitung

DT Research

DT Research DT365CT Montageanleitung

MaxWest

MaxWest Nitro Phablet 9 Bedienungsanleitung
