LEOXZ XF1 PRO Bedienungsanleitung
XF1 PRO | MANUAL
Injection moulded polyurethane grips
Construction made of metal and forging carbon fiber
Dashboards and LED bars are compatible with SimHub
4.3-inch IPS LCD with 800x480 pixels and 60 FPS
18 RGB LEDs with adjustable brightness and color
Optional non-contact clutch and optional paddles
70mm quick release holes and bolt holes
Notes
•Please read the user guide manual completely before installing or operating the racing wheel.
• This racing wheel has screen components, so it is important to avoid pressing the screen during use and minimize
contact with it.
•When connecting the racing wheel to the base, make sure that it is firmly attached before turning off the power.
•If using a USB connection, connect it directly to the PC instead of using a USB hub.
•Any modifications, disassemble, tampering, changes or unauthorized uses of the product will void the warranty.
•The racing wheel should not be used in wet or liquid environments and should be kept away from high
temperatures, low temperatures, and direct sunlight.
•The maximum input for the USB is 5V 1A.
•This racing wheel is designed for simulation use only.
•Leoxz is responsible for revising and explaining this manual, and reserves the right to make changes or corrections
to the information and explanation provided without prior notice and without any responsibility.
1
What's included
•XF1 Pro Steering Wheel
•USB-XS9 Cable
•Custom Stickers
•M3 Allen Key
•Nylon Tweezers
Note: The M3 allen key can only be used to adjust the paddle and remove the front knob for easy sticking of stickers.
2
USB Connection
XF1 Pro can only be connected via USB cable and requires a minimum input power of 5V 0.8A
to ensure proper operation. Otherwise, unexpected errors may occur.
The USB-XS9 cable will ensure a stable and reliable connection.
4
USB-XS9 Cable
Note: Make sure that the USB-XS9 cable is aligned
with the raised mark of the XS9 interface, otherwise it
will cause permanent damage to the socket if it is
inserted forcibly.

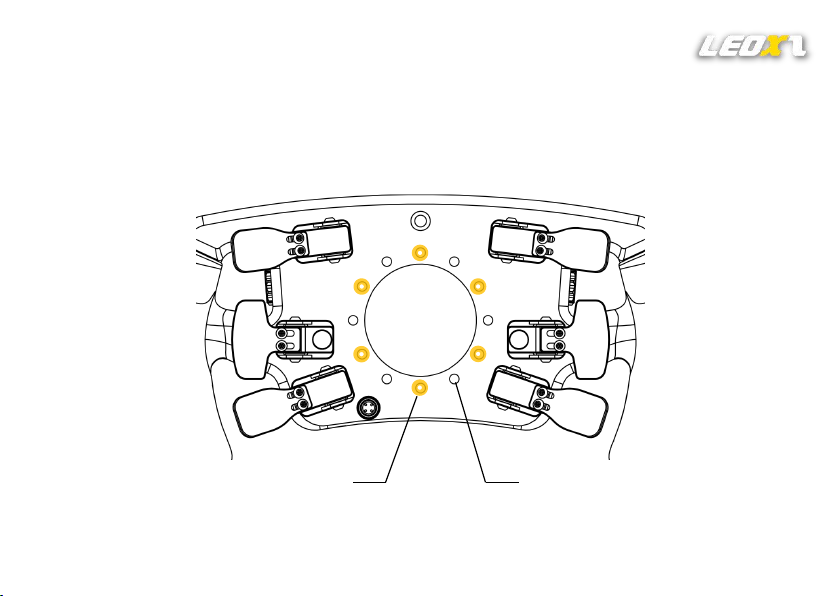

QR Installation
The XF1 Pro has 12 mounting holes with a diameter of 70mm for quick release installation,
including 6 through holes and 6 threaded holes. It supports a maximum diameter of 88mm for
the quick release.
Note: The length of the bolt that extends into the steering wheel should not exceed 6mm, it is recommended to use
M5X10 bolts. Using bolts that are too long may cause interference between the bolts and the PCB.
Through Holes
（6XΦ5)
Threaded Holes
(6XM5)
6

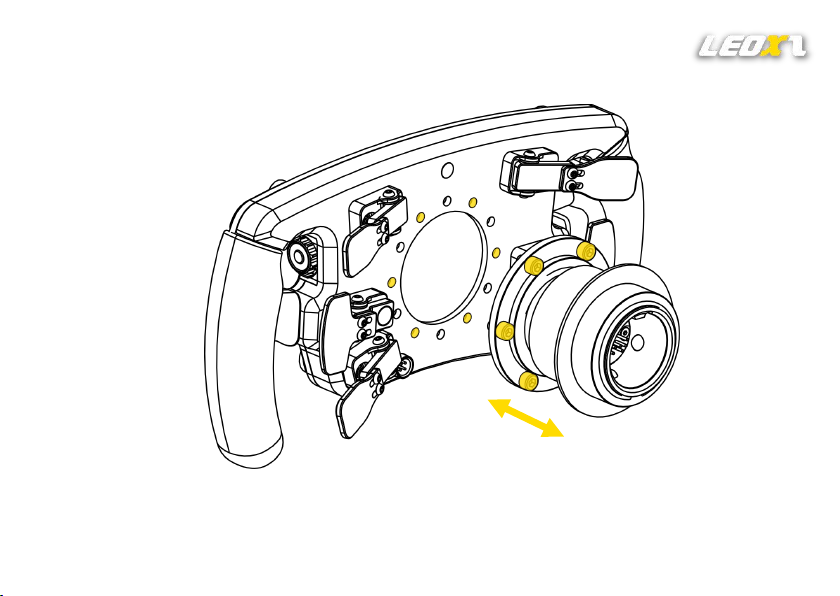

Install QR From Outside
Note: Using any QR must and can only be powered and signaled to the XF1 Pro via the USB-XS9 cable.
7

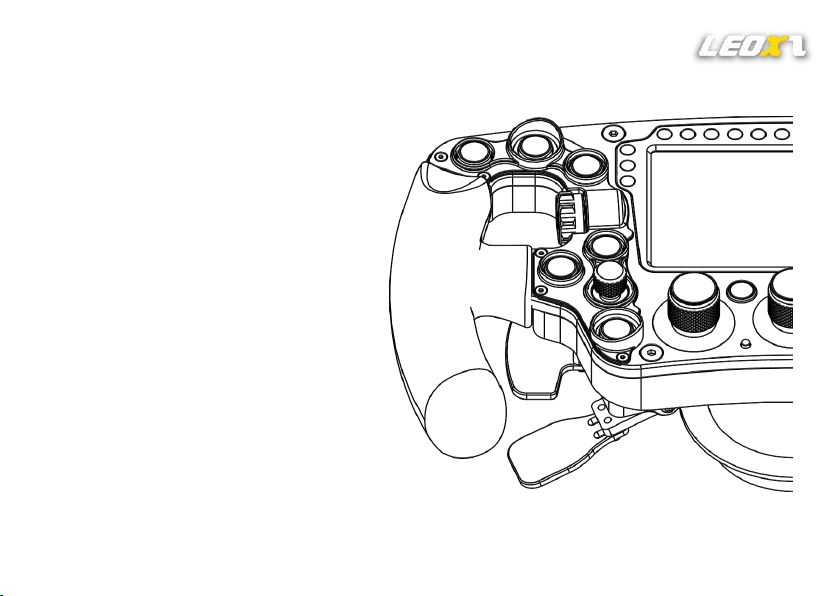

Interface
18 RGB LEDs compatible with Simhub
800x480 IPS LCD compatible with Simhub
16 Momentary button
2 Thumb rotary encoder
2 Front rotary encoder with push button
2 Multi-directional joystick with integrated encoder
2 Non-contact hall shifter paddle
2 Optional non-contact hall clutch paddle
2 Optional non-contact hall option paddle
9
Note: Keep in mind that on the page for the Windows USB Gaming device, some of the buttons will not show. This is
due to the Windows graphic interface's limitation in detecting more than 32 buttons.

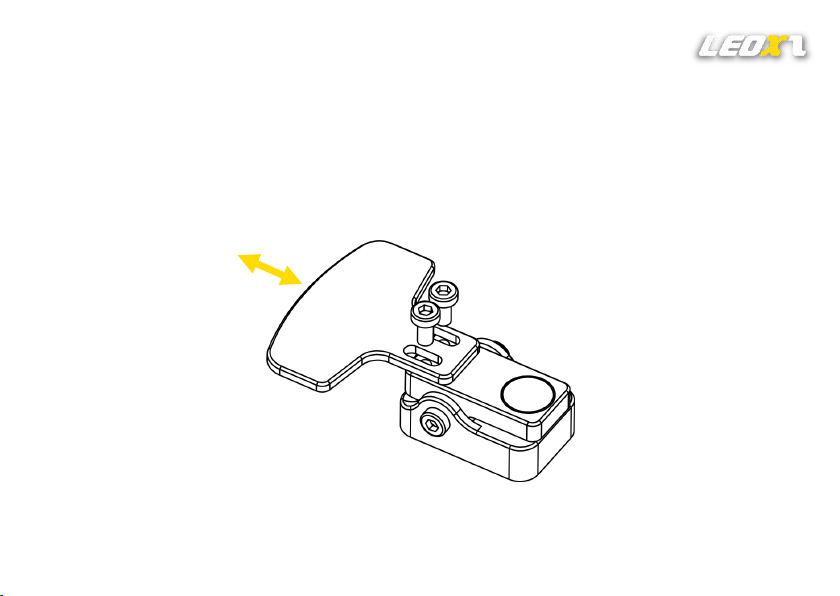

Paddle Adjustment
All paddles can be adjusted to meet the size requirements of different people. By adjusting the
two screws of the paddles, move the paddles outward or inward, and then tightened securely
with the screws.
Note: The operating torque of the bolts should not exceed 3Nm.
10

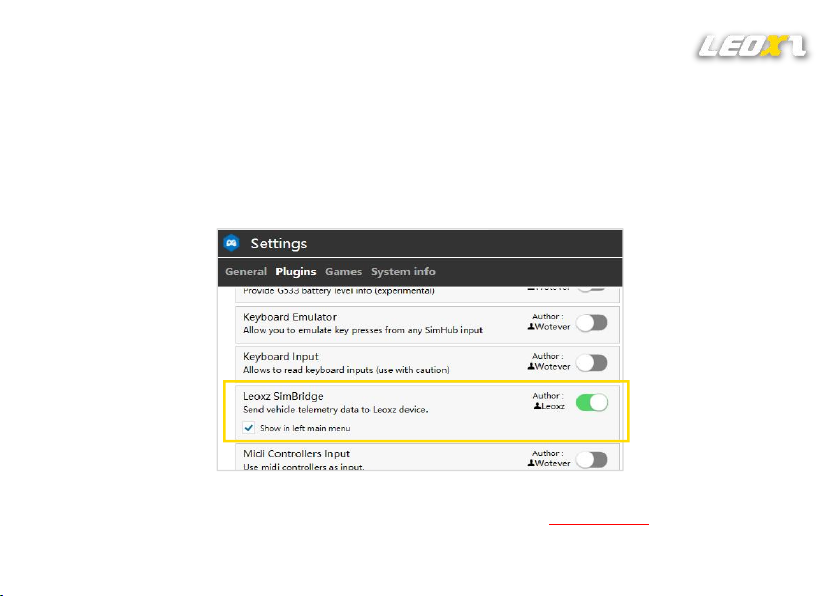

SimBridge Plugin For Simhub
XF1 Pro will be compatible with simhub through simbridge, enabling dashboard and LEDs
customization. To use it, you need to place SimBridge in the Simhub installation directory and
restart Simhub for it to take effect.
Note: You can download the latest version on the website www.leoxz.com.
11
Simhub Compatibility
11
XF1 Pro is a plug-and-play device, so
you can connect it to SimHub without
having to complicatedly install any
drivers.
You can display various dashboards on
screen and change brightness through
SimHub, and you can also achieve
various lighting effects by creating
different profiles.
XF1 Pro uses a specially customized vocore
screen, which can achieve 16bit color and 60FPS
screen update rate through usb2.0.
When the dashboard has a complex or gradient
image, enable “Dithering” to get a better display
effect.
* Using 60FPS will have higher cpu usage than using
30FPS.
