Level GC 055 Bedienungsanleitung

GSM Remote Monitoring

Operating and installation

instructions

GC 055

GSM, GPRS Programmable Communicator

Transmits input conditions/Controls outputs

Measures analogue data

Access control system/Dallas chips

Audio input / output

Contents

Contents........................................................................................................................3

1. Caution....................................................................................................................4

2. Safety......................................................................................................................4

3. Description ..............................................................................................................4

4. Technical Parameters .............................................................................................5

5. Design.....................................................................................................................5

5.1. Assembly accessories and optional extras .........................................................6

5.2. Dimensions.........................................................................................................6

5.3. Front panel..........................................................................................................7

6. Connection of inputs - outputs.................................................................................7

6.1. Connection to the upper row of connectors ........................................................7

6.2. Connection to the lower row of connectors.........................................................7

7. Installation - Configuration.......................................................................................8

7.1. Installing the SIM card ........................................................................................8

7.2. LED Indicators ....................................................................................................8

7.3. Connecting via PC..............................................................................................8

7.4. Control Panel......................................................................................................8

8. SMS - editing configuration - control .......................................................................9

9. Maintenance..........................................................................................................11

Warranty conditions........................................................................................................12

Warranty certificate.........................................................................................................14

1. Caution

GC 055 is a device for wireless data transmission, its activity may affect other electronic

devices that are prone to interference. The functionality of GC055 can also be affected by

sources of electromagnetic interference (contactors, relays) located near the device.

Only qualified personnel may install or repair this product. The device is not waterproof.

Operation is possible only in a dry environment.

Disclaimer:

Use of the GC 055 communicator is at the discretion of the user. LEVEL, Ltd. shall not be

liable for any damage arising from the use of this communicator.

2. Safety

We recommend you follow these tips in order to prevent damage to property or injury to

persons. Do not install or use in areas where the use of radio equipment is forbidden.

Installation and configuration can only be performed by qualified personnel, or a person

who has sufficient knowledge of this equipment and its safety requirements. All related

(connected) devices, PC, power supply and peripherals must be in accordance with the

requirements of the EN 60950-1 standard.

Place the unit so that the LEDs are visible to the operator. These LEDs provide information

about the operating modes and status. In the case of equipment failure, switch off and call

the qualified personnel.

3. Description

GC 055 Communicator is a compact alarm, monitoring and control unit for electronic

devices with SMS, GSM / GPRS communication and the possibility to control by calling.

The unit is programmed using a PC and software control panel via a USB connector It

contains 7 binary inputs (one is internal and monitors power supply voltage, inputs 1 to 4

can be used as analogue), 3 outputs - open transistor collector (outputs 1 and 2 inputs are

combined with binary inputs 6 and 7), one power relay (230 V / 5 A), one LED indicator on

the panel controllable by program, Dallas bus for connection of access chip/card readers,

thermometers and input/output expanders.

Examples of use:

GSM detector - conveys information about changes of input state via SMS

GSM home alarm - alarm with GSM communicator

GSM remote control - such as opening gates by ringing

Access identification system - using the Dallas chips for registering attendance

Measurement and control of analogue values

The reading of consumption meters and status via SMS / GPRS

4. Technical Parameters

Power supply

10 to 24 Vss / 1A, power consumption <30 mA at 12 V

GSM

850, 900, 1800, 1900 Mhz

SIM card Plug-in 1,8 V (only the newest type)

Antenna connector GSM - SMA

Communication

Calling, SMS, CSD data, GPRS

SMS

Outgoing SMS alarm

SMS queries the status of digital and analogue inputs

SMS configuration change

SMS launch on operators behalf

CSD data

(modem connection)

Edit configuration

Reading measured values

Reading the event memory

Control of outputs

Upgrade firmware

GPRS connection

GPRS Class 10 support for static and dynamic IP and VPN

UDP protocol, security option - AES 128-bit

All functions such as CSD data

Memory report

Flash 512 kB

7x binary inputs

4x outputs

1x LED outputs

1x Dallas input

Input max. 30 Vdc (inputs 1 to 4 can be used as analog inputs

0-10 V)

Output current max. 0.5 A (outputs 1 and 2 are combined with

binary inputs 6 and 7)

Can be controlled by configuration

Max. connection wire length 100 m

Audio input

3,5 mm jack, 50 kOhm, 2,2 V

Audio output

3,5 mm jack, 16 Ohm, 3,2 V

USB

Mini USB for connecting to PC - configuration, upgrade

firmware

Real time clock RTC

Date and time battery back up

Protection class

IP 20

Measurements

52 x 90 x 57 mm

Weight

150 g

Design

Plastic - attachment at TS 35 DIN-rail

Working temp. range

-25 to +65 °C

5. Design

The GC 055 design is in a plastic box suitable for mounting on a TS 35 DIN-rail. If the GC 055 is

placed in a metal cabinet, the GSM antenna must extend outside the cabinet. The antenna cable

cannot be adjusted. If the length of the antenna is insufficient, order an antenna with a longer cable.

5.1. Assembly accessories and optional extras

Accessories included with GC 055

13007040

GC 055, GSM antenna 3dB SMA magnet 5m cable

Accessories which can be purchased

SA 012 830

CB 170 020

ED 060 500

ED 060 550

ED 060 100

ED 055 002

ED 055 208

ED 055 218

ED 055 308

ED 055 314

Power adapter for DIN rail (10-14VDC / 1,25 A) 1.5 module width

Mini USB cable

Identification reader for Dallas chips

Dallas identification chip

Dallas temperature sensor (-40 to 130°C)

Backup battery for DIN rail (Lipol,12V, 1,2Ah), width 3 modules

Expander 8 inputs, gnd activation, width 3 modules

Expander 8 inputs, +voltage activation, width 3 modules

Expander 8 outputs, open collector, max. 200 mA, width 3 modules

Expander 4 relay outputs, 230 V / 5 A

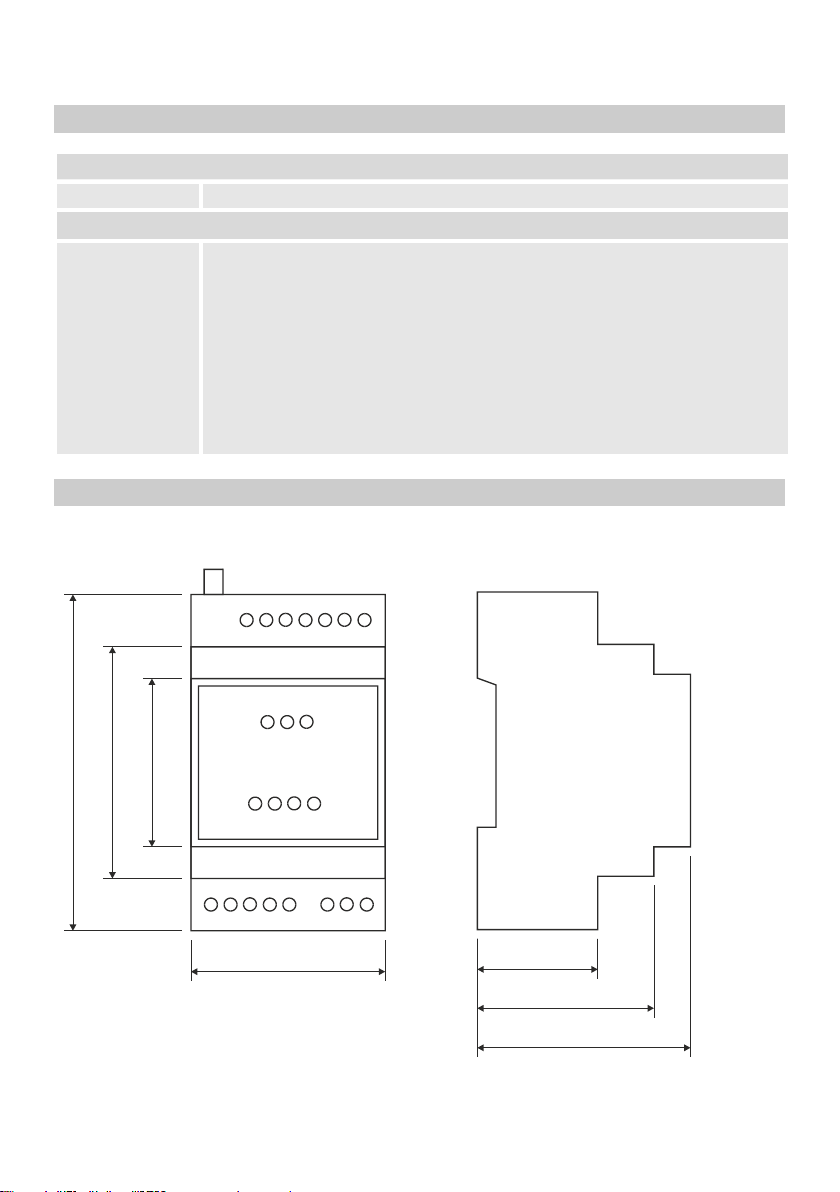

5.2. Dimensions

The width of the GC 055 is three modules on a TS 35 DIN rail.

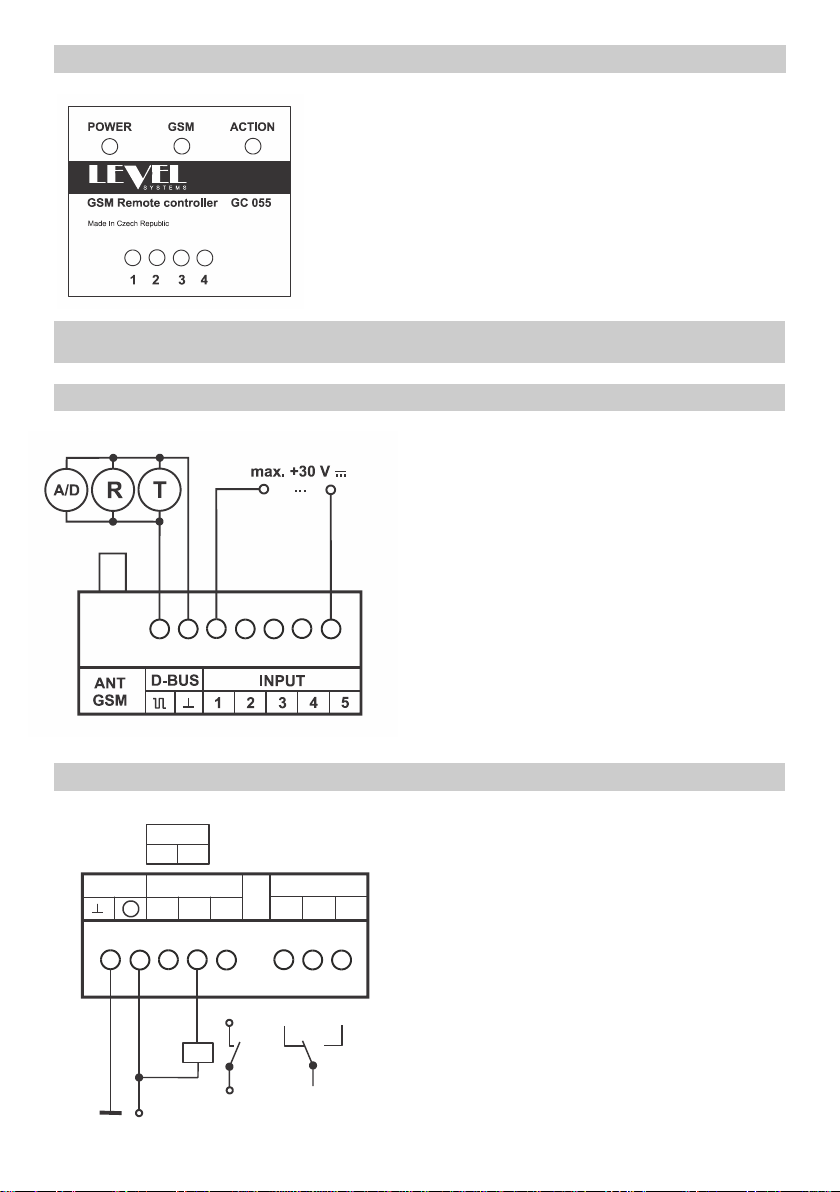

5.3. Front panel

The front panel of GC 055 is equipped with seven LED

indicators. The 'Action' LED is controlled by the

configuration. The 'GSM' LED indicates the GSM status

(Section 7.2).

LED 1-4 indicates state of output - the LED is lit when the

output is active, the output is earthed.

6. Connection of inputs - outputs

6.1. Connection to the upper row of connectors

The top part of GC 055 is equipped with an

SMA type GSM connector. If the GC 055 has

a metal casing, then the GSM antenna should

be outside the enclosed space.

From the Dallas bus it is possible to

simultaneously connect up to 10 input

devices (thermometers, A/D converters,

expanders) and an unlimited number of

readable access chips. It is necessary to

maintain the polarity of the connected device.

Inputs 1-4 are analogue voltage with a

measuring range of 0 to 30V DC maximum.

6.2. Connection to the lower row of connectors

The lower part is equipped with connectors for

connecting a supply voltage in the range

between 12-24V DC.

Outputs in the active state are earthed (log. 0).

The maximum allowable output current is 0.5

A. The auxiliary relay to the output is for

connecting against the (+) terminal of the

power supply. Output 4 may be the same as

GC 075 and fitted with an internal relay. Load

capacity of the relay is 230V / 5 A.

Outputs 1 and 2 can be used as analogue

inputs No. 6 and 7

OUTPUT OUT4-RE

1 2 3NC CO NO

(IN)

12-24 V

PWR

7. Installation - Configuration

7.1. Installing the SIM card

Before inserting the SIM, disconnect the power to GC 055. Inserting the SIM card into the

device whilst in use is not advised.

Use the notches on the sides of the front panel and a suitable tool (weak screwdriver) to

gently pry open the cover of the front panel. Open the SIM card holder using slight

pressure in the direction of the arrow (open). Place the SIM into the open door of the

holder so that the notch on the SIM matches the recess in the substrate holder. Close the

SIM card holder and secure with gentle pressure in the direction of the arrow (close). The

SIM card must not be locked with a PIN or the account frozen by the provider. It must also

have sufficient credit and possibly with GPRS data services activated.

7.2. LED Indicators

GSM –Yellow LED

0,5 s / 0,5 s

1× short / 10 s

1× short / 4 s

1× short / 2 s

2× short / 10 s

2× short / 4 s

2× short / 2 s

No GSM signal or no SIM card

Low power mode –No GPRS context

Normal power mode –No GPRS context

Moving to low power mode –No GPRS context

Low power mode –Linked to GPRS

Normal power mode –Linked to GPRS

Moving to low power mode –Linked to GPRS

ACTION –Red LED

Controlled by the configuration

POWER –Green LED

1× short / 2 s

Power on

OUT –Yellow LED

On = active output (output is earthing, relay closed)

7.3. Connecting via PC

A mini USB connector located under the front panel cover is used to connect the GC 055

to a PC. Before connecting the GC 055 to a PC, the software - Level Utility - must be

installed on the PC, which can be downloaded from the manufacturer's website

(www.level.systems - "Downloads" section). After connecting the GC 055 to the PC, the

device will be installed on the PC.

7.4. IDE - Control Panel

Level IDE - Control panel is a software tool for configuring the product line GC 05x and GC

07x and allows you to view the current status and download the report. In Basic

parameters you need to select Unit type - GC 055.

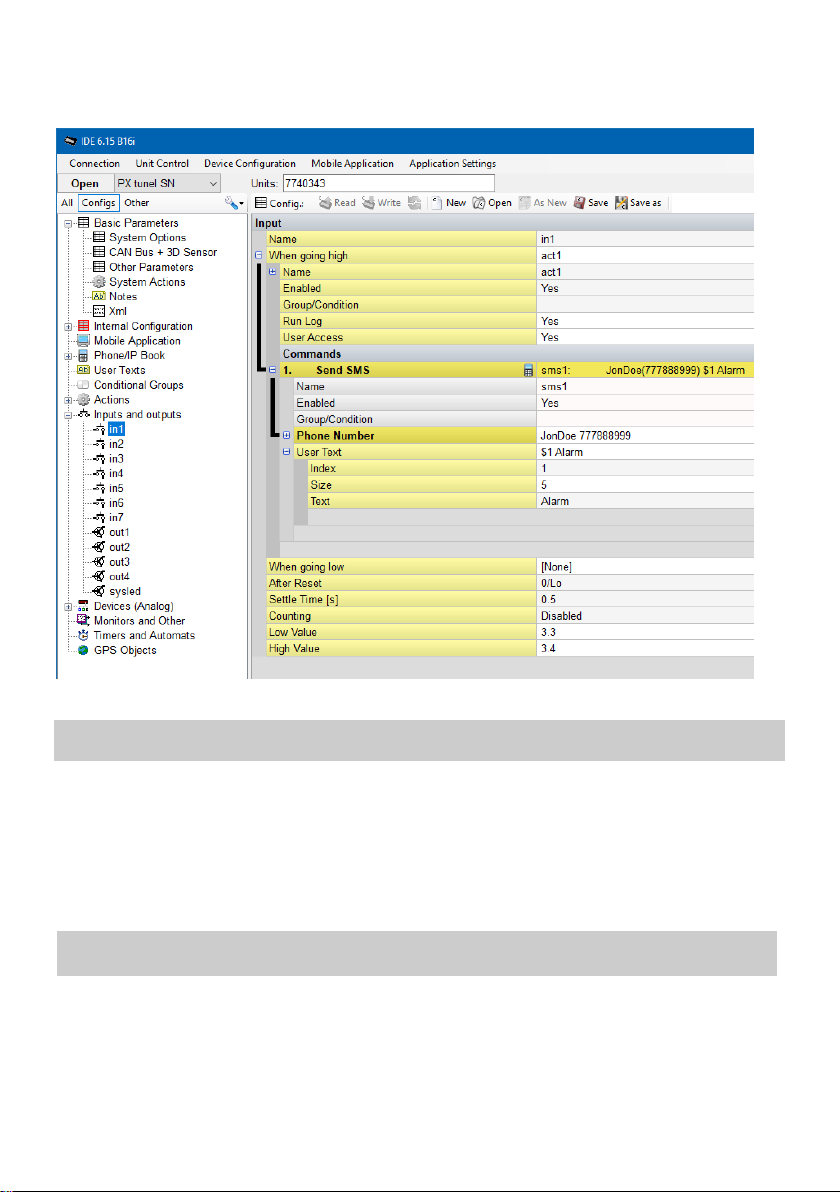

Example of configuration - sending SMS with text "Alarm" to phone number 777888999 at

rising edge of pulse on input 1.

8. SMS - editing configuration - control

Via SMS you can't create a new configuration for the device, but only edit the existing

configuration for the device (eg phone number in the phone book). For a list of available

SMS commands, see the software Help Control Panel in the Appendices. Setup and

operation is done through SMS messages sent to the phone number of the SIM card in the

communicator.

The shape of the control SMS:

PASSWORD command1 parameter1 command2 parameter2 command3 parameter3

command4 parameter4

PASSWORD maximum 8 characters a-z and 0-9. Factory setting is ‘picola‘.

space

COMMAND command name for the desired configuration

space

PARAMETER value? for enquiry or. (full stop) to delete values

One SMS message can contain up to 4 commands with parameters. The communicator

will confirm the execution of commands by sending an SMS. Lower and upper case letters

are only distinguished in the password.

For remote access to GC 055 via GPRS it is necessary to set the APN (Access Point

Name) to connect to the Internet.

Setting the APN provider

SMS

Value x

Set password x

password APN x

APN „x“

apn provider

Setting the access point name APN - only for selected foreign providers

SMS

Value x

Set password x

password GPRSNAME x

gprsname „x“

APN login name

Setting APN password - only for selected foreign providers

SMS

Value x

Set password x

password GPRSPSW x

gprspsw „x“

Password for APN

SMS to establish a GPRS connection

SMS

password CALLR @IP_adresa,port,UDP,1

CALLR @IP_adresa,port,UDP,1

After receiving the SMS GC 055 will send UDP packets to the IP address and port. The IP

address must be a fixed and public, routeable port to the PC where the conenction is to be

made. The port must be enabled in the firewall on the PC. In the Control Panel, you need

to wait for connections on the appropriate UDP port. For settings and procedures, see the

software Help IDE - Control Panel.

It is also possible to use the Tunnel - Connection Server from Level for remote access. No

public IP address is required for this connection. Access to this service is available on

request from technical support.

Changing the password

SMS

Value x

Set password x

password PSW x

psw x

new password –maximum 8 characters a-z and 0-9

picola

Inhaltsverzeichnis

Andere Level Handy Handbücher

Level

Level GB 060 3xx Bedienungsanleitung

Beliebte Handy Handbücher anderer Marken

Zte

Zte BLADE A520 Bedienungsanleitung

Nokia

Nokia Lumia 620 Bedienungsanleitung

Blackbe;rry

Blackbe;rry KEYone Bedienungsanleitung

Bea-fon

Bea-fon X5 Premium Bedienungsanleitung

Blackbe;rry

Blackbe;rry 8707 Series Bedienungsanleitung

Blackbe;rry

Blackbe;rry Storm Betriebsanleitung

LG LM-X420QN Bedienungsanleitung

LifeWatch

LifeWatch V Bedienungsanleitung

Bea-fon

Bea-fon SILVER LINE SL860 Bedienungsanleitung

IKI Mobile

IKI Mobile KF4.5i Bedienungsanleitung

Hitech

Hitech HT-850 Bedienungsanleitung

Yezz

Yezz Fashion F10 Bedienungsanleitung

Point Mobile

Point Mobile PM60 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Q10 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Bold 9900 Bedienungsanleitung

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Bedienungsanleitung

LG LM-K420EMW Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE IS655.2 Bedienungsanleitung
