LevelOne
WBR-3418
11g Wireless Broadband AP Router
(Roteador banda-larga sem fio - AP Router)
Quick Installation Guide
English
Português
English
Package Contents
WBR-3418 11g Wireless Broadband AP Router
Power Adapter(12VDC, 1A)
Antenna x1
RJ45 Ethernet LAN Cable
Quick Installation Guide
CD Manual
If any of the above items are missing, please contact your retailer
or distributor.
4
Before You Begin
Please note the default settings listed below.
Default Settings
IP Address
192.168.0.1
User / Password
admin / password
Wireless Mode
Enable
Wireless SSID
WBR-3418
Security
None
This Quick Installation Guide only describes the most basic
situations and settings. Please consult the User Manual on the CD
for more details.
Please have your Internet Service Provider’s username, password
or other connection details ready.
5
Installation
3. Connect your broadband internet connection
to the wireless router’s WAN port.
4. Connect the Computer LAN cable.
2. Attach the included antenna.
1. Please power off your ADSL / Cable modem by unplugging
the power adapter.
Internet
ADSL / Cable
Modem
6
6. Wait until the Power light remains on.
This means the router is ready for use.
5. Plug in the Power Adapter.
8. Installation is now complete. You can now begin to
configure the device.
7. Power back on your ADSL / Cable modem by plugging in the
power adapter.
7
Check Your Network Settings
(Windows XP / Vista)
1. Click the Start Button and open Control Panel.
Windows Vista, click
View Network Status and Tasks
then Manage Network Connections
2. Windows XP, double click
Network Connections
Windows XP
Windows Vista
8

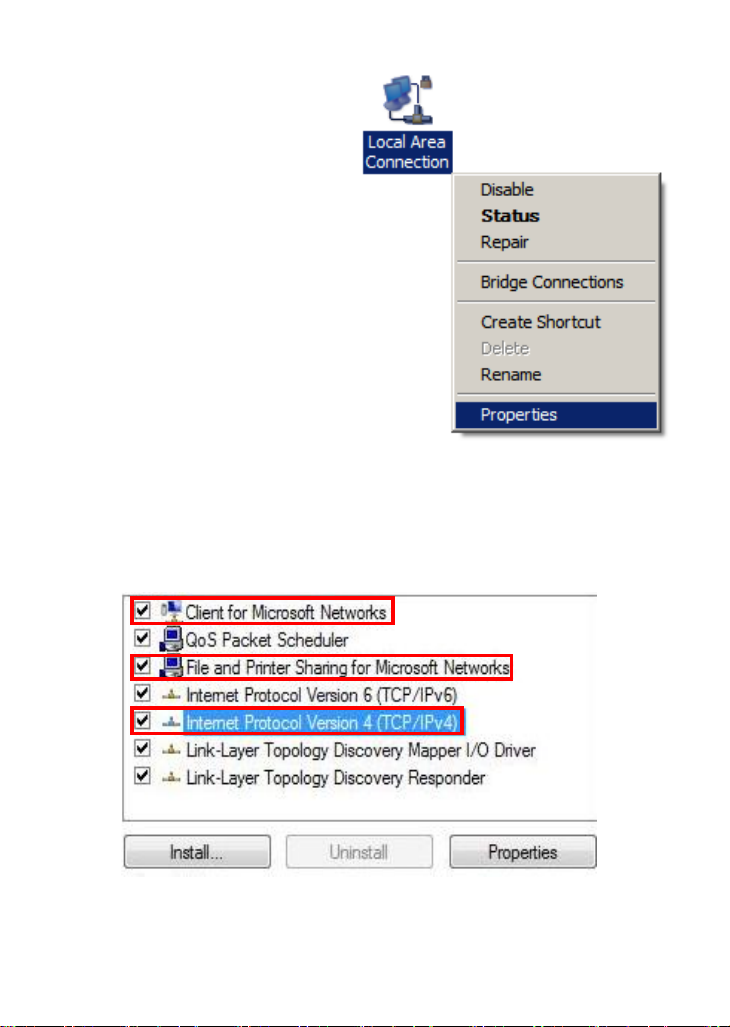

3. Right click on Local Area
Connection and choose
Properties.
Note: The name could be
different due to different
Network Interfaces.
4. Check the Client for Microsoft Networks, File and Printer
Sharing,and Internet Protocol (TCP/IP) is ticked. If not,
please tick them.
9
6. Select these two options and click [OK].
5. Select Internet Protocol (TCP/IP) and
click [Properties]
10
Configuration
1.Shutdown and restart your computer.
2.Once restart is completed, start your WEB browser (Internet
Explorer recommended).
In the Address box, enter the following:
http://192.168.0.1
3. Enter the Username and Password when prompted.
Defaults
Username: admin
Password: password
