VerifEye®Series 8000 PT Module

Cat. No. S480V

Installation Guide

WEB VERSION

TABLE OF CONTENTS

1 Introduction ...........................................................................................................1

1.1 Description and Speciﬁcations...........................................................................1

2 Installation..............................................................................................................4

2.1 Mounting the VerifEye PT module .....................................................................5

2.2 Install 347V Wye/600V Delta PT module in 600V three-phase

3-wire system.....................................................................................................7

2.3 Install 347V Wye/600V Delta PT module in 347V three-phase

4-wire system.....................................................................................................8

2.4 Install 480V Delta PT module in 480V three-phase 3-wire system ...................9

3 Maintenance...........................................................................................................9

3.1 Fuse Replacement.............................................................................................9

4 Regulatory Compliance ......................................................................................10

4.1 Equipment servicing and access .....................................................................10

5 Warranty and Contact Information.....................................................................11

WEB VERSION

WARNING:

• HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH.

• This equipment MUST be installed and serviced by qualiﬁed electrical personnel with the

requisite knowledge, training and experience related to the installation and operation of

this equipment.

• TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before

working on or inside the equipment. Use a properly rated voltage sensing device to

conﬁrm power is off.

• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.

• Product may use multiple voltage/power sources. Be sure all sources of power have been

disconnected before servicing.

• Do not depend on this product for voltage indication.

• Only install this product on insulated conductors.

• If the meter appears damaged or defective, ﬁrst disconnect all power to the meter.

Then call or email technical support for assistance.

• The equipment must be accessible to authorized personnel only. Equipment must be

installed in areas where access can be restricted.

• DO NOT work alone.

• Before closing all covers and doors, carefully inspect the work area for tools and objects

that may have been left inside the equipment.

• DO NOT bypass external fusing.

• DO NOT short the secondary of a Voltage Transformer (VT).

• Always short the secondary of a current transformer prior to disconnecting current

input loads.

CAUTION:

• Use the unit only in accordance with the electrical power rating

• Initial installation of the unit must be inspected by the local electrical Inspection Authority

• Install the unit in compliance with the following local and national electrical codes:

• Canada: Canadian Electrical Code, Part I, CSA C22.1

• United States: National Fire Protection Association (NFPA) 70; US National

Electrical Code

• Elsewhere: International Electrotechnical Commission (IEC) 364, Part 1-7

• Ensure that the unit is properly earthed

• If the equipment is installed or used in a manner other than that speciﬁed in this document,

it may void your warranty or impair the protection of the equipment.

WEB VERSION

1 Introduction

This guide provides a description of the VerifEye Series 8000 PT (potential transformer) module and

procedures for installing and maintaining the module.

This documentation is intended for those responsible for installing and maintaining the VerifEye PT

(potential transformer) module. Installers must be qualiﬁed electricians with knowledge of local and national

code requirements. See Warnings and Cautions.

1.1 Description and speciﬁcations

The VerifEye Series 8000 PT module provides step-down voltage connections to VerifEye Series 8000

meters for metering single-phase to three-phase voltages of 600V, 347V, or 400V, while meeting all

regulatory electrical safety and ANSI 0.5 Accuracy Class standards. The VerifEye Series 8000 PT module

provides both the per-phase input metering sense voltages and the auxiliary input power required by

VerifEye Series 8000 energy meters.

There are two variants of the VerifEye Series 8000 PT module that support the following source voltages

and wiring conﬁgurations:

1. The 347V Wye / 600V Delta variant supports:

• 347V, three-phase, 4-wire wye

• 600V, three-phase, 3-wire delta

2. The 480V Delta variant supports:

• 480V, three-phase, 3-wire delta

The 347V/600V PT module variant has three sense voltage potential transformers for metering. The

conﬁguration of the transformers (347V wye or 600V delta) is selected by using the jumper provided.

The 480V PT module has two sense voltage potential transformers for metering.

There is a separate auxiliary power transformer in both variants to operate the meter. All voltage inputs

are fused.

One VerifEye Series 8000 PT module can be used to provide sense voltages and auxiliary power to a

maximum of two meters.

Table 1 lists the speciﬁcations of the VerifEye PT module.

WEB VERSION

1 Introduction

Speciﬁcation Value

Dimensions

Height 8.39 in. (21.31 cm)

Width 13.53 in. (34.37 cm)

Depth 2.125 in. (5.4 cm)

Weight 12.5 lb (5.67 kg)

Fuse Ratings

High voltage inputs F1 T315 mA, 1000V

Voltage outputs F4 T250 mA, 250V

Transformer speciﬁcations

Input voltage 600V Voltage tolerance: +/-10%

480V

347V

Output voltage 120V Accuracy: 0.3%

Environmental

Operating temperature -40 to158°F (-40 to 70°C)

Operating humidity 5% to 90% non-condensing

Usage environment Indoor or enclosed outdoor environment

Maximum altitude 9843 ft (3000 m)

Pollution degree 2

Table 1: VerifEye PT module speciﬁcations

WEB VERSION

2 Installation

The installation site must be supplied with access to the main electrical panel and any sub-panels. Portable

or permanent lighting must be available to provide the installers with a clear view of the equipment and of

the installation environment. Each installation may vary depending on physical site restrictions.

Figure 1 shows the recommended spacing for mounting the equipment at the installation site.

Figure 1: Recommended equipment spacing and dimensions

7.59 in.

(189.8 mm)

9.0 in.

(228.6 mm)

MIN 3.50 in. (88.9 mm)

8.39 in.

(213.1 mm)

13.19 in.

(335.0 mm)

13.53 in.

(343.7 mm)

2.25 in.

(5.4 mm)

6.50 in.

(16.5mm) No 8

SCREWS

TYPICAL

PT ENCLOSURE

METER

SHORTING

TERMINATION

ENCLOSURE

12.58 in.

(319.5 mm)

12.58 in.

(319.5mm)

WEB VERSION

2 Installation

List of tools and equipment

The installer must have the following tools and equipment before proceeding with the installation:

• an appropriate 15-Amp maximum circuit breaker or a disconnect device

• current/voltage meter

• 4-wire 14 AWG (1.63 mm2) 194°F (90°C) cable

• 3-wire, 14 AWG (1.63 mm2), 194°F (90°C) cable

• small ﬂat-head screwdriver

• #2 Phillips screwdriver

• crimping tool

• wire strippers

• four 1-inch (25 mm) #8 mounting screws suitable for selected mounting surface

2.1 Mounting the VerifEye Series 8000 PT module

WARNING:

• HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH.

To be installed by electrician or other qualiﬁed personnel only.

• TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before

working on or inside the equipment. Use a properly rated voltage sensing device to conﬁrm

power is off.

• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.

In all installations, the VerifEye Series 8000 PT Module must be connected to the source panel voltage

through a 15A maximum disconnect or breaker that disconnects all line and neutral wires, so that the

PT module can be powered down. The disconnect or breaker must be located within easy reach of the

meter operator, and must be labeled to indicate the VerifEye Series 8000 PT module and meter that it is

connected to. The disconnect or breaker device must meet IEC 60947-1, IEC 60947-3 and/or comply with

the local electrical code.

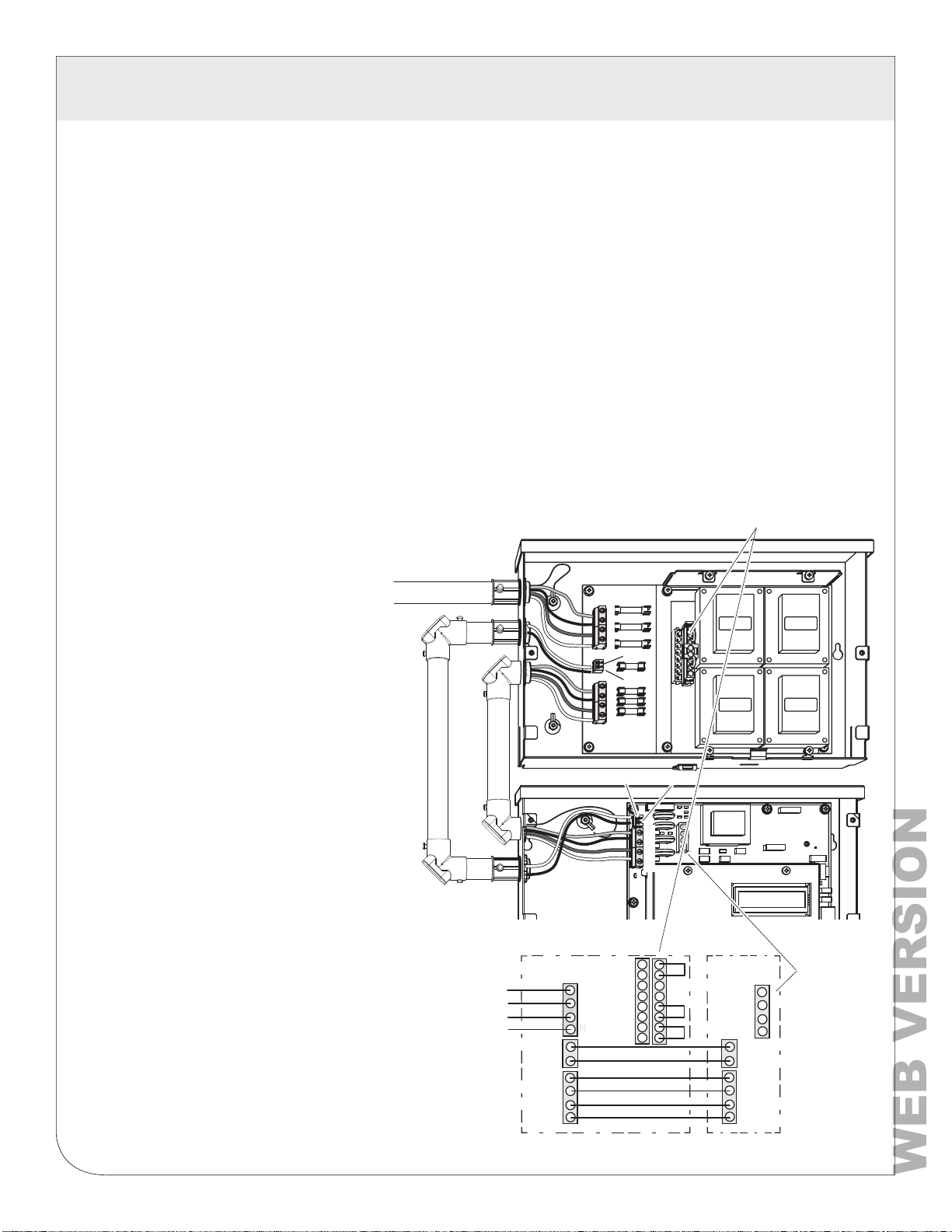

Figure 2 shows a typical system installation for a three-phase 4-wire 347V wye conﬁguration with the

VerifEye Series 8000 PT module mounted adjacent to the electrical panel and the VerifEye meter.

WEB VERSION

2 Installation

Generic Breaker Panel

PT Module

Shorting Bloc

Module

Generic Conduit

Figure 2: Typical three-phase 4-wire 347V wye system installation

WEB VERSION

2 Installation

2.2 Install 347V Wye/600V Delta PT module in 600V three-phase 3-wire system

WARNING:

• HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH.

To be installed by electrician or other qualiﬁed personnel only.

• TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before

working on or inside the equipment. Use a properly rated voltage sensing device to conﬁrm

power is off.

• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.

1. Install the conﬁguration jumper on the PT module in the 600V delta position (default), as shown in

Figure 3, and as indicated on the printed circuit board.

2. Remove the control voltage jumper on the

VerifEye meter as shown in Figure 3.

3. Connect the source panel

disconnector breaker to the VerifEye

Series 8000 PT module in accordance

with local and national electrical

codes.

4. Connect the VerifEye Series 8000 PT

module to the VerifEye Series 8000

meter using a 3-wire (red, black, blue),

14 AWG (1.63 mm2), 194°F (90°C)

cable. The maximum cable length

between the 120V outputs of the PT

module and the meter sense voltage

Figure 3: 600V delta PT module to meter wiring connections

AUX_N

AUX_A

Configuration Jumper (600V position)

AUX-A

AUX-N

PT Module Meter

Control Voltage

Jumper Removed

AUX_A AUX_N

WEB VERSION

2 Installation

2.3 Install 347V Wye/600V Delta PT module in 347V three-phase 4-wire system

WARNING:

• HIGH VOLTAGE: RISK OF ELECTROCUTION, SHOCK, EXPLOSION, OR ARC FLASH.

To be installed by electrician or other qualiﬁed personnel only.

• TO AVOID FIRE, SHOCK OR DEATH, turn off all power supplying equipment before

working on or inside the equipment. Use a properly rated voltage sensing device to conﬁrm

power is off.

• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.

1. Install the conﬁguration jumper on the PT module in the 347V wye position as shown in Figure 4, and as

indicated on the printed circuit board.

2. Remove the control voltage jumper on

the VerifEye Series 8000 meter as

shown in Figure 4.

3. Connect the source panel

disconnect or breaker to the

VerifEye Series 8000 PT module in

accordance with local and national

electrical codes.

4. Connect the VerifEye Series 8000

PT module to the VerifEye Series

8000 meter using a 4-wire (red,

black, blue, white), 14 AWG (1.63

mm2), 194°F (90°C) cable. The

maximum cable length between the

120V outputs of the PT module and

the meter sense voltage inputs

is 108 ft (33 m).

Figure 4: 347V Wye PT module to meter wiring connections

AUX_N

AUX_A

AUX-A

AUX-N

PT Module Meter

Control Voltage

Jumper Removed

ConfigurationJumper (347V position)

AUX_N

AUX_A

WEB VERSION

Andere Handbücher für Verifeye 8000 Series

Inhaltsverzeichnis

Andere Leviton Steuereinheit Handbücher

Leviton

Leviton 73A00-4ZB Montageanleitung

Leviton

Leviton CP series Bedienungsanleitung

Leviton

Leviton Vizia RF+ VRP15-1LW Bedienungsanleitung

Leviton

Leviton DHO Intellisense HXP15 Bedienungsanleitung

Leviton

Leviton GreenMAX RPM00-100 Bedienungsanleitung

Leviton

Leviton 71I00-1 Montageanleitung

Leviton

Leviton SureSlide 6637 Bedienungsanleitung

Leviton

Leviton 73A00-3ZB Montageanleitung

Leviton

Leviton Decora Sureslide 6629-3, 1.5A Bedienungsanleitung

Leviton

Leviton 73A00-4ZB Montageanleitung

Leviton

Leviton 41084-FxF Bedienungsanleitung

Leviton

Leviton 73A00-4ZB Montageanleitung

Leviton

Leviton Decora Illumatech Bedienungsanleitung

Leviton

Leviton miniZ Series Bedienungsanleitung

Leviton

Leviton LV200 Bedienungsanleitung

Leviton

Leviton SGAMP Bedienungsanleitung

Leviton

Leviton 73A00-3ZB Montageanleitung

Leviton

Leviton 73A00-3ZB Montageanleitung

Leviton

Leviton SPLCH Bedienungsanleitung

Leviton

Leviton VRCS4-1L Vizia RF + Bedienungsanleitung

Leviton

Leviton Decora Home Controls 6375 Bedienungsanleitung

Leviton

Leviton Quantran QTM00-050 Bedienungsanleitung

Leviton

Leviton 73A00-3ZB Montageanleitung

Leviton

Leviton 476TL-T12 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
