LEVITON Dock

Operation Manual

This document and all its contents herein are subject to and protected by international copyright and other intellectual property

Use herein of third party trademarks, service marks, trade names, brand names and/or product names are for informational

purposes only, are/may be the trademarks of their respective owners; such use is not meant to imply afﬁliation, sponsorship,

or endorsement.

No part of this document may be reproduced, transmitted or transcribed without the express written permission of Leviton

Manufacturing Co., Inc.

Regulatory Compliance Statements

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, it may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

EN55022 Class-B

EN55024

Safety instructions regarding the radio waves

Do not use this product near medical devices, such as a heart pacemaker. The radio waves

generated by this product may interfere with the operation of these devices.

Do not use this product near microwave ovens. The radio wave used by microwave ovens may

cause interference with this product.

Safety Precautions

Users are strongly advised to adhere to the directions and recommendations offered in this manual. Failure to do

so may result in problems during operation.

Use the following safety guidelines to help protect yourself and the

•Do not attempt to service the LEVITON Dock yourself.

•Always follow installation instructions closely.

•Make sure the correct voltage is being supplied before turning the power on.

•Use only the AC adapter and power cord that are approved for use with this unit.

•Do not install in a very humid environment.

•Do not install in an area exposed to sunlight or heat.

•Do not use in areas containing flammable materials like propane gas and gasoline or in areas that generate

dust. Doing so may cause an explosion or fire.

•Do not dismantle, repair, or modify the product. Doing so may cause damage or an electric shock. Refer all

servicing to qualified personnel.

•Do not use water, thinner, or organic solvent for cleaning the product exterior. Doing so may

cause damage or an electric shock. Use a dry cloth instead and turn off the power before

cleaning.

Disclaimer

•While every effort has been made to ensure that the information contained in this guide is accurate and

complete, no liability can be accepted for any errors or omissions.

•LEVITON reserves the right to change the specifications of the hardware and software described herein at any

time without prior notice.

•No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language in any form, by any means, without prior written permission of LEVITON.

•LEVITON makes no warranties for damages resulting from corrupted or lost data due to mistaken operation or

malfunction of the LEVITON Dock, the software, personal computers, peripheral devices, or

unapproved/unsupported devices.

iii

Table of Contents

Regulatory Compliance Statements .............................. i!

Safety Precautions .....................................................ii!

Disclaimer ............................................................................................................................. ii!

Introducing the LEVITON Dock............................1!

Features .......................................................................................................... 1!

Package Contents ............................................................................................. 2!

Supporte d Operating S ystems ................................................................................................. 2!

Supporte d iPo d Models .......................................................................................................... 2!

LEVITON Dock Overview

.................................................................................... 3!

Connections to the LEVITON Dock ..................................................................... 5!

Connecting the Network ......................................................................................................... 5!

To router, h ub, or network switch ............................................................................................ 5!

Connecting the Power ............................................................................................................ 5!

Connecting the Audio Output .................................................................................................. 6!

Getting Started

......................................................7!

Configuring the LEVITON Dock .......................................................................... 7!

LEVITON Dock Setup Utility ................................................................................................... 8!

LEVITON Dock Operation ................................................................................ 14!

Operation M odes ................................................................................................................. 15!

Playing Music ................................................................................................. 15!

Inserting and Removing an iPod ....................................................................... 16!

Accessing the Web Server ............................................................................... 16!

Status ................................................................................................................................. 17!

Configuration ...................................................................................................................... 18!

Syste m Information .............................................................................................................. 18!

Reset to Factory Default .................................................................................. 19!

Interfacing with the LEVITON Dock ..................20!

Enabling the LEVITON Dock ............................................................................ 20!

Creating a N ew Project with the LEVITO N Dock ..................................................................... 20!

Adding Touchscreens to the P roject ...................................................................................... 22!

Adding the LEVITON Dock to an Existing Design ............................................... 24!

Im porting the LEVITON Dock Page s ...................................................................................... 24!

Discovering Touchscreens............................................................................... 25!

Adding an LEVITON Controller to the Design .................................................... 26!

Adding the LEVITON Dock to the Design .......................................................... 26!

Disco ver the LEVITON Dock ................................................................................................. 27!

Assig ning the Audio Output .................................................................................................. 28!

Assigning a Tou chscreen Page fo r Media

................................................................................ 29!

Updating the Touchscreens ............................................................................. 30!

Accessing Your Music ..................................................................................... 32!

Browse the Media Library ..................................................................................................... 33!

Selec ting a new M usic Source

................................................................................................ 34!

Selec ting a New Audio Zone

.................................................................................................. 35!

Specifications......................................................36!

Chapter 1

Introducing the LEVITON Dock

The LEVITON Dock is a product that allows you to access music and other content on an iPod, iPod

Touch, or iPhone using IP enabled devices, such as LEVITON OmniTouch 5.7e and 10pe

Touchscreens, and Hi-Fi2 audio distribution systems. The LEVITON Dock connects over a wired or

wireless LAN network. When used with a supported audio distribution system, an iPod that is connected

to a LEVITON Dockbecomes an audio source that can be played in any audio zone in the house.

Using a LEVITON OmniTouch 5.7e, 10p, or 10pe Touchscreen, you can browse and make music

selections by Playlists, Artists, Albums, Songs, Podcasts, Genres, Composers, and Audiobooks. Album

art and other music metadata are displayed with each selection.

Features

Works with OmniTouch 5.7e and 10pe Touchscreens when combined with a LEVITON controller and

supported audio distribution system (e.g. LEVITON Hi-Fi or Hi-Fi2, NuVo, Russound, Xantech,

Speakercraft, or Proficient).

Works standalone with Hi-Fi2 audio distribution systems. VSC keypads will display iPod metadata (artist,

album, and track) and allows for control commands (play, pause, next track, and previous track) at the VSC

keypad.

LEVITON Dock sends iPod metadata and album artwork to IP enabled devices, such as LEVITON

OmniTouch 5.7e and 10pe.

IP enabled devices can send control commands (play, pause, stop, next track, previous track, rewind, fast

forward, next chapter, previous chapter, etc.) to an iPod that is docked in the LEVITON Dock.

LEVITON Dock allows IP enabled devices to navigate and browse the music library on the iPod by Playlists,

Artists, Albums, Songs, Podcasts, Genres, Composers, and Audiobooks.

Connects to an existing wired 10/100 LAN network or wireless 802.11 b/g (on supported LEVITON Dock

models) network.

Up to 8 LEVITON Docks can be connected and controlled on a network.

Charges the battery in the docked iPod.

Package Contents

After opening the box, ensure the following items are present:

oLEVITON Dock

oPower Supply

oAudio Cable

oLEVITON Dock CD (Setup Utility and Manual)

oGetting Started Guide

Supported Operating Systems

oWindows 7, Windows Vista, Windows XP, Windows 2000

oMac OS X 10.2.7 to 10.4.x (PPC version)

oMac OS X 10.4.3 or later (Intel version)

Supported iPod Models

oiPod classic

oiPod Nano (3G, 4G, 5G, 6G)

oiPod touch (1st, 2G, 3G, 4G)

oiPhone (1st, 3G, 3GS, 4G)

LEVITON Dock Overview

This section describes the main components of the LEVITON Dock.

Front View

Infrared (IR)

Receiver

Control playback of a connected iPod

from a distance using the Apple

Remote when the LEVITON Dock is in

Local Mode.

Operation

Mode LED

The Operation Mode LED is illuminated

when the LEVITON Dock is in Network

Mode (running and can be controlled

via IP enabled devices).

The Operation Mode LED is off when

the LEVITON Dock is in Standby

Mode. In Standby Mode the USB

controller, Ethernet PHY, and the

wireless radio (if applicable) is

disabled.

iPod

Connector

Connects the iPod to the LEVITON

Dock.

Operation

Mode Button

When is Standby Mode, press this

button to start the unit in Network

Mode.

When in Network Mode, press and

hold for 2 seconds to put the unit into

Standby Mode.

The Operation Mode Button is also

used to reset the LEVITON Dock to

factory default settings.

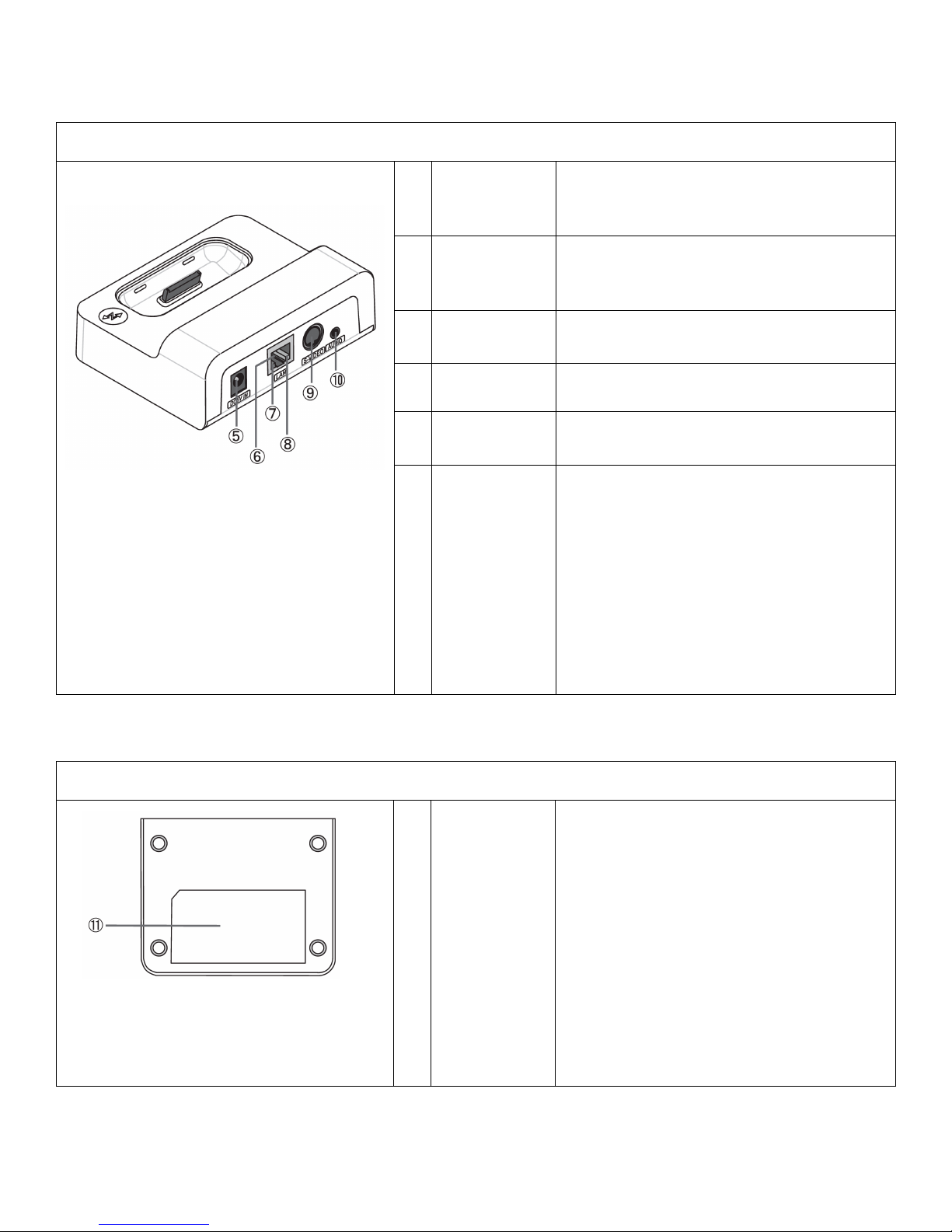

Rear View

Power Jack

Connect the supplied AC power supply

to this jack to provide power to the

LEVITON Dock.

Network

Port

Use a standard network cable to

connect the Network Port to the local

network.

Green LED

Shows the network communication

status.

Orange LED

Shows the network communication

status.

S-Video

Output

This output is currently not active.

Audio

Output

Connect supplied 3.5mm male stereo

patch cable between the Audio Output

on the LEVITON Dock and an audio

input on Hi-Fi2 or other audio

distribution system.

3.5mm male to 2 RCA male stereo

patch cable can be used to connect

LEVITON Dock to audio equipment

which requires RCA audio inputs.

Bottom View

Ethernet

Address

The Ethernet (MAC) Address of the

LEVITON Dock is found on the label

on the bottom of the unit.

The last 6 digits of the Ethernet

Address is the LEVITON Dock serial

number.

For example: If the Ethernet Address

is 00:07:A6:00:11:22 (noted as

0007A6001122) then the product's

serial number is “001122”.

Inhaltsverzeichnis

Andere Leviton Dockingstation Handbücher

Leviton

Leviton HAI Dock Bedienungsanleitung

Beliebte Dockingstation Handbücher anderer Marken

Sony

Sony Dream Machine XDR-DS12iP Bedienungsanleitung

Acer

Acer USB Type-C Dock II Bedienungsanleitung

ATEN

ATEN UC-2000 Bedienungsanleitung

Xcellon

Xcellon HDD-202 Bedienungsanleitung

Dok

Dok CR09 Bedienungsanleitung

Philips

Philips BTM630/12 Bedienungsanleitung

IOGear

IOGear Travel Pro GUD3C09 Bedienungsanleitung

RKI

RKI SDM-E2 Bedienungsanleitung

iHome

iHome iP15 Bedienungsanleitung

VITURE ONE

VITURE ONE MOBILE DOCK Bedienungsanleitung

Lindy

Lindy 42984 Bedienungsanleitung

CipherLab

CipherLab 8001 Bedienungsanleitung

Pyle

Pyle PIPDSP2 Bedienungsanleitung

Avol

Avol AS2350 Bedienungsanleitung

Datalogic

Datalogic JoyaTouch Bedienungsanleitung

Philips

Philips DC190/79 Bedienungsanleitung

Targus

Targus DOCK315EUZ Bedienungsanleitung

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Bedienungsanleitung
