Programmer/Remote

Cat. No. VRCPG

USER GUIDE

–

••

•

OFF

INTRODUCTION .......................................................1

MENU NAVIGATION & ICONS.............................2–4

STARTUP...................................................................5

Time ...........................................................................5

INSTALLATION CHECKLIST ...................................6

Include Dimmers/Switches....................................6

TEXT EDITOR.......................................................7

Include Controller ...............................................8

Update Controller............................................8, 9

Create Areas ..................................................9, 10

Set Associations .........................................10, 11

Security ........................................................11, 12

Install Complete.................................................12

MAIN MENU SCREEN............................................13

DEVICE LIST...........................................................13

WHO IS.. .............................................................13

AREA ..................................................................14

PROFILE.......................................................14, 15

EVENTS........................................................15, 16

SETTINGS ..........................................................16

TIME ...............................................................16

CONTRAST....................................................17

BUZZER .........................................................17

LOCATION .....................................................17

SECURITY......................................................18

BATTERY LEVEL...........................................18

EVENTS SETUP.............................................18

LCD TIMEOUT ...............................................19

LANGUAGE ...................................................19

SYSTEM SETUP (Advanced Settings)............20

NETWORK ...............................................20–23

ASSOCIATION...............................................23

RS232 SETUP................................................24

RTS DEVICES ...............................................24

UTILITIES.................................................24, 25

TABLE OF CONTENTS

Leviton’s Programmer/Remote, Cat. No. VRCPG, is a multi-

functional device. It uses Z-Wave

technology to act as a

programmer, zone or scene controller, remote and timer for

setting up and operating your Vizia RF +

network. This manual

will guide you through the understanding of your VRCPG

functions as a setup controller. Once your network is installed,

your VRCPG may also be used as a wireless controller for

activating events, and controlling your lighting system.

Your VRCPG comes with rechargeable batteries, a programmer/

remote stand, and a power adapter. NOTE: This product is

designed to work with other Z-Wave

enabled devices from

any manufacturer. Z-Wave

nodes of other types and product

categories can be added to the system, and will also act as

repeaters if they support this function of repeating the signal

received to other modules in the system. NOTE: Upon initial

installation, you will need to charge your VRCPG for twelve (12)

hours before programming and use.

WARNING: Leviton only supports the use of the supplied

rechargeable Ni-MH "AA" size batteries.

INTRODUCTION

1 ON

2 N

3 ON

4 ON

–

••

•

OFF

O F

OFF

VRCPG

Programmer/Remote

VRCPG

Stand

Power

Adapter

This equipment has been tested and found to comply with the limits

for a Class B Digital Device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment OFF and

ON, the user is encouraged to try to correct the interference by one or

more of the following measures:

• ReorientorrelocatethereceivingAntenna.

• Increasetheseparationbetweentheequipmentandthereceiver.

• Connecttheequipmentintoanoutletonacircuitdifferentfromthat

to which the receiver is connected.

• Consultthedealeroranexperiencedradio/tvtechnicianforhelp.

FCC COMPLIANCE STATEMENT

MENU NAVIGATION and ICONS

Navigating screens and menus on your VRCPG is

accomplished using the following buttons:

Back

MAIN MENU

1. Device List

2. Who Is...

3. Area

4. Profile

5. Events

Home

8:35A

1 ON

2 ON

3 ON

4 ON

OFF

08:35 AM

Mon 04 28 2008

VRCPG

Default Profile

Stand By Menu

8:35A

LCD

Display

(HOME screen

depicted)

Right Soft

Key

Arrow

Buttons

(up, down,

left, right)

Center

Button

"+"

Button

"–"

Button

Left

Soft Key

CENTER BUTTON

efault Prof

tand By

2:0

The right soft key brings

you to the MAIN MENU screen

from the HOME screen and is

used for saving and completing

tasks.

The left soft key is used

to bring you back to the previous

screen.

The up and down arrow buttons allow

you to scroll through each screen and will move

the selection box ( 1. Device List )to each

choice.

NOTE: Selections are made on

each screen by pressing the center

button on the VRCPG unless

prompted otherwise.

Check boxes are used

when multiple selections are

available. Use the and

buttons to select and deselect

from a list.

The Filter is used when

you wish to view only checked

devices, or only unchecked

devices from a list. Use the

right arrow button to toggle

between showing devices

checked, unchecked or all (no

ﬁlter).

Back 3/3

Area #1

Who Is

Bedroom

Bathroom

Hall

8:35A

Select? Press

1 N

Back Home

AREA

<< NEW >>

8:35A

Select? Press

<<NEW>> appears on various

screens as a prompt to create

something new (Area, Proﬁle,

Event, etc.)

Leviton also provides various icons that appear on

the screens to provide quick review of the state

of your network, selections made and to assist in

identiﬁcation of devices (refer to Icon Description

chart). 3

Single brackets

designate that more than one

choice is available. Use the left

and right side arrow buttons

to toggle between

choices.

Cancel Save

EVENT

1. Event #1

2. < Enabled >

3. Action

4. Recurrence

5. 12:00P

8:35A

De a l

tand B nu

tand nu

Back (3)

Area #1

Dimmer #1

Switch #1

Switch #2

Who Is

8:35A

Save? Press

Radio buttons are used

when an "either/or" single choice

is available. Scroll the selection

boxtoyourchoiceandusethe

button to select.

Back

PROFILE

<< NEW >>

Home

Profile #1

Profile #2

8:35A

Select? Press

< Enabled >

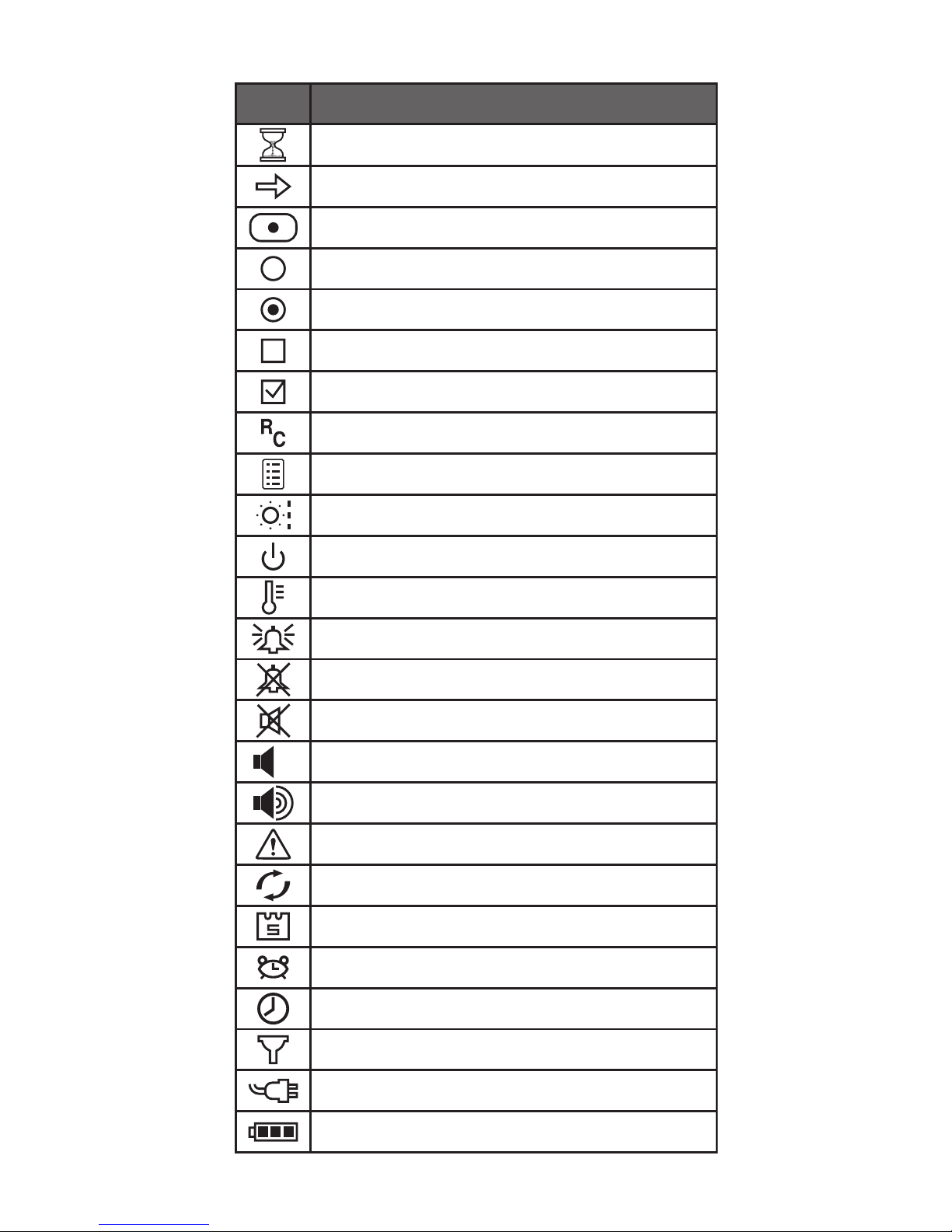

Back

DESCRIPTION

Event Time

Undefined device

Action in process

Center button

Remote Control

Zone/Scene Controller (Single or Multibutton)

Dimmer

Switch

Thermostat

Event is Set

Event Disabled or All Events are Disabled

Buzzer OFF (indication)

Buzzer OFF selection

Buzzer ON selection

Error Indication

Event Recurrence

One Time Event Date

Time of Day or Dawn/Dusk Offset

Filter (data on screen is filtered)

Power Adapter

Battery Power

Single choice (radio button) not chosen

Single choice (radio button) chosen

Multiple selection (checkbox) not selected

Multiple selection (checkbox) selected

ICON

NOTE: Upon initial power up of

the VRCPG, the Vizia

RF +

logo

will appear brieﬂy and then the

DATE & TIME screen will display,

prompting the user to change

the settings. NOTE: Leviton

recommends setting the date and

time before proceeding. Failure to

do so will disable your events (refer to EVENTS pg.

15). NOTE: The time will blink if the VRCPG loses

power to indicate there may be an error. Set the date

and time for your VRCPG as follows:

STARTUP

Cancel

DATE & TIME

Monday

Save

Time: 08:35 AM

Date: 04 28 2008

Form: 12h mmdd

12:00P

TIME

1. Use the arrow buttons to navigate and set the

date & time using the and buttons.

2. Press right soft key (Save).

You will be prompted to START

INSTALLATION CHECKLIST.

Press right soft key (YES).

NOTE: When you select YES to

begin the Installation Checklist,

the LANGUAGE screen will

appear. Use up and down arrow

buttons to scroll between

"ENGLISH" and "SPANISH".

Press center button to select

your language choice and right

soft key (Save) to complete.

1 N

3 ON

0 5 A

- C G

P l

M u

8 5A

INSTALL CHEKLIST

YES

START

INSTALLATION

CHECKLIST

8:35A

M 0 01 06

D ault P f le

OFF

on 0 .0 .200

De ault Pr file

S and By Menu

Cancel

LANGUAGE

Save

SPANISH

8:35A

ENGLISH

Include Dimmers/Switches

Pressing the center button

to select Include Dim/Swch will

bring you to the INCLUDE DIM/

SWCH screen and put the VRCPG

into Inclusion Mode. You will be

prompted to press a button on your

Dimmer or Switch. These devices

require a simple one step process

(button press) to include into

the network (refer to individual device instruction

sheet). Once the button is pressed on your Dimmer,

Switch or Plug-In Module, the VRCPG will go through

a communication process and assign the node

information for that device. The TEXT EDITOR will

display. You can now name your device.

NOTE: The VRCPG is by default assigned node #1.

STEP 1

Cancel

INCLUDE DIM/SWCH

Press button on

Dimmer/Switch

8:35A

Using your VRCPG, follow these steps to set up

your Vizia RF +TM network:

INSTALLATION CHECKLIST

Back

INSTALL CHECKLIST

2. Include Controller

3. Update Controller

4. Create Areas

5. Set Associations

Next Step

8:35A

1. Include Dim/Swch

Back

Update Controller

4. Create Areas

5. Set Associations

6. Security

Next Step

INSTALL CHECKLIST

8:35A

7. Install Complete

Leviton provides the Installation Checklist as a step

by step tool to setup your Vizia

RF +

network and

recommends following these steps in order, speciﬁcally

if you are a ﬁrst time user. System design will impact

performance, so it is necessary to include and update

your devices in a speciﬁc order to ensure overall system

performance and reliability. The Installation Checklist

steps are shown below. When a step is completed,

simply press the right soft key to select NEXT

STEPandtheVRCPGwillbringyoutothenextscreen.

NOTE: Installation checklist can be accessed any time

using option 7. System Setup on the Main Menu.

Using TEXT EDITOR you can

either assign a name from a list of

templates or assign a unique name

to your device.

NOTE: The right soft key will

toggle from Template to Abc to

ABC to abc to 123 and back to

Template again. This feature allows

you to access the template names or to select capital/

undercase letters and numerals to name your device.

To use the pre-made Templates,

with Template displayed, use the

up and down arrow buttons

to select a name.

The VRCPG offers a list of over 100

commonly used names to choose

from. NOTE: The template names

are editable for customization if you

choose to alter them.

To create a unique name or modify text, under

ABC (or Abc, abc, 123) use the up and down arrow

buttons to change each letter or numeral and

side arrow buttons to navigate. The and

buttons can be used to insert and delete characters.

Once your template or created

name is displayed, press the

center button .Your device

has now been included in

the network with your chosen

name. The VRCPG will conﬁrm

inclusion with the name displayed

and prompt you to continue to

INCLUDE DIM/SWCH by pressing the center button

or to continue to the NEXT STEP by pressing

the right soft key . After all Dimmers/Switches are

included, proceed to the NEXT STEP.

TEXT EDITOR

Switch #2

Levito

Save? Press

Switch #2

Template

8:35A

TEXT EDITOR

Back Next Step

Node included!

Node ID# 2:

Bedroom

More? Press

INCLUDE DIM/SWCH

8 35A

TEXT EDITOR

Switch #2

Leviton

Bedroom

Abc

Save? Press

8:35A

12:00 PM

Defaul P

S and By Men

OFF

Mon 0 06

S By

D a t ro ile

S an B Menu

D a t ro le

S an B

OFF

D a l o

a d y M

12 00 PM

on 0 200

Defa lt Pr fil

Stand By Menu

OFF

12:00 PM

n 05 1 2 0

ef lt Pr fi e

Stan By

Include Controller

NOTE: The INSTALL

CHECKLIST screen will appear

withtheselectionboxaround

STEP 2 - Include Controller

when NEXT STEP is chosen from

STEP 1.

Press the center button on

the VRCPG to bring up the

INCLUDE CNTRLLER screen,

where you will be prompted to

place the controller in program

mode.

NOTE: Leviton Controllers require

an inclusion process that differs

from Dimmers and Switches.

Controllers must be placed into

program mode before they can be included into the

network (refer to individual device instruction

sheet).

Once your controller has been placed in program

mode, press the center button on the VRCPG. The

VRCPG will go through the communication process

and assign the node information for that device. The

TEXT EDITOR will display where you can name your

device (refer to TEXT EDITOR pg. 7).

Once your name is displayed,

press the center button .The

VRCPG will conﬁrm inclusion

and prompt you to continue to

INCLUDE CONTROLLER by

pressing the center button or

to continue to the NEXT STEP

by pressing the right soft key

NOTE: The conﬁrmation process will take some time,

speciﬁcally in large networks. Remain close to the

controller until the conﬁrmation is complete. After

including all controllers, proceed to the

NEXT STEP

Update Controller

NOTE: The INSTALL

CHECKLIST screen will appear

withtheselectionboxaround

STEP 3 - Update Controller

when NEXT STEP is chosen from

STEP 2.

Back Next Step

Node included!

Node ID #3:

Room Controller

INCLUDE CNTRLLER

More? Press

8:35A

STEP 3

Back

INSTALL CHECKLIST

1. Include Dim/Swch

2. Include Controller

4. Create Areas

5. Set Associations

Next Step

8:35A

3. Update Controller

Return

INCLUDE CNTRLLER

Place controller

in program mode

See Instruction sheet

Begin? Press

8:35A

Back

INSTALL CHECKLIST

1. Include Dim/Swch

3. Update Controller

4. Create Areas

5. Set Associations

Next Step

8:35A

2. Include Controller

STEP 2

Andere Handbücher für VRCPG

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Leviton Fernbedienung Handbücher

Leviton

Leviton 48A00-1 Bedienungs- und Wartungshandbuch

Leviton

Leviton Universal Remote Controle Bedienungsanleitung

Leviton

Leviton Sector SHH00-000 Bedienungsanleitung

Leviton

Leviton VIZIA RF + Bedienungsanleitung

Leviton

Leviton NE210 Bedienungsanleitung

Leviton

Leviton HCCUR Bedienungsanleitung

Leviton

Leviton Vizia VZ00R-10X Bedienungsanleitung

Leviton

Leviton Enocean WSTLT-9D0 Bedienungsanleitung

Leviton

Leviton Acenti ACP0R-CB Bedienungsanleitung

Leviton

Leviton JCC JC121371 Bedienungsanleitung

Leviton

Leviton NE200 Bedienungsanleitung

Leviton

Leviton 8700 Series Bedienungsanleitung

Leviton

Leviton VRCPG Bedienungsanleitung

Leviton

Leviton HCCUR Bedienungsanleitung

Leviton

Leviton HCCUR Bedienungsanleitung

Leviton

Leviton ZLS0R-RC1 Bedienungsanleitung

Leviton

Leviton Decora IllumaTech RTF01-10X Bedienungsanleitung

Leviton

Leviton AC00R-10 Bedienungsanleitung

Leviton

Leviton RZCS1 Bedienungsanleitung

Leviton

Leviton Vizia RF RZCPG Bedienungsanleitung

Leviton

Leviton DL15A Bedienungsanleitung

Leviton

Leviton Bitwise BWRMT Bedienungsanleitung

Leviton

Leviton HCCKR Bedienungsanleitung

Beliebte Fernbedienung Handbücher anderer Marken

Panasonic

Panasonic EUR7622KB0 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen Beo4 Bedienungsanleitung

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Bedienungsanleitung

Multiplex

Multiplex PROFI TX 9 Bedienungsanleitung

One Remote

One Remote RMB4 Bedienungsanleitung

FUTABA

FUTABA 9ZAP - PART2 Bedienungsanleitung

HR Matic

HR Matic HR MULTI 3 Bedienungsanleitung

Yamaha

Yamaha ACC-GNRST-30-20 Bedienungsanleitung

EisSound

EisSound KBSOUND Bedienungsanleitung

Marantz

Marantz RC101 Bedienungsanleitung

Conrad

Conrad FS20 TC6 Bedienungsanleitung

Anritsu

Anritsu MP1777A Bedienungsanleitung

Niles

Niles WVC100 Fehlerbehebungshandbuch

RCA

RCA RCU1300 Bedienungsanleitung

Bang & Olufsen

Bang & Olufsen BEO6 Bedienungsanleitung

GE 94901 Bedienungsanleitung

Onbon

Onbon YQ1-75 Bedienungsanleitung

FUTABA

FUTABA R7108SB Montageanleitung
