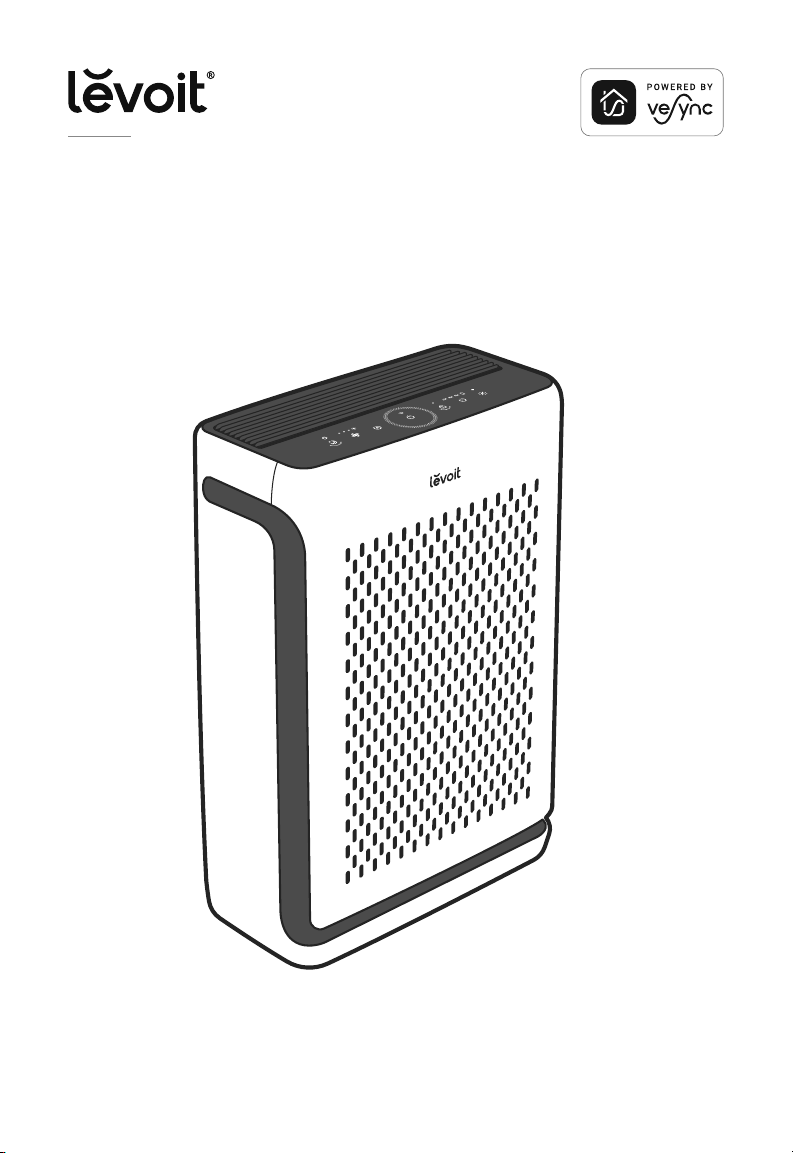

Levoit Vital 100S Bedienungsanleitung

Vital 100S

Smart True HEPA Air Puriﬁer

Questions or Concerns?

Please contact us Mon–Fri, 9:00 am–5:00 pm PST/PDT

at [email protected] or at (888) 726-8520.

USER MANUAL

Table of Contents

Package Contents

Speciﬁcations

Safety Information

Getting to Know Your Smart Air Puriﬁer

Controls & Display

Getting Started

Using Your Smart Air Puriﬁer

About the Filter

Care & Maintenance

Troubleshooting

Warranty Information

Customer Support

Package Contents

1 x Smart Air Puriﬁer

1 x Washable Pre-Filter (Pre-Installed)

1 x True HEPA / Activated Carbon Filter

(Pre-Installed)

1 x User Manual

1 x Quick Start Guide

1 x AC Power Adapter

Specifications

Model LAP-V102S-WUS

Power Supply 24V 1.5A

Rated Power 35W

Ideal Room

Size

219 ft / 20 m

• This Ideal Room Size

is based on 5 air

changes per hour

(ACH).

548 ft / 50 m

• This Ideal Room Size

is based on 2 air

changes per hour

(ACH).

Note: Eective for larger

rooms but puriﬁcation will

take longer.

CADR (CFM) 141 CFM / 240 m/h

Operating

Conditions

Temperature: 14°–104°F /

-10°–40°C

Humidity: ≤ 85% RH

Noise Level 23–52dB

Dimensions 12.8 x 6.4 x 16.1 in /

32.5 x 16.3 x 41 cm

Weight 7 lb / 3.4 kg

Power

Adapter

Input: 100–240V

50/60Hz

Output: 24V 1.5A

Note: To access additional smart functions,

download the free VeSync app (see page 9).

SAFETY INFORMATION

• Only use your air puriﬁer as described in

this manual.

• Do not use without removing the plastic

wrap from the ﬁlter. The air puriﬁer will not

ﬁlter air and may overheat, causing a ﬁre

hazard.

• Do not use your air puriﬁer outdoors.

• Keep your air puriﬁer away from water,

and wet or damp areas. Never place in

water or liquid.

• Do not use in excessively humid areas.

• Keep your air puriﬁer away from heat

sources.

• Do not use where combustible gases,

vapors, metallic dust, aerosol (spray)

products, or fumes from industrial oil are

present.

• Keep 5 ft / 1.5 m away from where oxygen

is being administered.

• Children should be supervised to ensure

that they do not play with the air puriﬁer.

• Do not allow children to play with the

plastic packaging. Immediately discard the

plastic after unwrapping the ﬁlter.

• Do not place anything into any opening

on the air puriﬁer.

• Children should be supervised to ensure

they do not insert ﬁngers or objects into

the vent openings.

To reduce the risk of ﬁre, electric shock, or other injury, follow all instructions and safety

guidelines.

General Safety

READ AND SAVE THESE

INSTRUCTIONS

• Do not sit or place heavy objects on the

air puriﬁer.

• Keep the inside of the air puriﬁer dry. To

prevent moisture buildup, avoid placing in

rooms with major temperature changes.

• Always unplug your air puriﬁer before

servicing (such as changing the ﬁlter).

• Do not use your air puriﬁer if it is

damaged or not working correctly, or if

the cord or plug is damaged. Do not try

to repair it yourself. Contact Customer

Support (see page 26).

• WARNING: To reduce the risk of ﬁre or

electric shock, do not use this air puriﬁer

with any solid-state speed controls (such

as a dimmer switch).

• Children should not clean or perform

maintenance on the air puriﬁer without

supervision.

• This air puriﬁer is not to be used by

persons (including children) with reduced

physical, sensory, or mental capacities,

or lack of experience and knowledge,

unless they have been given supervision

or instruction concerning the use of the

appliance by a person responsible for their

safety.

• Not for commercial use. Household use

only.

SAFETY INFORMATION (CONT.)

Electromagnetic Fields (EMF)

Your Levoit air puriﬁer complies with all

standards regarding electromagnetic ﬁelds

(EMF). If handled properly and according to the

instructions in this user manual, the appliance

is safe to use based on scientiﬁc evidence

available today.

Power Adapter & Cord

• Keep the air puriﬁer near the outlet it is

plugged into.

• Never place the cord near any heat source.

• Do not cover the cord with a rug, carpet, or

other covering. Do not place the cord under

furniture or appliances.

• Keep the cord out of areas where people

walk often. Place the cord where it will not

be tripped over.

• This air puriﬁer is only to be used with the

power supply adapter provided with the air

puriﬁer

• If the power adapter cord is damaged, it

must be replaced by Arovast Corporation or

similarly qualiﬁed persons in order to avoid

an electric or ﬁre hazard. Please contact

Customer Support (see page 26).

• This air puriﬁer’s power adapter uses

standard North American 120V, 60Hz

outlets. If using outside the US or Canada,

check for compatibility.

• Unplugging the power adapter will disable

remote control of the air puriﬁer and

temporarily disconnect the air puriﬁer from

VeSync and other third-party apps.

GETTING TO KNOW YOUR SMART AIR PURIFIER

A. Check Filter Indicator

B. Fan Speed Indicators

C. Auto Mode Button

D. On/O Button

E. Wi-Fi® Indicator

F. Display Lock Indicator

G. Timer Indicators

H. Light Sensor

I. Sleep Mode Button

J. Fan Speed Button

K. Air Quality Indicator

L. Display Lock Button

M. Timer Button

N. Display O Button

O. Front Cover

P. Washable Pre-Filter

Q. True HEPA / Activated Carbon Filter

R. AirSight™ Infrared Dust Sensor

S. Dust Sensor Cover

T. Power Adapter Input

U. Power Adapter

C D E

CONTROLS & DISPLAY

Auto Mode Button

• Turns Auto Mode on (see

page 10).

On/O Button

• Turns the air puriﬁer on/o.

• Press and hold for 3

seconds to connect the air

puriﬁer to the VeSync app.

See the in-app instructions

for more information (see

page 9).

• Press and hold for 3

seconds to reset the air

puriﬁer and disconnect from

Wi-Fi® (see page 9).

Wi-Fi Indicator

• Blinks when connecting

to the VeSync app, lights

up when connected to

VeSync, and is o when

disconnected from

VeSync. See the VeSync

in-app instructions for more

information (see page 9).

Sleep Mode Button

• Turns Sleep Mode on (see

page 10).

• Press and hold for 3

seconds to reset the Check

Filter Indicator.

Check Filter Indicator

• Lights up red when the ﬁlter

should be checked (see

Check Filter Indicator, page

17).

• To reset the Check Filter

Indicator, press and hold

for 3 seconds. The Check

Filter Indicator will ﬂash 3

times, and turn o.

Fan Speed Button & Indicators

• Cycles through fan speeds:

low (1 indicator will light up),

medium (2 indicators), high

(3 indicators), and turbo (4

indicators).

• Tapping while the air

puriﬁer is in Auto Mode,

Sleep Mode, or Pet Mode

(when the display is lit up)

will exit that mode.

Air Quality Indicator

• These indicator rings use

an automatic infrared dust

sensor to display the air

quality: Blue (Very Good),

Green (Good), Orange

(Moderate), Red (Bad).

Timer Button & Indicators

• Cycles through timer

options: 2 hours, 4 hours,

and 8 hours (see page 11).

Note: You can also use the VeSync app to control these functions, as well as additional

app-only features (see page 13).

Note: The timer indicators

will light up with the

corresponding timer selected.

• lights up when the timer

function is used through the

VeSync app.

Display Lock Button &

Indicator

• Prevents current settings

from being changed (see

page 12). Press and hold

for 3 seconds to lock and

unlock the display.

Display O Button

• Turns the display o (see

page 11).

• Tap any button to turn the

display back on.

CONTROLS & DISPLAY (CONT.)

Light Sensor

• The Light Sensor detects

the amount of light in the

room to automatically adjust

the air puriﬁer settings (see

Light Detection, page 11).

• Light Detection can be

turned on/o in the VeSync

app (see page 11).

Note: Display Lock can also

be controlled through the

VeSync app.

GETTING STARTED

1. Place the air puriﬁer on a ﬂat, stable

surface such as the ﬂoor.

2. Pull both sides of the front cover to

remove it. [Figure 1.1]

Figure 1.1

3. Push the pre-ﬁlter’s tabs inward and

pull to remove the pre-ﬁlter from the air

puriﬁer. [Figure 1.2]

• The Display Lock Indicator

will light up when the

display is locked and blink

when any other button

is tapped to indicate the

display is locked.

Figure 1.2

GETTING STARTED (CONT.)

Note: Make sure the True HEPA ﬁlter (the side with

the ribbon handle) is facing outward when you

insert the ﬁlter. [Figure 1.4]

4. Remove the True HEPA / Activated

Carbon Filter from inside the air puriﬁer.

5. Remove the plastic packaging from the

ﬁlter and place the ﬁlter and the pre-ﬁlter

back into the air puriﬁer. [Figure 1.3]

Figure 1.3

Figure 1.5

Figure 1.4

Figure 1.6

Figure 1.7

6. Place the front cover on the air puriﬁer.

Make sure to align the tabs on the cover

with the slots on the bottom of the air

puriﬁer. [Figure 1.5]

7. Insert the power adapter plug into the

back of the air puriﬁer. [Figure 1.6]

8. When using the air puriﬁer, allow at least

15 inches / 38 cm of clearance from the

front of the air puriﬁer. Keep away from

anything that would block air ﬂow, such

as curtains. [Figure 1.7]

15 in /

38 cm

• To disconnect Wi-Fi, press and hold for

15 seconds until the Wi-Fi indicator turns

o. This will restore the smart air puriﬁer’s

default settings and disconnect it from the

VeSync app.

• To reconnect, please follow the instructions

in the VeSync app for adding a device.

Note: You must create your own VeSync account

to access voice assistants.

Note: For Android™ users, choose “Allow” to

use VeSync.

Note: You must create your own VeSync

account to use third-party services and

products. These will not work with a guest

account. With a VeSync account, you can

also allow your family and friends to control

your smart air puriﬁer.

Note: Your phone must have Location

turned on while your phone is connecting to

your smart air puriﬁer. This is required to

establish the Bluetooth® connection. You

can turn Location o after your smart

air puriﬁer is ﬁnished connecting to

the VeSync app.

Note: The VeSync app is continually being

improved and may change over time. If there are

any dierences, follow the in-app instructions.

1. To download the VeSync app, scan the

QR code or search “VeSync” in the Apple

App Store® or Google Play Store.

You can use the VeSync app to connect

your smart air puriﬁer to Amazon Alexa or

Google Assistant™. Please follow the in-app

instructions to set up your voice assistant.

VeSync App Setup Wi-Fi® Connection

Connect with Amazon Alexa or

Google Assistant™

2. Open the VeSync app. Log In or Sign

Up.

3. Follow the in-app instructions to set up

your smart air puriﬁer.

Sleep Mode operates quietly by using a fan

speed lower than low speed.

1. Tap to turn Sleep Mode on.

2. Sleep Mode will turn o the display after

6 seconds if no other buttons are tapped.

3. To switch from Sleep Mode, tap Auto

Mode or select a fan speed on the air

puriﬁer’s display or in the VeSync app.

Note:

• When the display is turned o, tap

any button to turn the display back

on. If you don’t tap another button,

the display will turn o again after 6

seconds.

• will still turn on and stay on if it’s

time to check your ﬁlter (see page

17).

Auto Mode

Sleep Mode

USING YOUR SMART

AIR PURIFIER

1. Plug in and tap to turn on the air

puriﬁer. The fan will start on low.

2. Tap to change fan speed between

low, medium, high, and turbo.

Note:

• The fan speed indicators are not

buttons and only display the fan speed

setting.

• The fan speed indicators will light up

when active, 1 indicator will light up for

low, 2 for medium, 3 for high, and 4 for

turbo.

• Turbo fan speed (4 indicator lights) is

the loudest, but cleans air the quickest.

• For best results, or to address a speciﬁc

air quality issue such as smoke, run the

air puriﬁer on turbo for 15–20 minutes

before using a lower speed.

• To eectively clean air, keep windows

and doors closed while the air puriﬁer

is on.

Note: Using the VeSync app allows you to control

your air puriﬁer remotely and access additional

functions and features (see page 13).

Auto Mode uses AirSight™, an infrared dust

sensor inside the air puriﬁer, to adjust the fan

speed automatically based on air quality. For

example, if the air quality is bad, the fan will

automatically be set to high speed.

1. Tap to turn Auto Mode on.

2. will light up while Auto Mode is on.

3. To switch from Auto Mode, tap Sleep

Mode or select a fan speed on the air

puriﬁer’s display or in the VeSync app.

Air Quality Indicator Chart

Indicator

Color

Air

Quality

Auto Mode

Fan Speed

Blue Very Good Sleep Mode

Green Good Low

Orange Moderate Medium

Red Bad High

Note:

• Auto Mode does not use the turbo fan

speed.

• The VeSync app also supports Ecient

Auto Mode and Quiet Auto Mode (see

page 14).

Andere Handbücher für Vital 100S

Inhaltsverzeichnis

Andere Levoit Luftreiniger Handbücher

Levoit

Levoit LV-H128 Bedienungsanleitung

Levoit

Levoit Core 400S Series Bedienungsanleitung

Levoit

Levoit EverestAir LAP-EL551S-AUS Bedienungsanleitung

Levoit

Levoit Smart True HEPA Core 300S Series Bedienungsanleitung

Levoit

Levoit Core P350-RAC Bedienungsanleitung

Levoit

Levoit LV-H135 Bedienungsanleitung

Levoit

Levoit LV-PUR131 Bedienungsanleitung

Levoit

Levoit Pet Care True HEPA Core P350 Bedienungsanleitung

Levoit

Levoit Classic 300S Bedienungsanleitung

Levoit

Levoit Vital 100S Bedienungsanleitung

Levoit

Levoit Core 300 Bedienungsanleitung

Levoit

Levoit LV-H133 Bedienungsanleitung

Levoit

Levoit LV-PUR131 Bedienungsanleitung

Levoit

Levoit VeSync Core 600S Series Bedienungsanleitung

Levoit

Levoit LV-H135-RWH Bedienungsanleitung

Levoit

Levoit LV-H133 Bedienungsanleitung

Levoit

Levoit LV-H128 Bedienungsanleitung

Levoit

Levoit True HEPA Core 300-RAC Bedienungsanleitung

Levoit

Levoit Core 200S Bedienungsanleitung

Levoit

Levoit HERA LAP-C302S-WUSB Bedienungsanleitung

Levoit

Levoit LV-H133 Bedienungsanleitung

Levoit

Levoit LV-H128 Bedienungsanleitung

Levoit

Levoit LV-PUR131 Bedienungsanleitung

Levoit

Levoit Tower Pro True HEPA Bedienungsanleitung

Beliebte Luftreiniger Handbücher anderer Marken

IKEA

IKEA UPPÅTVIND Bedienungsanleitung

Nash

Nash AP-1 PureSmart Bedienungsanleitung

LG PH-U450 Series Bedienungsanleitung

DeLonghi

DeLonghi DDSX 220WFA Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Bedienungsanleitung

Sharp

Sharp FU-40SE Bedienungsanleitung

Philips

Philips AC2721 Bedienungsanleitung

Hitachi

Hitachi EP-A3000 Bedienungsanleitung

TruSens

TruSens Z-2000 Bedienungsanleitung

Motorola

Motorola MBP87SN Bedienungsanleitung

Beko

Beko ATP 7100I Bedienungsanleitung

Carrier

Carrier INFINITY 1620 Bedienungsanleitung

AtmosAir

AtmosAir P2002 Bedienungsanleitung

Winix

Winix NK300 Bedienungsanleitung

Friedrich

Friedrich C-90A Bedienungs- und Montageanleitung

Surgically Clean Air

Surgically Clean Air JADE2.0 Bedienungsanleitung

Base aire

Base aire 555 Pro Bedienungsanleitung

Champion

Champion CP25 Bedienungsanleitung
