LEXIBOOK DVDP1_07 Bedienungsanleitung
DVDP1_07
7” Lexibook® DVD Player
Lecteur DVD 7” Lexibook®
Lector DVD 7” Lexibook®
Instruction manual
Mode d’emploi
Manual de instrucciones
www.lexibook.com
1 2 34
5678
9 0 10+
VO L -
VO L+
RE PE AT
SEARCH
TI TL E
ENTER
RE TUR N
S T E P
S U B T I T L E
A N G L E
A U D I O ME N U
S E T U P
A B
DI S P L A Y
ZOOM MU TE
SOURCE
DVDP1_07IM1353_30Aug_V09.indd 1 30/08/2013 4:19 PM
DVDP1_07IM1353_30Aug_V09.indd 2 30/08/2013 4:19 PM
3
English
Safety instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER
(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The graphic symbols on the back cover of the set mean the following:
DANGEROUS VOLTAGE:
The lightning ash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated ‘dangerous voltage’
within the product’s enclosure that may be of sufcient magnitude to constitute
a risk of electric shock to persons.
WARNING:
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING:
• To reduce the risk of re or electric shock, do not expose this appliance to rain or
moisture.
• The apparatus shall not be exposed to dripping or splashing and that no objects lled
with liquids, such as vases, shall be placed on the apparatus.
• The mains plug is used as the disconnect device, the disconnect device shall remain
readily operable.
• In order to disconnect the apparatus from the mains completely, the mains plug should
be disconnected from the mains socket outlet completely.
LASER SAFETY
This unit employs an optical laser beam system in the CD mechanism,
designed with built in safeguards. Do not attempt to disassemble, refer to
qualied service personnel. Exposure to this invisible laser light beam may be
harmful to the human eye.
DANGER
DVDP1_07IM1353_30Aug_V09.indd 3 30/08/2013 4:19 PM
English
4
THIS IS A CLASS-1 LASER PRODUCT. USE OF CONTROLS, OR ADJUSTMENTS
OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN, MAY RESULT IN
HAZARDOUS LASER LIGHT BEAM EXPOSURE.
Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure
to laser beam.
Manufactured under license from Dolby Laboratories ‘Dolby’, ‘Pro Logic’ and the double-D
symbol are trademarks of Dolby Laboratories. Condential unpublished works.© 1992-
1997 Dolby Laboratories, lnc. All rights reserved.
This product incorporates copy protection technology that is protected by U.S. and foreign
patents, including patent numbers 5,315,448 and 6,836,549, and other intellectual
property rights. The use of Macrovision’s copy protection technology in the product must
be authorized by Macrovision. Reverse engineering or disassembly is prohibited.
DVDP1_07IM1353_30Aug_V09.indd 4 30/08/2013 4:19 PM
5
English
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the unit.
11. Only use attachments / accessories specied by the manufacturer.
12. Unplug this unit during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualied service personnel. Servicing is required when the unit
has been damaged in any way, such as the following: the power-supply cord or plug
has been damaged; liquid has been spilled or objects have fallen into the unit;
and / or the unit has been exposed to rain or moisture, does not operate normally, has
changed its performance or has been dropped.
14. Do not overload wall outlet. Use only power source as indicated.
15. Use replacement parts as specied by the manufacturer.
16. Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks.
17. The product must not be used if it has been exposed to rain or immersed in or sub-
jected to liquid spills.
18. If you experience problems with the DC car adaptor, check the fuse and if necessary,
change it (2A). Always replace the fuse with the same type and rating. If the fuse has
blown, check all connections and inspect the cord for any damage. If the fuse blows
repeatedly, take the car adaptor to your local retail store. Do not replace the fuse with
a higher rating as it may damage the player.
DVDP1_07IM1353_30Aug_V09.indd 5 30/08/2013 4:19 PM
English
6
Portable DVD player description
1. LCD screen
2. Speaker
3. Screen swivel
4. Disc compartment
5. Disc compartment open button
6. Charge indicator:
- Red LED light - charging
- Green LED light - fully charged
7. Power LED indicator
8. LEFT/VOL- button
9. DOWN/NEXT button
10. RIGHT/VOL+ button
11. UP/PREVIOUS button
12. PLAY/PAUSE button
13. SETUP button
14. SOURCE button
15. USB port
16. Headphone jack
17. AV OUT jack
18. ON/OFF switch
19. DC IN jack 9-12V
1
2
3
4
5
11
10
9
8
7
6
12 13 14 15 16 17 18 19
Installation
Unpacking the device
When unpacking, ensure that the following elements are included:
1 x portable DVD player
1 x remote control (CR2025 lithium type battery already inside)
1 x AC / DC adaptor
1 x car adaptor
1 x earphones
1 x instruction manual
WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are
not part of this product and should be discarded.
DVDP1_07IM1353_30Aug_V09.indd 6 30/08/2013 4:19 PM
7
English
1. ZOOM key
2. SEARCH key
3. SUBTITLE key
4. ANGLE key
5. TITLE key
6. Direction keys UP/DOWN/LEFT/RIGHT
7. ENTER key
8. SETUP key
9. REPEAT key
10. AB key
11. PROGRAM key
12. DISPLAY key
13. SOURCE key
14. MUTE key
15. Numeric keys (0-9)
16. 10+ key
17. STEP key
18. MENU key
19. AUDIO key
20. PLAY/PAUSE key
21. STOP key
22. RETURN key
23. VOL+ key
24. VOL- key
25. NEXT key
26. PREVIOUS key
27. FORWARD key
28. BACKWARD key
Remote control
Battery information
The rst time you use the remote control, remove the battery tab located at the rear of
the unit.
Battery replacement
1. Open the battery compartment cover by pressing the
unlock switch to the right and then sliding the battery
holder out.
2. Remove the used battery and insert one lithium CR2025
3V type battery (included) as illustrated.
3. Slide the battery cover in until it clicks rmly into place.
Non-rechargeable batteries are not to be recharged. Rechargeable batteries are
to be removed from the product before being charged. Rechargeable batteries are
only to be charged under adult supervision. Different types of batteries or new and
used batteries are not to be mixed. Only batteries of the same or equivalent type as
recommended are to be used. Batteries are to be inserted with the correct polarity.
Exhausted batteries are to be removed from the product. The supply terminals are not
to be short circuited. Do not throw batteries into a re. Remove the batteries if you are
not going to use the product for a long period of time.
1 2 34
5678
9 0 10+
VOL -
VOL+
REPEAT
SEARCH
TITLE
ENTER
RET U R N
STEP
SUBTITLE
AN G LE AUDIO MENU
SETUP
AB
DISPLAY
ZOOM MUTE
SOURCE
1
13
14
15
16
17
18
19
20
21
22
23
25
26
27
28
2
3
5
4
6
8
7
9
24
11
10
12
DVDP1_07IM1353_30Aug_V09.indd 7 30/08/2013 4:19 PM
English
8
WARNING: Malfunction or loss of memory may be caused by strong frequency
interference or electrostatic discharge. Should any abnormal function occur, remove the
battery and insert it again.
Corrosion, oxidation, battery-leakage and any other gradually acidic defect of this
nature will invalidate the guarantee.
Using the remote control
• Effective distance between the remote control and DVD player remote sensor is three
metres.
• When direct sunlight, an incandescent lamp, uorescent lamp or any other strong light
shines on the remote sensor of the unit, the remote operation may be unstable.
• When the battery becomes weak, the operating distance of the remote control reduces
signicantly and you need to replace the battery.
Your DVD player is equipped with a built-in rechargeable lithium battery.
Fully charge the battery before using it for the rst time.
1. Plug the AC / DC or car adaptor into the jack on the back of the DVD player and insert
the plug into a mains wall socket or car cigarette lighter. When the unit is turned on, the
power indicator is red.
2. Once you connect the unit to the AC/DC adaptor or car adaptor, the lithium battery will
be charged.
3. When the battery is being charged, the battery indicator ashes green.
4. When the battery is fully charged, the indicator becomes red.
Charging the built-in lithium battery
CHARGING TIME / PLAYBACK TIME
Charging time
Approx. 3 to 4 hours
Playback time
Approx. 1½ to 2 hours
Note:
• The playback time may vary based on pattern usages of the DVD player.
• Only use the adaptor supplied with the DVD player. Do not use any other adaptor.
• The socket-outlet should be installed near the equipment and should be easily
accessible.
WARNING: Malfunction or loss of memory may be caused by strong frequency
interference or electrostatic discharge. Should any abnormal function occur, unplug the
AC / DC adaptor from the mains socket and plug it back in.
DVDP1_07IM1353_30Aug_V09.indd 8 30/08/2013 4:19 PM
9
English
Disc types
Power connection
Use the AC / DC adaptor (AC ~ 100V-240V 50 / 60Hz) or the car adaptor to connect the
portable DVD player to a main socket. Make sure the remote control battery has been
inserted as shown in the Remote Control section.
Headphones connection
On the right side of the unit is a headphones socket, suitable for any normal earphones.
When the headphones are in use, the speakers are turned off.
CAUTION: Too high volume, especially when using headphones, can damage your
hearing. For this reason, please turn the volume down before connecting the headphones.
Note:
• Please switch off the DVD player before you make any connections.
• Before using this product for the rst time, please remove the static label from the LCD
screen.
NOTICE!
When rotating the display, please open the display rst and make the angle be as 120˚
above, then rotate the display by 180˚clockwise or by 90˚ counterclockwise. Otherwise the
CD door and the middle shell are easy to be scratched.
Audio + Video
Audio
Audio or Video
Audio or Video
Audio or Video
Audio or Video
Audio or Video
Audio or Video
DVD
CD AUDIO
CD-R
CD-RW
DVD-R
DVD+R
DVD-RW
DVD+RW
Note:
• The portable DVD player is compatible with JPEG format.
• Discs can only be used when they have been correctly recorded.
DVDP1_07IM1353_30Aug_V09.indd 9 30/08/2013 4:19 PM
English
10
(A)
Region management information
This DVD Player is designed and manufactured to respond to the Region Management
Information that is recorded on a DVD disc. If the Region number described on the DVD
disc does not correspond to the Region number of this DVD Player, this DVD player
cannot play that disc.
The Region number of this DVD player is (USA, Canada, East Pacic Islands).

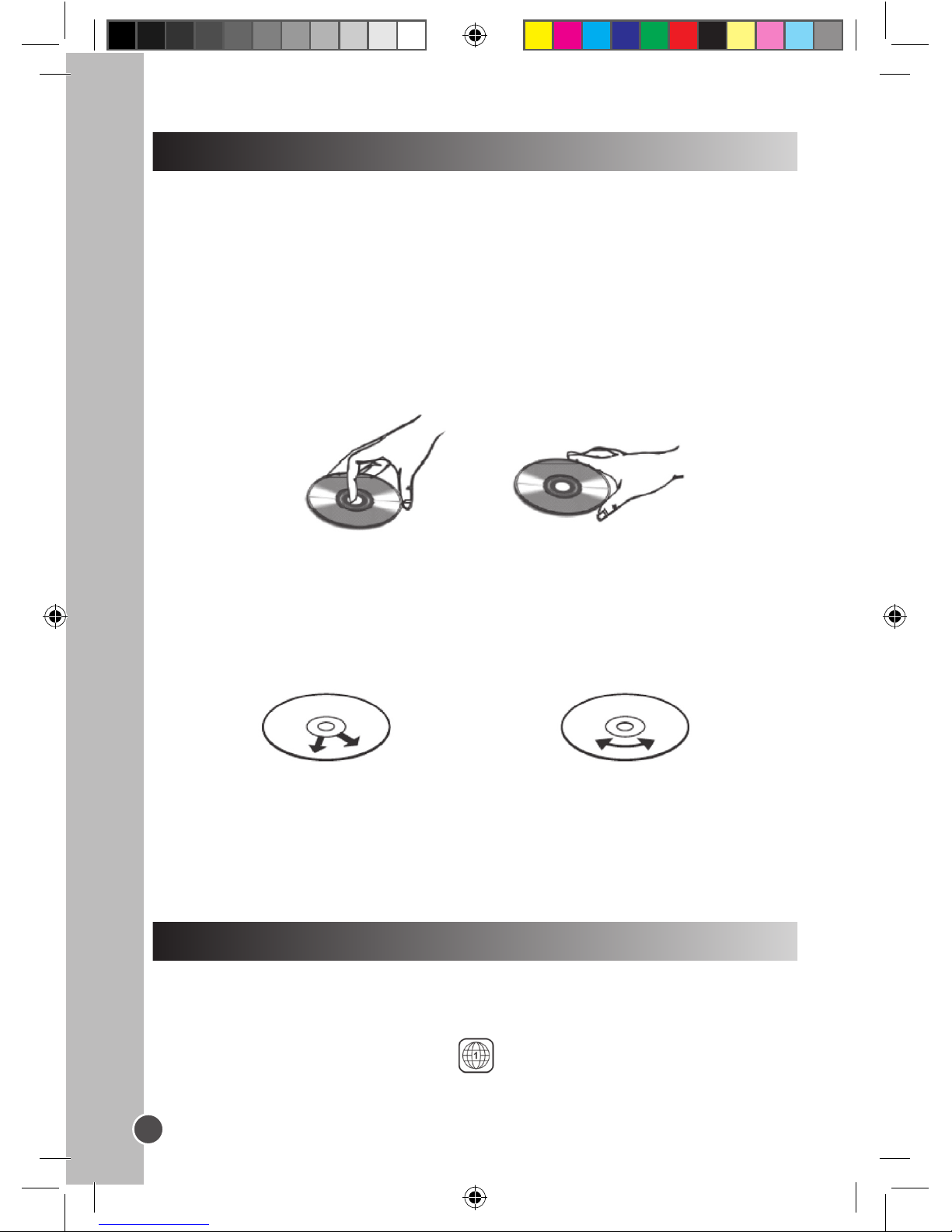

Caring for discs (A)
• Do not touch the shiny surface of the disc or bend the disc.
• Never use solvents such as benzene or other strong chemical cleaners since these
could damage the unit’s nish.
• It is important that no liquid reaches the inside of the unit.
• Remove the disc from the case by holding it at the edges while pressing the centre hole
lightly.
• Place the disc into the tray with the label facing up.
• A dirty disc may not play correctly. If a disc becomes dirty, wipe it with a soft cloth in a
straight line from centre to edge.
• Avoid exposure to direct sunlight, temperature extremes, and moisture.
• Treat the disc carefully. Handle the disc only by its edges. Never allow your ngers to
contact the shiny, unprinted side of the disc.
.
Disc maintenance
Clean the discs (B)
• Do not attach adhesive tape, stickers, etc. to the disc label.
• Clean the disc periodically with a soft, lint-free, dry cloth. Never use detergents or
abrasive cleaners to clean the disc. If necessary, use a CD cleaning kit.
• If a disc skips or gets stuck on a section of the disc, it is probably dirty or damaged
(scratched).
• When cleaning the disc, wipe in straight lines from the centre of the disc to the outer
edge of the disc. Never wipe in circular motions.
• Discs should be stored in their cases after each use to avoid damage.
• Do not expose discs to direct sunlight, high temperatures or dust, etc.
• Prolonged exposure or extreme temperatures can warp the disc.
• Do not stick or write anything on either side of the disc. Sharp writing instruments, or ink,
may damage the surface.
(B)
Correct Incorrect
DVDP1_07IM1353_30Aug_V09.indd 10 30/08/2013 4:19 PM
Inhaltsverzeichnis
Sprachen:
Andere LEXIBOOK DVD-Player Handbücher
