Lexicon PCM 96 Bedienungsanleitung

Legendary Sound.

Seamless Integration.

THE CUTTING EDGE JUST GOT SHARPER

Lexicon breaks down the wall between hardware and software with the highly-

anticipated PCM96 Stereo Reverb/Effects Processor.

An artful blend of heritage and innovation, this powerhouse processor delivers 28

new and legendary Lexicon reverbs, delays and modulation effects straight into your

DAW. Designed for the modern studio, the PCM96 can function as a control-only insert

or FireWire streaming audio plug-in inside any Mac VST or Audio Units software.

Appearing for the ﬁrst time are new Room and Hall algorithms, plus an assortment

of new mono reverbs and effects. With decades of legacy products to pull from,

the PCM96 also includes the ﬁnest collection of factory presets available in a stereo

processor – over 1200 and growing – including some recognizable classics from our

immense library of sounds.

The PCM96 gives new capabilities to our traditional reverbs by adding multimode

ﬁlters at several spots in the audio ﬂow. This allows more exact shaping of the

reverb while still maintaining the distinctive Lexicon sound. All reverbs also have an

“Inﬁnite” switch that allows the reverb to run forever, a useful feature for creating

unusual backgrounds and sound effects.

Lexicon’s new Room algorithm provides a more ﬂexible alternative to convolution

type reverbs. Reﬂection patterns can be easily selected, scaled and equalized – all

while simultaneously passing audio. They can be instantly reversed or combined

with a traditional reverb to extend the decay or bring a stronger sense of “liveness”

to the space.

With two channels XLR analog and two channels XLR AES/EBU digital I/O, as well

as MIDI, Ethernet and Firewire connectivity, the PCM96 easily ﬁts into a variety of

recording and live sound environments. In any application, the PCM96 delivers the

versatility and sound that is unmistakably Lexicon.

REVERB/EFFECTS PROCESSOR PCM96

NEW MONO REVERBS

AND EFFECTS

Chamber

Hall

Plate

Room

Chorus/Flange

Dual Delay

Random Delay

Random Hall

Resonant Chords

Signal Generator

STEREO REVERBS

AND EFFECTS

Room

Hall

Chamber

Random Delay

Classic (Random Hall)

Plate

Dual Delay

Ambience

Resonant Chords

Chorus/Flange

Concert Hall

Signal Generator

PCM96 REVERB/EFFECTS PROCESSOR

Sandy, UT, USA

801.566.8800

lexiconpro.com

Lexicon and MX-Edit are trademarks of Harman International Industries, Inc. VST is a trademark of

Steinberg Soft-und Hardware GmbH. FireWire and Mac are trademarks of Apple Computer Corp.

2 4

3 1 1 2 1 2

2 3

42 31

21 1 2

1321

Dual Super

Mono

Super Stereo Dual Stereo Super Mono Quad Mono Mono+Stereo

Super Stereo Cascade

Mono

Cascade

Stereo

Mono to

Stereo

Mono In/

Combined Stereo Out

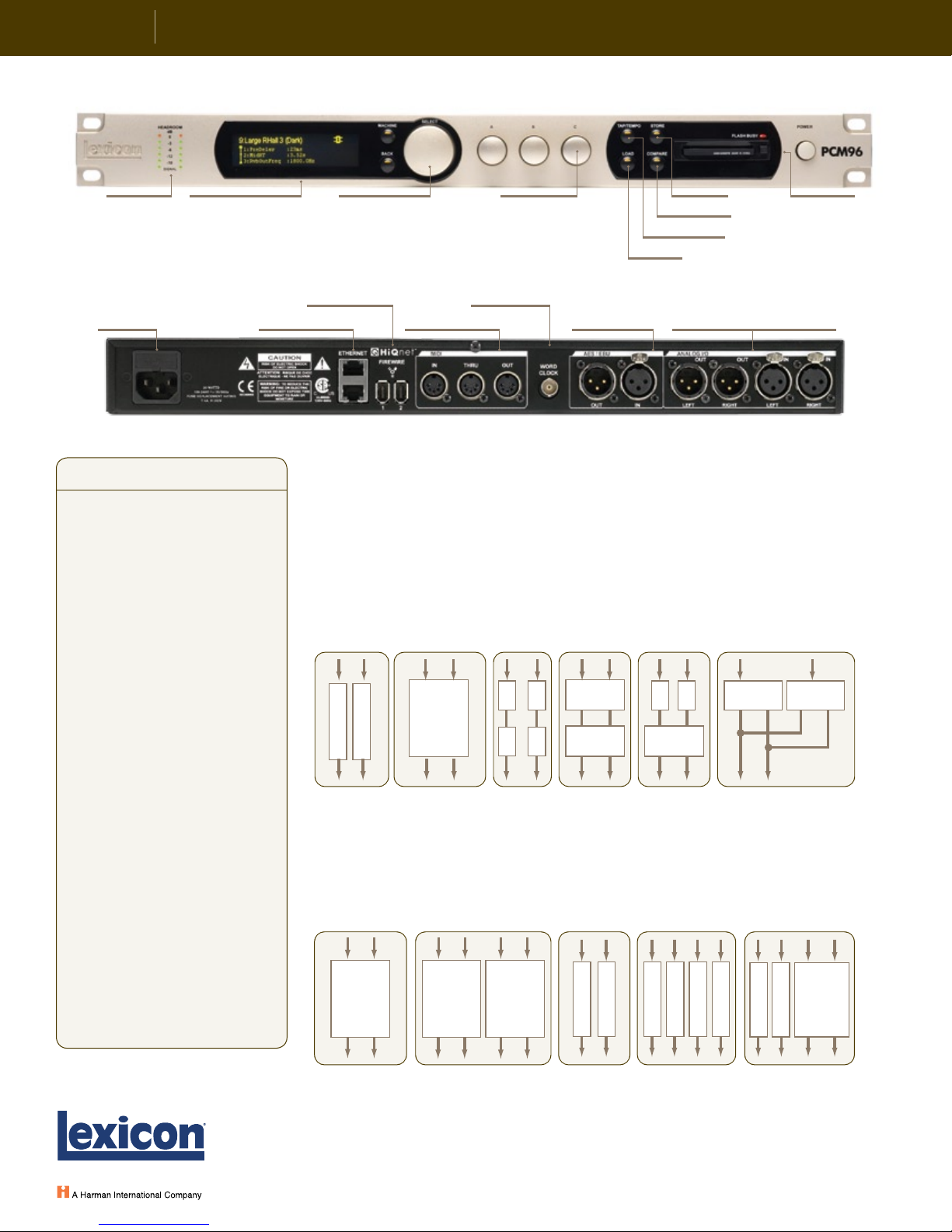

ROUTING OPTIONS

The PCM96 can be divided in up to four virtual machines, each of which can run its

own algorithm. This allows the signal from each input to be routed through a variety

of algorithm combinations.

PLUG-IN MODE ROUTING (FireWire)

In FireWire mode, the PCM96 can process up to four inputs and four outputs in the

following conﬁgurations:

STANDALONE MODE ROUTING (Analog, Digital)

In standalone mode, the PCM96 can process up to two physical inputs and two

physical outputs in the following conﬁgurations:

Compare button

Stereo gain

LED ladders

Main OLED screen shows

routing conﬁgurations,

program names, effects and

parameters, system settings

Large navigation knob Three parameter

adjustment knobs Store button Compact ﬂash

preset storage

Tap Tempo button

Load button

Standard IEC

line cord

FireWire®400 ports Word clock input

XLR analog balanced inputs/outputs

AES input/output

Ethernet connections MIDI in, thru and out

2 4

3 1 1 2 1 2

2 3

42 31

21 1 2

1321

Dual Super

Mono

Super Stereo Dual Stereo Super Mono Quad Mono Mono+Stereo

Super Stereo Cascade

Mono

Cascade

Stereo

Mono to

Stereo

Mono In/

Combined Stereo Out

PCM96 KEY FEATURES

928 new and legendary Lexicon®

reverbs, delays, and

modulation effects

9Lexicon’s new Room algorithm,

used to generate a vast array

of room-related effects for

music and post

9Over 1200 factory presets,

including recognizable classics

from Lexicon's immense library

of sounds

9Seamless automation and

control via Ethernet or FireWire

9Hardware Plug-In capability

inside Mac VST®and Audio

Units production software

932-bit ﬂoating point processing

9Sample rates up to 96kHz

9Two channels XLR analog I/O

9Two channels XLR digital AES/

EBU I/O

9External BNC Wordclock

9MIDI in, out, and thru

9768 user presets

9Compact Flash for additional

storage
