Lexicon REFLEX - Bedienungsanleitung

User Guide

DYNAMIC

REVERBERATOR

MIDI

Unpacking and Inspection

After unpacking the unit, save all packing materials in case you ever need to re-ship. Thoroughly inspect the unit and packing materials for signs of damage.

Report any shipment damage to the carrier at once; report equipment malfunction to your dealer.

This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause

interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in

Subpart J of Part 15 of FCC Rules, which are designated to provide reasonable protection against such interference in a residential installation. However, there is no guarantee

thatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment

OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures: reorient the receiving antenna; relocate the computer with respect

to the receiver; move the computer away from the receiver; plug the computer into a different outlet so that the computer and receiver are on different branch circuits. If necessary,

the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet prepared by the Federal

Communications Commission helpful: "How to identify and Resolve Radio/TV Interference Problems." This booklet is available from the U.S. Government Printing Office,

Washington, DC 20402, Stock No. 004-000-00345-4.

Notice

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class B prescrites dans le Règlement sur

le brouillage radioélectrique édictépar le ministère des Communications du Canada.

Lexicon Part 070-10229 Printed in the U.S.A.

Lexicon Inc.

3 Oak Park

Bedford, MA 01730 USA

Telephone 781-280-0300

Fax 781-280-0490

Table of Contents

Getting Started .........................................................................

Introduction............................................................................

Front Panel Overview ............................................................

Setting Audio Levels

Rear Panel Connections........................................................

Footswitch Connections •Headphones

MIDI Connections •Switching from MIDI OUT to

MIDI THRU

Front Panel Operation .............................................................

Overview................................................................................

Presets and Registers ...........................................................

More Effects

About the Parameters..........................................................

Front Panel Parameter Controls

Loading an Effect.................................................................

Editing an Effect ..................................................................

Storing an Effect ..................................................................

Performing an Edit Compare ...............................................

Using Footswitches .............................................................

Bypass •Stepping through the Registers •Clearing

Registers •Skipping Registers and Creating Chains

Advanced Programming Mode .............................................

Overview..............................................................................

APM Utility Functions ..........................................................

Algorithms and Parameters .................................................

Hall ...............................................................................22

Plate .............................................................................23

Flanger .........................................................................24

Multi Taps.....................................................................25

Resonator.....................................................................26

Inverse..........................................................................27

Gate..............................................................................28

Chorus..........................................................................29

More about the Algorithms ...........................................30

MIDI Operation........................................................................

MIDI Configurations.............................................................

Learning a MIDI Channel.....................................................

Dynamic MIDI®Patching ......................................................

Creating a Dynamic MIDI Patch •Multiple Patches

to a Parameter •Deleting a Patch •Display of MIDI

Parameter Changes •Special Notes on MIDI

Programming •MIDI Bypass

MIDI Implementation Chart..................................................

Specifications.........................................................................

To make sure you get the most out of

Reflex, be sure to read the manual.

Getting Started

Introduction

Thank you for your purchase of Reflex,

Lexicon's Dynamic MIDI®Reverberator.

Reflexgivesyou8worldclassreverbera-

tion and effects algorithms to enhance any

audio performance. Sixteen preset effects

provide a wide range of superb sounds right

outofthebox,and a bank of 128registersis

available for storing your own customized

effects.—We'veloadedtheregisterswithan

additional 96 sounds to really get you going!

Reflex front panel operation is straight-

forward, with three adjustable parameters

which allow you to make subtle or dramatic

changes to each preset.

AnAdvancedProgrammingModeallows

you to access additional parameters within

each algorithm, providing fine control over

every aspect of the effects. This mode also

givesyoufrontpanelcontroloverUtilityfunc-

tions such as MIDI channel assignment and

Footswitch control allows you to bypass

theeffects,tostepthroughtheregisters,orto

set up register chains to suit your perfor-

mance needs

MIDI Program Change can be used to

access any register, or to bypass Reflex

processing. Beyond simple Program

Change,Reflexletsyou change parameters

in real-time, using MIDI Note Number or

continuous controllers. You can create as

many as 4 patches per effect, controlling

Predelaywith ModWheel,ReverbTimewith

MIDI Notes, etc. Dynamic MIDI™allows

exceptionally expressive performance and

sequencer control.

Two of the algorithms (Chorus and Multi

Taps)allow youtocontrolechorhythmswith

MIDI Clock, so you can synchronize delays

to drum machines and sequencers, vary the

echo repeat rate, and still maintain tempo.

Even deeper control is available through

fullMIDISysEximplementationwhichallows

bidirectional communication with a dedi-

cated controller, such as Lexicon's MRC, or

a personal computer with appropriate soft-

ware. In fact, Reflex is already compatible

withexistingeditorswhichwillrecognizeitas

a member of Lexicon's LXP series.

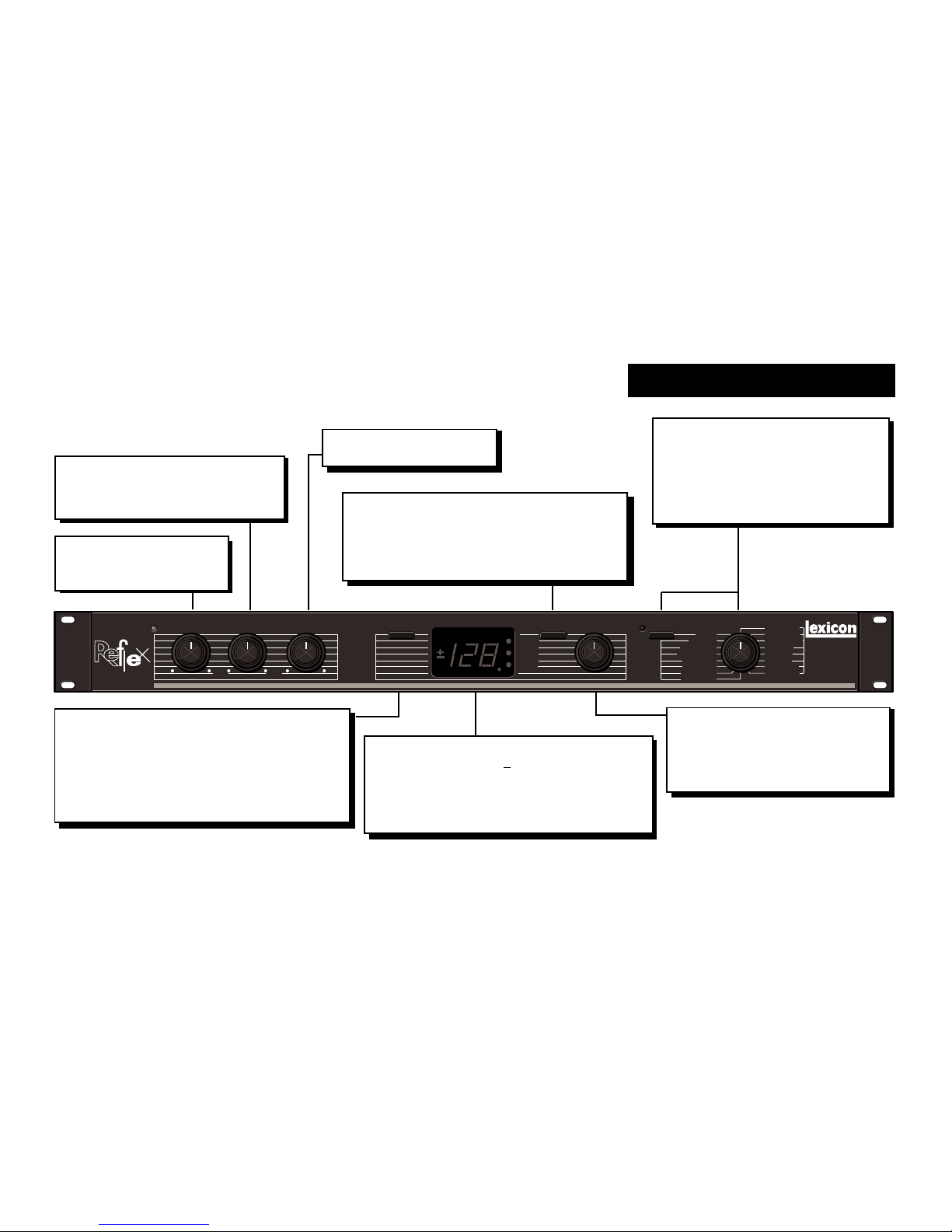

Front Panel Overview

INPUT

Sets the level of the incoming

signal.

MIX

Controls the proportion of processed

(wet) to unprocessed (dry) signals sent

to the outputs.

Button selects preset or register mode.

LEDlightswhenregistermodeisselected,

turns off in preset mode.

Knob selects presets 1-16 or registers

1-128, depending on button setting.

STORE (+)/CLEAR (–)

Toggles Store and Clear functions. When "+" is

displayed, holding stores the current effect to dis-

played register. When "–" is displayed, holding

designates effect to be skipped in a footswitch step

sequence.InAdvancedProgrammingMode,clears

any patches to the displayed parameter.

INPUT

DECAY

DELAY

FX LVL

PARAMETER/LEARNSTORE (+)/CLEAR (–)

VALUE REGISTER/PRESET

RICH PLATE

DRUMPLATE

VOCAL PLATE

FLANGER

CHORUS

CANYON

MULTI TAPS

RESONATOR

GATE

INVERSE

SMALL ROOM

GUITAR STAGE

MUSIC CLUB

PIANO HALL

VOCAL HALL

LARGE HALL

DYNAMIC

REVERBERATOR

MIDI

OUTPUTMIX

DRY WET

VALUE

Adjusts values of selected parameter.

Displayof parametervalues isindicated

by flashing of the selected parameter

LED.

PARAMETER/LEARN

Pressing selects front panel parameters: DECAY,

DELAY or FX LVL for adjustment with the VALUE

knob.HoldingsetsReflextothe same channelasa

connecteddevice,andactivatespatchassignment.

OUTPUT

Controls Reflex's output level.

DISPLAY

Numericdisplayofdigits+1-128,anddecimalpoint.

Displayed digits indicate ID number of currently

runningeffect,orparametervalues.Decimalpointis

usedaseditindicatorandpatchindicatordepending

on mode of operation.

Setting Audio Levels

1. Turn Reflex INPUTand OUTPUT con-

trols all the way down (fully counter-

clockwise).

2. Connect Reflex inputs to an audio

source, and Reflex outputs to an ampli-

fier or mixer.

3. Apply an input signal at a level that you

typically use.

4. While sending audio to Reflex, gradually

turn up the INPUT control until the Input

Status LED* lights green. Continue to

advance INPUT until the LED lights red

on only the loudest peaks. If the LED is

continuously red, turn the INPUT control

down.

5. If Reflex is using a console's sends and

returns, set the MIX control fully clock-

wise (100% wet). If you are using an

instrument amplifier, start with MIX set

halfway up.

6. Gradually increase the setting of the

OUTPUT control until the audio level

from the amplifier or mixer is approxi-

mately the same as when Reflex is by-

passed.

* The Input Status LED is off when the incoming

signal is low; it lights to indicate acceptable levels

(6dB to 30dB below overload). The LED lights red

whenthesignalapproachesoverload.Acceptable

signals will trigger red flashes only on peaks.

Rear Panel Connections

FOOTSWITCH

Tip/Ring/Sleeve phone input, for momentary or

latching contact footswitches, allows footswitch

control of Register Step and Bypass functions.

OUPUT

Single-ended (unbalanced) stereo outputs provide

-2dBu nominal output level. Use the right output

connector for mono output. If no connection is made

attherightoutput, the leftoutputcan be usedtodrive

high-efficiency headphones at modest volume.

INPUT

Single-ended (unbalanced) inputs accept levels

as low as -30dBu. Input impedance is 50 kΩin

stereo, 25 kΩin mono. Use the right for mono

input.

POWER

Use Lexicon MSA power pack,

or 9VAC 1 amp equivalent.

MIDI

MIDI In and Out connectors are provided.

Switching an internal jumper allows selec-

tion of MIDI THRU instead of MIDI OUT.

FOOTSWITCH

POWER

OUTPUTS INPUTS

9V~, 1A,

50-60Hz

LEXICON, INC.

WALTHAM MA 02154

MADE IN U.S.A.

P/N 021-10203

SERIAL #

THIS DEVICE COMPLIES WITH PART

15 OF THE FCC RULES.

OPERATION IS SUBJECT TO THE

FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE

HARMFUL INTERFERENCE, AND

(2) THIS DEVICE MUST ACCEPT ANY

INTERFERENCE RECEIVED<

INCLUDING INTERFERENCE THAT

MAY CAUSE UNDESIRED OPERATION.

BYPASS

STEP

COMMON

(PHONES) L

(MONO) R

(MONO)

USE LEXICON

MSA AC ADAPTER

REFLEX

MIDI

REMOVE

RACK

EAR TO

ACCESS

MIDI

OUT/THRU

JUMPER

:TIP

:RING

:SLEEVE

OUT/

THRU IN

Footswitch Connections

A footswitch connected via the rear-panel

footswitchjacks allows youtoperform regis-

ter STEP and BYPASS functions. Two mo-

mentary foot-switches can be wired to a tip-

ring-sleeveconnector.AstereoY-connector

allows two identical single switches to be

used.

Headphones

A stereo signal which is adequate to drive

high-efficiency headphones is available at

the left output,

provided no connections are

madethroughtherightoutput

.Thisfeatureis

provided as a convenience for practice pur-

poses, and is intended to provide only mod-

est volume.

TIP

RING

SLEEVE

Tip Sleeve

Ring

Bypass

Step

TIP

RING

SLEEVE

Tip Sleeve

Ring

Bypass

Whenshipped,Reflexisconfiguredtouse

momentarycontactswitches.Youcanchange

this configuration to allow the use of latching

switches by performing the following proce-

dure:

1. SimultaneouslypressthePARAMETER/LEARN

and the REGISTER/PRESET buttons. This will

put the unit into Advanced Programming Mode

(lighting all 3 front panel parameter LEDs).

2. Turn the REGISTER/PRESET knob to 15. The

letter "F" should appear on the display.

3. Turn the VALUE knob to select 0 (latching) or 1

(momentary).

4. Press the REGISTER/PRESET button to re-

store normal front panel operation.

BYPASSSTEP

A dual-function footswitch is available from

Lexicon. A set of labels to identify footswitch

functionality is included with your unit.

Switching from MIDI OUT to THRU

When shipped, Reflex is configured for

MIDI OUT operation. You can easily

reconfiguretheunitforMIDITHRUoperation

with the following procedure.

1.Disconnect power.

2.Remove the two top and bottom cover

screwswhich are closestto therear panel

MIDI connectors.

3.Lay the unit upside down and remove the

rack ear.

4.Liftthejumperoffofitspinsandreposition

it according to the functionality you want.

5.Replacetherackearandthecoverscrews.

6.Reconnect power.

OUT

THRU

MIDI

REMOVE

RACK

EARTO

ACCESS

MIDI

OUT/THRU

JUMPER

OUT/

THRU

An internal jumper lets you

switch between MIDI OUT and

MIDI THRU functionality.

Front Panel Operation

Overview

Reflexfrontpaneloperationissimpleand

straightforward. Effect selection, editing,

STORE, and CLEAR functions are easily

accomplishedwithdedicatedknobsandbut-

tons.

This section describes all of these basic

functions, as well as using footswitches to

step through registers and register chains.

Inhaltsverzeichnis

Andere Lexicon Aufnahmegeräte Handbücher

Lexicon

Lexicon I-ONIX FW810S - Bedienungsanleitung

Lexicon

Lexicon 300 Bedienungsanleitung

Lexicon

Lexicon 480L - UPDATE V3.0 Bedienungsanleitung

Lexicon

Lexicon LXP-1 Bedienungsanleitung

Lexicon

Lexicon PCM 80 - MIDI IMPLEMENTATION DETAILS Bedienungsanleitung

Lexicon

Lexicon PANTHEON musical instrument Bedienungsanleitung

Lexicon

Lexicon PCM 70 Bedienungsanleitung

Lexicon

Lexicon PCM 90 - MIDI IMPLEMENTATION DETAILS Bedienungsanleitung

Lexicon

Lexicon PCM 90 - REV 1 Bedienungsanleitung

Lexicon

Lexicon Recording Studio Bedienungsanleitung

Lexicon

Lexicon REFLEX - REV 1 Bedienungsanleitung

Lexicon

Lexicon MPX G2 Bedienungsanleitung

Lexicon

Lexicon PCM 91 - REV 1 Bedienungsanleitung

Lexicon

Lexicon PCM 91 Bedienungsanleitung

Lexicon

Lexicon MPX - ADDENDUM REV 1 Bedienungsanleitung

Lexicon

Lexicon Alpha Desktop Recording Studio Bedienungsanleitung

Lexicon

Lexicon I-ONIX U22 Bedienungsanleitung

Lexicon

Lexicon PCM 90 - REV 1 Bedienungsanleitung

Lexicon

Lexicon OMEGA Desktop Recording Studio Kurzanleitung

Lexicon

Lexicon Alpha Bedienungsanleitung

Lexicon

Lexicon M200 Service-Handbuch

Lexicon

Lexicon PCM92 Bedienungsanleitung

Lexicon

Lexicon LXP-15 II Bedienungsanleitung

Lexicon

Lexicon DC-2 Bedienungsanleitung

Beliebte Aufnahmegeräte Handbücher anderer Marken

KV2 Audio

KV2 Audio 500 Series Bedienungsanleitung

Robotics Technologies

Robotics Technologies microBus-Cam II Bedienungsanleitung

Seca

Seca 460 Bedienungsanleitung

Cognex

Cognex MVS-8000 Series Bedienungsanleitung

Mect

Mect MPNC006 Series Bedienungsanleitung

Bad Caf

Bad Caf THE LEASH Bedienungsanleitung

Strymon

Strymon NIGHTSKY Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Bedienungsanleitung

Tews Technologies

Tews Technologies TPMC465 Bedienungsanleitung

Honeywell

Honeywell Excel 50 Bedienungsanleitung

SeaLevel

SeaLevel COMM+8.LPCI Bedienungsanleitung

Arturia

Arturia AUDIOFUSE STUDIO Bedienungsanleitung

Rukra

Rukra RK-1240 Bedienungsanleitung

Samson

Samson SCOM Bedienungsanleitung

Dynacord

Dynacord DPS260 Bedienungsanleitung

Nice

Nice Core Bedienungsanleitung

Pyle Pro

Pyle Pro PSS8 Bedienungsanleitung

RF-System

RF-System TinyGate Gebrauchs- und Pflegehandbuch
