Lexmark Monochrome Laser Betriebsanleitung

Lexmark E460dn, E460dw, and

E462dtn

Maintenance Guide

January 2010 www.lexmark.com

Contents

Maintaining the printer................................................................................3

Cleaning the exterior of the printer..........................................................................................................3

Storing supplies.........................................................................................................................................3

Checking the status of supplies from a network computer......................................................................3

Ordering supplies......................................................................................................................................4

Ordering toner cartridges ................................................................................................................................... 4

Ordering a photoconductor kit ........................................................................................................................... 5

Ordering a maintenance kit ................................................................................................................................ 5

Replacing supplies.....................................................................................................................................5

Replacing the toner cartridge ............................................................................................................................. 5

Replacing the photoconductor kit ...................................................................................................................... 7

Moving the printer..................................................................................................................................10

Moving the printer to another location............................................................................................................ 10

Shipping the printer.......................................................................................................................................... 10

Contents

Maintaining the printer

Periodically, certain tasks are required to maintain optimum print quality.

Cleaning the exterior of the printer

1Make sure that the printer is turned off and unplugged from the wall outlet.

CAUTION—SHOCK HAZARD: To avoid the risk of electric shock when cleaning the exterior of the printer,

unplug the power cord from the wall outlet and disconnect all cables to the printer before proceeding.

2Remove all paper from the printer.

3Dampen a clean, lint‑free cloth with water.

Warning—Potential Damage: Do not use household cleaners or detergents, as they may damage the finish of

the printer.

4Wipe only the outside of the printer.

Warning—Potential Damage: Using a damp cloth to clean the interior may cause damage to your printer.

5Make sure all areas of the printer are dry before beginning a new print job.

Storing supplies

Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing until you

are ready to use them.

Do not expose supplies to:

•Direct sunlight

•Temperatures above 35°C (95°F)

•High humidity above 80%

•Salty air

•Corrosive gases

•Heavy dust

Checking the status of supplies from a network computer

Note: The computer must be connected to the same network as the printer.

1Type the printer IP address into the address field of your Web browser.

Note: If you do not know the IP address of the printer, print a network setup page and locate the IP address in

the TCP/IP section.

2Click Device Status. The Device Status page appears, displaying a summary of supply levels.

Maintaining the printer

Ordering supplies

To order supplies in the U.S., contact Lexmark at 1-800-539-6275 for information about Lexmark authorized supplies

dealers in your area. In other countries or regions, visit the Lexmark Web Site at www.lexmark.com or contact the

place where you purchased the printer.

Ordering toner cartridges

When 88 Cartridge low appears or when the print becomes faded, you may be able to extend the life of the

toner cartridge:

1Remove the toner cartridge.

2Firmly shake the cartridge side‑to‑side and front‑to‑back several times to redistribute toner.

3Reinsert the cartridge and continue printing.

Note: Repeat this procedure multiple times until the print remains faded, and then replace the cartridge.

Recommended toner cartridges and part numbers

Part name Lexmark Return Program Cartridge Regular cartridge

For the US and Canada

Toner cartridge E260A11A E260A21A

High Yield Toner Cartridge E360H11A E360H21A

Extra High Yield Toner Cartridge E462U11A E462U21G

For Europe, the Middle East, and Africa

Toner cartridge E260A11E E260A21E

High Yield Toner Cartridge E360H11E E360H21E

Extra High Yield Toner Cartridge E462U11E E462U21G

For the Asia Pacific Region, including Australia and New Zealand

Toner cartridge E260A11P E260A21P

High Yield Toner Cartridge E360H11P E360H21P

Extra High Yield Toner Cartridge E462U11P E462U21G

For Latin America

Toner cartridge E260A11L E260A21L

High Yield Toner Cartridge E360H11L E360H21L

Maintaining the printer

Part name Lexmark Return Program Cartridge Regular cartridge

Extra High Yield Toner Cartridge E462U11L E462U21G

Ordering a photoconductor kit

The printer issues a message to let you know the photoconductor kit is near its end of life. At this time, order a

photoconductor kit. You can also see the status of the photoconductor kit by printing a network setup page.

Part name Part number

Photoconductor kit E260X22G

Ordering a maintenance kit

80 Routine maintenance needed appears on the display after 120,000 pages have printed to let you know it

is time to replace printer maintenance items. Order a maintenance kit when this message first appears. The maintenance

kit contains all the items necessary to replace the fuser and transfer roller.

Notes:

•The maintenance kit may not be available in all geographies.

•Using certain types of paper or specialty media may require more frequent replacement of the maintenance kit.

See the following table for the maintenance kit part number for your printer:

Part name Part number

Maintenance kit 40X5402 (100 V)*

40X5400 (115 V)

40X5401 (230 V)

* Designed for use only in Japan

Replacing supplies

Replacing the toner cartridge

When 88 Cartridge low appears, or when you experience faded print, remove the toner cartridge. Firmly shake

it side‑to‑side and front‑to‑back several times to redistribute the toner, and then reinsert it and continue printing.

When shaking the cartridge no longer improves the print quality, replace the toner cartridge.

Note: You can check to see approximately how much toner is left in your cartridge by printing a menu settings page.

Maintaining the printer

To replace the toner cartridge:

1Open the front door by pressing the button on the left side of the printer and lowering the door.

2Press the button on the base of the photoconductor kit, and then pull the toner cartridge out using the handle.

3Unpack the new toner cartridge.

Warning—Potential Damage: When replacing a toner cartridge, do not leave the photoconductor kit exposed to

direct light for an extended period of time. Extended light exposure can cause print quality problems.

4Rotate the cartridge in all directions to distribute the toner.

Maintaining the printer

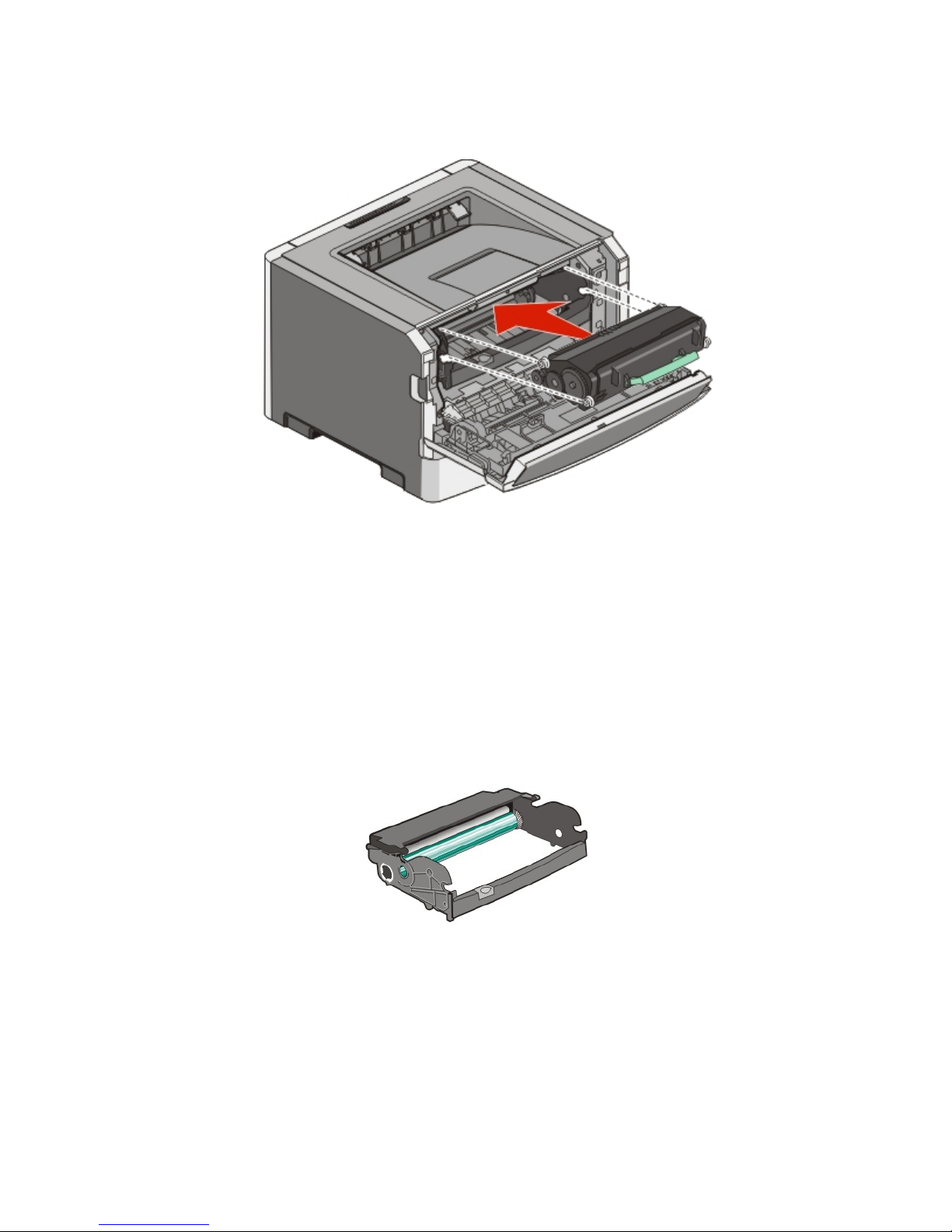

5Install the new toner cartridge by aligning the rollers on the toner cartridge with the arrows on the tracks of the

photoconductor kit. Push the toner cartridge in as far as it will go. The cartridge clicks into place when correctly

installed.

6Close the front door.

Replacing the photoconductor kit

The printer automatically notifies you before the photoconductor kit reaches a page maximum by showing 84 PC

Kit life warning or 84 Replace PC Kit on the display. You can also see the status of the photoconductor

kit by printing a menu settings page.

When 84 PC Kit life warning or 84 Replace PC Kit first appears, you should immediately order a new

photoconductor kit. While the printer may continue to function properly after the photoconductor kit has reached its

official end‑of‑life, print quality significantly decreases.

Note: The photoconductor kit is one item only.

1Turn the printer off.

2Open the front door by pressing the button on the left side of the printer and lowering the front door.

3Pull the photoconductor kit and toner cartridge out of the printer as a unit by pulling on the toner cartridge handle.

Note: The photoconductor kit and toner cartridge form a unit.

Maintaining the printer

Place the unit on a flat, clean surface.

4Press the button on the base of the photoconductor kit. Pull the toner cartridge up and out using the handle.

5Unpack the new photoconductor kit.

Warning—Potential Damage: Be careful not to touch the photoconductor drum. Doing so may affect the print

quality of future print jobs.

Maintaining the printer

6Insert the toner cartridge into the photoconductor kit by aligning the rollers on the toner cartridge with the tracks.

Push the toner cartridge until it clicks into place.

7Install the unit into the printer by aligning the arrows on the guides of the unit with the arrows in the printer. Push

the unit as far as it will go.

8After you replace the photoconductor kit, reset the photoconductor counter.

To reset the photoconductor counter, open the front door, press and hold until Resetting PC Counter

appears. The power light blinks, and the printer beeps.

Warning—Potential Damage: Resetting the photoconductor counter without replacing the photoconductor

may damage your printer and void your warranty.

9Close the front door.

Maintaining the printer

Moving the printer

Moving the printer to another location

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or

printer damage:

•Turn the printer off using the power switch, and then unplug the power cord from the wall outlet.

•Disconnect all cords and cables from the printer before moving it.

•Lift the printer off of the optional drawer and set it aside instead of trying to lift the drawer and printer at the same

time.

Note: Use the handholds located on both sides of the printer to lift it off the optional drawer.

The printer and options can be safely moved to another location by following these precautions:

•Any cart used to move the printer must have a surface able to support the full footprint of the printer. Any cart

used to move the options must have a surface able to support the dimensions of the options.

•Keep the printer in an upright position.

•Avoid severe jarring movements.

Shipping the printer

When shipping the printer, use the original packaging or call the place of purchase for a relocation kit.

Maintaining the printer
