Lexmark MX610 Series Bedienungsanleitung

MX610 & XM3150

Machine Type 7016-630, -67x

Service Manual

•Start diagnostics

•Maintenance

•Safety and notices

•Trademarks

•Index

April 12, 2016 www.lexmark.com

P/N 12G2272

www MK-Electronic de

Parts catalog

Legend

The following column headings are used in the parts catalog:

•ASM‑index—Identiﬁes the assembly and the item in the diagram. For example, 3‑1 indicates Assembly 3

and item 1 in the table.

•Part number—Identiﬁes the unique number that correlates with the part.

•Units/mach—Refers to the number of units actually used in the base machine or product.

•Units/option—Refers to the number of units in a particular option.

•Units/FRU—Refers to the number of units in a particular FRU.

•Description—A brief description of the part.

The following abbreviations are used in the parts catalog:

•NS (not shown) in the Asm‑index column indicates that the part is procurable but is not pictured in the

illustration.

•PP (parts packet) in the Description column indicates that the part is contained in a parts packet.

7016

Parts catalog

442

www MK-Electronic de

Assembly 1: Covers

7016

Parts catalog

443

www MK-Electronic de

Assembly 1: Covers

Asm-index P/N Units/mach Units/FRU Description Removal procedure

1 40X9102 1 1 Output expander N/A

240X9099 1 1Topcover “Top cover removal” on page 349

3 40X9096 1 1 Exit rear door “Rear exit door removal” on page 340

440X9084 1 1Divertercover “Diverter cover removal” on page 348

540X9087 1 1Rearcover “Rear cover removal” on page 341

640X9090 1 1Rightcover “Right cover removal” on page 275

7 40X9100 1 1 Memory access door

(MFP)

“Memory access door removal” on

page 278

8 40X8086 1 1 550‑sheet tray insert N/A

9 40X9068 1 1 Front access cover

(MPF)

“Front access cover removal” on

page 314

10 40X9148 1 1 Cartridge plunger “Cartridge plunger removal” on

page 291

11 40X9131 1 1 MPF tray cover “MPF tray removal” on page 309

12 41X0994 1 1 MPF tray links “MPF tray removal” on page 309

13 40X9095 1 1 Front bin cover “Front bin cover removal” on page

295

14 40X9101 1 1 Name plate cover “Name plate cover removal” on

page 293

15 40X9086 1 1 Left cover “Left cover removal” on page 262

16 40X9126 1 1 Bin full sensor cable “Bin full sensor cable removal” on

page 352

17 40X9092 1 2 Bin full sensor “Bin full sensor/lens removal” on

page 350

18 40X9127 1 1 IR sensor lens “Bin full sensor/lens removal” on

page 350

7016

Parts catalog

444

www MK-Electronic de

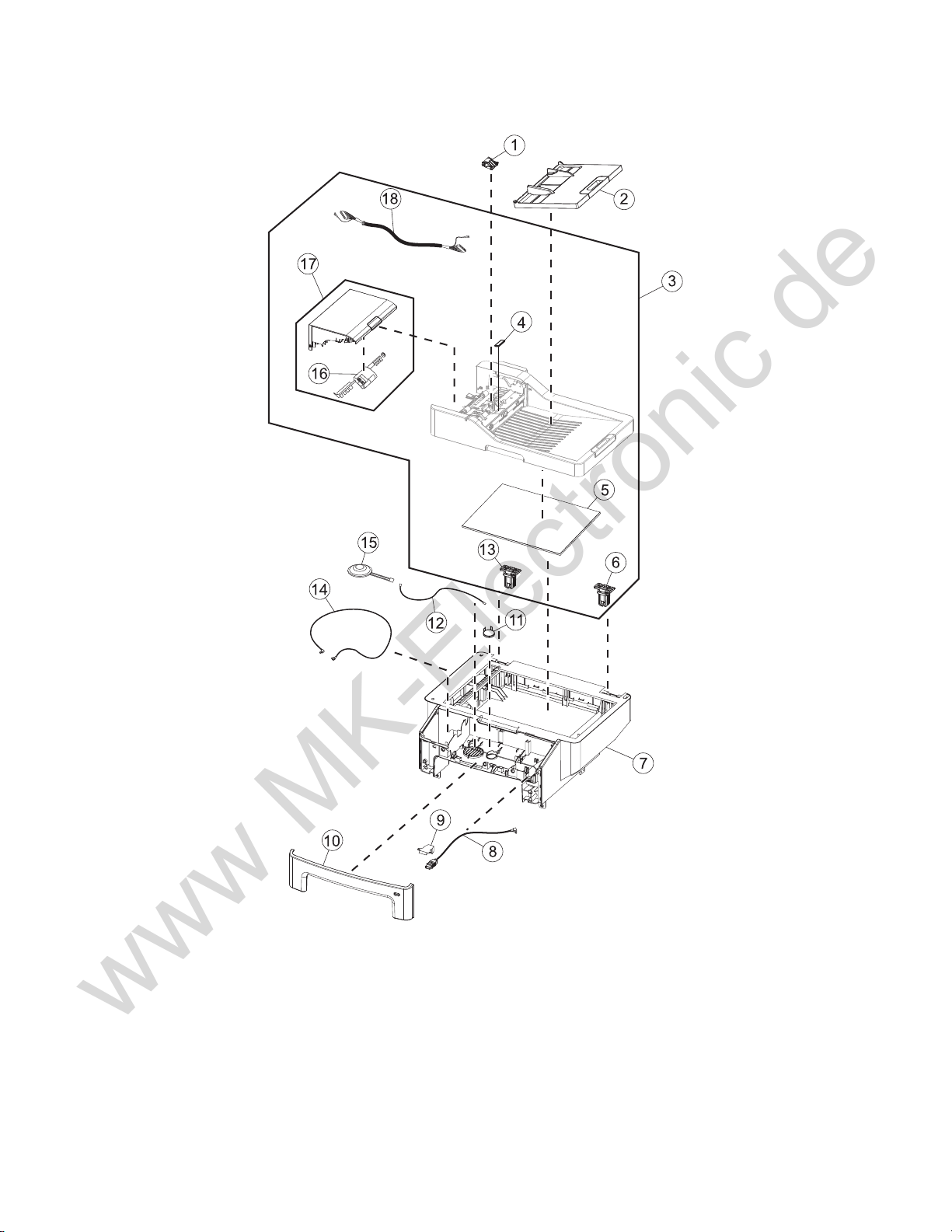

Assembly 2: Imaging

7016

Parts catalog

445

www MK-Electronic de

Assembly 2: Imaging

Asm-index P/N Units/mach Units/FRU Description Removal procedure

1 40X9108 1 1 ADF separator roller “ADF separator roll removal ” on

page 357

2 40X9054 1 1 ADF input tray “ADF input tray removal” on page 360

3 40X9093 1 1 ADF assembly “ADF unit removal” on page 360

440X9110 1 1Restraintpad “Restraint pad removal” on page 372

5 40X5804 1 1 Flatbed cushion (legal) “Flatbed cushion removal ” on

page 358

6 40X7546 1 1 ADF right hinge “ADF hinge removal” on page 369

7 40X9094 1 1 Flatbed “Flatbed assembly removal” on

page 370

840X9051 1 1MPFUSBcable “USB cable removal” on page 367

9 40X9053 1 1 USB cable bracket “USB cable bracket removal” on

page 302

10 40X9097 1 1 Scanner front cover “Scanner front cover removal” on

page 359

11 40X9088 1 1 Cave light lens “Cave light lens removal” on page 303

12 40X9080 1 1 Speaker cable “Speaker cable removal” on page 370

13 40X9129 1 1 ADF left hinge “ADF hinge removal” on page 369

14 40X9050 1 1 MPF wireless cable “USB wireless cable removal” on

page 368

15 40X9079 1 1 Speaker “Speaker removal” on page 302

16 40X8736 1 1 ADF pick roll N/A

17 40X9142 1 1 ADF top cover (legal) “ADF top cover assembly removal” on

page 365

18 40X9117 1 1 High end ADF cable “ADF cable removal” on page 366

7016

Parts catalog

446

www MK-Electronic de

Assembly 3: Control panel

7016

Parts catalog

447

www MK-Electronic de

Assembly 3: Control panel

Asm-index P/N Units/mach Units/FRU Description Removal procedure

140X9125 1 1Controlpanelcover

(MX610de)

“Control panel cover removal” on

page 305

1 40X9132 1 1 Control panel cover

(MX611de and XM3150)

“Control panel cover removal” on

page 305

140X9133 1 1Controlpanelcover

(MX611dhe)

“Control panel cover removal” on

page 305

2 41X0756 1 1 Control panel assembly “Control panel assembly removal”

on page 296

3 40X9052 1 1 UICC cable N/A

7016

Parts catalog

448

www MK-Electronic de

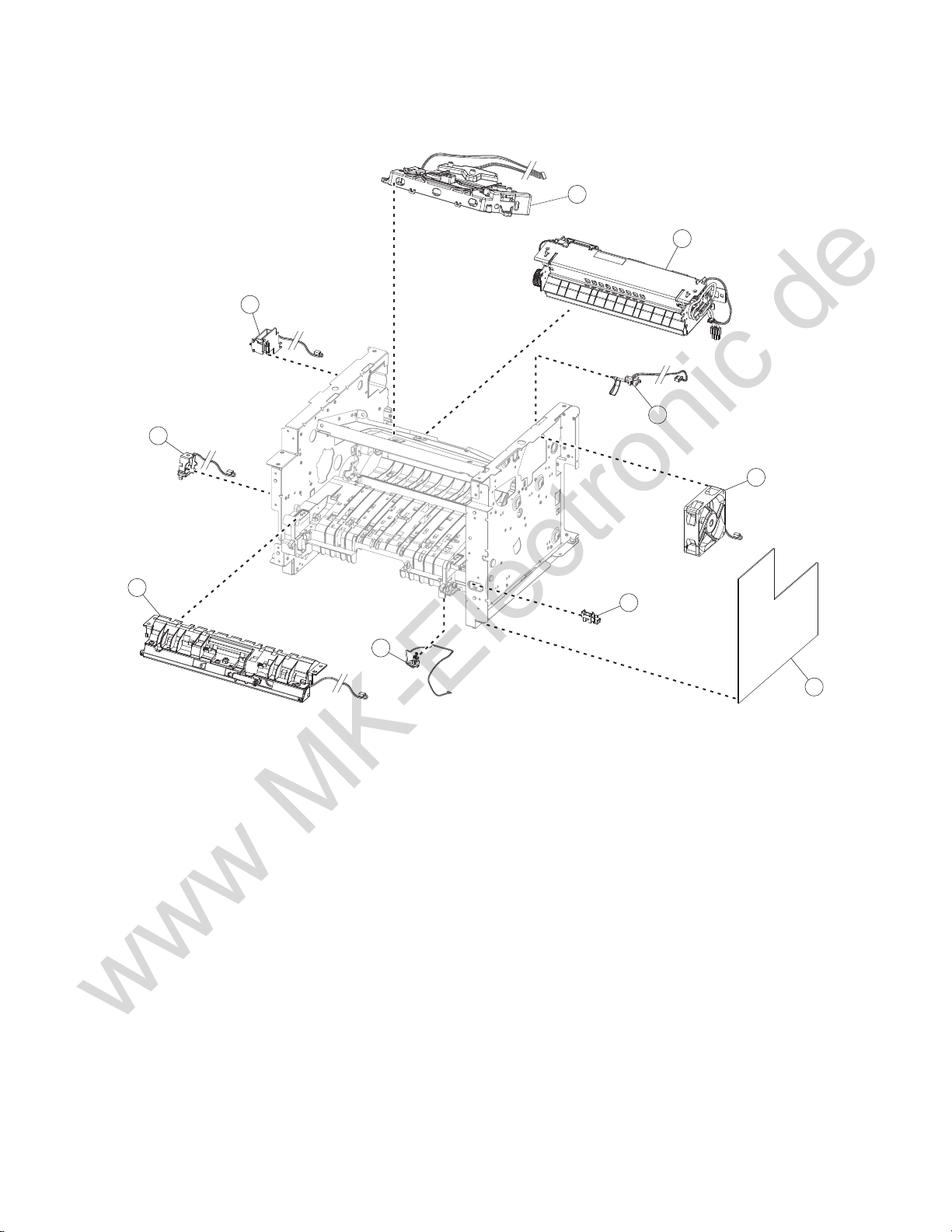

Assembly 4: Electronics 1

7016

Parts catalog

449

www MK-Electronic de

Assembly 4: Electronics 1

Asm-index P/N Units/mach Units/FRU Description Removal procedure

140X8079 1 1GalvoLSU* “Laser scanning unit (LSU) removal”

on page 353

141X0362 1 1PolygonLSU* “Laser scanning unit (LSU) removal”

on page 353

240X8343 1 1Fuser,100V “Fuser removal” on page 345

2 40X8023 1 1 Fuser, 110 V “Fuser removal” on page 345

2 40X8024 1 1 Fuser, 220 V “Fuser removal” on page 345

340X9119 1 1Binfullsensor “Bin full sensor/lens removal” on

page 350

4 40X9181 1 1 Cooling fan “Cooling fan removal” on page 279

5 40X9254 1 1 Controller board* (galvo

LSU)

“Controller board removal” on

page 280

5 41X0485 1 1 Controller board*

(polygon LSU)

“Controller board removal” on

page 280

640X7592 1 1Traypresentsensor“Tray present sensor removal” on

page 278

7 41X0259 1 1 Narrow media sensor N/A

8 40X8280 1 1 Front input guide “Front input guide removal” on

page 316

9 40X8300 1 1 MPF solenoid “MPF solenoid removal” on page

266

10 40X8301 1 1 Reverse solenoid “Reverse solenoid removal” on

page 271

NS 40X7854 1 1 Fax card N/A

NS 41X0363 1 1 Polygon laser scanning

unit (LSU) frame*

‑‑

NS 41X0759 1 1 Polygon LSU cable ‑‑

NS 41X0913 1 1 Video cable (galvo LSU) ‑‑

* To determine what type of LSU (galvo or polygon) the printer supports and whether it is compatible with the

controller board:

•Check the serial number of the printer. If the sixth digit character assigned is in the P–Z range, then the LSU

is polygon (example: 4514 2ZHH 007CR). If the sixth digit character assigned is in the 0–9 or B–N range,

then the LSU is galvo (example: 4514 20HH 007CR7.

•Check the color of the controller board. For polygon LSU, the color of the compatible controller board is

blue. For galvo LSU, the color is green.
