Lexus SC 430 2004 Bedienungsanleitung

2004 Lexus SC 430 V8-4.3L (3UZ-FE)

Vehicle > Body and Frame > Roof and Associated Components > Convertible Top > Service and Repair > Procedures

MANUAL CLOSE OPERATION

NOTE: When operating manually, make sure that the audio set is turned off and the radio antenna is retracted.

1.RELEASE LUGGAGE DOOR LOCK

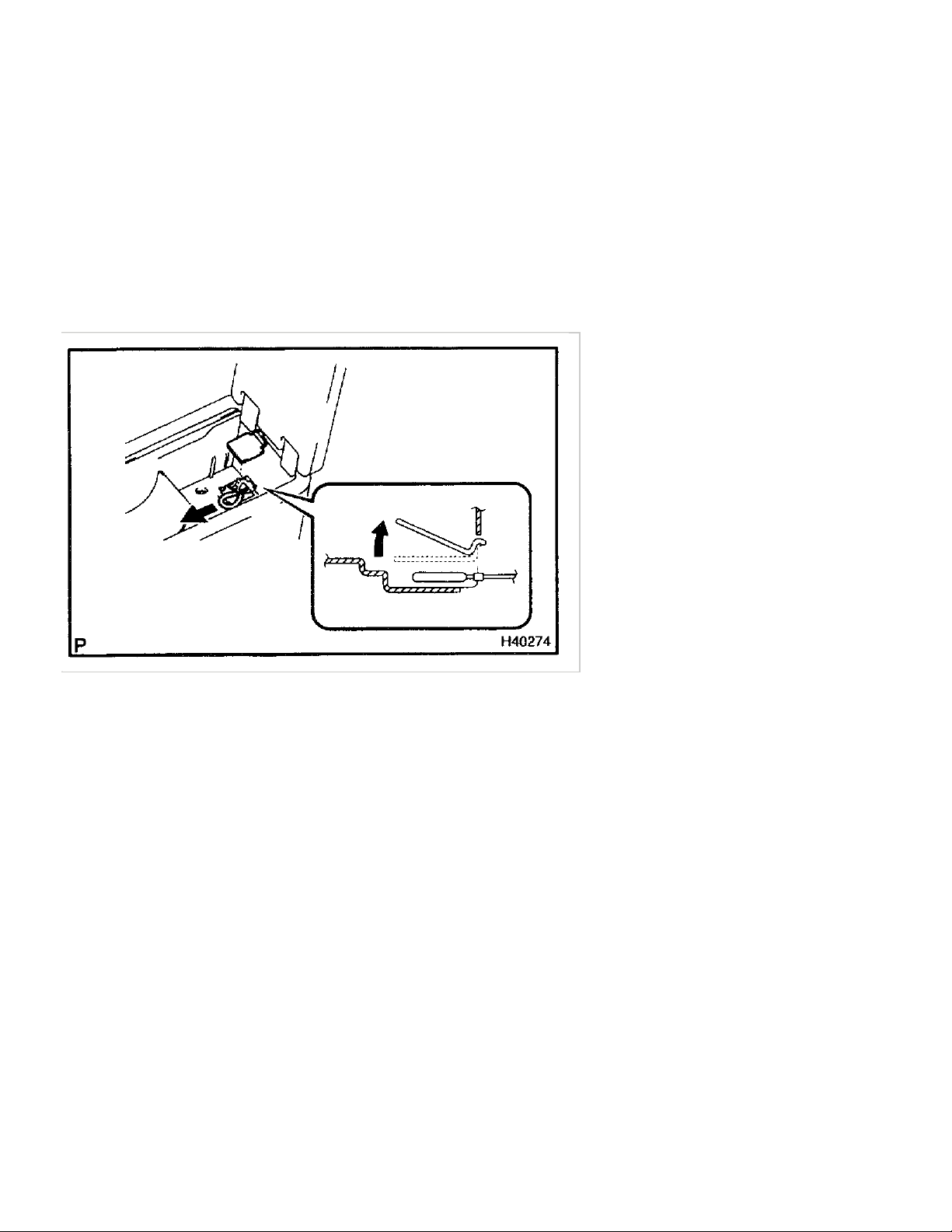

a.Open the cover of the center console box and turn up the mat.

b.Remove the cover.

c.Pull the luggage door lock release wire to unlock.

2.FULLY OPEN LUGGAGE COMPARTMENT DOOR

a.Fully open the luggage compartment door.

3.OPEN LUGGAGE COMPARTMENT DOOR FROM FRONT SIDE

a.Pull out the luggage front lock release wire.



b.While pulling the wire, slowly raise the front lower part of the luggage link (shown as part "a").

NOTE:

-The operation should be performed by 2 persons.

-As this operation requires considerable force, gradually apply force to the part.

-Never apply force to any part other than "a" (e.g. luggage, door). Doing so may cause deformation.

-Raise it almost equally on the right and left sides.

HINT: Part "a" is marked with green.



c.Open the luggage compartment door from the front side as illustrated.

NOTE: The operation should be performed by 2 persons.

4.RAISE PACKAGE TRAY TRIM



a.Place both hands under the rear part of the package tray in the positions close to both ends and raise the

package tray gradually at 30 ° to 45 °.

NOTE:

-Place both yours hands on the slide board in the positions close to the both ends.

-Do not apply direct force to the side board as it is operated in connection with the main board.

-Do not place the hands on the edges of the main board.



b.Disconnect the joints of the cables from the package tray trim gear box.

CAUTION: Take cave not to injure your hands when disconnect the joints.

NOTE:

-As the cable is coated with grease, carefully prevent the seat, seat belt or other parts from being contact with

it.

-Be careful to prevent the removed cable from being excessively pressed against the package tray gear box.



c.Raise the package tray gradually until it stops.

NOTE: Do not apply direct force to the side board as it is operated in connection with the main board.



d.Place both your hands on the slide board in the positions close to both ends and push it down.

NOTE: Do not touch the side board.

HINT:

-Push down the slide board until it reaches the same height of the main board.

-If the slide board is lowered, at the same time, the slide board is retracted in connection with the slide board.

5.REMOVE ROOF STOPPER

a.Using a hexagon wrench, remove the 2 bolts

b.Slide the roof stopper and take it off from the hook.

c.Use the same manner described above to the other side.



6.HALF-CLOSE ROOF PANEL

a.Insert your hands at the lower part of the roof and lift the roof upward gradually. At the time, lift the front of the

roof a little.

NOTE: The operation should be performed by 2 persons.

b.Stop the motion when the back window stands upright.

NOTE:

-As this operation requires considerable force, gradually apply force to the part.

-Raise it almost equally on the right and left sides.

7.FOLD DOWN PACKAGE TRAY TRIM
