LG AS-W096ERH0 Bedienungsanleitung

Universal Air Conditioner

SVC MANUAL(Exploded View)

MODEL : AS-W096ERH0

AS-W096EBH0

AS-W096EVH0

AS-W126ERH0

AS-W126EBH0

AS-W126EVH0

CAUTION

Before Servicing the unit, read the safety precautions in General SVC manual.

Only for authorized service personnel.

Internal Use Only

http://biz.lgservice.com

- 2 -

Only for training and service purposes LGE Internal Use Only

Air Conditioner Service Manual

TABLE OF CONTENTS

LG Model Name.................................................................................................................................3

Safety Precautions ...........................................................................................................................5

Dimensions .....................................................................................................................................10

Installation.......................................................................................................................................12

Flaring work and connection of piping.........................................................................................14

Connecting the cable between indoor unit and outdoor unit.....................................................19

Checking the drainage and forming the pipings .........................................................................21

Air purging ......................................................................................................................................22

Test running ....................................................................................................................................24

Functions.........................................................................................................................................25

Operation.........................................................................................................................................28

Disassembly....................................................................................................................................41

Troubleshooting Guide ..................................................................................................................44

Schematic Diagram ........................................................................................................................64

Product Specifications ..................................................................................................................69

Exploded View ................................................................................................................................70

- 3 -

Only for training and service purposes LGE Internal Use Only

LG Model Name

2003

12 - 345678910

Code Type Code of Model Meaning

1 Producing Center, A~Z L: Chang-won R22 N: India

Refrigerant A: Chang-won R410A Z: Brazil

C: Chang-won R407C D: Indonesia

T: China M: Mexico

K: Turkey R22 V: Vietnam

E: Turkey R410A S: Out Sourcing

H: Thailand

2 Product Type A~Z S: Split Type Air Conditioner

3 Cooling/Heating/Inverter A~Z C: Cooling only

H: Heat pump

X: C/O + E/Heater

Z: H/P + E/Heater

V: AC Inverter C/O

N: AC Inverter H/P

Q: DC Inverter C/O

W: DC Inverter H/P

4, 5 Capacity 0~9 Cooling/Heating Capacity

Ex. "09" →9,000 Btu/h

6 Electric Range 1~9 1: 115V/60Hz, A: 220V, 50Hz, 3Phase

A~Z 2: 220V/60Hz B: 208~230V, 60Hz, 3Phase

3: 208-230V/60Hz C: 575V, 50Hz, 3Phase

5: 200-220V/50Hz D: 440~460, 60Hz, 3Phase

6: 220-240V/50Hz E: 265V, 60Hz

7: 110V, 50/60Hz F: 200V, 50/60Hz

8: 380-415V/50Hz

9: 380-415V/60Hz

7 Chassis A~Z Name of Chassis of Unit

Ex. LSP →SP Chassis

8 Look A~Z Look,

Color (Artcool Model)

9 Function A~Z

10 Serial No. 0~9 LG Model De

* ARTCOOL COLOR

velopment Serial No.

Basic A

Basic+4Way B

Plasma Filter C

Plasma Filter+4 Way D

Tele+LCD E

Tele+LCD+Nano plasma+4Way F

Nano Plasma F+(A/changeove)+A/clean+Low A G

Nano Plasma F+(A/changeove)+A/clean+4way+Low A H

Tele+LED+4way I

Internet J

Plasma F+4Way+Oxy generator K

Nano Plasma F+(A/changeove)+A/clean L

Nano Plasma F+(A/changeove)+A/clean+4way M

Nano Plasma F+(A/changeove)+A/clean+PTC N

Nano Plasma F+(A/changeove)+Autoclean+4way+PTC P

Nano Plasma F+(A/changeove)+A/clean+4way+Low A+PTC Q

Negative ION+A/Clean R

(Nano)Plasma+Negative ION+A/Clean S

4way+(Nano)Plasma F+Negative ION+Healthy dehumidification+A/Clean

Nano Plasma F+4Way+(A/changeove)+A/clean+ U

R Mirror

W White

B Blue

D Wood

M Metal

C Cherry

N Walnut

A Gogh

S Sisley

Q Quran

K Mecca

- 4 -

Only for training and service purposes LGE Internal Use Only

LG Model Name

2004~

12 - 345678910

Code Type Code of Model Meaning

1 Producing Center, A~Z

L Chang_won R22

A Chang_won R410A

C Chang_won R407C

T China

K Turkey R22

E Turkey R410A

H Thailand

N India

Z Brazil

D Indonesia

X Mexico

V Vietnam

S Out sourcing

Refrigerant

2 Product Type A~Z S: Split Type Air Conditioner

3 Cooling/Heating/Inverter A~Z C: Cooling only

H: Heat pump

X: C/O + E/Heater

Z: H/P + E/Heater

V: AC Inverter C/O

N: AC Inverter H/P

Q: DC Inverter C/O

W: DC Inverter H/P

4, 5 Capacity 0~9 Cooling/Heating Capacity

Ex. "09" →9,000 Btu/h

6 Electric Range 1~9 1: 115V/60Hz, A: 220V, 50Hz, 3Phase

A~Z 2: 220V/60Hz B: 208~230V, 60Hz, 3Phase

3: 208-230V/60Hz C: 575V, 50Hz, 3Phase

5: 200-220V/50Hz D: 440~460, 60Hz, 3Phase

6: 220-240V/50Hz E: 265V, 60Hz

7: 110V, 50/60Hz F: 200V

CHASSIS Look

Division

Panel Type(Deluxe)

Fighting 'Look'

(LG1)

(LG2)-SEMI PANEL

OEM1

OEM2

Panel Type(Deluxe)

LG3

, 50/60Hz

8: 380-415V/50Hz

9: 380-415V/60Hz

7 Chassis A~Z Name of Chassis of Unit

Ex. LSP →SP Chassis

8 Look A~Z Look,

Color (Artcool Model)

9 Function A~Z

10 Serial No. 0~9 LG Model De

* ARTCOOL COLOR

velopment Serial No.

R Mirror

B Blue

V Silver

S4/S5

Basic A

Basic+4Way B

Plasma Filter C

Plasma Filter+4 Way D

Tele+LCD E

Tele+LCD+Nano plasma+4Way F

NBF F+(A/changeove)+A/clean+Low A G

NBF F+(A/changeove)+A/clean+4way+Low A H

Tele+LED+4way I

Internet J

Plasma F+4Way+Oxy generator K

NBF F+(A/changeove)+A/clean L

NBF F+(A/changeove)+A/clean+4way M

NBF F+(A/changeove)+A/clean+PTC N

NBF F+(A/changeove)+Autoclean+4way+PTC P

NBF F+(A/changeove)+A/clean+4way+Low A+PTC Q

(Nano)Plasma+ION+A/Clean S

4way+(Nano)Plasma F+

Negative ION+Healthy dehumidification

+A/Clean T

Nano Plasma F+4Way+(A/changeove)+A/clean+Oxy generator U

4way+(Nano)Plasma F+Negative ION+Healthy dehumidification+A/Clean+Oxy generator

Dry contact W

Wire remocon 8

- 5 -

Only for training and service purposes LGE Internal Use Only

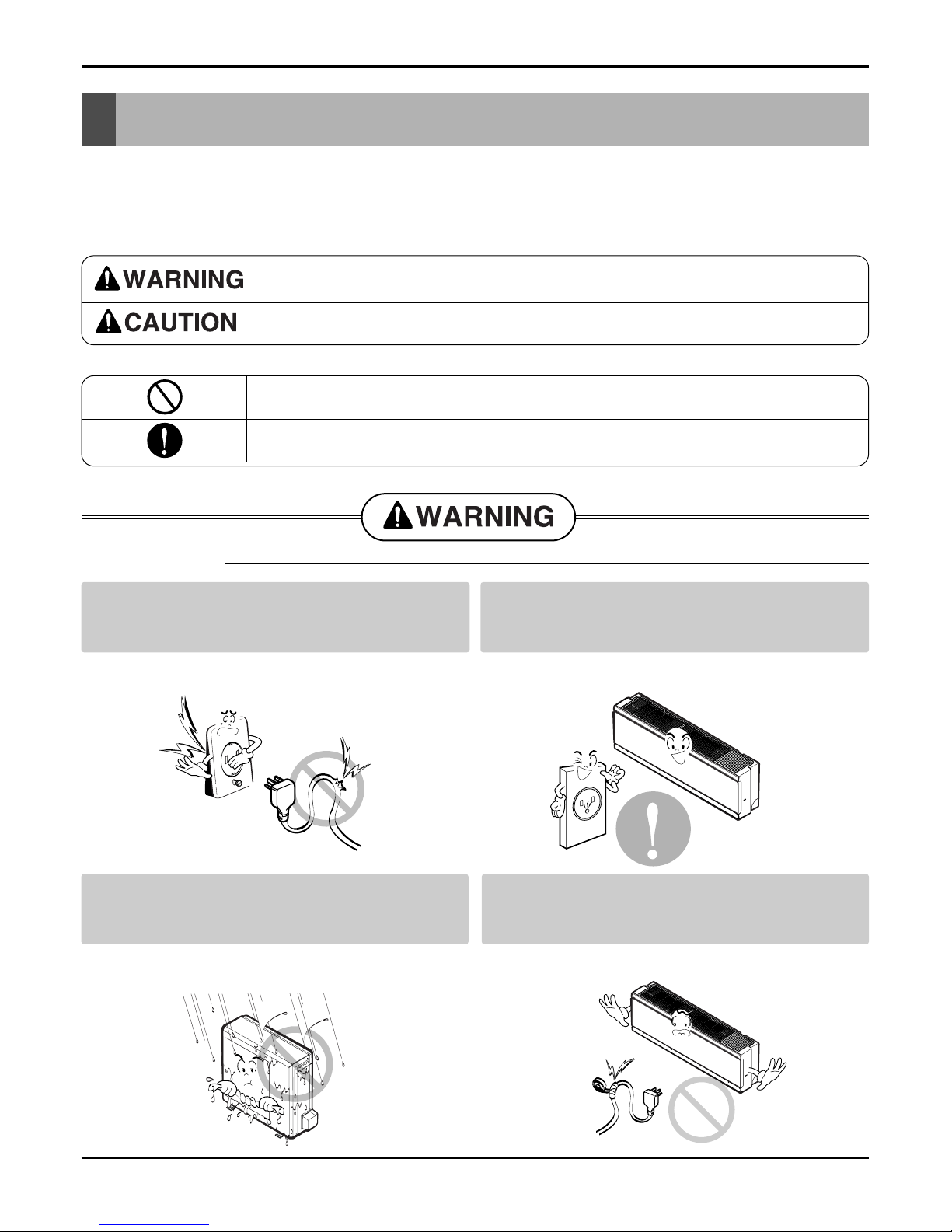

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must

be followed.

■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is

classified by the following indications.

■Meanings of symbols used in this manual are as shown below.

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage to properties only.

Be sure not to do.

Be sure to follow the instruction.

Do not use damaged power cords, plugs, or a

loose socket.

Always use the power plug and socket with the

ground terminal.

• There is risk of fire of electric shock. • There is risk of electric shock.

Install the panel and the cover of control box

securely.

Do not modify or extend the power cord.

• There is risk of fire of electric shock. • No grounding may cause electric shock.

■Installation

- 6 -

Only for training and service purposes LGE Internal Use Only

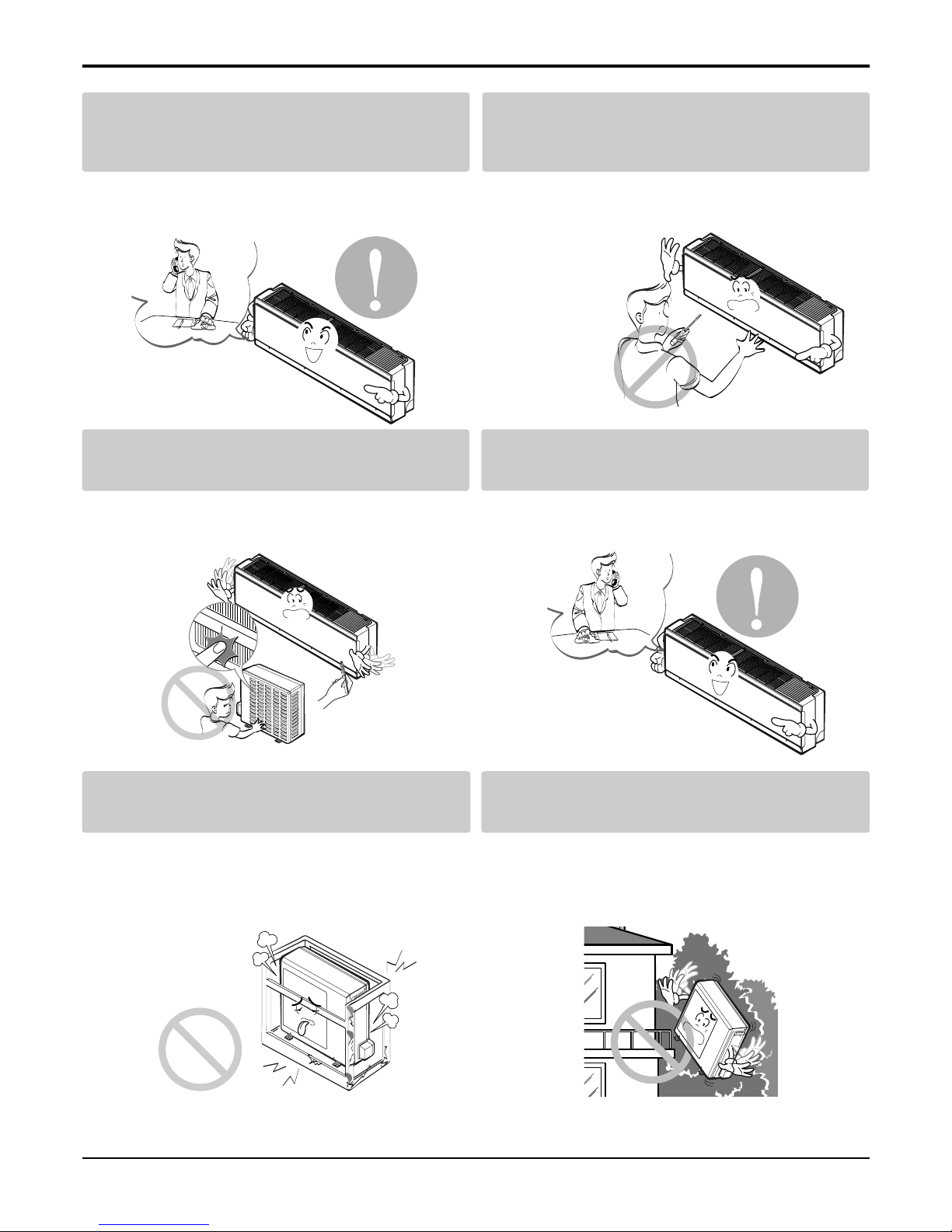

Safety Precautions

Do not install the product on a defective instal-

lation stand.

Be sure the installation area does not

deteriorate with age.

• It may cause injury, accident, or damage to the

product.

• If the base collapses, the air conditioner could fall

with it, causing property damage, product failure,

and personal injury.

• Sharp edges could cause injury. Be especially care-

ful of the case edges and the fins on the condenser

and evaporator.

•

There is risk of fire, electric shock, explosion, or injury.

Be cautious when unpacking and installing the

product.

For installation, always contact the dealer or

an Authorized service center

For re-installation of the installed product,

always contact a dealer or an authorized ser-

vice center.

Do not install, remove, or re-install the unit by

yourself.

• There is risk of fire, electric shock, explosion, or

injury.

• There is risk of fire, electric shock, explosion, or

injury.

- 7 -

Only for training and service purposes LGE Internal Use Only

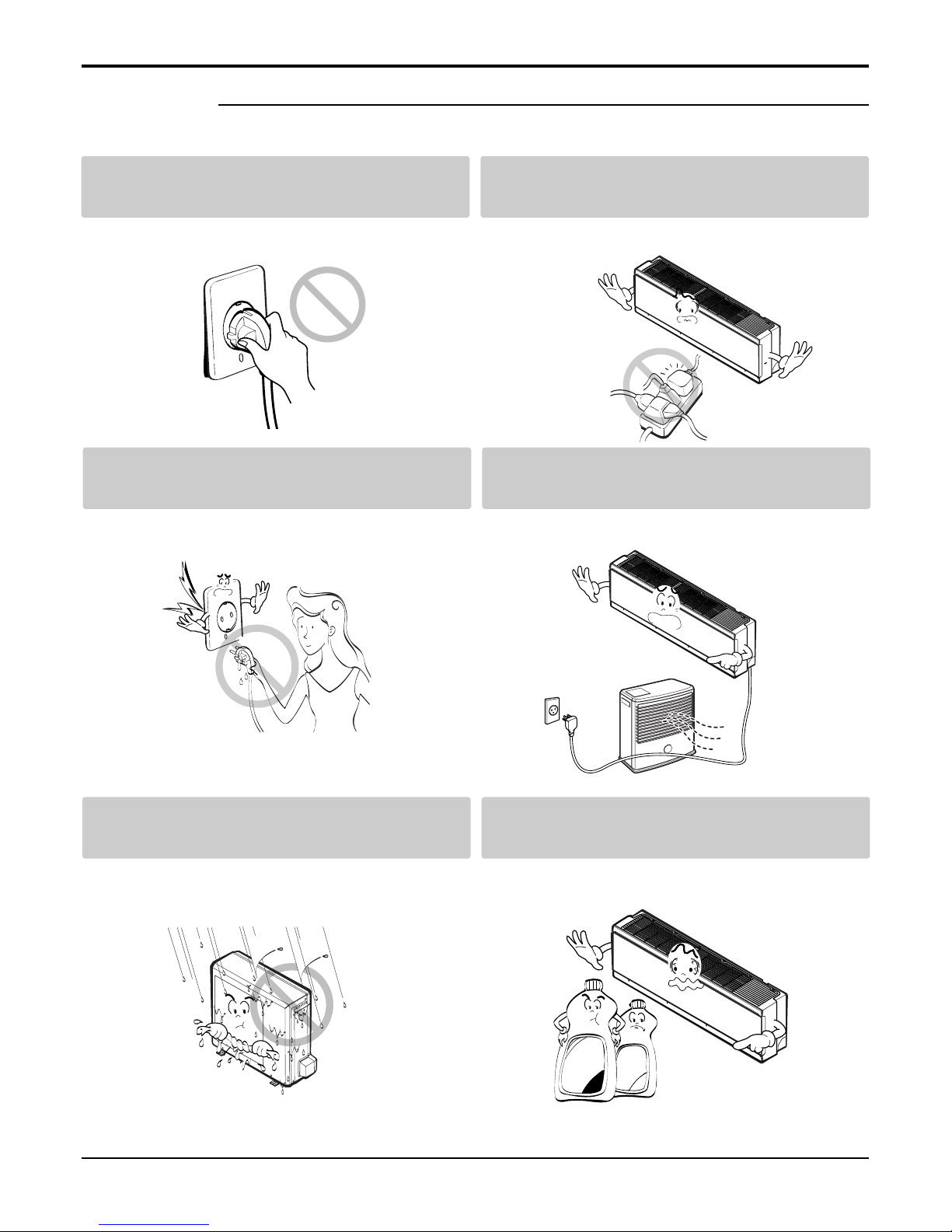

Safety Precautions

■Operation

Do not turn the air-conditioner ON or OFF by

plugging or unplugging the power plug.

Use a dedicated outlet for this appliance.

• There is risk of fire or electrical shock. • There is risk of fire or electrical shock.

Grasp the plug to remove the cord from the

outlet. Do not touch it with wet hands.

Do not place a heater or other appliances near

the power cable.

• There is risk of fire or electrical shock. • There is risk of fire and electric shock.

Do not allow water to run into electrical parts. Do not store or use flammable gas or com-

bustibles near the air conditioner.

• There is risk of fire, failure of the product, or electric

shock.

• There is risk of fire or failure of product.

Wax

Thinner

- 8 -

Only for training and service purposes LGE Internal Use Only

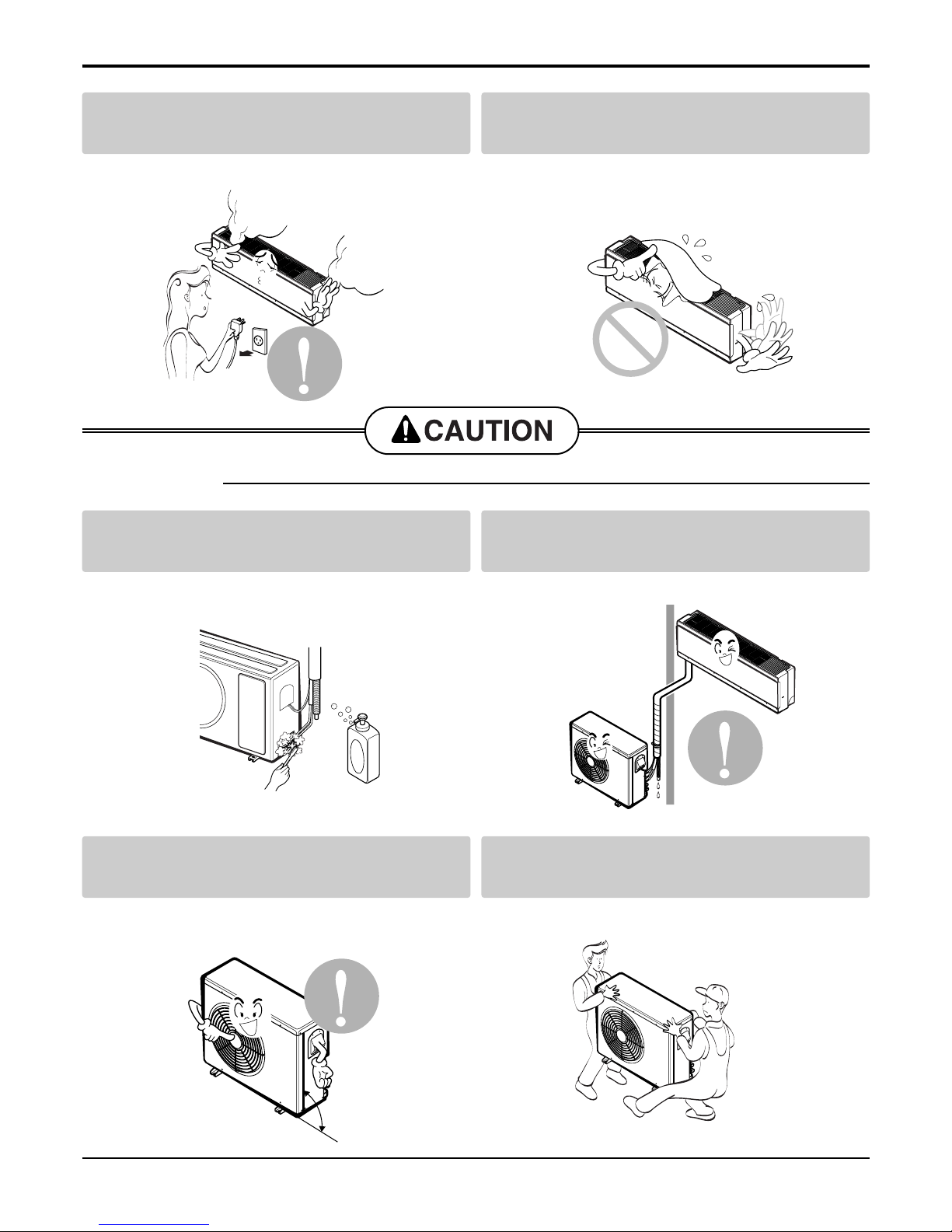

Always check for gas (refrigerant) leakage after

installation or repair of product.

Install the drain hose to ensure that water is

drained away properly.

• Low refrigerant levels may cause failure of product. • A bad connection may cause water leakage.

Keep level even when installing the product. Use two or more people to lift and transport

the air conditioner.

• To avoid vibration or water leakage. • Avoid personal injury.

■Installation

90˚

Unplug the unit if strange sounds, odors, or

smoke comes from it.

Be cautious that water could not enter the

product.

•There is risk of electric shock or fire. •There is risk of fire, electric shock, or product dam-

age.

Safety Precautions

- 9 -

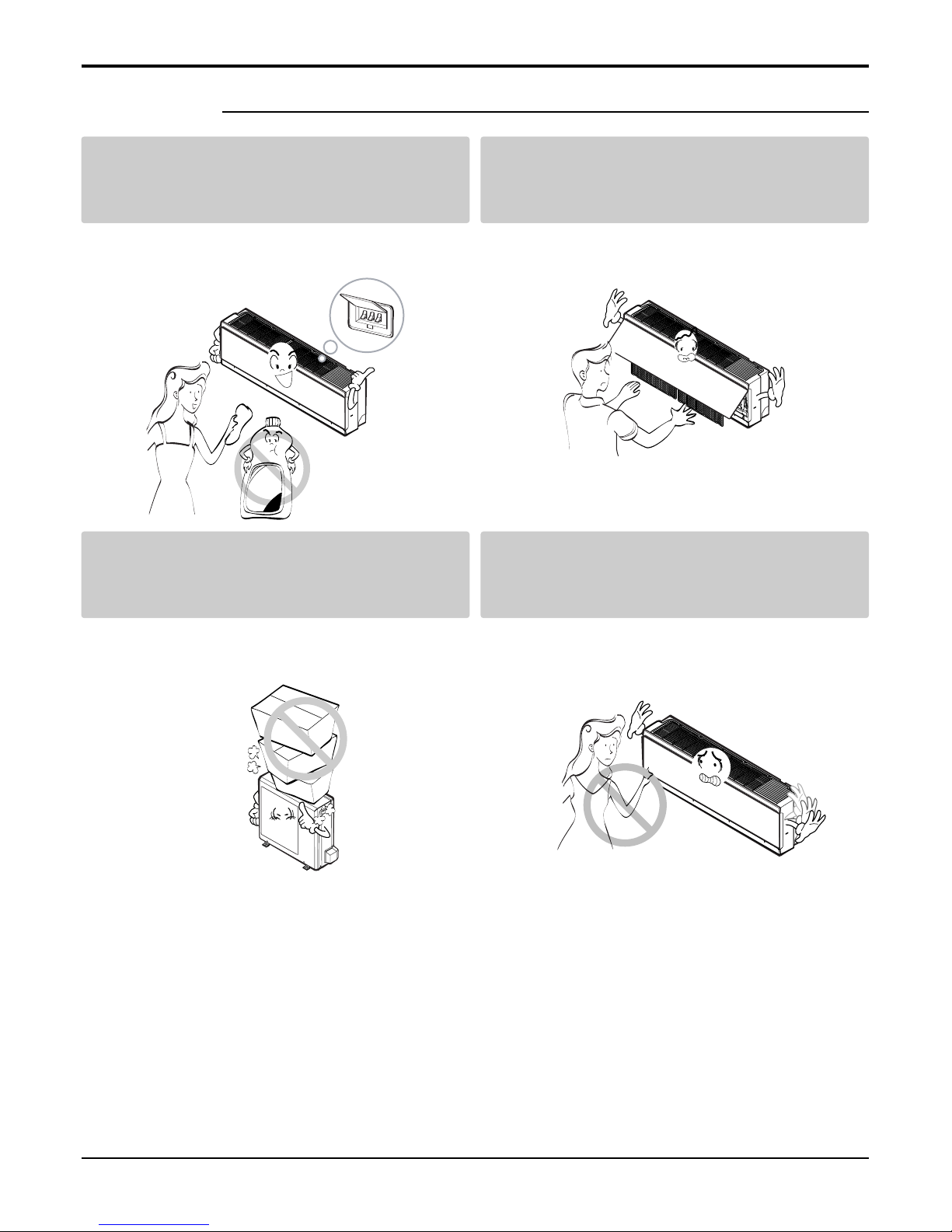

Only for training and service purposes LGE Internal Use Only

Use a soft cloth to clean. Do not use harsh

detergents, solvents, etc.

Do not touch the metal parts of the product

when removing the air filter. They are very

sharp!

•There is risk of fire, electric shock, or damage to the

plastic parts of the product.

•There is risk of personal injury.

Do not step on or put anyting on the product.

(outdoor units)

Do not insert hands or other objects through

the air inlet or outlet while the air conditioner

is plugged in.

•There is risk of personal injury and failure of product. •There are sharp and moving parts that could cause

personal injury.

■Operation

Wax

Safety Precautions

- 10 -

Only for training and service purposes LGE Internal Use Only

Dimensions

Installation plate

W mm 915

H mm 282

D mm 165

Model

Dimension

9k, 12k Btu Series

Indoor Unit

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that could cause harm to the

air conditioner.

This symbol indicates special notes.

NOTICE

Symbols Used in this Manual

Andere Handbücher für AS-W096ERH0

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere LG Klimaanlage Handbücher

LG LSN5UR3F1 Bedienungsanleitung

LG W051CS SSP Bedienungsanleitung

LG LS-H0560FL Bedienungsanleitung

LG AHU EEV KIT Bedienungsanleitung

LG TV126STQ Bedienungsanleitung

LG ARNU18GS5 2 Series, ARNU24GS5 2 Series Bedienungsanleitung

LG ARTCOOL LA091CNP Bedienungsanleitung

LG S122CT SY0 Bedienungsanleitung

LG LS180HSV5 Installations- und Betriebshandbuch

LG Multi V PRHR083A Bedienungsanleitung

LG ATUQ18GPLE6 Bedienungsanleitung

LG MFL67870417 Bedienungsanleitung

LG K096SH SOS Bedienungsanleitung

LG ARTCOOL LA121CNM Bedienungsanleitung

LG LW1213ER Bedienungsanleitung

LG LP1419IVSM Bedienungsanleitung

LG AMNW07GSJL0 Bedienungsanleitung

LG A3UQ24GFAB Bedienungsanleitung

LG B120AH Bedienungsanleitung

LG C09LCR Bedienungsanleitung

LG MULTI V TJ Series Bedienungsanleitung

LG RS-Q10ENXE Bedienungsanleitung

LG LC098HV Bedienungsanleitung

LG Art Cool LMN090HE Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
