Floor Standing-Type

Air Conditioner

OWNER'S MANUAL

IMPORTANT

• Please read this owner's manual carefully and thoroughly

before installing and operating your air conditioner.

• Please retain this owner's manual for future reference after

reading it thoroughly.

website http://www.lgservice.com

ITALIANO ESPAÑOL FRANÇAIS DEUTSCH

ENGLISH FRANÇAIS ESPAÑOL

2Floor Standing-Type Air Conditioner

Floor Standing- Type Air Conditioner Owner’s Manual

TABLE OF CONTENTS

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

■

Staple your receipt to this page in the event you need it

to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little

preventive care on your part can save you a great deal

of time and money over the life of your air conditioner.

You'll find many answers to common problems in the

chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for

service at all.

PRECAUTION

•Contact the authorized service technician for repair or

maintenance of this unit.

• Contact the installer for installation of this unit.

• The air conditioner is not intended for use by young

children or invalids without supervision.

• Young children should be supervised to ensure that

they do not play with the air conditioner.

• When the power cord is to be replaced, replacement

work shall be performed by authorized personnel only

using only genuine replacement parts.

• Installation work must be performed in accordance

with the National Electric Code by qualified and

authorized personnel only.

Safety Precautions.................3

Operating Instructions...........9

Care and Maintenance .........24

Before you call

for service .............................26

Celsius(°C) ↔ Fahrenheit (°F)

Convert Table .......................27

Safety Precautions

Owner's Manual 3

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions

must be followed.

■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is

classified by the following indications.

■Meanings of symbols used in this manual are as shown below.

WARNING

CAUTION

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage.

Be sure not to do.

Be sure to follow the instruction.

WARNING

■Installation

Do not use a defective or

underrated circuit breaker.

Use this appliance on a

dedicated circuit.

• There is risk of fire or electric

shock.

For electrical work, contact

the dealer, seller, a qualified

electrician, or an Authorized

Service Center.

• Do not disassemble or repair the

product. There is risk of fire or

electric shock.

Always ground the product.

• There is risk of fire or electric

shock.

Install the panel and the

cover of control box

securely.

• There is risk of fire or electric

shock.

Always install a dedicated

circuit and breaker.

• Improper wiring or installation

may cause fire or electric shock

Use the correctly rated

breaker or fuse.

• There is risk of fire or electric

shock.

Safety Precautions

4Floor Standing-Type Air Conditioner

■Operation

Do not modify or extend the

power cable.

• There is risk of fire or electric

shock.

Do not install, remove, or re-

install the unit by yourself

(customer).

• There is risk of fire, electric

shock, explosion, or injury.

Be cautious when unpacking

and installing the product.

• Sharp edges could cause injury.

Be especially careful of the case

edges and the fins on the

condenser and evaporator.

For installation, always contact the

dealer or an Authorized Service Center.

• There is risk of fire, electric

shock, explosion, or injury.

Do not install the product on a

defective installation stand.

• It may cause injury, accident, or

damage to the product.

Be sure the installation area

does not deteriorate with age.

• If the base collapses, the air

conditioner could fall with it,

causing property damage,

product failure, and personal

injury.

Do not plug or unplug the

power supply plug during

operation.

• There is risk of fire or electric

shock.

Do not touch(operate) the

product with wet hands.

• There is risk of fire or electrical

shock.

Do not place a heater or

other appliances near the

power cable.

• There is risk of fire and electric

shock.

Do not let the air conditioner run for a

long time when the humidity is very high

and a door or a window is left open

• Moisture may condense and wet

or damage furniture.

Take care to ensure that power

cable could not be pulled out or

damaged during operation.

• There is risk of fire or electric

shock.

Do not place anything on the

power cable.

• There is risk of fire or electric

shock.

Safety Precautions

Owner's Manual 5

Do not allow water to run

into electric parts.

• It may cause There is risk of fire,

failure of the product, or electric

shock.

Do not store or use flammable

gas or combustibles near the

product.

• There is risk of fire or failure of

product.

Do not use the product in a

tightly closed space for a

long time.

• Oxygen deficiency could occur.

When flammable gas leaks,

turn off the gas and open a

window for ventilation

before turn the product on.

• Do not use the telephone or turn

switches on or off.

There is risk of explosion or fire

If strange sounds, or small or

smoke comes from product. Turn

the breaker off or disconnect the

power supply cable.

• There is risk of electric shock or

fire.

Stop operation and close the window

in storm or hurricane. If possible,

remove the product from the window

before the hurricane arrives.

• There is risk of property damage,

failure of product, or electric shock.

Do not open the inlet grill of the

product during operation.

(Do not touch the electrostatic

filter, if the unit is so equipped.)

• There is risk of physical injury,

electric shock, or product failure.

When the product is soaked

(flooded or submerged),

contact an Authorized

Service Center.

• There is risk of fire or electric

shock.

Be cautious that water could

not enter the product.

• There is risk of fire, electric shock,

or product damage.

Gasolin

Ventilate the product from time to time when

operating it together with a stove, etc.

• There is risk of fire or electric shock.

Turn the main power off when cleaning or

maintaining the product.

• There is risk of electric shock.

Safety Precautions

6Floor Standing-Type Air Conditioner

■Installation

CAUTION

■Operation

Always check for gas

(refrigerant) leakage after

installation or repair of product.

• Low refrigerant levels may cause

failure of product.

Install the drain hose to

ensure that water is drained

away properly.

• A bad connection may cause

water leakage.

Keep level even when

installing the product.

• To avoid vibration or water

leakage.

Do not install the product where the

noise or hot air from the outdoor unit

could damage the neighborhoods.

• It may cause a problem for your

neighbors.

Use two or more people to

lift and transport the

product.

• Avoid personal injury.

Do not install the product where

it will be exposed to sea wind

(salt spray) directly.

• It may cause corrosion on the

product. Corrosion, particularly on

the condenser and evaporator fins,

could cause product malfunction or

inefficient operation.

90˚

When the product is not be used for a long

time, disconnect the power supply plug or

turn off the breaker.

• There is risk of product damage or failure, or

unintended operation.

Take care to ensure that nobody could step

on or fall onto the outdoor unit.

• This could result in personal injury and product

damage.

Do not expose the skin directly to cool air for

long periods of time.

(Don't sit in the draft.)

• This could harm to your health.

Do not use the product for special purposes, such as

preserving foods, works of art, etc. It is a consumer air

conditioner, not a precision refrigeration system.

• There is risk of

damage or

loss of property.

Safety Precautions

Owner's Manual 7

ENGLISH

Do not block the inlet or

outlet of air flow.

• It may cause product failure.

Use a soft cloth to clean. Do

not use harsh detergents,

solvents, etc.

• There is risk of fire, electric shock,

or damage to the plastic parts of

the product.

Do not touch the metal parts of

the product when removing the

air filter. They are very sharp!

• There is risk of personal injury.

Wax

Thinner

Do not step on or put

anyting on the product.

(outdoor units)

• There is risk of personal injury

and failure of product.

Always insert the filter securely.

Clean the filter every two weeks

or more often if necessary.

• A dirty filter reduces the efficiency

of the air conditioner and could

cause product malfunction or

damage.

Do not insert hands or other

objects through the air inlet or

outlet while the product is operated.

• There are sharp and moving parts

that could cause personal injury.

Do not drink the water

drained from the product.

• It is not sanitary and could cause

serious health issues.

Use a firm stool or ladder

when cleaning or

maintaining the product.

• Be careful and avoid personal

injury.

Replace the all batteries in the

remote control with new ones of

the same type. Do not mix old

and new batteries or different

types of batteries.

• There is risk of fire or explosion

Do not recharge or

disassemble the batteries.

Do not dispose of batteries

in a fire.

• They may burn or explode.

If the liquid from the batteries gets

onto your skin or clothes, wash it

well with clean water. Do not use the

remote if the batteries have leaked.

•

The chemicals in batteries could

cause burns or other health hazards.

If you eat the liquid from the

batteries, brush your teeth and

see doctor. Do not use the remote

if the batteries have leaked.

•

The chemicals in batteries could

cause burns or other health hazards.

Prior to Operation

8Floor Standing-Type Air Conditioner

Prior to Operation

1. Contact an installation specialist for installation.

2. Plug in the power plug properly.

3. Use a dedicated circuit.

4. Do not use an extension cord.

5. Do not start/stop operation by plugging/unplugging the power cord.

6. If the cord/plug is damaged, replace it with only an authorized replacement part.

1. Being exposed to direct airflow for a long time may be hazardous to your health. Do not expose

occupants, pets, or plants to direct airflow for a long time.

2. Due to the possibility of oxygen deficiency, ventilate the room when using the appliance together with

stoves or other heating devices.

3. Do not use this air conditioner for non-specified special purpose (e.g. preserving precision devices,

food, pets, plants, or art objects). Such use may damage your properties.

1. Do not touch the metal parts of the unit when removing the filter. Injury can occur.

2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation,

leading to electric shock.

3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at a

very high speed during operation. There is a possibility of injury if the unit’s power is triggered while

cleaning inner parts of the unit.

For repair and maintenance, contact your authorized service dealer.

Preparing for Operation

Usage

Cleaning and Maintenance

Service

Introduction

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that may cause harm to the

air conditioner.

This symbol indicates special notes.

NOTICE

Symbols used in this Manual

Owner's Manual 9

ENGLISH

Operating Instructions

Features and Specifications

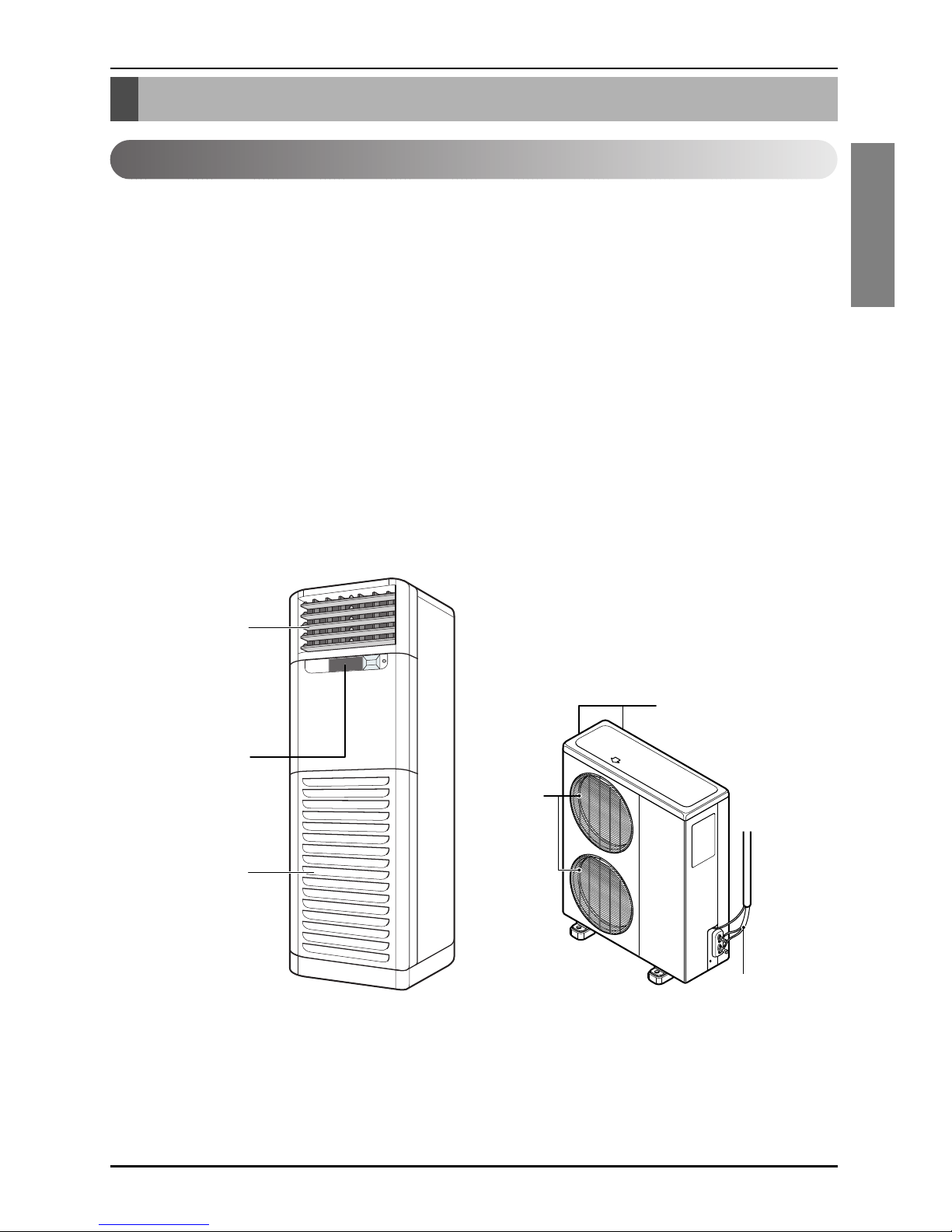

Air Intake Vent

(Rear)

Air Outlet

Vent

Piping

Air Outlet Vent

Remote Signal

Receptor

Air Intake Vent

1. Design for cooling

2. Super energy efficiency

3. Micom control

4. Whisper quiet operation

5. Wireless remote control

6. 3 cooling speeds

7. Removable air filter

8. Anti-Bacteria filter

9. 3 minutes delay circuit

10 Floor Standing-Type Air Conditioner

56 12

411

7 9

108 3

Operating Instructions

Indoor Unit Controls and Indicators

1. START/STOP BUTTON

Operation starts when this button is pressed

and stops when the button is pressed again.

2. OPERATION MODE SELECTION

BUTTON

Used to select the operation Mode.

3. ROOM TEMPERATURE SETTING

BUTTONS

Used to select the room temperature.

4. INDOOR FAN SPEED SELECTION

Used to select fan speed in three steps-low,

High, Super High.

5. FAN OPERATION LAMP

6. COOLING OPERATION LAMP

7. SOFT DRY OPERATION LAMP

8. OUTDOOR UNIT OPERATION LAMP

9. AUTO OPERATION LAMP

10. OFF TIMER OPERATION LAMP

11. TURBO-Z OPERATION LAMP

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere LG Klimaanlage Handbücher

LG ARNU12GTRB4 Bedienungsanleitung

LG L5004R Bedienungsanleitung

LG LW1213HR Bedienungsanleitung

LG Art Cool LMAN127HVT Betriebsanleitung

LG LP1200DXR Bedienungsanleitung

LG M09AWN-NB11 Bedienungsanleitung

LG LW5011 Bedienungsanleitung

LG VR122HE NC0 Bedienungsanleitung

LG AC Smart 5 Bedienungsanleitung

LG LW1216ER Bedienungsanleitung

LG VW151CE SL0 Bedienungsanleitung

LG LT1033HNR Montageanleitung

LG R18AQN-NC10 Bedienungsanleitung

LG LP1411SHR Bedienungsanleitung

LG LP1111WXR Bedienungsanleitung

LG MFL68026703 Bedienungsanleitung

LG AS-W243C4B1 Bedienungsanleitung

LG MULTI V WATER II ARWN100LA2 Bedienungsanleitung

LG 5401156193 Bedienungsanleitung

LG Multi V Bedienungsanleitung

LG ARNU07GCEA4 Bedienungsanleitung

LG FB-C186HSA0 Bedienungsanleitung

LG ARWB200LAS4 Bedienungsanleitung

LG ARTCOOL LA121CNM Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
