SERVICE MANUAL

Room Air Conditioner

CAUTION

-BEFORE SERVICING THE UNIT, READ THE SAFETY

PRECAUTIONS IN THIS MANUAL.

-ONLY FOR AUTHORIZED SERVICE PERSONNEL.

MODEL : LS-Q076ABL/BBG/BEL/ABG

LS-Q096ABL/BBG/BEL/AEL

LS-Q096ACG/ADG/ADL/BDL

LS-Q096AHG/ABG/ABM/AEM

LS-Q096BAG/BDG

LS-Q096ACL/AAG

LS-Q082BAG/BAM

LS-Q082AAL/ACG/ACL/ACM

LS-H096QNA0

LS-Q096BEG

LS-C082QMA0/QNA0

LS-C096QLA0/QNA0

LS-C096QGL0

LS-H096QGL1

WEBSITE http://biz.LGservice.com

E-MAIL http://www.LGEservice.com/techsup.html

Contents

Details of LG Model Name(2002) .......................................................................................... 3

Details of LG Model Name(2003) .......................................................................................... 4

Functions................................................................................................................................5

Product References .............................................................................................................. 8

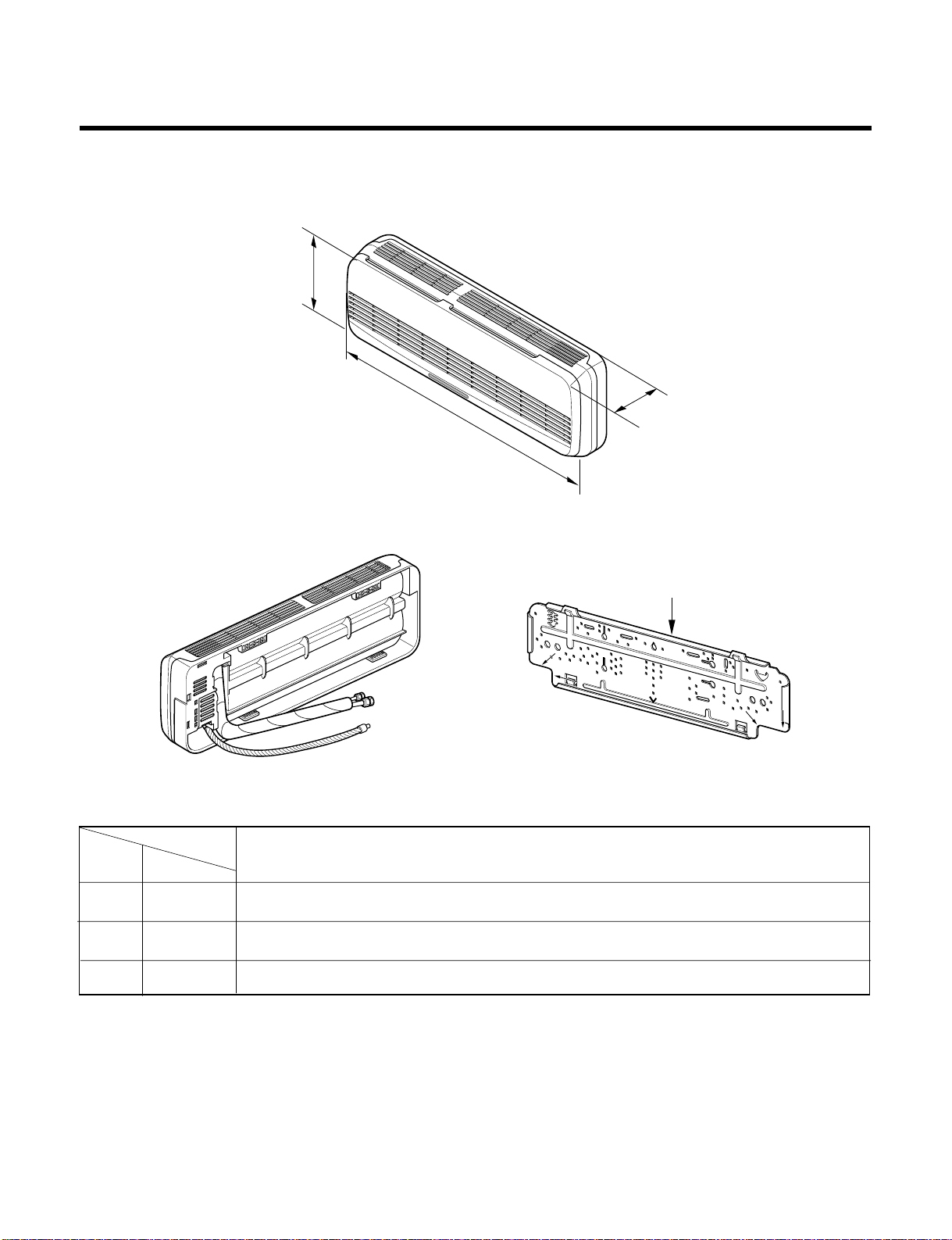

Dimensions........................................................................................................................... 10

Refrigeration Cycle Diagram............................................................................................... 13

Wiring Diagram..................................................................................................................... 14

Operation Details ................................................................................................................. 15

Display Function .................................................................................................................. 22

Self-diagnosis Function....................................................................................................... 22

Installation ............................................................................................................................ 23

Operation .............................................................................................................................. 34

Disassembly of the parts (Indoor Unit).............................................................................. 36

2-way, 3-way Valve................................................................................................................ 39

Cycle Troubleshooting Guide.............................................................................................. 46

Electronic Parts Troubleshooting Guide............................................................................ 47

Electronic Control Device.................................................................................................... 54

Schematic Diagram.............................................................................................................. 59

Exploded View and Replacement Parts List...................................................................... 64

-2-

Details of LG Model Name(2002)

-3-

12 3456789

Code Type Code of Model Meaning

1,2 Type of Airconditioner A~Z LS: LG Split Type Airconditioner

3 Chassis A~Z Name of toll of Unit

Ex. LS-R ➔S R Chassis

4,5 Capacity(Btu/h) 1~9 Cooling/Heating Capacity

Ex. "09" ➔9,000Btu/h

6 Electric Range 1~9 Electric Standard

1➔115V/60Hz 6 ➔220~240V/50Hz

2➔220V/60Hz 7 ➔110V, 50/60Hz

3➔208~230V/60Hz 8 ➔380~415V/50Hz

5➔200~220V/50Hz 9 ➔380~415V/60Hz

7 Serial No. 0~9

A~Z

8 Cooling/Heating A~Z

9 LG/OEM Brand A~Z L: LG Brand M: 1st OEM Brand

G: 2nd LG Brand N: 2nd OEM Brand

Basic A 0

Plasma Filter B 1

Auto Swing

+ Plasma Filter C 2

Telephone + LED Display D 3

Telephone + LCD Display E 4

Auto Swing

+ Plasma Filter + Telephone + LCD

Low Ambient + Ambient/change G 6

Plasma Filter + Low Ambient + Ambient/change

Internet J 8

Auto Swing + Plasma Filter + Oxygen Generator

Auto Swing + Soft Start L Z

Auto Swing + Star Rating M Y

Auto Swing + Star Rating + Plasma Filter N X

Auto Swing + Soft Start + Star Rating P W

Auto Swing + Soft Start + Star Rating 4 + Plasma

Auto Swing + Telephone + LCD R U

Auto Swing + Telephone + LCD + Soft Start

C/O

H/P

E/H+C/O

E/H+H/P

C/O

H/P

C/O

H/P

INDOOR

BASIC

PLASMA

GOLD FIN

OUTDOOR

BASIC

GOLD FIN

BASIC

GOLD FIN

UNIT

R22

HFC R22+AC INV.

HFC+AC

INV. HFC+DC

INV.

Details of LG Model Name(2003)~

-4-

12 -345678910

Code Type Code of Model Meaning

1 Producing Center, A~Z L: Chang-won R22 N: India

Refrigerant A: Chang-won R410A Z: Brazil

C: Chang-won R407C D: Indonesia

T: China M: Mexico

K: Turkey R22 V: Vietnam

E: Turkey R410A S: Out Sourcing

H: Thailand

2 Product Type A~Z S: Split Type Air Conditioner

3 Cooling/Heating/Inverter A~Z C: Cooling only

H: Heat pump

X: C/O + E/Heater

Z: H/P + E/Heater

V: AC Inverter C/O

N: AC Inverter H/P

Q: DC Inverter C/O

W: DC Inverter H/P

4, 5 Capacity 0~9 Cooling/Heating Capacity

Ex. "09" →9,000 Btu/h

6 Electric Range 1~9 1: 115V/60Hz, A: 220V, 50Hz, 3Phase

A~Z 2: 220V/60Hz B: 208~230V, 60Hz, 3Phase

3: 208-230V/60Hz C: 575V, 50Hz, 3Phase

5: 200-220V/50Hz D: 440~460, 60Hz, 3Phase

6: 220-240V/50Hz E: 265V, 60Hz

7: 110V, 50/60Hz F: 200V, 50/60Hz

8: 380-415V/50Hz

9: 380-415V/60Hz

7 Chassis A~Z Name of Chassis of Unit

Ex. LSP →SP Chassis

8 Look A~Z Look,

Color (Artcool Model)

9 Function A~Z

10 Serial No. 1~9 LG Model De

* ARTCOOL COLOR

velopment Serial No.

Basic A

Basic+4Way B

Plasma Filter C

Plasma Filter+4 Way D

Tele+LCD E

Tele+LCD+Nano plasma+4Way F

Nano Plasma F+(A/changeove)+A/clean+Low A G

Nano Plasma F+(A/changeove)+A/clean+4way+Low A H

Tele+LED+4way I

Internet J

Plasma F+4Way+Oxy generator K

Nano Plasma F+(A/changeove)+A/clean L

Nano Plasma F+(A/changeove)+A/clean+4way M

Nano Plasma F+(A/changeove)+A/clean+PTC N

Nano Plasma F+(A/changeove)+Autoclean+4way+PTC P

Nano Plasma F+(A/changeove)+A/clean+4way+Low A+PTC Q

Negative ION+A/Clean R

(Nano)Plasma+Negative ION+A/Clean S

4way+(Nano)Plasma F+Negative ION+Healthy dehumidification+A/Clean

Nano Plasma F+4Way+(A/changeove)+A/clean+ U

R Mirror

W White

B Blue

D Wood

M Metal

C Cherry

Functions

• Room temperature sensor. (THERMISTOR)

• Maintains the room temperature in accordance with the Setting Temp.

• Indoor fan is delayed for 5 sec at the starting.

• Restarting is inhibited for approx. 3 minutes.

• High, Med, Low, CHAOS, JET COOL

---

Lights up in operation

---

Lights up in Sleep Mode

---

Lights up in Timer Mode

---

Lights up in Defrost Mode (for Heating Model)

OUTDOOR---

Lights up in compressor operation (for Cooling Model)

---

The function illustrates its dynamic mode

by using a multiple lighting system.

()

---

Linghts up in Telephone Control operation.

• Intermittent operation of fan at low speed.

• The fan is switched to low(Cooling), med(Heating) speed.

• The unit will be stopped after 1, 2, 3, 4, 5, 6, 7 hours.

• The fan is switched to intermittent or irregular operation

•

The fan speed is automatically switched from high to low speed.

• The louver can be set at the desired position or swing

up and down automatically.

Indoor Unit

Operation ON/OFF by Remote controller

Sensing the Room Temperature

Room temperature control

Starting Current Control

Time Delay Safety Control

Indoor Fan Speed Control

Operation indication Lamps (LED)

Soft Dry Operation Mode

• The function will be operated while in any

operation mode with selecting the function.

• The function is to be stopped while it is

operating with selecting the function.

• Both the indoor and outdoor fan stops dur-

ing defrosting.

• The indoor fan stops until the

evaporator pipe temperature will be reached

at 28°C.

Sleep Mode Auto Control

Natural Air Control by CHAOS Logic

Airflow Direction Control

PLASMA

-5-

Defrost(Deice) control (Heating)

Hot-start Control (Heating)

PLASMA

-6-

Healthy Dehumidification Operation Mode.

( )

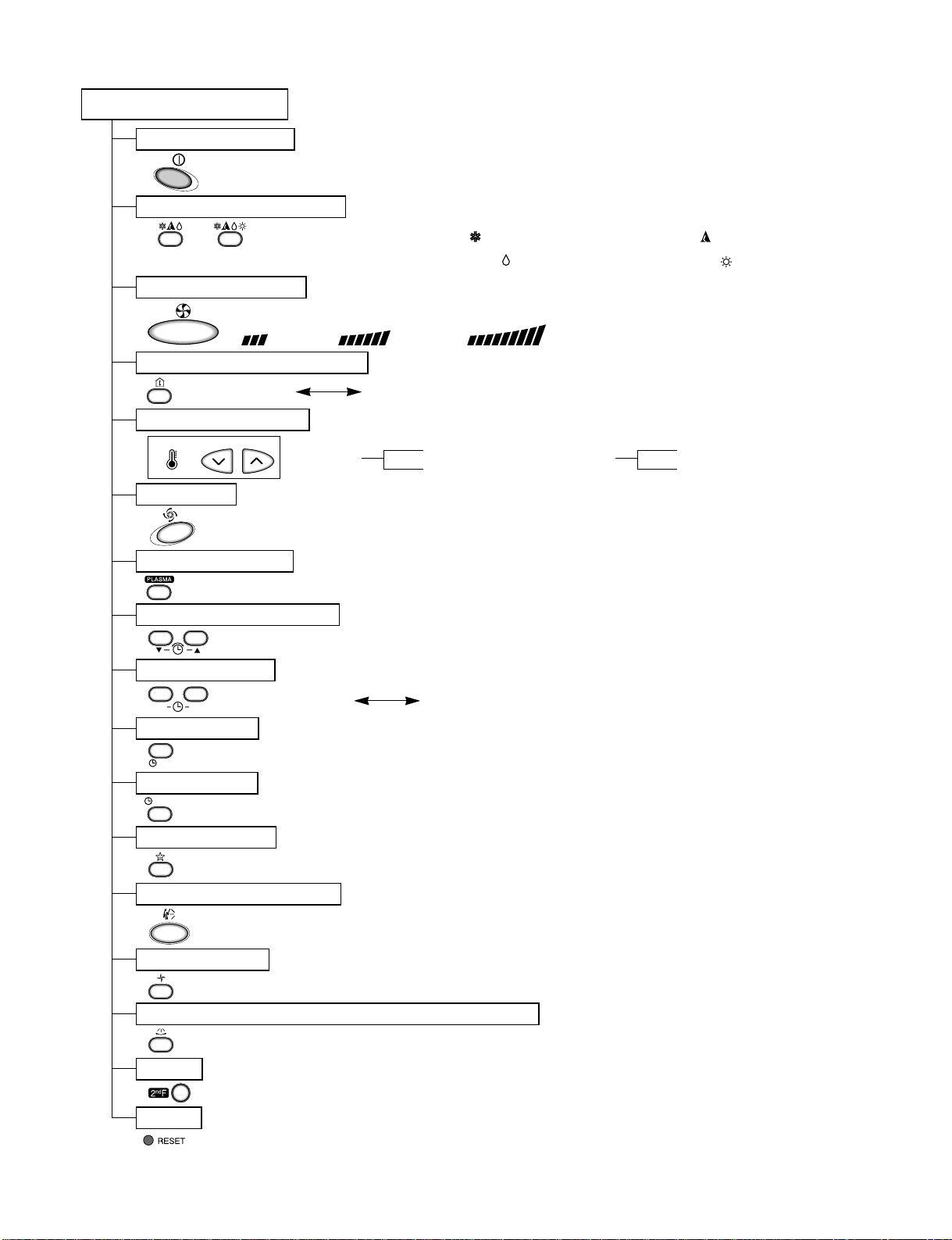

Remote Control

Operation ON/OFF

Reset

Operation Mode Selection

Temperature Setting

Timer Selection

Timer Setting

JET COOL

Timer Cancel

Sleep Operation

Airflow Direction Control

(Cooling

model only) (Heating

model only)

TEMPERATURE LOW HIGH

Cooling Operation Mode.( ) Heating Operation Mode.( )

Auto Operation Mode.( )

Fan Operation Mode

Horizontal Airflow Direction Control Button(Optional)

Room, Temperature Display

Setting the Time or Timer

PLASMA(Optional)

ON OFF

SET

PLASMA

CANCEL

Fan Speed Selection

(Low) (Med) (High) (CHAOS)

: (High:39°C Low:11°C)

: OFF, ON, OFF ON

: Cancel Sleep Mode, Timer ON or Timer OFF

: 1, 2, 3, 4, 5, 6, 7, Off Timer

: Fan Operates without cooling or heating.

Cooling Down to 18°C

Up to 30°CHeating Down to 16°C

Up to 30°C

-7-

Healthy Dehumidification Operation Mode.

( )

Remote Control

Operation ON/OFF

Reset

Operation Mode Selection

Temperature Setting

Timer Selection

Timer Setting

JET COOL

Timer Cancel

Sleep Operation

Airflow Direction Control

(Cooling

model only) (Heating

model only)

TEMPERATURE LOW HIGH

Cooling Operation Mode.( ) Heating Operation Mode.( )

Auto Operation Mode.( )

Air Circulation

Horizontal Airflow Direction Control Button(Optional)

Room, Temperature Checking

Setting the Time or Timer

PLASMA(Optional)

Fan Speed Selection

(Low) (Med) (High)

ON OFF

CANCEL

SET

2nd F

: (High:39°C Low:11°C)

: OFF, ON, OFF ON

: Cancel Sleep Mode, Timer ON or Timer OFF

: 1, 2, 3, 4, 5, 6, 7, Off Timer

: Fan Operates without cooling or heating.

Cooling Down to 18°C

Up to 30°CHeating Down to 16°C

Up to 30°C

-8-

Product References

NOTE: Please refer to Label Quality on the product since this specification may be changed for improving

performance

Model Name

Item Unit

Cooling Capacity Btu/h

Heating Capacity

Moisture Removal l/h

Power Source Ø,V,Hz

Cooling W

Heating

Running Cooling A

Current Heating

E.E.R. Cooling Btu/hW

C.O.P Heating

Refrigerant g

Airflow Direction Control (Up & Down)

Remocon Type

inch(mm)

Sleeping Operation

Drain Hose

Connecting Cable

Power Cord

LS-Q076BBG

LS-Q076BEL

LS-Q076ABL

LS-Q076ABG

LS-Q096BAG, LS-Q096ACG

LS-Q096ACL, LS-Q096AAL

LS-Q096ADG, LS-Q096ADL

LS-Q096BDG, LS-Q096BDL

LS-Q096AAG

LS-Q096BBG, LS-Q096BEL

LS-Q096AHG, LS-Q096ABL

LS-Q096ABG, LS-Q096AEL

LS-Q096ABM, LS-Q096AEM

LS-Q096BEG

LS-Q082BAG/BAM

LS-Q082AAL/ACG

LS-Q082ACL/ACM LS-H096QNA0

7,000 9,000 9,000 8,000 8,500

7,300 - 9,300 - 8,750

1.0 1.0 1.0 1.0 1.0

1Ø, 220-240V, 50Hz 1Ø, 220-240V, 50Hz 1Ø, 220-240V, 50Hz 1Ø, 220V, 60Hz 1Ø, 220-240V, 50Hz

5.9 6 6 6 6

20 20 25 20 25

34 36 36 36 36

48 48 48 48 48

660 900 900 650 950

640 - 870 - 860

3.0 4.0 3.9 3.0 4.2

2.9 - 3.8 - 3.8

10.6 10 10 10 8.9

3.3 - 3.13 - 2.8

5 5.7 5.7 7.6 8.4

14 14.5 14.5 18.7 13.6

824 x 260 x 155 824 x 260 x 155 824 x 260 x 155 824 x 260 x 155 824 x 260 x 155

525 x 564 x 265 525 x 564 x 265 770 x 540 x 245 525 x 564 x 265 770 x 540 x 245

77777

23 23 33 23 23

610(R22) 530(R22) 640(R22) 630(R22) 680(R22)

OOOOO

L.C.D Wireless L.C.D Wireless L.C.D Wireless L.C.D Wireless L.C.D Wireless

1/4" (6.35) 1/4" (6.35) 1/4" (6.35) 1/4" (6.35) 1/4" (6.35)

3/8" (9.52) 3/8" (9.52) 3/8" (9.52) 3/8" (9.52) 3/8" (9.52)

OOOOO

0.75mm20.75mm20.75mm20.75mm20.75mm2

Air Circulation

Noise Level

Input

m3/min

dB (A)±3

Indoor

Outdoor

Indoor

Outdoor

Indoor

Outdoor

Indoor

Outdoor

Indoor

Outdoor

Liquid

Gas

Service Valve

Motor Output

Dimensions

(WxHxD)

Net. Weight

-9-

NOTE: Please refer to Label Quality on the product since this specification may be changed for improving

performance

Model Name

Item Unit

Cooling Capacity Btu/h

Heating Capacity

Moisture Removal l/h

Power Source Ø, V, Hz

Cooling W

Heating

Running Cooling A

Current Heating

E.E.R. Cooling Btu/hW

C.O.P Heating

Refrigerant g

Airflow Direction Control (Up & Down)

Remocon Type

inch(mm)

Sleeping Operation

Drain Hose

Connecting Cable

Power Cord

LS-C096QLA0

QNA0/QGL0 LS-C082QMA0/QNA0 LS-H096QGL1

9,000 8,000 9,000

- - 9,300

1.0 1.0 1.0

1Ø, 220-240V, 50Hz 1Ø, 220V, 60Hz 1Ø, 220-240V, 50Hz

66 6

20 20 25

36 36 36

48 48 48

900 650 950

- - 860

4.0 3.0 4.2

- - 3.8

10 10 9.5

- - 2.8

5.7 7.6 8.4

14.5 18.7 13.6

824 x 260 x 155 824 x 260 x 155 824 x 260 x 155

525 x 564 x 265 525 x 564 x 265 770 x 540 x 245

77 7

23 23 23

530(R22) 630(R22) 680(R22)

OO O

L.C.D Wireless L.C.D Wireless L.C.D Wireless

1/4" (6.35) 1/4" (6.35) 1/4" (6.35)

3/8" (9.52) 3/8" (9.52) 3/8" (9.52)

OO O

0.75mm20.75mm20.75mm2

Air Circulation

Noise Level

Input

m3/min

dB (A)±3

Indoor

Outdoor

Indoor

Outdoor

Indoor

Outdoor

Indoor

Outdoor

Indoor

Outdoor

Liquid

Gas

Service Valve

Motor Output

Dimensions

(W x H x D)

Net. Weight

-10-

Installation plate

MODEL

DIM Unit

W mm 824

H mm 260

D mm 155

All Models

Dimensions

(1) Indoor Unit

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere LG Klimaanlage Handbücher

LG LSN302HPV Bedienungsanleitung

LG LM-2320C2L/M Bedienungsanleitung

LG Art Cool LMN120HE Bedienungsanleitung

LG LS-J0761CLCM Bedienungsanleitung

LG ARNU24GVJA1 Bedienungsanleitung

LG LW7012HR Bedienungsanleitung

LG AVUQ36GM1A0 Bedienungsanleitung

LG AB-H1208VA0 Bedienungsanleitung

LG FM15AH UL3 Bedienungsanleitung

LG PQDSA1 Bedienungsanleitung

LG D12TR Bedienungsanleitung

LG ARNU073SEL2 Bedienungsanleitung

LG HSN09IV Bedienungsanleitung

LG A3UW24GFA0 Bedienungsanleitung

LG UM30F Bedienungsanleitung

LG Convertible & Ceiling suspended Air... Bedienungsanleitung

LG RNU05GTR 4 Series Bedienungsanleitung

LG SJ242CD Bedienungsanleitung

LG A6UW368FA0 Bedienungsanleitung

LG W242BH Bedienungsanleitung

LG ARWB Series Bedienungsanleitung

LG UU36WH Bedienungsanleitung

LG ARNU073SER2 Bedienungsanleitung

LG 1 Way Cassette ZTUQ12GULA1 Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
