Models: PHNFP14A0 / PSNFP14A0

TYPE: PI485 Gateway(C, R)

Please read this installation manual completely before installing the product.

Installation work must be performed in accordance with the national wiring

standards by authorized personnel only.

Please retain this installation manual for future reference after reading it

thoroughly.

INSTALLATION MANUAL

AIR

CONDITIONER

P/NO : MFL57868523

2485 Gateway(C, R)

PI 485 INSTALLATION MANUAL

TABLE OF CONTENTS

nSafety Precautions....................................................3~4

nPart Description .......................................................5~6

nInstallation Guide ....................................................7~12

nInstallation Steps .................................................................................7

nDIP Switch Configuration.................................................................8~9

nAdvanced Lock Control Type ...........................................................10

nCentral Controller Connection Diagram.............................................11

nExamples For Product Installation.....................................................12

nAccessory Parts .........................................................13

Safety Precautions

Installation Manual 3

Don't touch with the

hands while the power is

•

There is risk of fire or electric

shock.

Use standard

parts(connector).

•

Do not disassemble or repair

the product. There is risk of fire

or electric shock.

For electrical work, contact

the dealer, seller, a qualified

electrician, or an Authorized

Service Center.

•

Do not disassemble or repair

the product. There is risk of fire

or electric shock.

nInstallation

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions

must be followed.

nIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness is

classified by the following indications.

nMeanings of symbols used in this manual are as shown below.

WARNING

CAUTION

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage.

Be sure not to do.

Be sure to follow the instruction.

WARNING

Safety Precautions

4485 Gateway(C, R)

When the product is soaked (flooded or

submerged), contact an Authorized Service

Center.

• There is risk of fire or electric shock.

Be cautious that water could not enter the

product.

• There is risk of fire, electric shock, or product

damage.

nOperation

Use the correctly rated

breaker or fuse.

• There is risk of fire or electric

shock.

Do not install, remove, or re-

install the unit by yourself

(customer).

• There is risk of fire, electric

shock, explosion, or injury.

For installation, always

contact the dealer or an

Authorized Service Center.

• There is risk of fire, electric

shock, explosion, or injury.

Part Description

Installation Manual 5

Part Description

PHNFP14A0

PI485 GATEWAY(C)

BUS_B: RS-485 (-) Terminal

BUS_A: RS-485 (+) Terminal

Reset Switch: PI485(C) Reset

LED01G,02G,03G: Communication Status LED

LED1: RS-485 Communication Status LED

CN_OUT: Indoor Unit Connector

DIP Switch: Product Selection (Refer Page 8~10)

L1 2 3 4

6485 Gateway(C, R)

Part Description

PSNFP14A0

PI485 GATEWAY(R)

BUS_B: RS-485 (-) Terminal

BUS_A: RS-485 (+) Terminal

Reset Switch: PI485(R) Reset

LED01G,02G,03G: Communication Status LED

LED1: RS-485 Communication Status LED

CN_OUT: Indoor Unit Connector

DIP Switch: Product Selection (Refer Page 8~10)

L1 2 3 4

Installation Manual 7

Installation Guide

Installation Steps (PHNFP14A0/PSNFP14A0)

1. Select DIP Switch Configuration(Refer page 8 ~ 10)

2. Connect RS-485 BUS_A(+), BUS_(B)(-) with other network products (ex.

Simple Central Controller , ACP.....)

3. Connect CN_OUT with Indoor Unit by the cable (provided)

4. Check the Communication Status LED

- LED1G(Red)

• OK operation : LED blinks for 5 times and then gets OFF

This process is repeated after every 3 minutes

• NG operation : Check the Indoor Unit’s address & wiring connections

- LED2G(Yellow), LED3G(Orange)

• NG operation : Check the DIP Switch setting & wiring connections

5. Check RS-485

nOK operation :

(1) LED blinks when PI485 receives data from central controller.

nNG operation : Check the wiring connections

6. Finally if all of the above steps are OK then tie the cables by tie wraps & clamp

Installation Guide

8485 Gateway(C, R)

Installation Guide

L1 2

KSD42H

Select Air

Conditioner Type

Select Advanced

Control Type Select Network

Type

L1 2 3 4

L1 2

KSD42H

L1 2

KSD42H

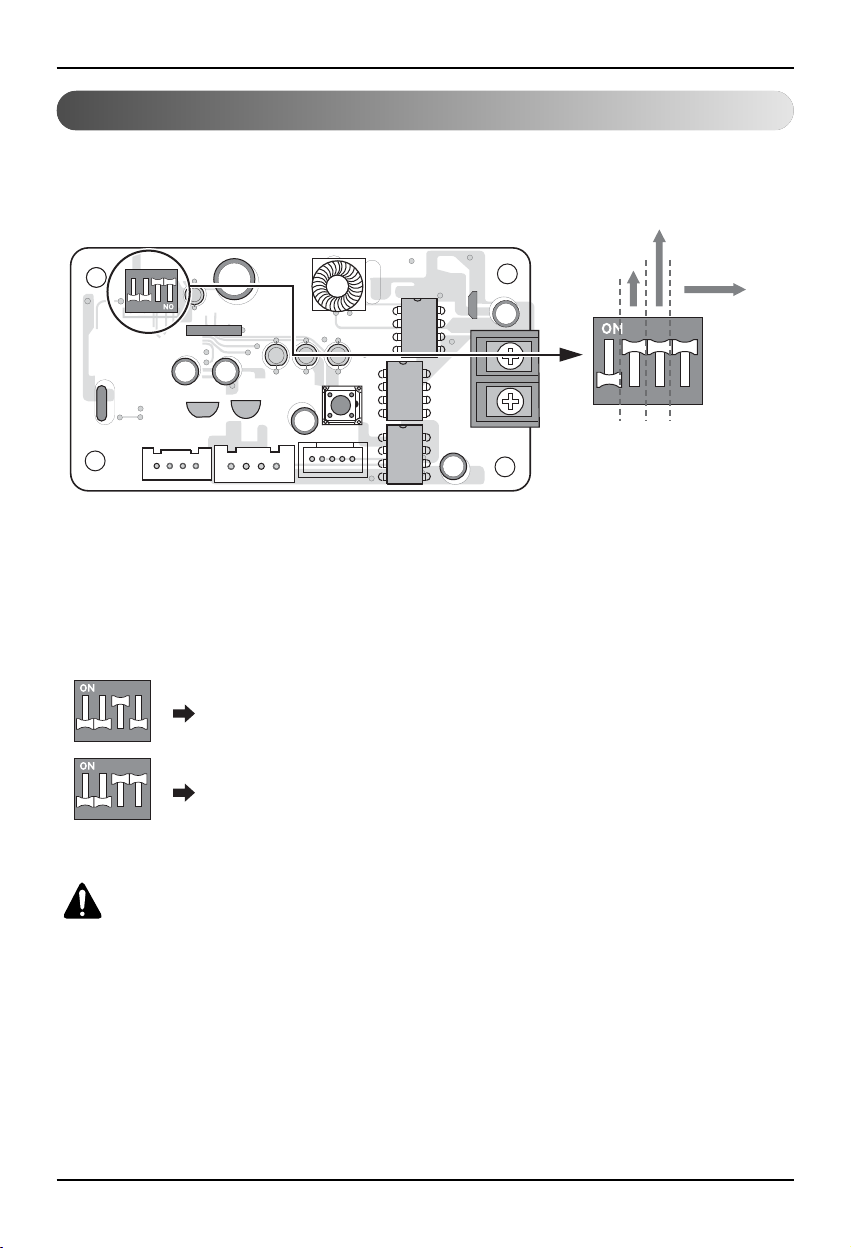

DIP Switch Configuration

3 ON+ALL OFF: Using LGAP CAC Products + Central Controller

3, 4 ON+ALL OFF: LGAP CAC Products + Central Controller (ALL

type)-Using LGAP

For CAC products using LGAP

gThis means Central controller type

(Central controller using LGAP is under development. Next generation controller would

use LGAP.)

• PHNFP14A0

CAUTION:

Wrong products configuration can lead to malfunction.

The wrong setting of air-conditioner switch could cause malfunctioning.

Switch setting must be done carefully.

Installation Manual 9

Installation Guide

L1 2 3 4

L1 2

KSD42H

Select Air

Conditioner Type

Select Advanced

Control Type Select Network

Type

L1 2

KSD42H

L1 2

KSD42H

3 ON+ALL OFF: LGAP RAC/SRAC/PAC Products + Central Controller

(ALL type)-Without LGAP

3, 4 ON+ALL OFF: LGAP RAC/SRAC/PAC Products + Central

Controller (ALL type)-Using LGAP

For RAC/SRAC/PAC products using LGAP

• PSNFP14A0

CAUTION:

Wrong products configuration can lead to malfunctioning
