LG S4 Bedienungsanleitung

Room

Air Conditioner

OWNER'S MANUAL

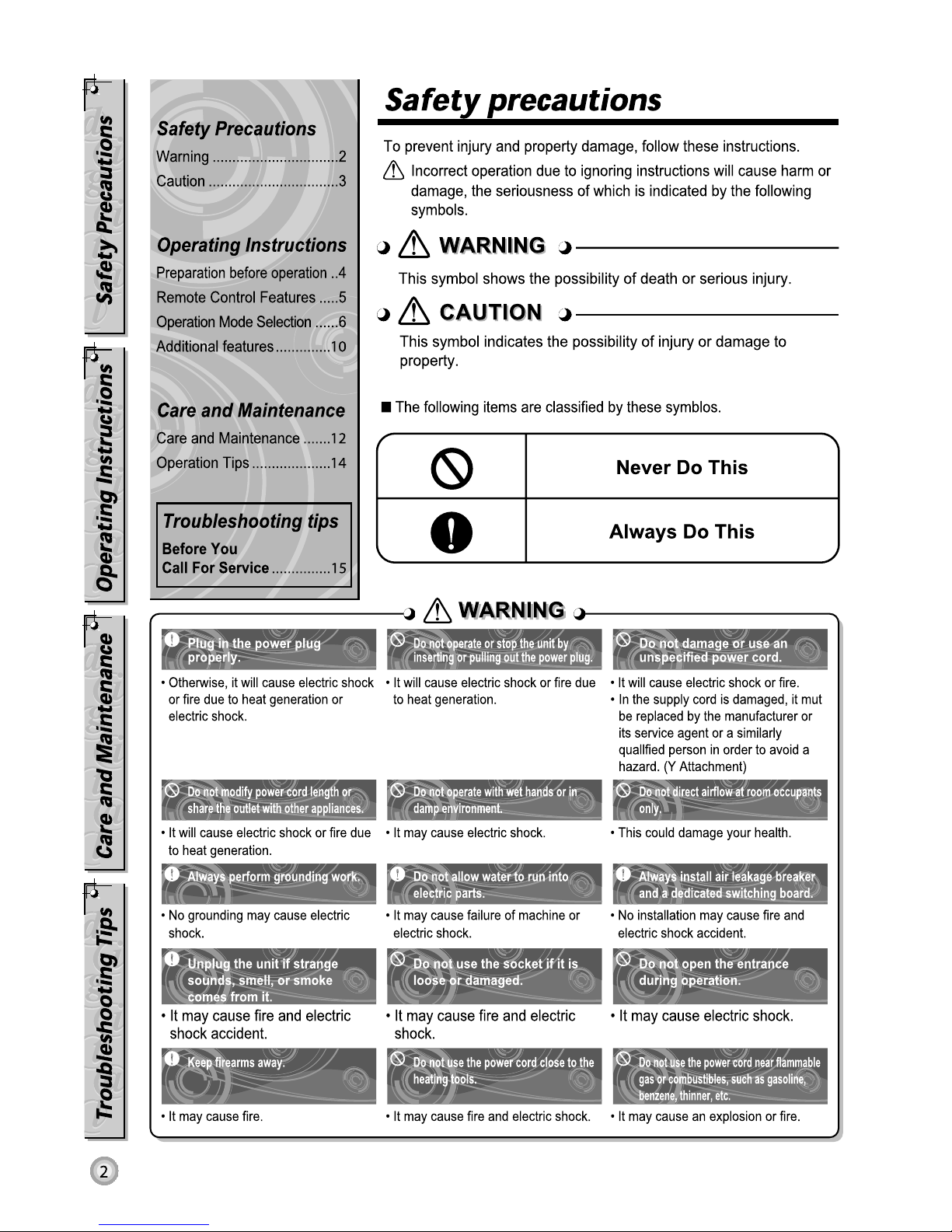

IMPORTANT

• Please read this owner's manual carefully and thoroughly

before installing and operating your room air conditioner.

• Please retain this owner's manual for future reference after

reading it thoroughly.

Prior to installation, this air-

conditioning unit must be

submitted for approval by the

utility service which provides

electricity (EN 61000-2,

EN 61000-3 Norm).

website http://www.lgservice.com

MODELS : S4/S5 Chassis

ENGLISH

�

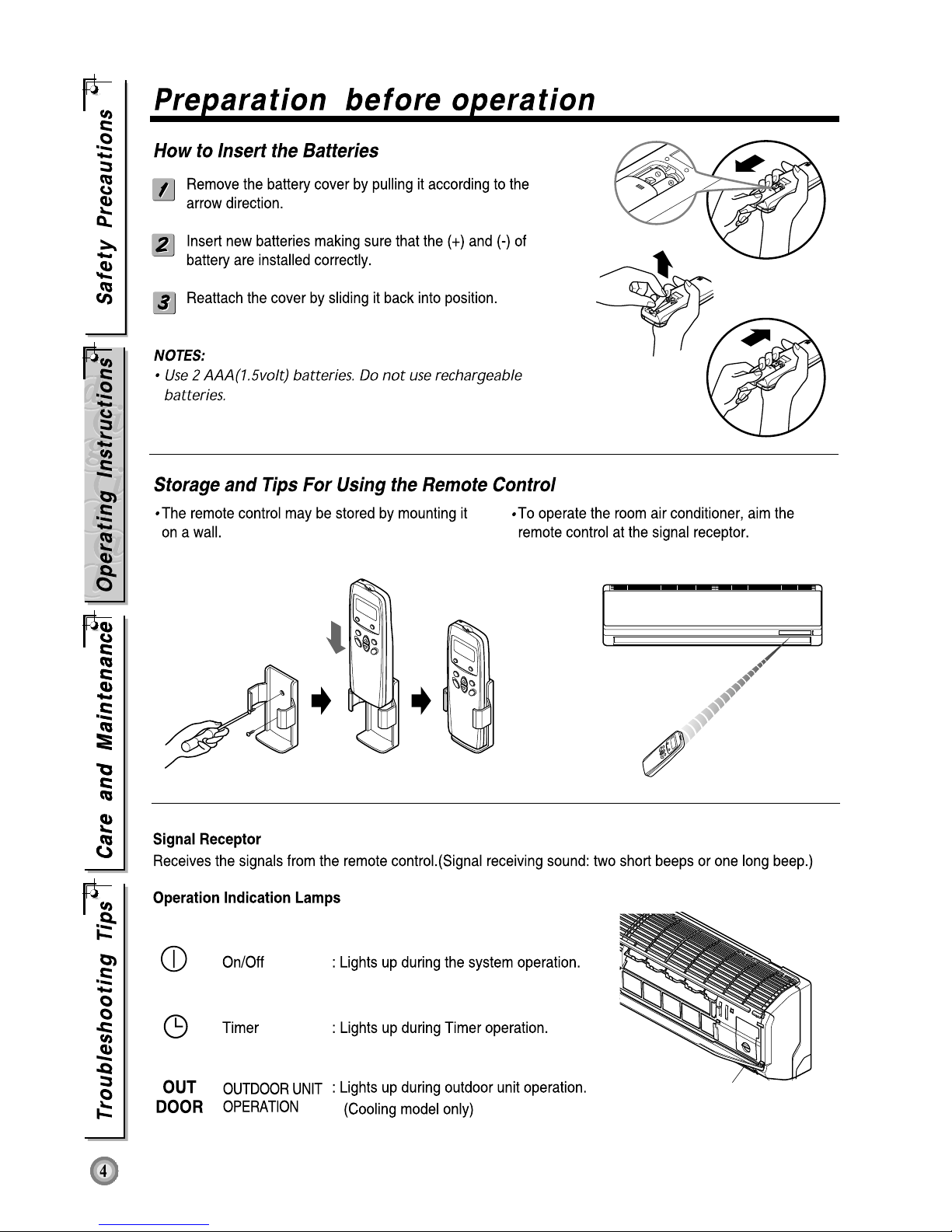

Ope ration indicating

lamps

TEMP.

TIME

OFF

hr.

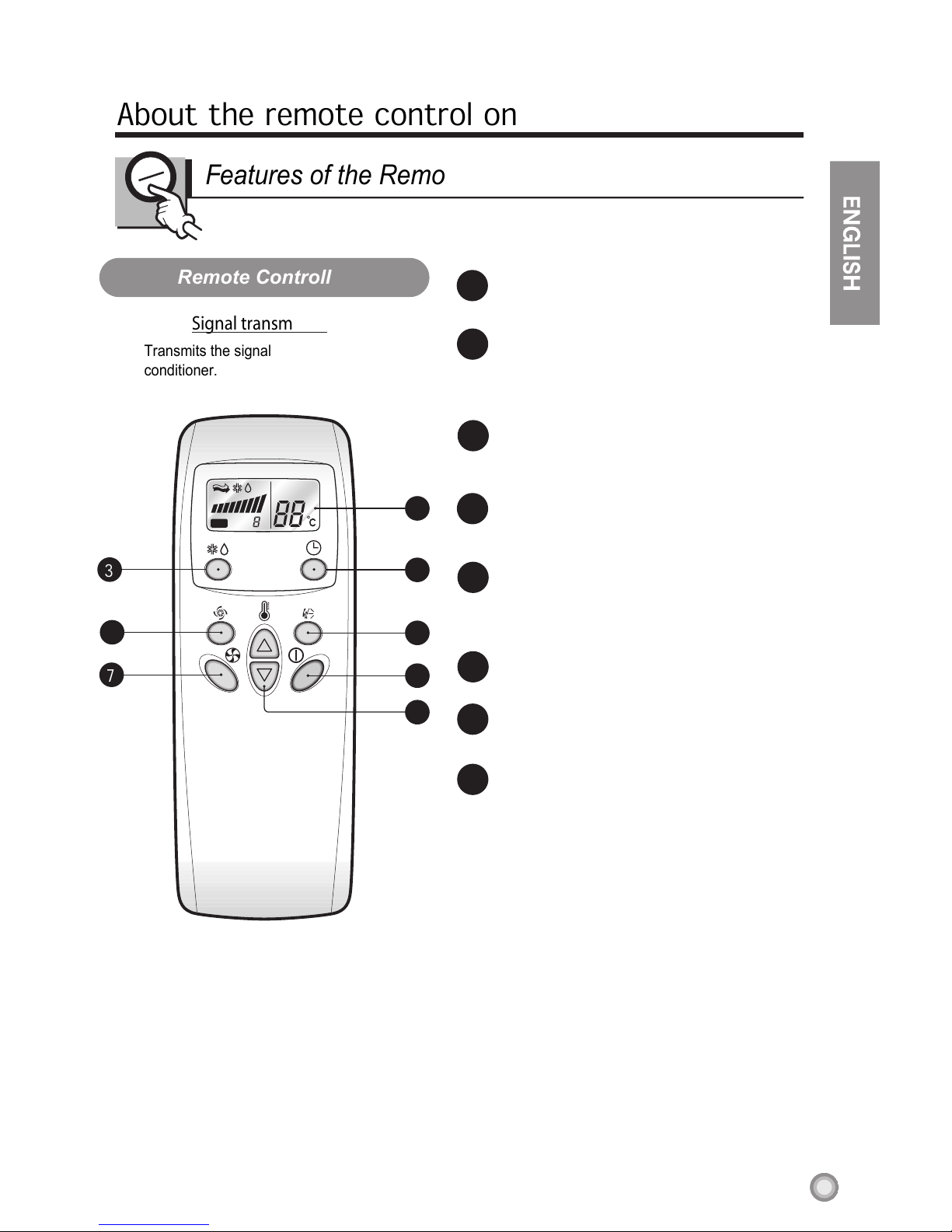

About the remote control on the system

Features of the Remote Control

OPERATION DISPLAY

Displays the operation conditions.

AIRFLOW DIRECTION START/STOP

BUTTON

Used to stop or start louver movement and

set the desired up/down airflow direction.

OPERATION MODE SELECTION

BUTTON

Used to select the operation mode.

OFF TIMER BUTTON

Used to set the time of stopping operation.

START/STOP BUTTON

Operation starts when this button is

pressed, and stops when the button is

pressed again.

ROOM TEMPERATURE SETTING

BUTTONS

INDOOR FAN SPEED SELECTION

BUTTON

Signal transmitter

Transmits the signals to the room air

conditioner.

Remote Controller

JET COOL OPERATION BUTTON

Used to start or stop the speed

(

speed cooling

operates super high fan speed in cooling mode.)

TIME

OFF

hr.

TEMP.

�

ituac

P yt

Ssnoitcurtsn

itarepO

tnia

dna e

raCs

T g

oohse

lbu

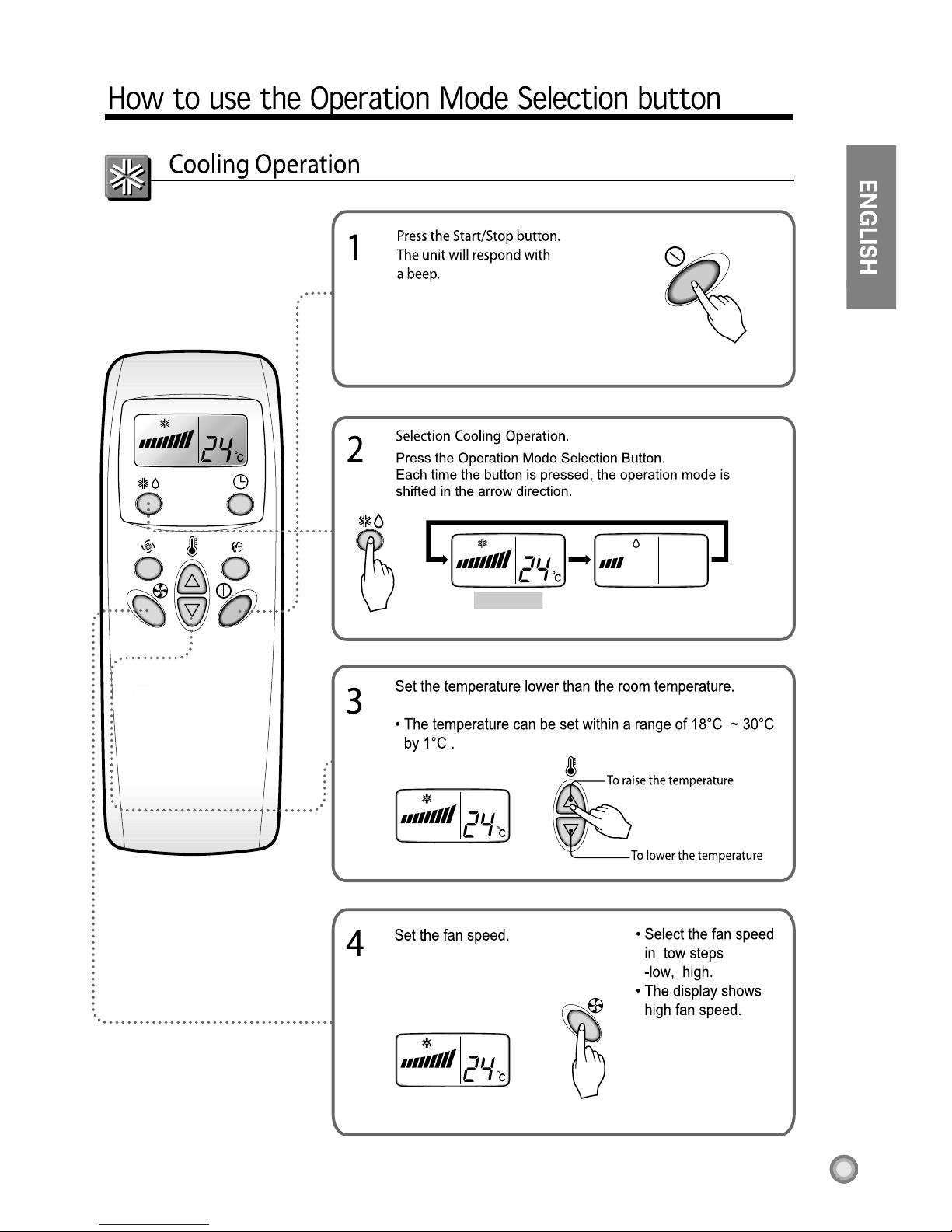

Cooling Mode

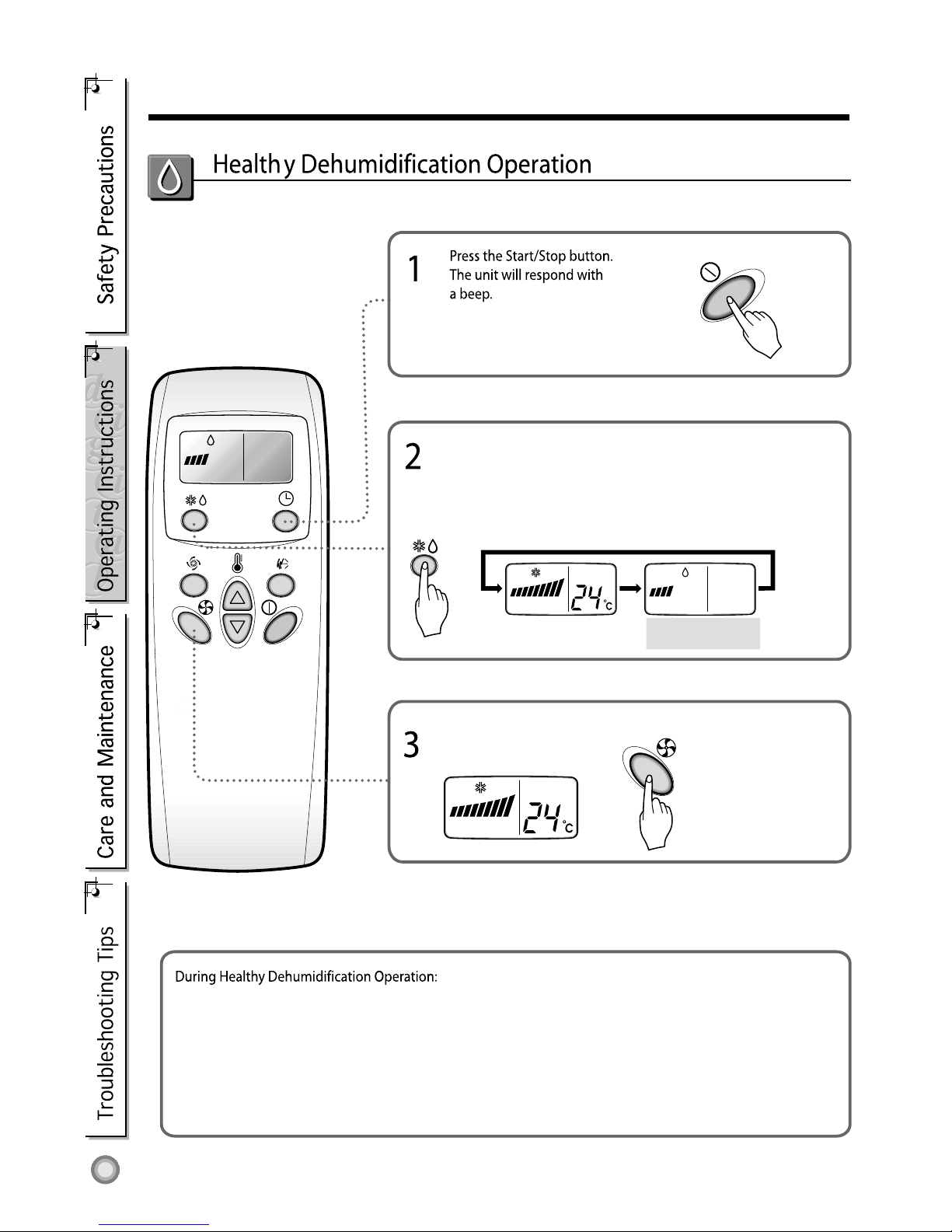

Healthy Dehumidification Operation

(Cooling Model)

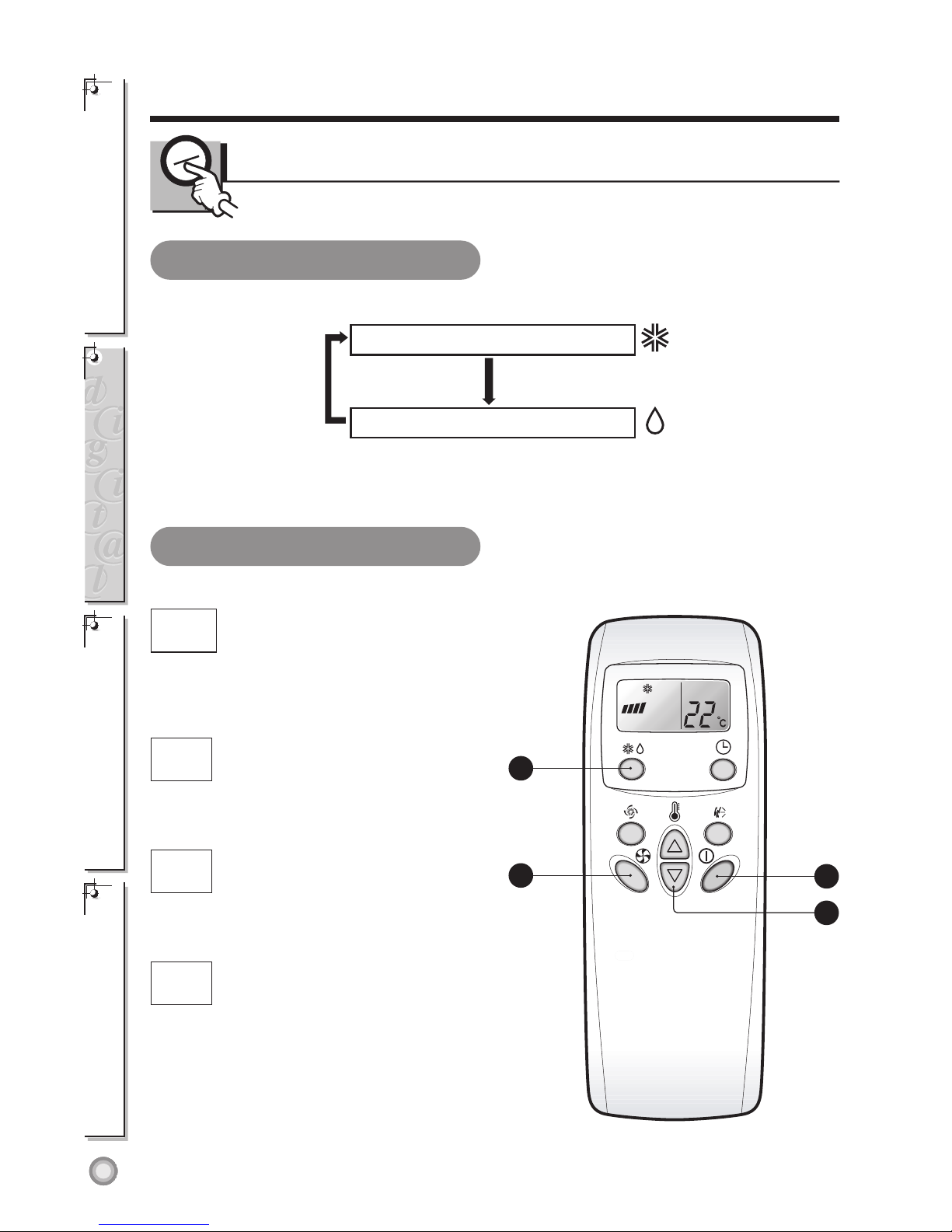

Features of the Remote Control

(1) OPERATION MODE

(2) OPERATION PROCEDURE

Operation Mode Selection button

1st

2nd

3rd

4th

Start/Stop Button

Operation Mode Selection

Button

Room Temperature

Setting Button

Indoor Fan Speed

Selection Button

TIME

OFF

hr.

TEMP.

�

TIME

OFF

hr.

TIME

OFF

hr.

TEMP.

Cooling Healthy

Dehumidification

TIME

OFF

hr.

TEMP.

TIME

OFF

hr.

TEMP.

Set the fan speed.

TIME

OFF

hr.

�

TIME

OFF

hr.

TIME

OFF

hr.

TEMP.

Cooling Healthy

Dehumidification

Select Healthy Dehumidification Operation.

Press the operation Mode Selection Button.

Each time the button is pressed, the operation mode is

shifted in the arrow direction.

• The indoor fan speed is automatically set to the low, so the shift of the indoor fan speed is

impossible because of already being set to the best speed for Dry Operatrion by Micom

Control.

• The indoor fan may be stopped not so as to be the room overcooling.

TIME

OFF

hr.

TEMP.

Set the fan speed. • Select the fan speed

in two steps

-low, high.

• The display shows

high fan speed.

TIME

OFF

hr.

TEMP.

�

TIME

OFF

hr.

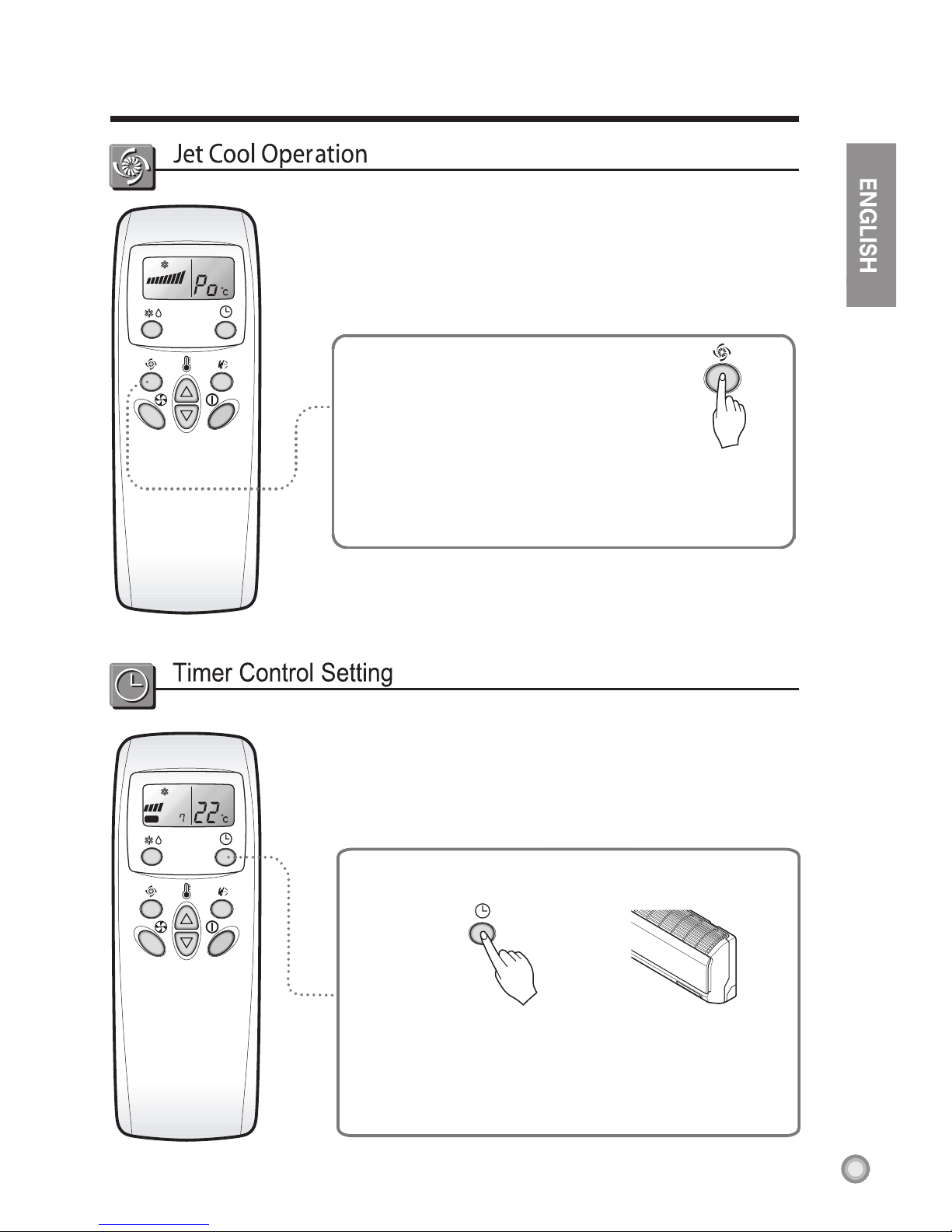

Press the Jet Cool button to operate

the speed cooling mode and the unit

will operate at super high fan speed

on cooling mode for 30 minutes.

To cancel the

fan speed button or the room temperature setting button

again and the unit will operate at high fan speed on cooling

mode.

Jet Cool mode, press the Jet Cool button, the

TIME

OFF

hr.

TEMP.

�

Press the OFF Time Button.

1. Press the OFF Time Button.

2. Check the OFF Time LED of the room air conditioner.

3. The Timer is programmed by 1 hour each

pressing the OFF Time button from 1 hour to 7 hours.

OFF TIMER CONTROL SETTING

eeB

,pee

Press the Start/Stop Button.

(Confirm the unit on operation.)

Press the Airflow Direction Control

Button and the vertical louvers swing up

and down automatically.

Press again the Airflow Direction

Control Button to set the vertical louver

at the desired airflow direction.

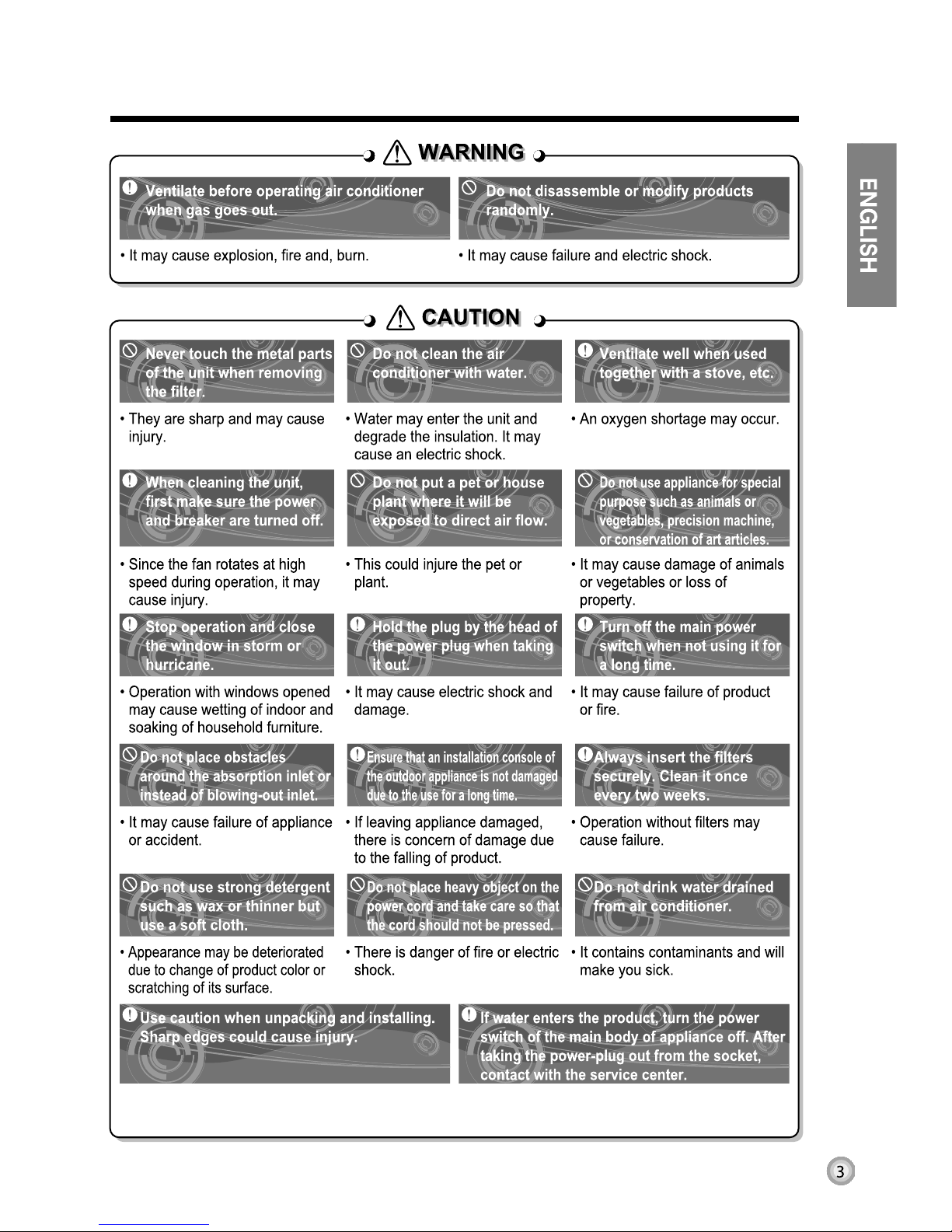

Caution

• Always use the remote controller to adjust

the airflow direction. Manually moving the

vertical airflow direction louver by hand could

cause operation errors.

• When air conditioner operation is stopped,

the vertical airflow direction louver will close

the air outlet vent of room air conditioner.

Horizontal Airflow Direction Control

• Adjust the horizontal airflow direction by manually

moving the horizontal airflow direction louver by

hand.

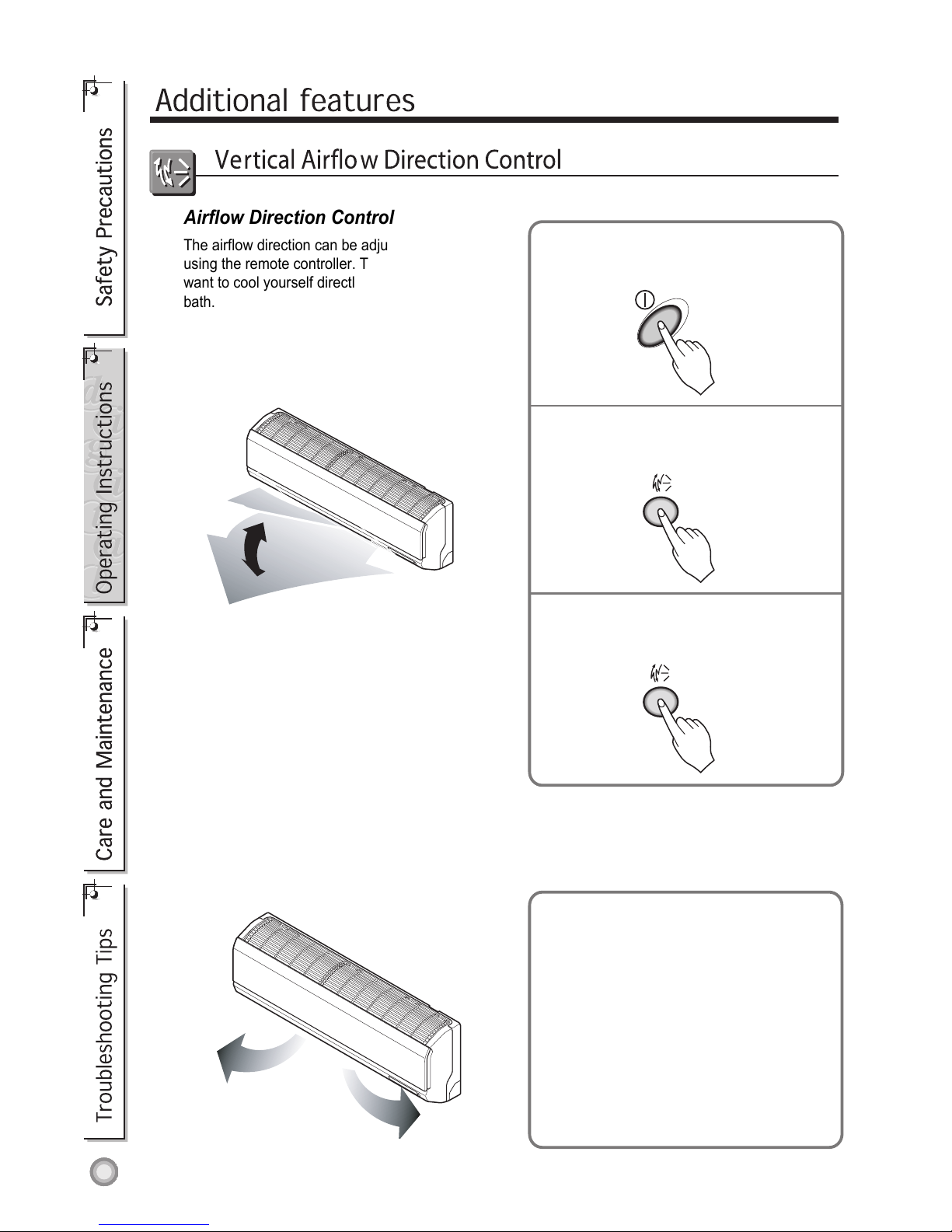

Airflow Direction Control

The airflow direction can be adjusted as desired by

using the remote controller. This is effective when you

want to cool yourself directly, such as after taking a

bath.
