LG LDS 5811WW Bedienungsanleitung
DISHWASHER
SERVICE MANUAL
BEFORE SERVICING THE UNIT, PLEASE READ THIS MANUAL CAREFULLY
FOR SAFETY AND CORRECT SERVICES.
NOTE
MODEL : LDF 7810WW / LDF 7810BB / LDF 7810ST
MODEL : LDF 7811WW / LDF 7811BB / LDF 7811ST
LDS 5811WW / LDS 5811BB / LDS 5811ST
3828ED3001X 2005.3.10 5:18 PM 페이지2 001 HP LaserJet 5000 Series
- 3 -
1. CAUTION......................................................................................................................... 4
2. SPECIFICATIONS ........................................................................................................... 5
3. WIRING DIAGRAM........................................................................................................ 6
4. FEATURES & TECHNICAL EXPLANATION ................................................................... 7
5. PARTS NAME................................................................................................................ 13
6. PROGRAM CHART ..................................................................................................... 15
7. HOW TO DISASSEMBLE ............................................................................................ 16
8. TROUBLE SHOOTING METHODS.............................................................................. 25
A. TROUBLE SHOOTING ACCORDING TO DISPLAYED ERROR MESSAGE.......... 25
B. TROUBLE DIAGNOSES AND REPAIR BY SYMPTOM........................................... 27
9. INSTALLATION INSTRUCTION ................................................................................... 31
10. EXPLODED VIEW .......................................................................................................37
11. REPLACEMENT PART LIST ........................................................................................45
CONTENTS
3828ED3001X 2005.3.10 5:18 PM 페이지3 001 HP LaserJet 5000 Series
- 4 -
DISCONNECT POWER CORD BEFORE SERVICING
RECONNECT ALL GROUNDING DEVICES
IMPORTANT SAFETY NOTICE !
This service information is intended for individuals
possessing adequate backgrounds of electrical,
electronic and mechanical experience.
Any attempt to repair this appliance may result in
personal injury and property damage.
The manufacturer or seller can not be responsible
for the interpretation of this information, nor can it
assume any liability in connection with its use.
CAUTION !
3828ED3001X 2005.3.10 5:18 PM 페이지4 001 HP LaserJet 5000 Series
- 5 -
2. SPECIFICATION
Rated Voltage / Frequency AC 120V/60Hz
Installation Built-In
Place Settings 16
Product Dimension(in) 23 7/8
〃x 25〃x 33 7/8〃
Product Weight(lbs) 7811/7810 series : 115lbs, 5811 series : 110lbs
Door Color White, Black, Stainless
Tub Material Stainless Steel
Control Electronic
Rated Power(Watt) 1,350
Heater Power(Watt) 1,200
Programs 6
Upper Rack Position Adjustable
Lower Rack 50% Fold down
Water Consumption 21-30 (Normal)
Power Consumption(kWh/year) 370
Operating Time (min) 101-135 (Normal)
Fan Dry System Yes
Delay Start Function Yes
Auto-Off Power Switch Yes
Process Monitor Yes
Wash Level 5
Racks Nylon Coating
Operating Water Pressure (Bar) 20-120 (140-830kPa)
ITEM SPECIFICATION
3828ED3001X 2005.3.10 5:18 PM 페이지5 001 HP LaserJet 5000 Series
- 6 -

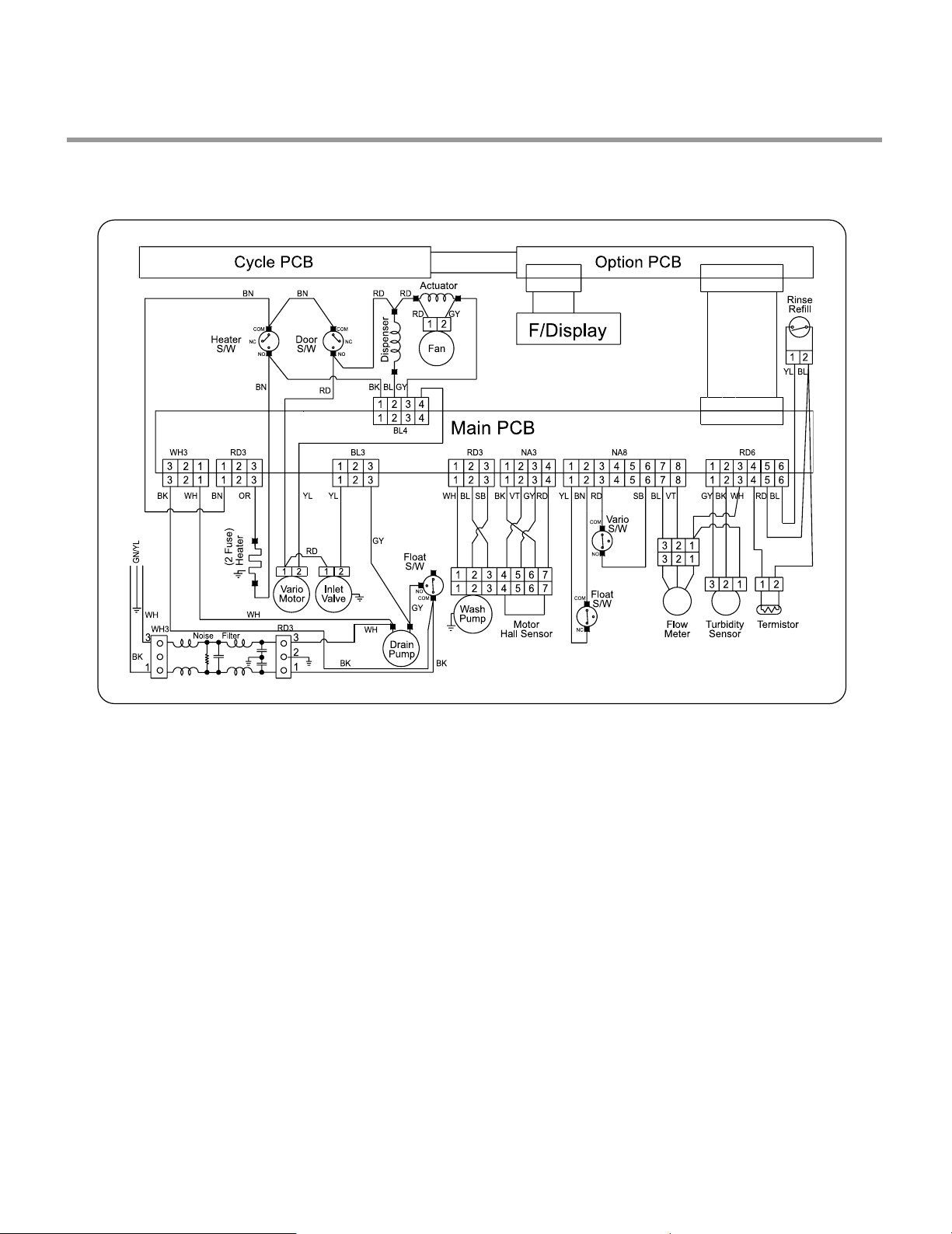

3. WIRING DIAGRAM
3828ED3001X 2005.3.10 5:18 PM 페이지6 001 HP LaserJet 5000 Series
- 7 -

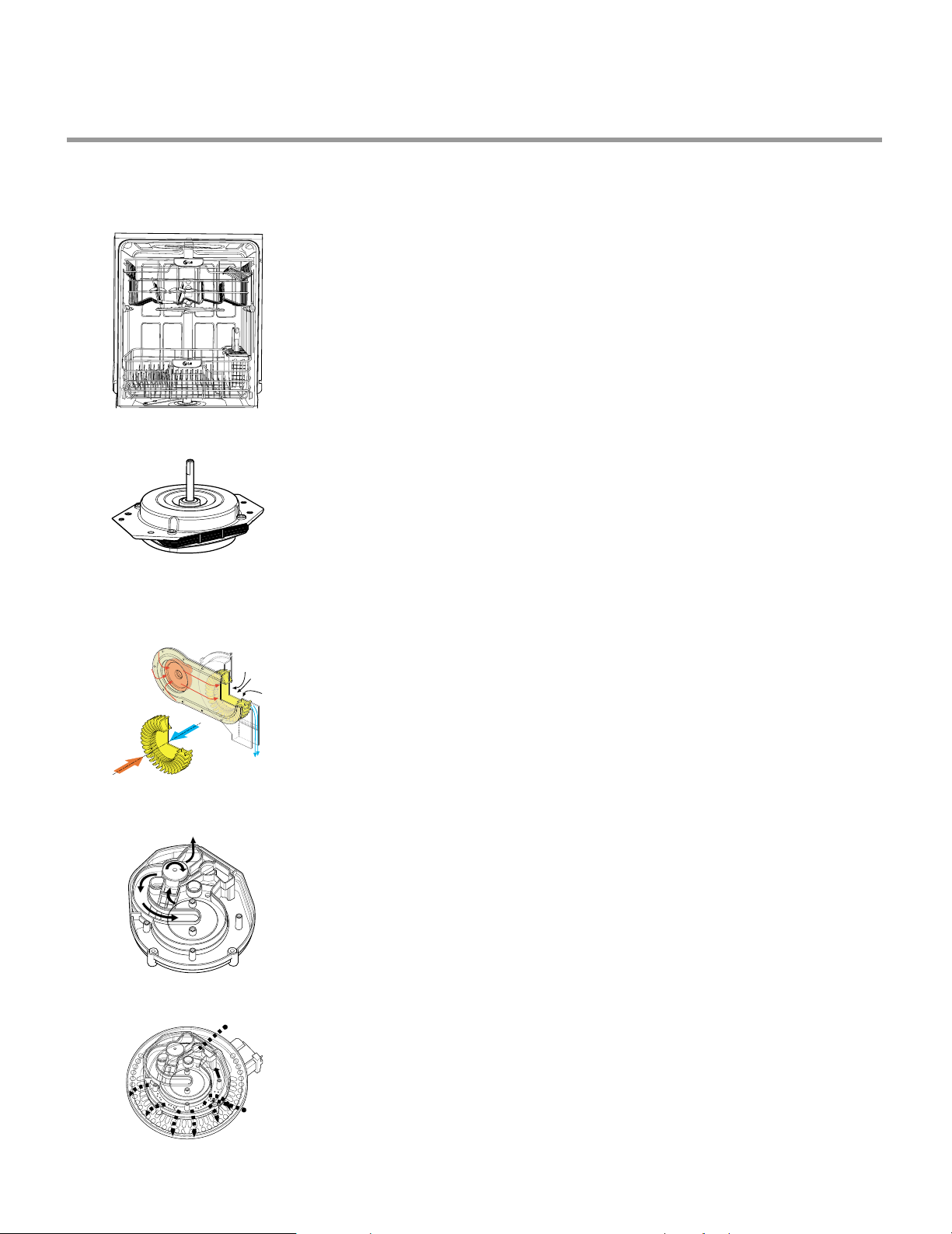

4. FEATURES & TECHNICAL EXPLANATION
4-1. Product Features
If you raise the Upper Rack, you can load large dishes in the Lower Rack.
(Max. 14 in.)
The tall tub provides large dishes loading as well as large capacity.
LG dishwashers let you load oversized items in the Lower and Upper Rack.
Newly introduced Slim Direct Inverter motor is inverter-controlled. Speed is
controlled based on program selection. It also offers high energy efficiency to
minimize energy loss.
This is one of the best performance solutions for drying dishes because it
minimizes venting humid air to the outside of the dishwasher. In addition, this
system ensures better drying results compared to the condensing drying
system.
Because of alternating water spray between the Upper and Lower
Rack, the water pressure allows superior performance and reduced
consumption of water and electricity.
For best wash results, the self-cleaning filter system continuously cleans the
water as it circulates. Your LG dishwasher has a self-cleaning filter that grinds
food into small particles before it goes down the drain.
■■Ultra Big Capacity
■■Slim Direct Inverter Motor
■■Hybrid Drying System
■■Vario Spray System
■■Self Cleaning Filter
Moist
Air
Dry
Air
Mixed
Air
to
Upper
Arm
to
Lower
Arm
Soil Sensor
Fine Mesh
to Drain
3828ED3001X 2005.3.10 5:18 PM 페이지7 001 HP LaserJet 5000 Series
- 8 -

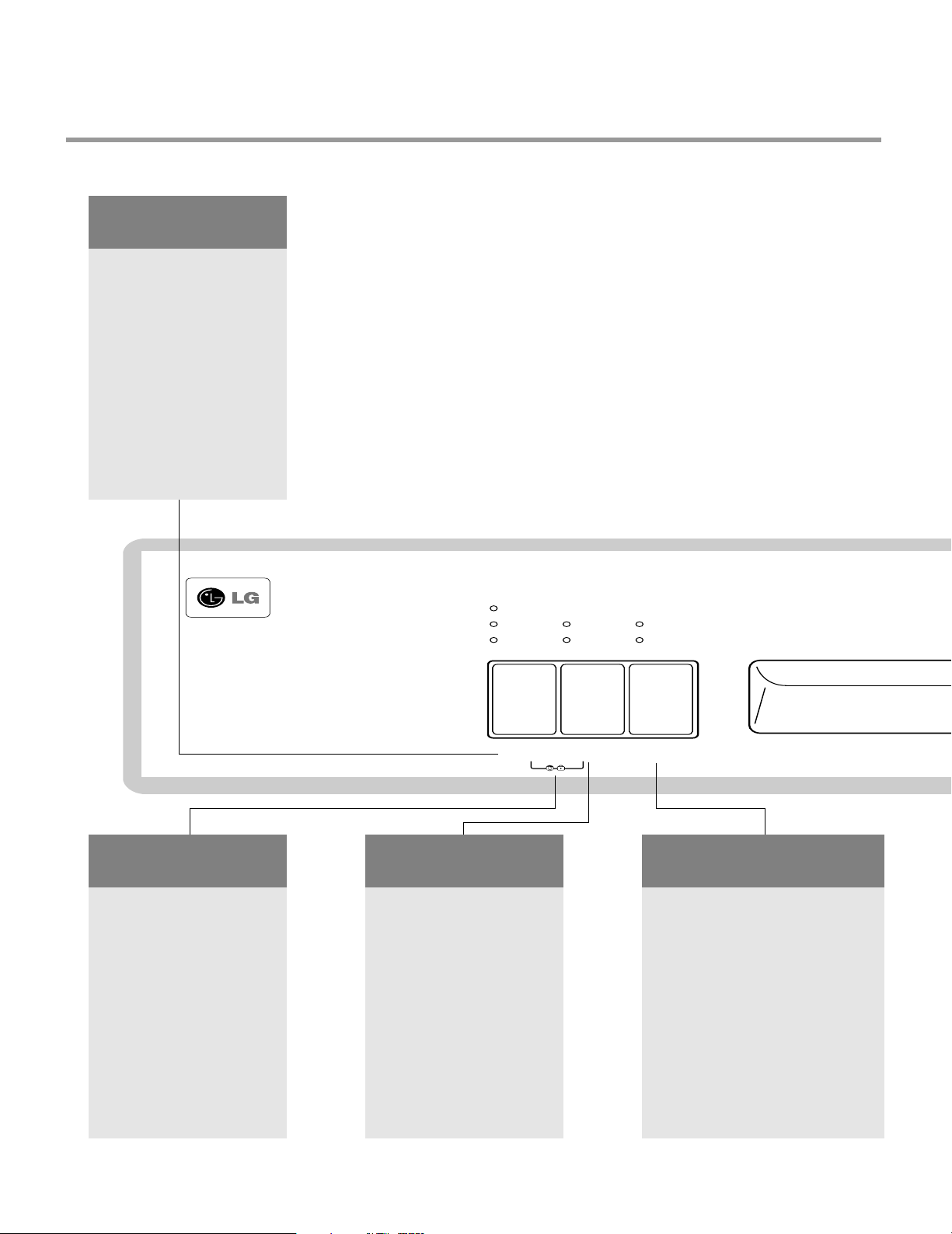

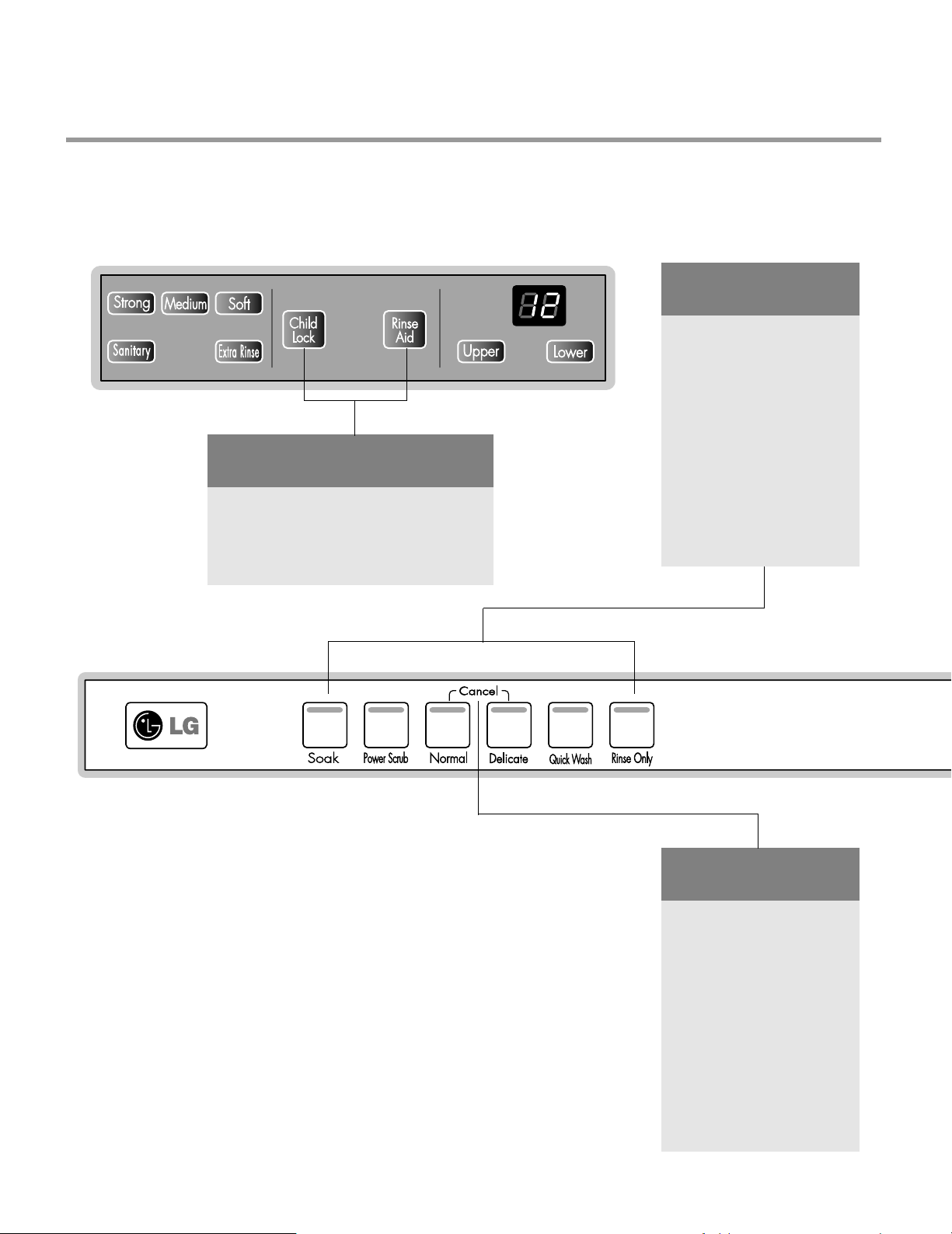

4-2. Display Panel
4-2-1. LDF 7811/7810 Series
PROGRAM
• Press the program that
corresponds to your
desired wash cycle.
CANCEL
• To cancel a running
program, open the door,
then press and hold the
Normal and Delicate
buttons for 3 seconds.
INDICATOR
• Child lock: Lamp will turn on
when Child Lock setting is on.
• Rinse Aid: Refill with Rinse aid
when Lamp turns on.
This program is for very heavily soiled loads including pots,
pans and casserole dishes which may have dry food residue.
This program is for very heavily soiled loads
This program is for normally soiled everyday loads.
This program is for washing delicate items like glasses.
This program is for that quick wash of lightly soiled recently
used dishes and cutlery.
This program is for very lightly soiled loads.
Soak
Normal
Quick Wash
Rinse Only
Delicate
Power Scrub
Control panel may vary on some models.
3828ED3001X 2005.3.10 5:18 PM 페이지8 001 HP LaserJet 5000 Series
- 9 -
SPRAY
(INTENSITY)
• Repeated pressing of the
Spray button will select
Strong, Medium or
Soft.
DELAY START
• If you want to delay the start of
a selected program, press the
Delay Start button.
• Each press of Delay Start will
delay the start of the cycle by
one hour.
• The delay start time can be
adjusted from 1 to 24 hours in
one-hour increment.
HALF LOAD
• In case of a small load, use the
upper or lower rack only to save
energy.
• Each press of the Half Load
button cycles between upper
rack only and lower rack only.
• If you don't press Half Load,
the dishwasher runs normally,
i.e, operation of upper and
lower spray arm alternating
periodically.
POWER
• For operating, press this
button first for power on.
• After operating, the power
automatically switches off
for safety and economy.
• In case of an unusual Power
surge or disturbance, the
power may be automatically
turned off for safety.
CHILD LOCK
• Lock the control buttons
to prevent the settings
from being changed.
• To lock/unlock, press
Spray and Rinse
buttons simultaneously
for 3 seconds with door
open.
SANITARY/
EXTRA RINSE
• Repeated pressing of the
Rinse button will select
Sanitary, Extra Rinse
or both.
• If you select the Sanitary
function, the temperature
of Heating Rinse can
reach 161。F (72℃).
• When you select Extra
Rinse, an additional
rinse cycle is added.
3828ED3001X 2005.3.10 5:18 PM 페이지9 001 HP LaserJet 5000 Series
- 10 -
Strong
Medium
Soft
Spray Rinse
Half Load
Soak
Sanitary
Extra
Rinse
Upper
Lower
SPRAY
(INTENSITY)
• Repeated pressing of the
Spray button will select
Strong, Medium or
Soft.
CHILD LOCK
• Lock the control buttons
to prevent the settings
from being changed.
• To lock/unlock, press
Spray and Rinse buttons
simultaneously for 3
seconds.
SANITARY/
EXTRA RINSE
• Repeated pressing of the
Rinse button will select
Sanitary, Extra Rinse
or both.
• If you select the Sanitary
function, the temperature
of Heating Rinse can
reach 161。F (72℃).
• When you select Extra
Rinse, an additional
rinse cycle is added.
HALF LOAD
• In case of a small load, use the
upper or lower rack only to save
energy.
• Each press of the Half Load
button cycles between upper
rack only and lower rack only.
• If you don't press Half Load,
the dishwasher runs normally,
i.e, operation of upper and
lower spray arm alternating
periodically.

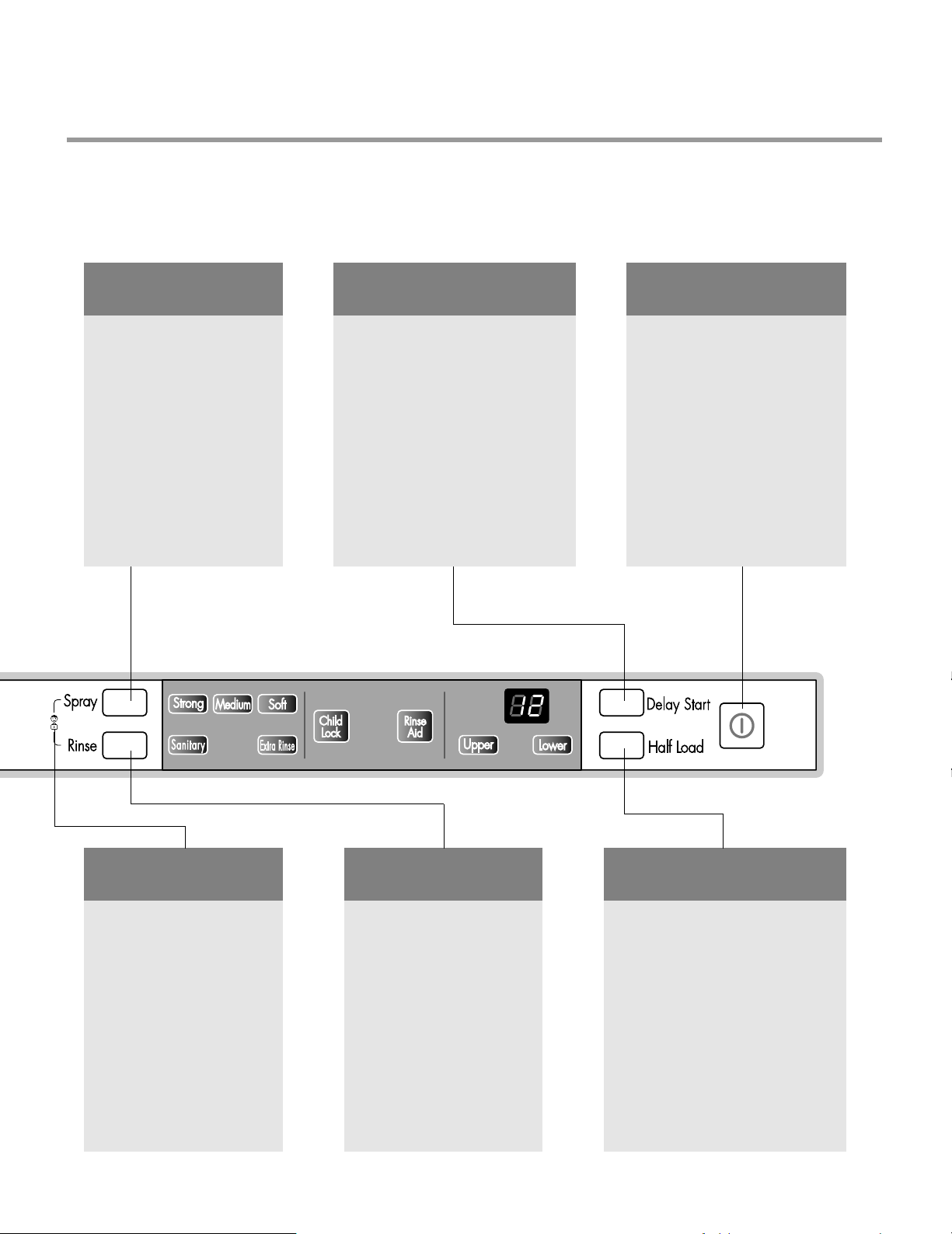

4-2-2. LDF 5811 Series
3828ED3001X 2005.3.10 5:19 PM 페이지10 001 HP LaserJet 5000 Series
- 11 -

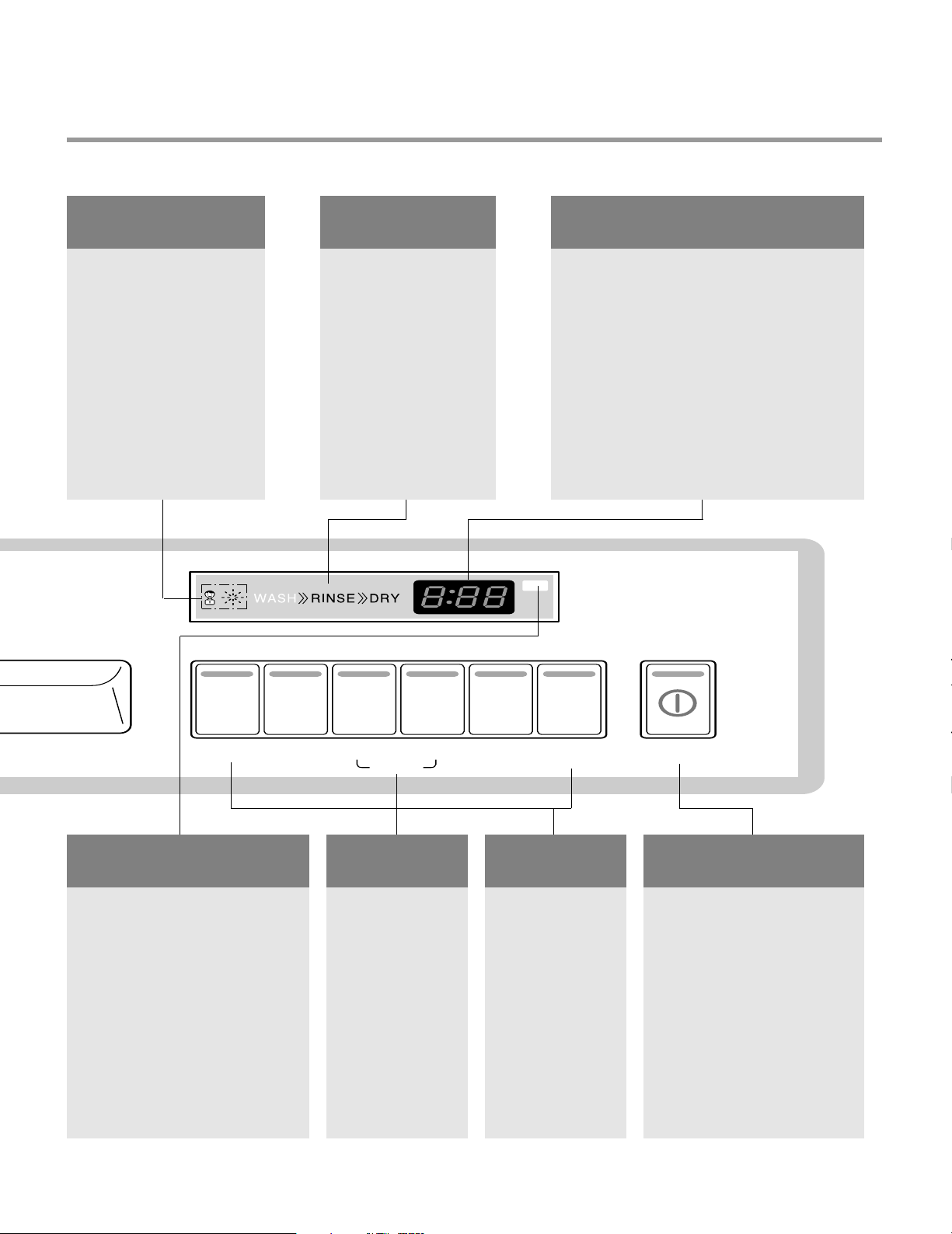

Soak
Power
Scrub
Quick
Wash
Rinse
Only
Normal
Cancel
Delicate Power
Delay Start
INDICATOR
• Child lock: Lamp will turn
on when Child Lock
setting is on.
• Rinse Aid: Refill with
Rinse aid when Lamp turns
on.
PROCESSING
INDICATOR
• Current program
phase is indicated.
TIME LEFT
• Before starting, the display window shows
the running time of the selected program.
• After starting, the display window shows
the remaining time.
• If the dishwasher has a trouble, the trouble
type is displayed.
PROGRAM
• Press the
program that
corresponds to
your desired
wash cycle.
CANCEL
• To cancel a
running program,
press and hold
the Normal and
Delicate buttons
for 3 seconds.
DELAY START
• If you want to delay the start of
a selected program, press the
Delay Start button.
• Each press of Delay Start will
delay the start of the cycle by
one hour.
• The delay start time can be
adjusted from 1 to 12 hours in
one-hour increment.
POWER
• For operating, press this
button first for power on.
• After operating, the power
automatically switches off
for safety and economy.
• In case of an unusual Power
surge or disturbance, the
power may be automatically
turned off for safety.
3828ED3001X 2005.3.10 5:19 PM 페이지11 001 HP LaserJet 5000 Series
