LG 22LN4300 Bedienungsanleitung

ENGLISH

22LN4300

24LN4300

www.lg.com

OWNER’S MANUAL

LED TV

Please read this manual carefully before operating the your TV and

retain it for future reference.

LG LED TV applies LCD screen with LED backlights.

ENGLISH

TABLE OF CONTENTS

3 LICENSES

4 INSTALLATION PROCEDURE

5 ASSEMBLING AND PREPARING

5 Unpacking

7 Parts and buttons

8 Lifting and moving the TV

9 Setting up the TV

9 - Attaching the Stand Base

9 - Detaching the Stand Base

11 - Mounting on a table

12 - Tidying cables

12 - Mounting on a wall

14 MAKING CONNECTIONS

14 Connecting an antenna

15 Connecting to a HD receiver, DVD, VCR

player or Gaming device

15 - HDMI connection

16 - Composite connection

17 Connecting to a USB

18 Connecting to a PC

18 - RGB connection

19 Audio System connection

19 - External Stereo Connection

20 REMOTE CONTROL

21 WATCHING TV

21 Turning the TV on for the first time

21 Watching TV

21 Managing programmes

21 - Automatically setting up programme

22 - Manually setting up programme

23 - Editing your programme list

23 - Selecting a programme on the programme

list

23 Using additional options

23 - Adjusting aspect ratio

24 - Using the input list

25 ENTERTAINMENT

25 Connecting USB storage devices

26 Browsing files

27 Viewing photos

28 Listening to music

29 Viewing movies

31 DivX® VOD Guide

32 CUSTOMIZING TV SETTING

32 Accessing main menus

32 Customizing Settings

32 - SETUP Settings

33 - PICTURE Settings

35 - AUDIO Settings

36 - TIME Settings

37 - OPTION Settings

37 - LOCK Settings

38 TELETEXT

38 Switch On/Off

38 Simple Text

38 - Page selection

38 - Programming a colour button in LIST

mode

38 Fastext

38 - Page selection

38 Special Teletext Function

39 MAINTENANCE

39 Cleaning Your TV

39 Screen and frame

39 Cabinet and stand

39 Power cord

40 TROUBLESHOOTING

40 General

41 SPECIFICATIONS

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo

are trademarks or registered trademarks of HDMI Licensing LLC in the United States

and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol

are trademarks of Dolby Laboratories.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX

video. Visit divx.com for more information and software tools to convert your files into

DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered

in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your

registration code, locate the DivX VOD section in your device setup menu. Go to vod.

divx.com for more information on how to complete your registration.

“DivX Certified® to play DivX® video, including premium content.”

“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or

its subsidiaries and are used under license.”

“Covered by one or more of the following U.S. patents :

7,295,673; 7,460,668; 7,515,710; 7,519,274”

ENGLISH

Installation procedure

INSTALLATION PROCEDURE

1Open the package and make sure all the accessories are included.

2Attach the stand to the TV.

3Connect an external device to the TV.

yImage shown may differ from your TV.

yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

yThe available menus and options may differ from the input source or product model that you are using.

yNew features may be added to this TV in the future.

NOTE

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you

purchased your product. The illustrations in this manual may differ from the actual product and accessories.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade of

product functions.

NOTE

yDo not use any pirated items to ensure the safety and product life span.

yAny damages or injuries by using pirated items are not covered by the warranty.

CAUTION

yThe items supplied with your product may vary depending on the model.

yProduct specifications or contents of this manual may be changed without prior notice due to upgrade of product

functions.

yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm

width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your

TV’s USB port.

NOTE

*A 10 mm

*B 18 mm

ENGLISH

ASSEMBLING AND PREPARING

22LN4300 24LN4300

(See p.20)

Remote control.

Batteries (AAA).

CD (Owner's Manual).

Cards.

AC-DC Adapter.

Cable Tie.

Power Cord. AC-DC Adapter.

(Depending on the country) (Depending on the country)

Stand Base.

(See p.9)

(See p.12)

(See p.11) (See p.11) (See p.11)

ENGLISH

ASSEMBLING AND PREPARING

DC-IN

HDMI IN

RGB IN (PC)

USB IN

5 V 0.5 A

(19 V )

VIDEO AUDIO

L/MONO

AV IN

AUDIO OUT

INPUT

SETTINGS

All of the buttons are touch sensitive and can be operated through simple touch with your finger.

NOTE

Touch button Description

Scrolls through the saved programmes.

Adjusts the volume level.

OK Selects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menus, or saves your input and exits the menus.

INPUT Changes the input source.

/ I Turns the power on or off.

Connection panel (See p.14)

Touch Buttons

Parts and buttons

Remote Control

Sensor

Standby Light

yLighting On: Turned off

yLighting Off: Turned on

ENGLISH

ASSEMBLING AND PREPARING

yWhen holding the TV, the screen should face

away from you to prevent the screen from

scratches.

yWhen transporting the TV, do not expose the TV

to jolts or excessive vibration.

yWhen transporting the TV, keep the TV upright,

never turn the TV on its side, or tilt towards the

left or right.

Lifting and moving the TV

When moving or lifting the TV, read the following to

prevent the TV from being scratched or damaged and for

save transportation regardless of its type and size.

Avoid touching the screen at all times, as this may

result in damage to the screen or some of the

pixels used to create images.

CAUTION

yIt is recommended to move the TV in the box or

packing material that the TV originally came in.

yBefore moving or lifting the TV, disconnect the

power cord and all cables.

yHold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part,

speaker, or speaker grill area.

ENGLISH

ASSEMBLING AND PREPARING

Setting up the TV

Image shown may differ from your TV.

Stand Base

Attaching the Stand Base Detaching the Stand Base

yWhen Detaching the stand from TV, Detach the

stand with lifting up the lever in the direction of the

arrow.

NOTE

Stand Base

CAUTION

yLay a foam mat or soft protective cloth on the

surface to protect the screen from damage.

yWhen attaching the stand to the TV set, place the

screen facing down on a cushioned table or flat

surface to protect the screen from scratches.

CAUTION

yLay a foam mat or soft protective cloth on the

surface to protect the screen from damage.

yWhen Detaching the stand to the TV set, place the

screen facing down on a cushioned table or flat

surface to protect the screen from scratches.

ENGLISH

ASSEMBLING AND PREPARING

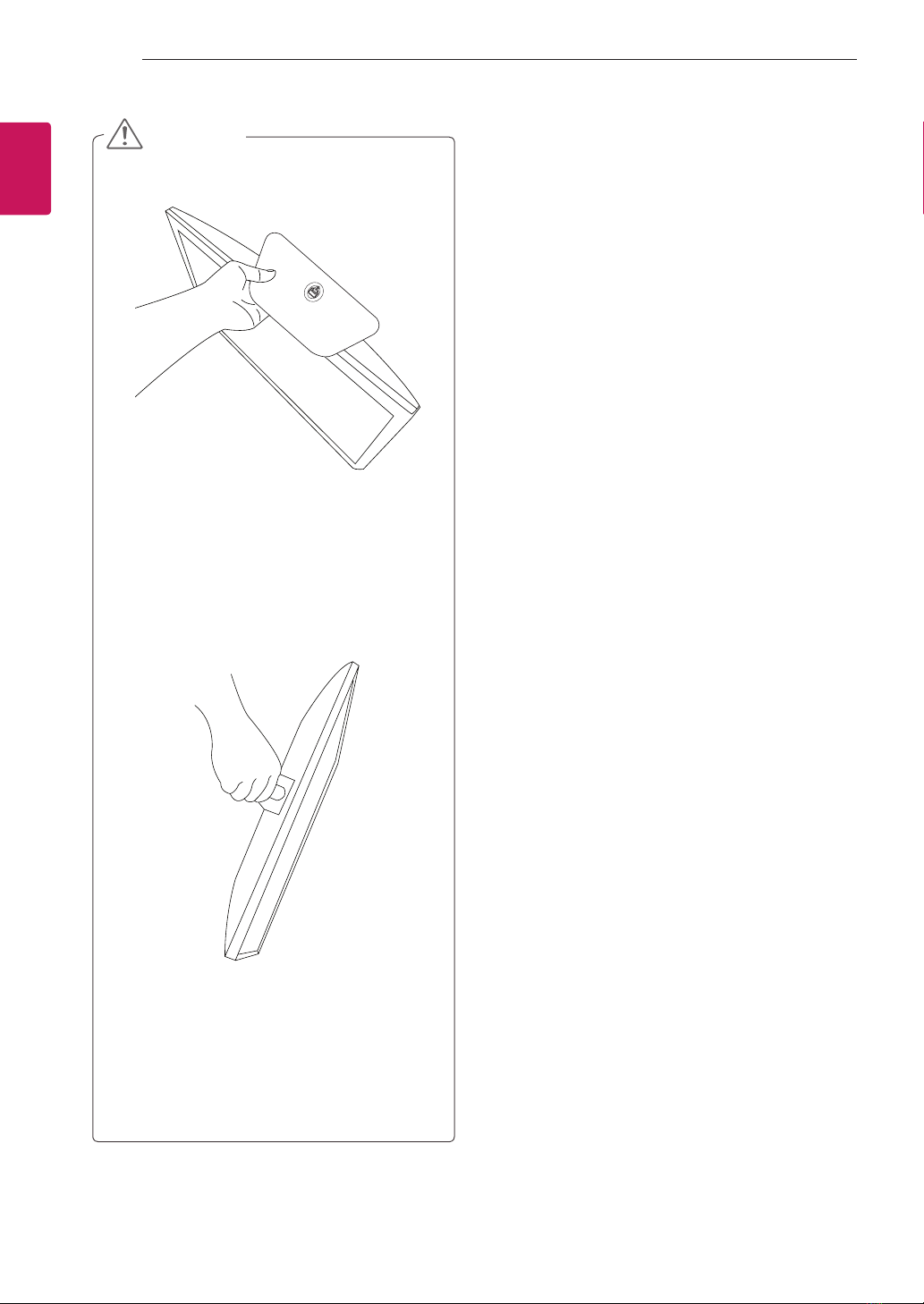

CAUTION

yDo not carry the monitor upside-down by holding

the stand body as this may cause it to fall off,

resulting in damage or injury.

yThe illustration shows a general example of

installation and may look different from the actual

product.

yDo not carry the monitor upside-down as this may

cause it to fall off its stand, resulting in damage or

injury.

yThe illustration shows a general example of

installation and may look different from the actual

product.
