OWNER’S MANUAL

LED LCD TV

22LS5400

27LS5400

22LS540T

27LS540T

Please read this manual carefully before operating the your TV

and retain it for future reference.

LED LCD TV MODEL

P/NO. MFL67605605 (1207-REV00)

Printed in Korea

A-2 TABLE OF CONTENTS

LANGUAGE

COMMON

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand

A-5 Tidying cables

A-6 Detaching the Stand

LANGUAGE LIST

English

Turkish

B-1 MAKING CONNECTIONS

B-1 Connecting an antenna

B-1 Adapter connection

B-2 Connecting to a HD receiver, DVD, VCR player or Gaming device

B-2 - HDMI connection

B-3 - HDMI to DVI connection

B-3 - Component connection

B-4 - Composite connection

B-4 - Euro Scart connection

B-5 Connecting to an audio system

B-5 - Headphone connection

B-6 Connecting to a USB

B-6 Connecting to a CI Module

B-7 Connecting to a wired network

B-8 Connecting to a PC

B-9 - HDMI connection

B-10 - HDMI to DVI connection

B-10 - RGB connection

B-11 SPECIFICATIONS

A-3

SETTING UP THE TV

3 Attach the Stand Base from the Stand Body by

turning the screw to the right with a Coin.

Setting up the TV

Attaching the Stand

If you are not mounting the TV to a wall, use the

following instructions to attach the stand.

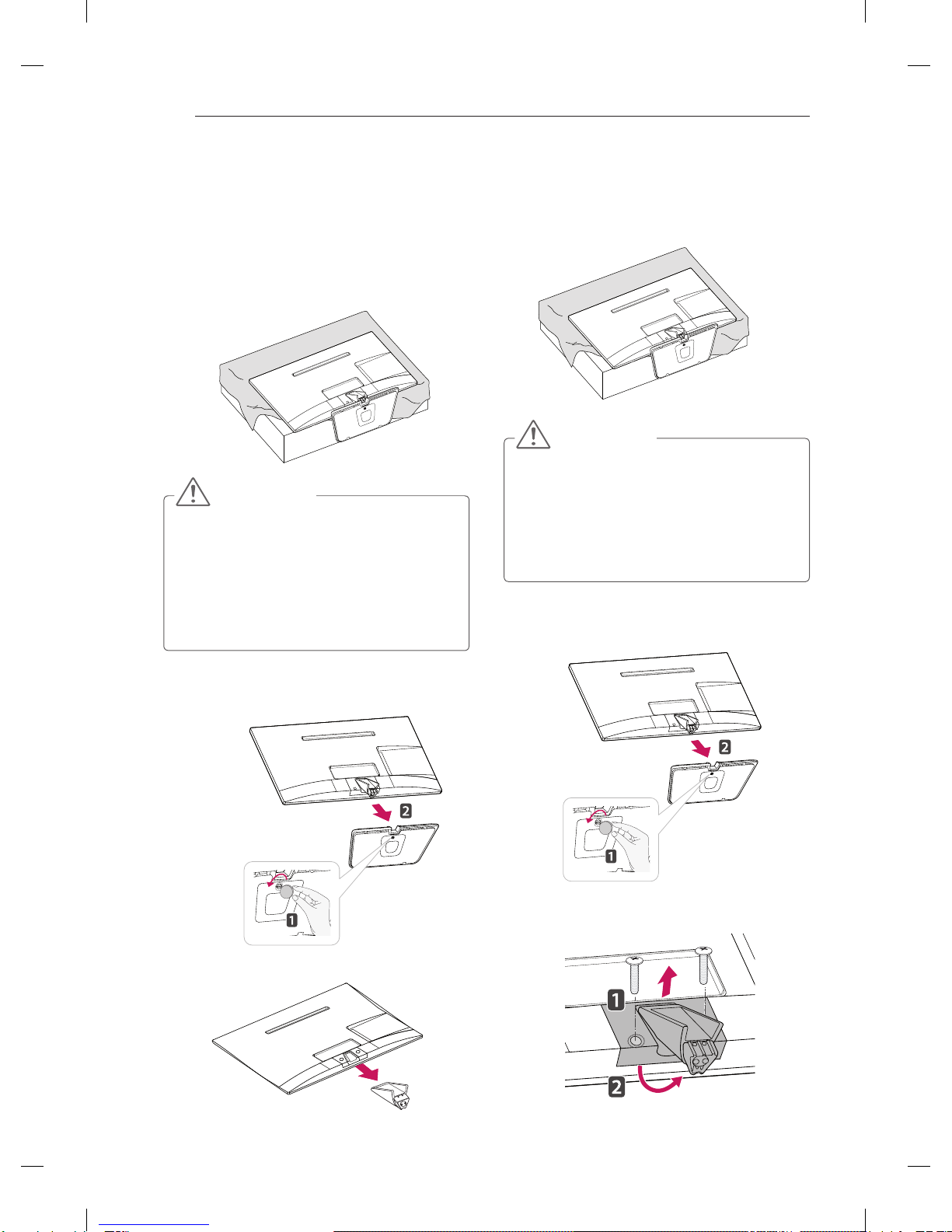

1 Place the TV with the screen side down on a

flat and cushioned surface.

2 Attach the Stand Body from the TV.

22LS5400 22LS540T

CAUTION

Lay a foam mat or soft protective cloth

on the surface to protect the screen from

damage.

When attaching the stand to the TV, place

the screen facing down on a cushioned

table or flat surface to protect the screen

from scratches.

CAUTION

Tighten the screws firmly to prevent the TV

from tilting forward. Do not over tighten.

A-4 SETTING UP THE TV

4 Attach the Stand Base from the Stand Body

by turning the screw to the right with a Coin.

If you are not mounting the TV to a wall, use the

following instructions to attach the stand.

1 Place the TV with the screen side down on a

flat and cushioned surface.

2 Attach the Stand Body from the TV.

Insert the two Lockers of the Stand Body

right into the groove of the TV head and secure

them by pressing the left and right bottom

sides.

3 Secure the TV and the Stand Body with the

2 screws.

Locker

27LS5400 27LS540T

WARNING

If you don`t fasten the screw tightly, TV will

fall down and get damaged.

CAUTION

Tighten the screws firmly to prevent the TV

from tilting forward. Do not over tighten.

A-5

SETTING UP THE TV

Using the Kensington security system

The Kensington security system connector is

located at the back of the TV. For more information

of installation and using, refer to the manual

supplied with the Kensington security system or

visit

http://www.kensington.com

Connect the Kensington security system cable

between the TV and a table.

CAUTION

Do not carry the TV upside-down as this

may cause it to fall off its stand, resulting in

damage or injury.

The illustration shows a general example of

installation and may look different from the

actual product.

 Do not carry the TV upside-down by holding

the stand body as this may cause it to fall off,

resulting in damage or injury.

 The illustration shows a general example of

installation and may look different from the

actual product.

Tidying cables

Gather and bind the cables with the supplied

cable tie.

NOTE

The Kensington security system is optional.

You can obtain additional accessories from

most electronics stores.

A-6 SETTING UP THE TV

3 Pull out the Stand Body from the TV.

Detaching the Stand

1 Place the TV with the screen side down on a

flat and cushioned surface.

2 Turn the screw to the left, and then pull out the

Stand Base from the Stand Body.

22LS5400 22LS540T

3 Remove 2 screws and pull out the Stand Body

from the TV.

1 Place the TV with the screen side down on a

flat and cushioned surface.

2 Turn the screw to the left, and then pull out the

Stand Base from the Stand Body.

27LS5400 27LS540T

CAUTION

Lay a foam mat or soft protective cloth on the

surface to protect the screen from damage.

When detaching the stand to the TV, place

the screen facing down on a cushioned table

or flat surface to protect the screen from

scratches.

CAUTION

Lay a foam mat or soft protective cloth on the

surface to protect the screen from damage.

When detaching the stand to the TV, place

the screen facing down on a cushioned table

or flat surface to protect the screen from

scratches.

www.lg.com

OWNER’S MANUAL

LED LCD TV

Please read this manual carefully before operating the your TV

and retain it for future reference.

ENGLISH

2TABLE OF CONTENTS

WARNING

yIf you ignore the warning message, you

may be seriously injured or there is a

possibility of accident or death.

CAUTION

yIf you ignore the caution message, you may

be slightly injured or the product may be

damaged.

NOTE

yThe note helps you understand and use

the product safely. Please read the note

carefully before using the product.

2 TABLEOFCONTENTS

3 LICENSES

3 OPENSOURCESOFTWARENOTICE

4 SAFETYINSTRUCTIONS

10 INSTALLATIONPROCEDURE

10 ASSEMBLINGANDPREPARING

10 Unpacking

13 Parts and buttons

14 Lifting and moving the TV

15 - Mounting on a table

16 - Mounting on a wall

17 WATCHINGTV

17 Turning the TV on for the first time

19 REMOTECONTROL

21 CUSTOMIZINGSETTINGS

21 Accessing main menus

22 USINGTHEUSERGUIDE

22 Accessing User Guide menu.

22 - Using the TV menu

22 - Using the Remote Control

23 MAINTENANCE

23 Cleaning Your TV

23 Screen and frame

23 Cabinet and stand

23 Power cord

24 Preventing “Image burn” or “Burn-in” on

your TV screen

24 TROUBLESHOOTING

24 General

TABLEOFCONTENTS
