OWNER’S MANUAL

LED TV*

Please read this manual carefully before operating your TV and retain

it for future reference.

* LG LED TV applies LCD screen with LED backlights.

22MA33A 22MA33B

24MN33A 24MN33B

26MA33A 28MN30A

29MN33A

ENGLISH

TABLE OF CONTENTS

3 LICENSES

4 INSTALLATION PROCEDURE

5 ASSEMBLING AND PREPARING

5 Unpacking

7 Parts and buttons

10 Lifting and moving the TV

11 Setting up the TV

11 - Attaching the Stand Base

11 - Detaching the Stand Base

13 - Mounting on a table

14 - Using the Kensington security system

14 - Tidying cables

14 - Mounting on a wall

16 MAKING CONNECTIONS

16 Connecting an antenna

17 Connecting to a HD receiver, DVD, VCR

player or Gaming device

17 - HDMI connection

18 - Composite connection

19 Connecting to a USB

20 Connecting to a PC

20 - RGB connection

21 Audio System connection

21 - External Stereo Connection

22 REMOTE CONTROL

23 WATCHING TV

23 Turning the TV on for the first time

23 Watching TV

23 Managing programmes

23 - Automatically setting up programme

24 - Manually setting up programme

25 - Editing your programme list

25 - Selecting a programme on the programme

list

25 Using additional options

25 - Adjusting aspect ratio

26 - Using the input list

27 ENTERTAINMENT

27 Connecting USB storage devices

28 Browsing files

29 Viewing photos

30 Listening to music

31 Viewing movies

33 DivX® VOD Guide

34 CUSTOMIZING TV SETTING

34 Accessing main menus

34 Customizing Settings

34 - SETUP Settings

35 - PICTURE Settings

37 - AUDIO Settings

38 - TIME Settings

39 - OPTION Settings

39 - LOCK Settings

40 TELETEXT

40 Switch On/Off

40 Simple Text

40 - Page selection

40 - Programming a colour button in LIST

mode

40 Fastext

40 - Page selection

40 Special Teletext Function

41 MAINTENANCE

41 Cleaning Your TV

41 Screen and frame

41 Cabinet and stand

41 Power cord

42 TROUBLESHOOTING

42 General

43 SPECIFICATIONS

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo

are trademarks or registered trademarks of HDMI Licensing LLC in the United States

and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol

are trademarks of Dolby Laboratories.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX

video. Visit divx.com for more information and software tools to convert your files into

DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered

in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your

registration code, locate the DivX VOD section in your device setup menu. Go to vod.

divx.com for more information on how to complete your registration.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its

subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710;

7,519,274

ENGLISH

INSTALLATION PROCEDURE

1Open the package and make sure all the accessories are included.

2Attach the stand to the TV.

3Connect an external device to the TV.

yImage shown may differ from your TV.

yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

yThe available menus and options may differ from the input source or product model that you are using.

yNew features may be added to this TV in the future.

NOTE

ENGLISH

ASSEMBLING AND PREPARING

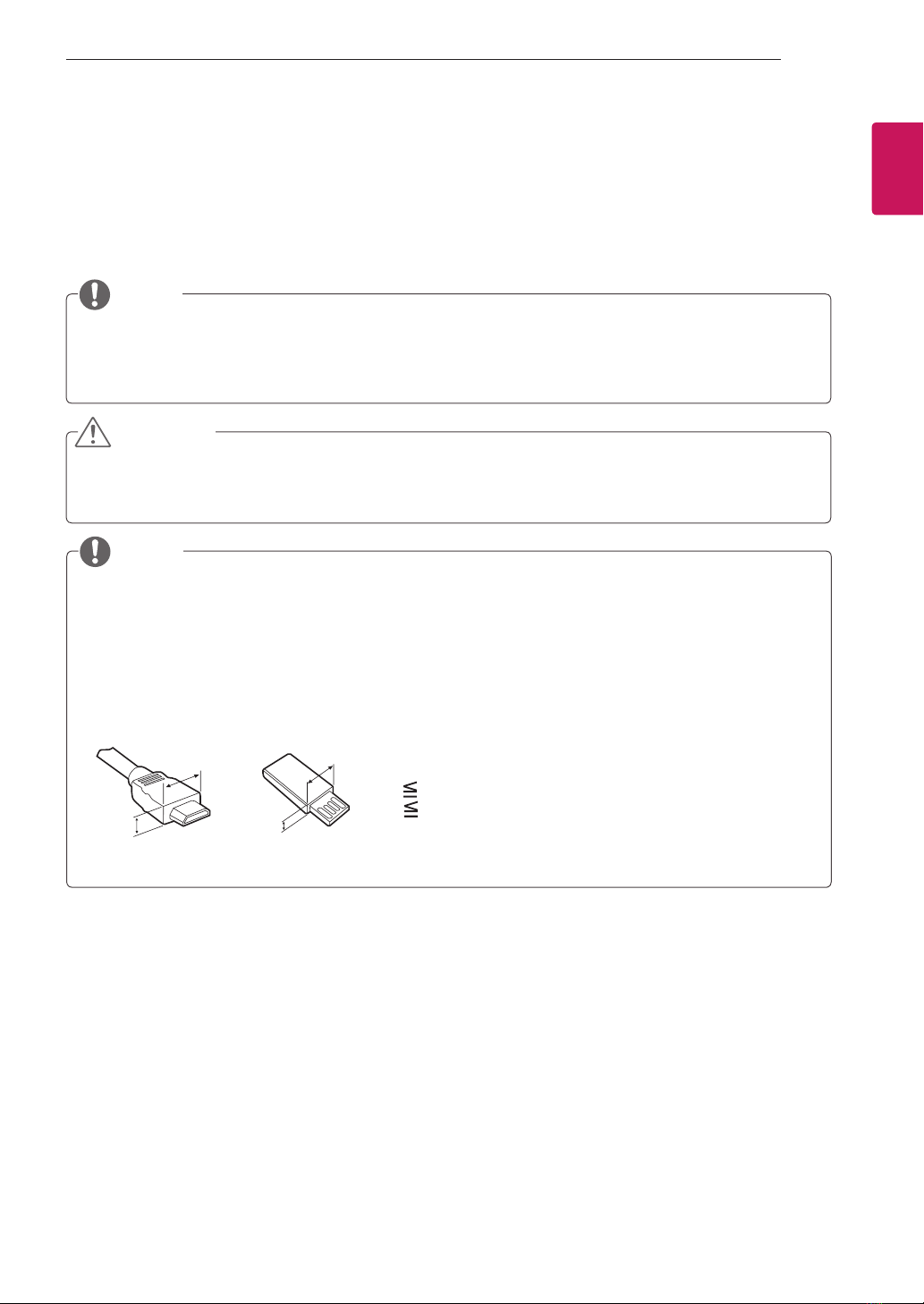

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you

purchased your product. The illustrations in this manual may differ from the actual product and accessories.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to upgrade of

product functions.

NOTE

yDo not use any pirated items to ensure the safety and product life span.

yAny damages or injuries by using pirated items are not covered by the warranty.

CAUTION

yThe items supplied with your product may vary depending on the model.

yProduct specifications or contents of this manual may be changed without prior notice due to upgrade of product

functions.

yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm

width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your

TV’s USB port.

NOTE

*A 10 mm

*B 18 mm

ENGLISH

ASSEMBLING AND PREPARING

Remote control /

Batteries (AAA)

CD (Owner's Manual) /

Cards

AC-DC Adapter

Cable Tie

Power Cord AC-DC Adapter

(Depending on the country)

Stand Base

(See p.22) (See p.11)

(See p.14)

(See p.20)

(See p.13) (See p.13) (See p.13)

D-SUB Cable

ENGLISH

ASSEMBLING AND PREPARING

DC-IN

HDMI IN

RGB IN (PC)

USB IN

5 V 0.5 A

(19 V )

VIDEO AUDIO

L/MONO

AV IN

AUDIO OUT

INPUT

SETTINGS

Remote Control

Sensor

Connection panel (See p.16)

Touch button Description

Scrolls through the saved programmes.

Adjusts the volume level.

OK Selects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menus, or saves your input and exits the menus.

INPUT Changes the input source.

/ I Turns the power on or off.

Standby Light

yLighting On: Turned off

yLighting Off: Turned on

Parts and buttons

(Depending on the country)

All of the bottoms are touch sensitive and can be operated through simple touch with your finger.

NOTE

Touch Buttons

22MA33A 24MN33A 26MA33A 29MN33A

ENGLISH

ASSEMBLING AND PREPARING

DC-IN

HDMI IN

RGB IN (PC)

(19 V )

VIDEO AUDIO

L/MONO

AV IN

AUDIO OUT

INPUT

SETTINGS

22MA33B 24MN33B

Remote Control

Sensor

Standby Light

yLighting On :

When Power is turned off

yLighting Off :

When Power is turned on

Connection panel (See p.16)

Touch button Description

Scrolls through the saved programmes.

Adjusts the volume level.

OK Selects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menus, or saves your input and exits the menus.

INPUT Changes the input source.

/ I Turns the power on or off.

All of the bottoms are touch sensitive and can be operated through simple touch with your finger.

NOTE

(Depending on the country)

Touch Buttons

ENGLISH

ASSEMBLING AND PREPARING

INPUT

SETTINGS

DC-IN

HDMI IN

RGB IN (PC)

(19 V )

VIDEO AUDIO

L/MONO

AV IN

AUDIO OUT

28MN30A

Remote Control Sensor

Standby Light

yLighting On :

When Power is turned off

yLighting Off :

When Power is turned on

Connection panel (See p.16)

Touch button Description

Scrolls through the saved programmes.

Adjusts the volume level.

OK Selects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menus, or saves your input and exits the menus.

INPUT Changes the input source.

/ I Turns the power on or off.

All of the bottoms are touch sensitive and can be operated through simple touch with your finger.

NOTE

Touch Buttons

(Depending on the country)

ENGLISH

ASSEMBLING AND PREPARING

yWhen holding the TV, the screen should face

away from you to prevent the screen from

scratches.

yWhen transporting the TV, do not expose the TV

to jolts or excessive vibration.

yWhen transporting the TV, keep the TV upright,

never turn the TV on its side, or tilt towards the

left or right.

Lifting and moving the TV

When moving or lifting the TV, read the following to

prevent the TV from being scratched or damaged and for

save transportation regardless of its type and size.

Avoid touching the screen at all times, as this may

result in damage to the screen or some of the

pixels used to create images.

CAUTION

yIt is recommended to move the TV in the box or

packing material that the TV originally came in.

yBefore moving or lifting the TV, disconnect the

power cord and all cables.

yHold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part,

speaker, or speaker grill area.
