29MA73D

ENGLISH

TABLE OF CONTENTS

3LICENSES

4INSTALLATION PROCEDURE

5ASSEMBLING AND PREPARING

5 Unpacking

7 Parts and buttons

9 Lifting and moving the TV

10 Setting up the TV

10 - Attaching the Stand

12 - Detaching the Stand

13 - Mounting on a table

13 - Tidying cables

15 - Mounting on a wall

17 WATCHING TV

17 Turning the TV on for the first time

19 TV display (5:9 OSD)

19 - Programme Guide

20 PIP function

22 MAKING CONNECTIONS

22 Connecting an antenna

23 Connecting to a HD receiver, DVD Player,

VCR or Gaming device

23 - HDMI connection

24 - DVI-D connection

25 - Component connection

26 - Composite connection

27 Headphone connection

28 Connecting a USB Device

29 Smartphone (MHL) connection

30 Connecting to a PC

31 - HDMI connection

32 - DVI-D connection

33 - DisplayPort connection

34 REMOTE CONTROL

36 INSTALLING SCREEN SPLIT

37 CUSTOMIZING SETTINGS

37 Accessing the Main Menus

37 - TV, Component, AV

42 - DVI, HDMI IN 1, HDMI IN 2(MHL),

DisplayPort

49 USING THE USER GUIDE

49 Accessing User Guide menu.

50 MAINTENANCE

50 Cleaning Your TV

50 Screen and frame

50 Cabinet and stand

50 Power cord

51 Preventing “Image burn” or “Burn-in” on

your TV screen

52 TROUBLESHOOTING

54 SPECIFICATIONS

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. Dolby and the

double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a

subsidiary of Rovi Corporation. This is an official DivX Certified® device that

plays DivX video. Visit divx.com for more information and software tools to

convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be

registered in order to play purchased DivX Video-on-Demand (VOD) movies.

To obtain your registration code, locate the DivX VOD section in your device

setup menu. Go to vod.divx.com for more information on how to complete

your registration.

DivX Certified® to play DivX® video up to HD 1080p, including premium

content.

DivX®, DivX Certified® and associated logos are trademarks of Rovi

Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274

VESA, VESA logo, Display Port Compliance Logo and Display Port Compliance

Logo for dual-mode source are all registered trademarks of the Video Electronics

Standards Association.

ENGLISH

4INSTALLATION PROCEDURE

INSTALLATION PROCEDURE

1Open the package and make sure all the accessories are included.

2Attach the stand to the TV.

3Connect an external device to the TV.

yImage shown may differ from your TV.

yYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

yThe available menus and options may differ from the input source or product model that you are

using.

yNew features may be added to this TV in the future.

NOTE

ENGLISH

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local

dealer where you purchased your product. The illustrations in this manual may differ from the actual

product and accessories.

yThe accessories supplied with your product may vary depending on the model.

yProduct specifications or contents in this manual may be changed without prior notice due to

upgrade of product functions.

NOTE

yDo not use any pirated items to ensure the safety and product life span.

yAny damages or injuries by using unapproved or counterfeit parts or accessories are not covered

by the manufacturer’s warranty.

CAUTION

yThe items supplied with your product may vary depending on the model.

yProduct specifications or contents of this manual may be changed without prior notice due to

upgrade of product functions.

yFor an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick

and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory

stick does not fit into your TV’s USB port.

NOTE

*A ≤ 10 mm

*B ≤ 18 mm

ENGLISH

6ASSEMBLING AND PREPARING

(See p.34, 35)

(See p.13) (See p.13)

(See p.24, 32)

(See p.13)

(See p.10, 12)

(See p.10, 12) (See p.10, 12)

(See p.10, 12)

Remote Control /

Batteries (AAA)

Power Cord

Stand Base

CD (Owner's Manual) /

Cards

Stand Body

Stand Screws

2 EA

Stand Screw cover

Cable Tie AC-DC Adapter

DVI-D cable

ENGLISH

ASSEMBLING AND PREPARING

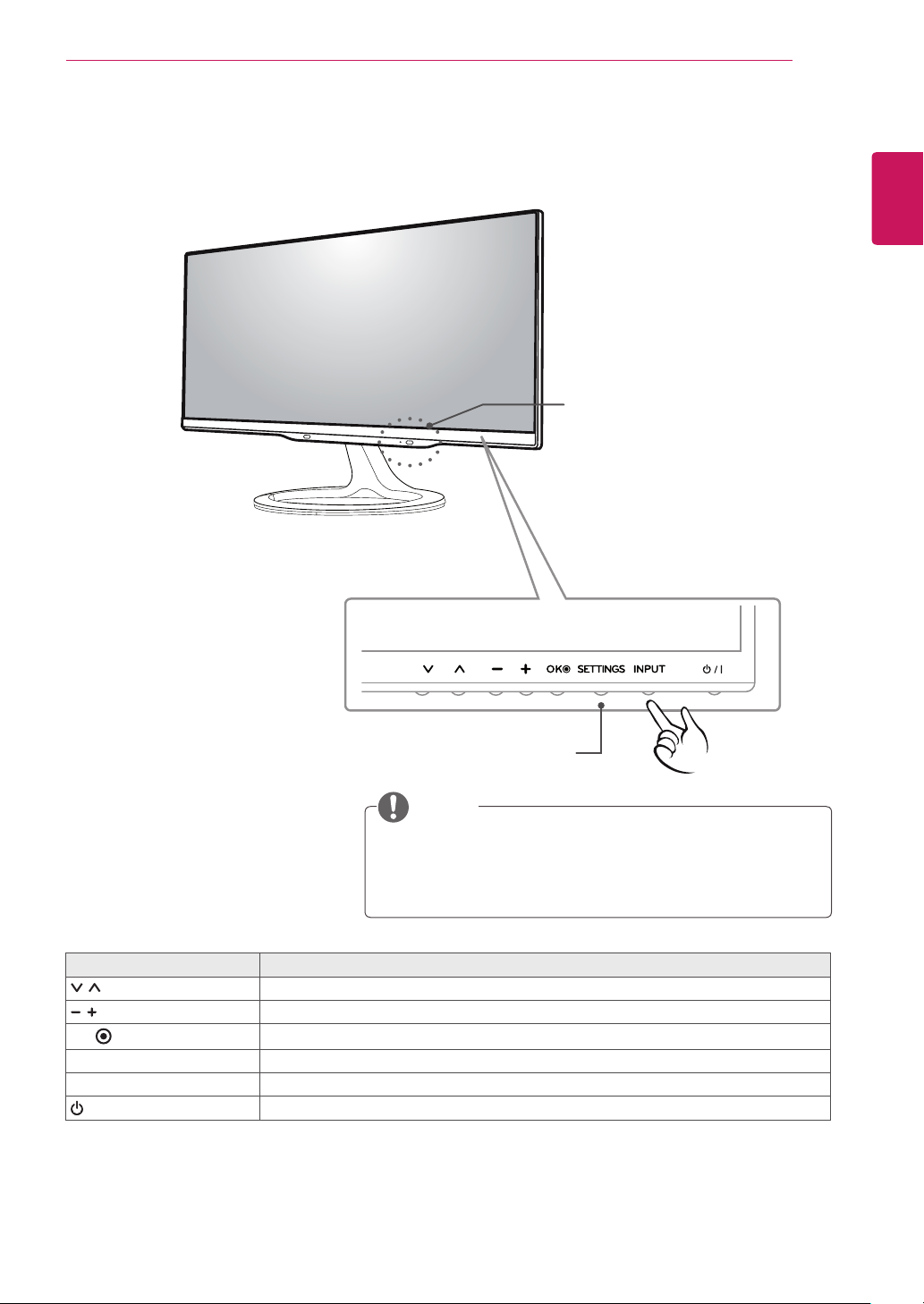

Parts and buttons

NOTE

Touch button Description

Scrolls through the saved programmes.

Adjusts the volume level.

OK Selects the highlighted menu option or confirms an input.

SETTINGS Accesses the main menus, or saves your input and exits the menus.

INPUT Changes the input source.

/ITurns the power on or off.

Touch Buttons

Remote Control Sensor

Standby Light

yLighting On :

When Power is turned off

yLighting Off :

When Power is turned on

yAll of the buttons are touch sensitive and can be operated

through simple touch with your finger.

yPower and control touch button are located on the bottom.

ENGLISH

8ASSEMBLING AND PREPARING

Connection panel (See p.22)

ENGLISH

ASSEMBLING AND PREPARING

yWhen holding the TV, the screen should face

away from you to prevent the screen from

scratches.

yWhen transporting the TV, do not expose the

TV to jolts or excessive vibration.

yWhen transporting the TV, keep the TV

upright, never turn the TV on its side, or tilt

towards the left or right.

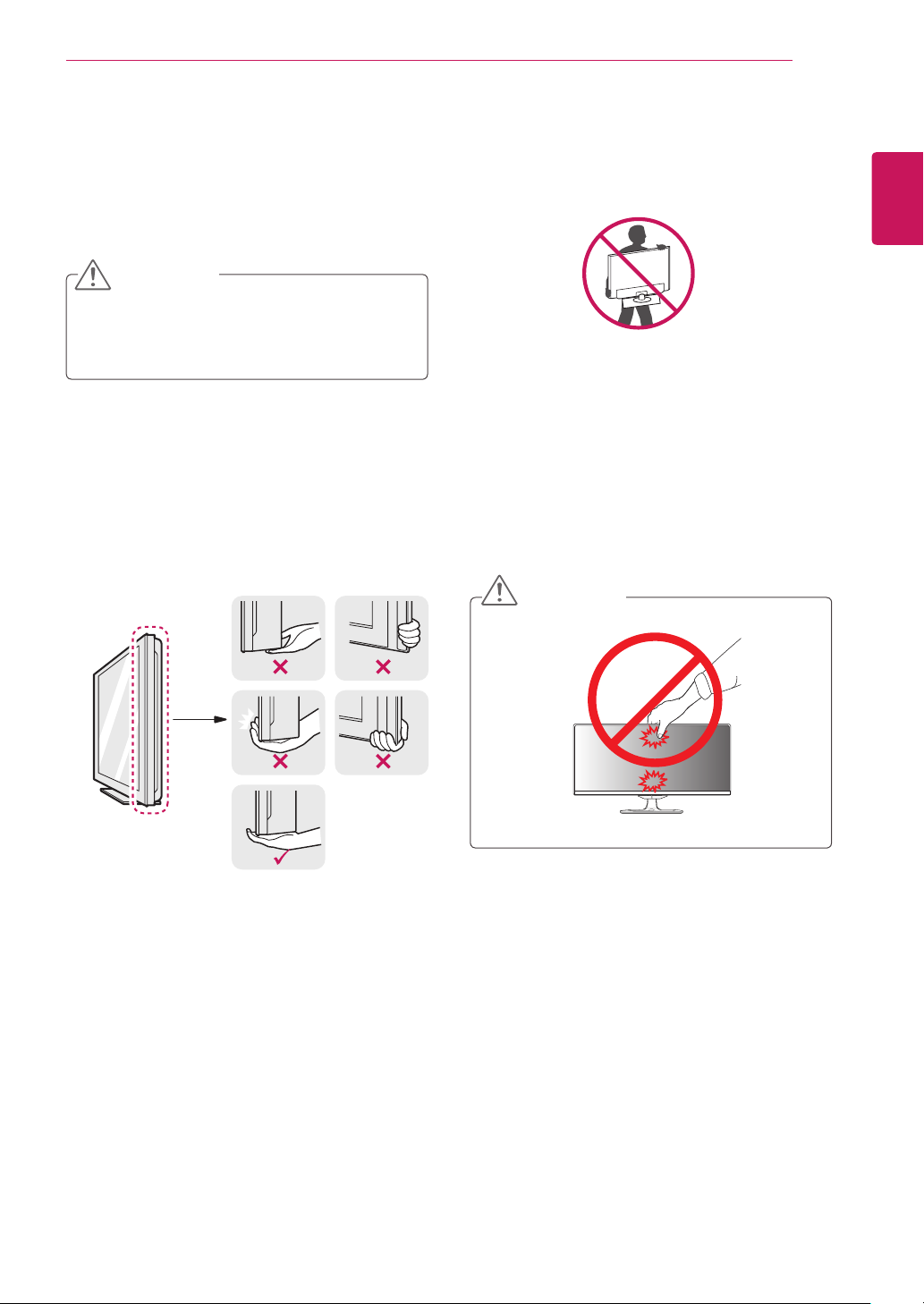

Lifting and moving the TV

When moving or lifting the TV, read the following

to prevent the TV from being scratched or

damaged and for save transportation regardless of

its type and size.

Avoid touching the screen at all times, as

this may result in damage to the screen or

some of the pixels used to create images.

CAUTION

yIt is recommended to move the TV in the

box or packing material that the TV originally

came in.

yBefore moving or lifting the TV, disconnect

the power cord and all cables.

yHold the top and bottom of the TV frame

firmly. Make sure not to hold the transparent

part, speaker, or speaker grill area.

CAUTION

ENGLISH

10 ASSEMBLING AND PREPARING

Setting up the TV

Attaching the Stand

1Place the screen face down.

4Attach the Stand Base from the Stand Body by

turning the screw to the right with a Coin.

yTo protect the screen from scratches, cover

the surface with a soft cloth.

3Fix two screws into the back of the Stand Body

and close the Stand Screw Cover.

2Check the orientation (front and rear) of the

stand base and mount the Stand Body to the

Stand Hinge as shown in the figure.

Stand Body Stand Hinge

CAUTION

Stand Base

Stand Screw

Cover

Stand Body
