LG LT661HBZA Bedienungsanleitung

INSTALLATION MANUAL

LED TV*

UT78**

UT76**

UT66**

UT64**

LT66**

ET96**

www.lg.com

* LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it

for future reference.

*MFL70423711*

(1905-REV00)

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per LG LT661HBZA 28"

(28LT661HBZA) o cerca il tuo prodotto tra le migliori offerte di Televisori

ENGLISH

Table of contents

4 Location and Function of Controls

4 Parts and Button

4 Basic functions

5 LED Clock Connection

6 First Use Wizard

7 Basic Settings

7 - Language & Location

8 - Network Settings

9 - Portal Settings

10 - Voice Service Coverage

11 Data Cloning

11 Solution Settings

11 - Language & Location selection

12 - Automatically for Setup

16 - Manually for Setup

19 Installation Menu Settings

19 Access Installation menu for commercial feature

settings.

20 Installation Menu

20 Introduction

21 LG Hotel Mode

21 - Hotel Mode Operation

21 - Power On Status

22 - Volume

22 - Key Management

23 - Limited Mode

23 - DTV Programme Update

24 - Power On Default

24 - Aux Source Setting

24 - Power Management

24 - Radio Video Blank

24 - Factory Reset

25 Network

25 - MAC Address

25 - Network Settings

26 - LG Connect

26 - IP Stream Control

26 - Wake On LAN

26 - VLAN ID

27 - Server Settings

27 - PingTest

28 Pro:Centric

28 - Mode

28 - WORF

28 - Room Number Setting

28 - MediaType

29 - Receive Data

29 - Native EPG

30 General

30 - Configuration Setup

35 - External Speaker

35 - Set ID Setup

35 - Power Saving

36 - HCEC Setup

37 - Clock Setup

37 - Password Change

38 - Lock Mode

38 - Crestron

38 - Welcome Video Mode

38 - Developer Mode

39 Portal Settings

39 - Portal Mode

39 - Auto Start

39 - PreLoaded App

40 - Website Shortcut

40 - Input Shortcut

41 - Hotel Directory

41 - Portal Editor

41 - Portal Manager

44 Media Share

44 - SmartShare

44 - Screen Share

44 - Media Renderer

44 - DIAL

44 - TV Name

45 - SoftAP

46 - Beacon

47 TV Manager

47 - Diagnostics

52 - USB Download Menu

57 CONTENT MANAGER

57 - Web Login

ENGLISH

57 - Content Manager

61 - Group Manager 2.0

63 IR Codes

64 External control device Setup

64 RS-232C Setup

64 Phone jackType

64 Type of Connector : D-Sub 9-Pin Male

65 RS-232C Configurations

65 Communication Parameters

65 IR OUT Using Guide

65 - Suitable / Not Recommend remote-controller data

format

65 - IR Receiver specifications

66 Command Reference List

67 Transmission / Receiving Protocol

ENGLISH

Location and Function of Controls

Parts and Button

Basic functions

Power On (Press)

Power O1(Press and Hold)

Menu Control (Press2)

Menu Selection (Press and Hold3)

1 All running apps will close.

2 You can access and adjust the menu by pressing the button when

TV is on.

3 You can use the function when you access menu control.

LED Clock Connection

(Depending on model)

ThisTV can be connected to a LED Clock via the CLOCK port.

CLOCK

LED Clock

(*Not Provided)

ENGLISH

First Use Wizard

* Images shown may differ from your TV.

(Depending on model)

•There are four options - Basic Settings, Data Cloning, Solution Settings, and Installation Menu Settings. Each menu can access by START

button.

ENGLISH

Basic Settings

(Depending on model)

This menu is for basic settings related to language, network, portal, voice service coverage and programme tuning without SI (Pro:Centric) setting.There

are four steps for it.

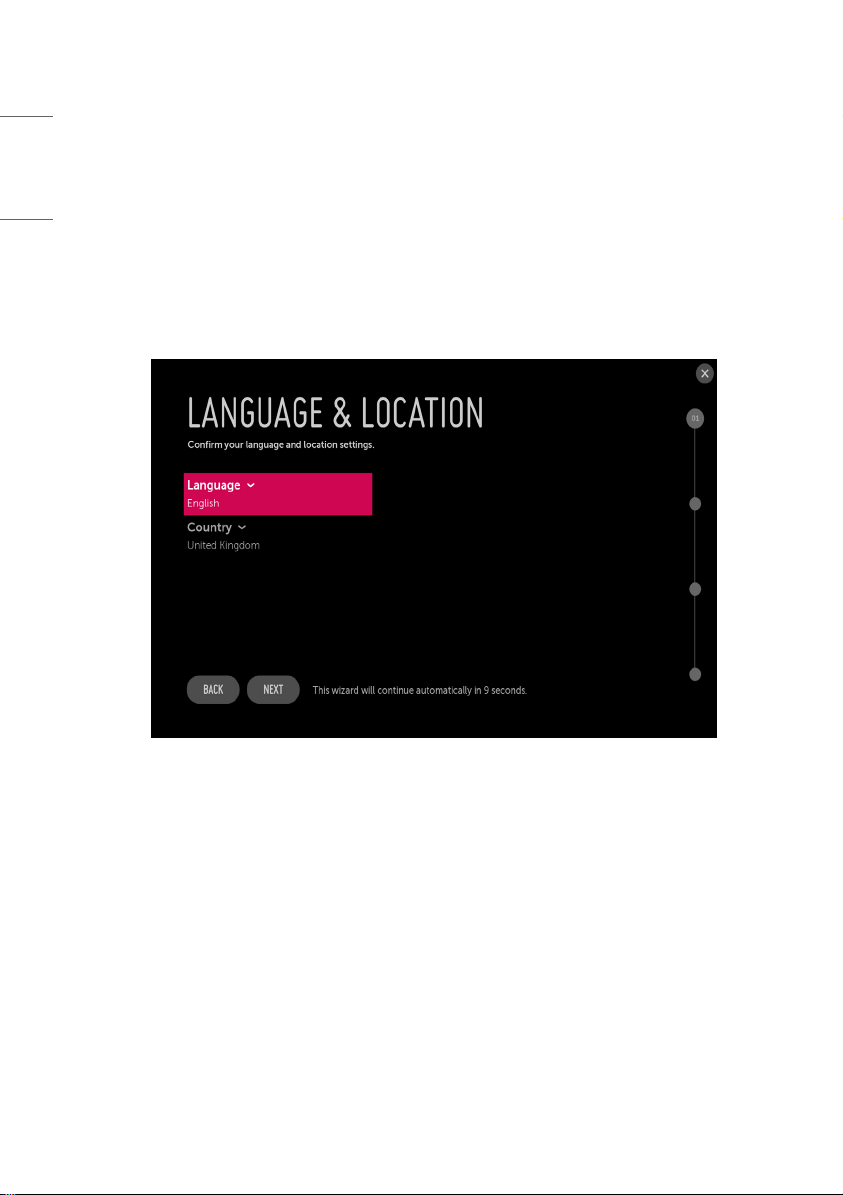

Language & Location

(Depending on model)

•Select the Language and Country. Some countries need to select the Time Zone.

ENGLISH

Basic Settings

(Depending on model)

This menu is for basic settings related to language, network, portal, voice service coverage and programme tuning without SI (Pro:Centric) setting.There

are four steps for it.

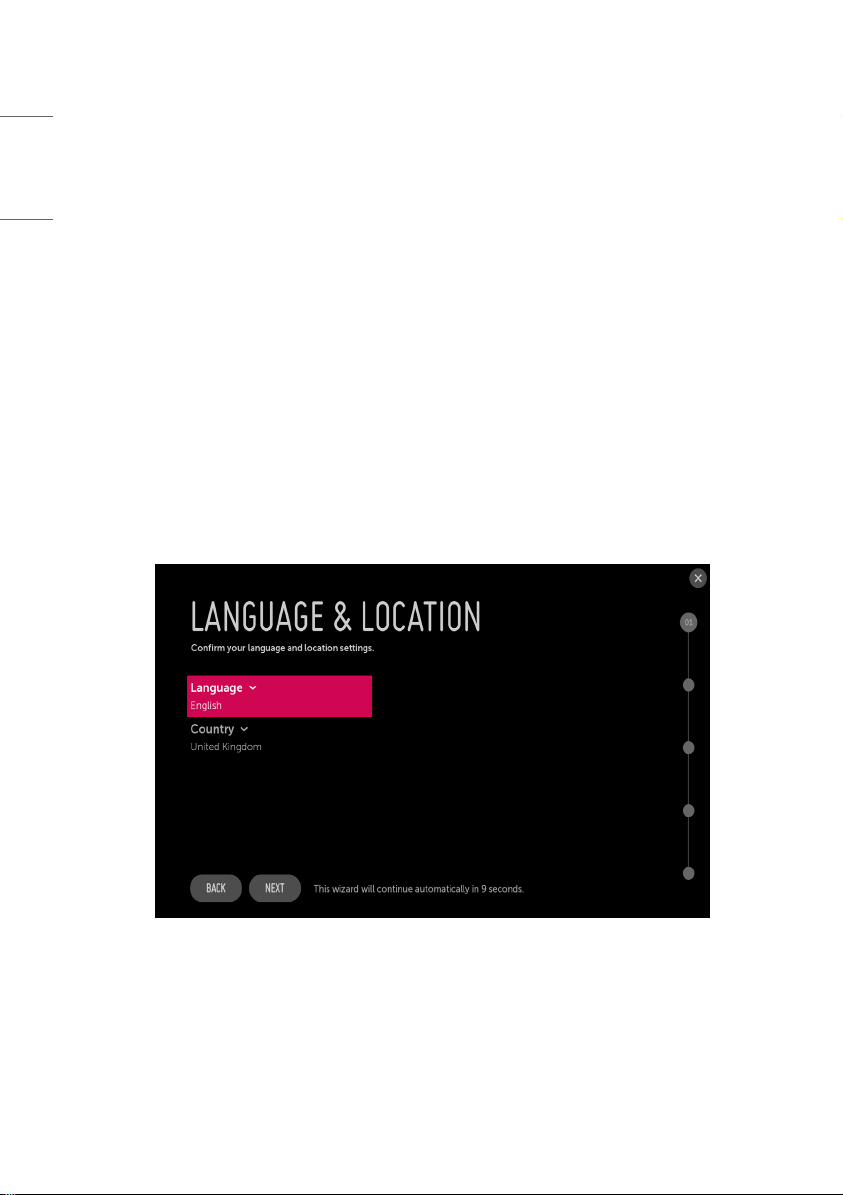

Language & Location

(Depending on model)

•Select the Language and Country. Some countries need to select the Time Zone.

Network Settings

(Depending on model)

•Set Network connection. You can connect easily to wired/wireless network. (“Network Settings”on page 24)

ENGLISH

Portal Settings

(Depending on model)

•Set the Portal Mode and Portal Auto Start.

Portal Mode

(Depending on model)

•You can select‘Default Portal’(Use webOS default portal),‘Customizable Portal’(Use editable Portal), or‘None’(Do not use portal).

Portal Auto Start

•You can select‘On’or‘Off’. If you select‘On’, Portal (Home Launcher) will be execute automatically after TV on.

ENGLISH

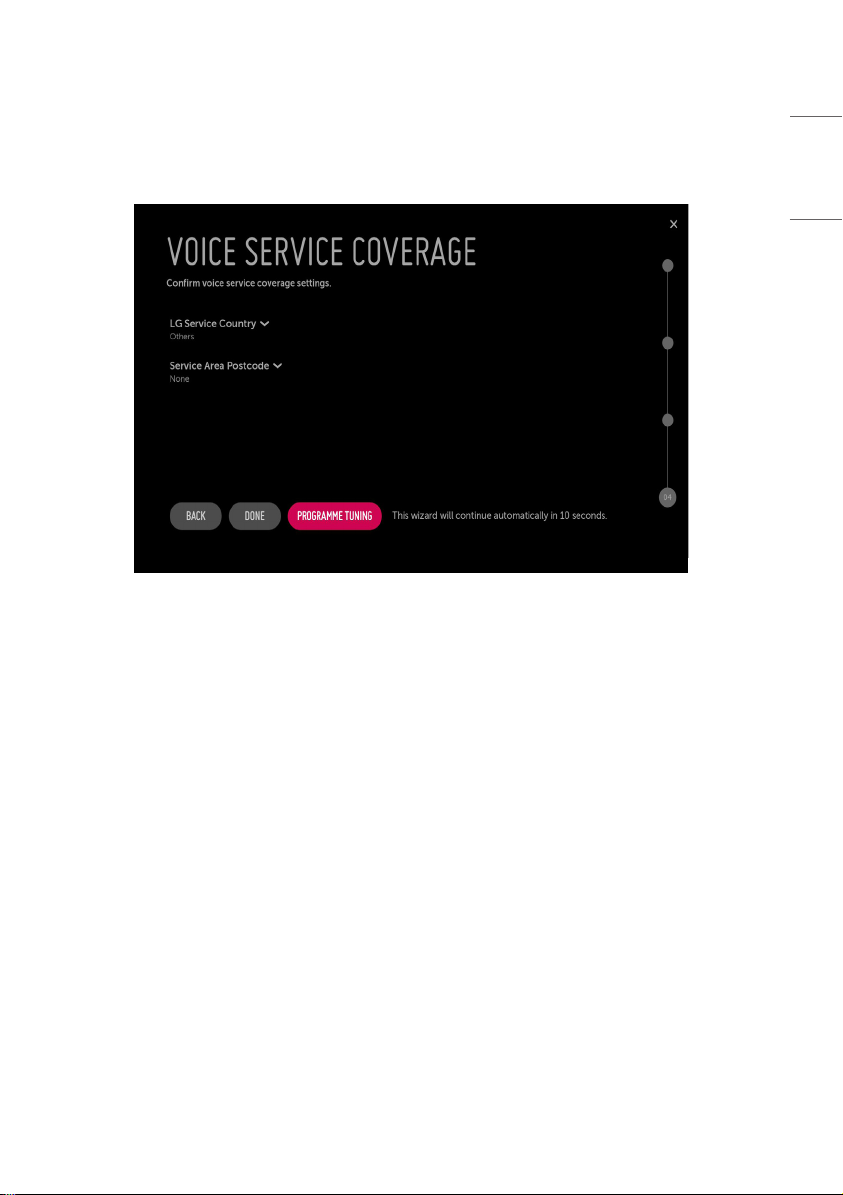

Voice Service Coverage

(Depending on model)

•Set the voice service coverage. You can set LG Service Country and Service Area Postcode(Depending on model) for voice service.

ENGLISH

Data Cloning

(Depending on model)

Access Data cloning menu ofTV Manager application for applying cloning le.

Solution Settings

(Depending on model)

The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions.The default Domain“procentric.local”and IP Server

Address are needed to be registered in DNSTV will contact the IP Server using the default Domain“procentric.local”via IP on server search page. IfTV

doesn’t contact the Server,TV will search the pre-dened programme earlier than all programmes. (Only DVB-C)

The frequencies of pre-dened programmes are below.

•Germany:‘51000, 858000, 778000, 698000, 618000, 538000, 458000, 378000, 298000, 218000, 138000 khz’.

•Philippines 6 Mhz:‘57000, 651000, 591000, 531000, 471000, 411000, 351000, 291000, 231000, 171000, 111000 khz’.

•Other Country:‘50000, 842000, 762000, 682000, 602000, 522000, 442000, 362000, 282000, 202000, 122000 khz’.

Language & Location selection

(Depending on model)

•Please select the Language and Country. Some countries need to select the Time Zone.
