LG UB85 Series Bedienungsanleitung

Please read this manual carefully before operating your set

and retain it for future reference.

OWNER’S MANUAL

LED TV*

* LG LED TVs are LCD TVs with

LED backlighting.

Click! User Guide

P/NO : MFL68066602 (1410-REV04)

Printed in Korea

*MFL68066602* www.lg.com

UB85** UB98** UG88**

UB93** UC97**

UB95** UC9*

A-2 TABLE OF CONTENTS

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand

A-9 Tidying cables

A-11 Assembling the AV cover

A-12 MAKING CONNECTIONS

A-12 Antenna Connection

A-15 Satellite dish Connection

A-16 HDMI Connection

A-24 - ARC (Audio Return Channel)

A-26 DVI to HDMI Connection

A-29 Component Connection

A-32 Composite Connection

A-33 MHL Connection

A-38 Audio Connection

A-38 - Digital optical audio Connection

A-41 Headphone Connection

A-44 USB Connection

A-48 CI module Connection

A-51 Euro Scart Connection

LANGUAGE LIST

English

Magyar

Polski

 Česky

 Slovenčina

 Română

 Български

Eesti

 Lietuviųk.

Latviešu

Srpski

Hrvatski

Shqip

Bosanski

 Македонски

 Русский

B-1 SPECIFICATIONS

COMMON

LANGUAGE

COMMON

A-3

SETTING UP THE TV

ImageshownmaydifferfromyourTV.

Attaching the stand

Stand Base

Stand Body (R)

Stand Body (L)

M4 x L20

4EA

UB85**-ZA, UB93**, UB95**-ZA

yBe sure to check the Stand Body (L), (R), when

installingonthestandbase.

NOTE

1 Attach the stand to the TV using the upper mounting

holeonthebackoftheTV.

2 Attach the stand to the TV using the lower

connectiononthebackoftheTV.

M4 x L20

4EA

A-4 SETTING UP THE TV

1 Attach the stand to the TV using the upper mounting

holeonthebackoftheTV.

2 Attach the stand to the TV using the lower

connectiononthebackoftheTV.

M4 x L20

4EA

UB85**-ZD, UB95**-ZB

yBe sure to check the Stand Body (L), (R), when

installingonthestandbase.

NOTE

Stand Body (L)

Stand Body (R)

Stand Base

4EA

M4 x L10

A-5

SETTING UP THE TV

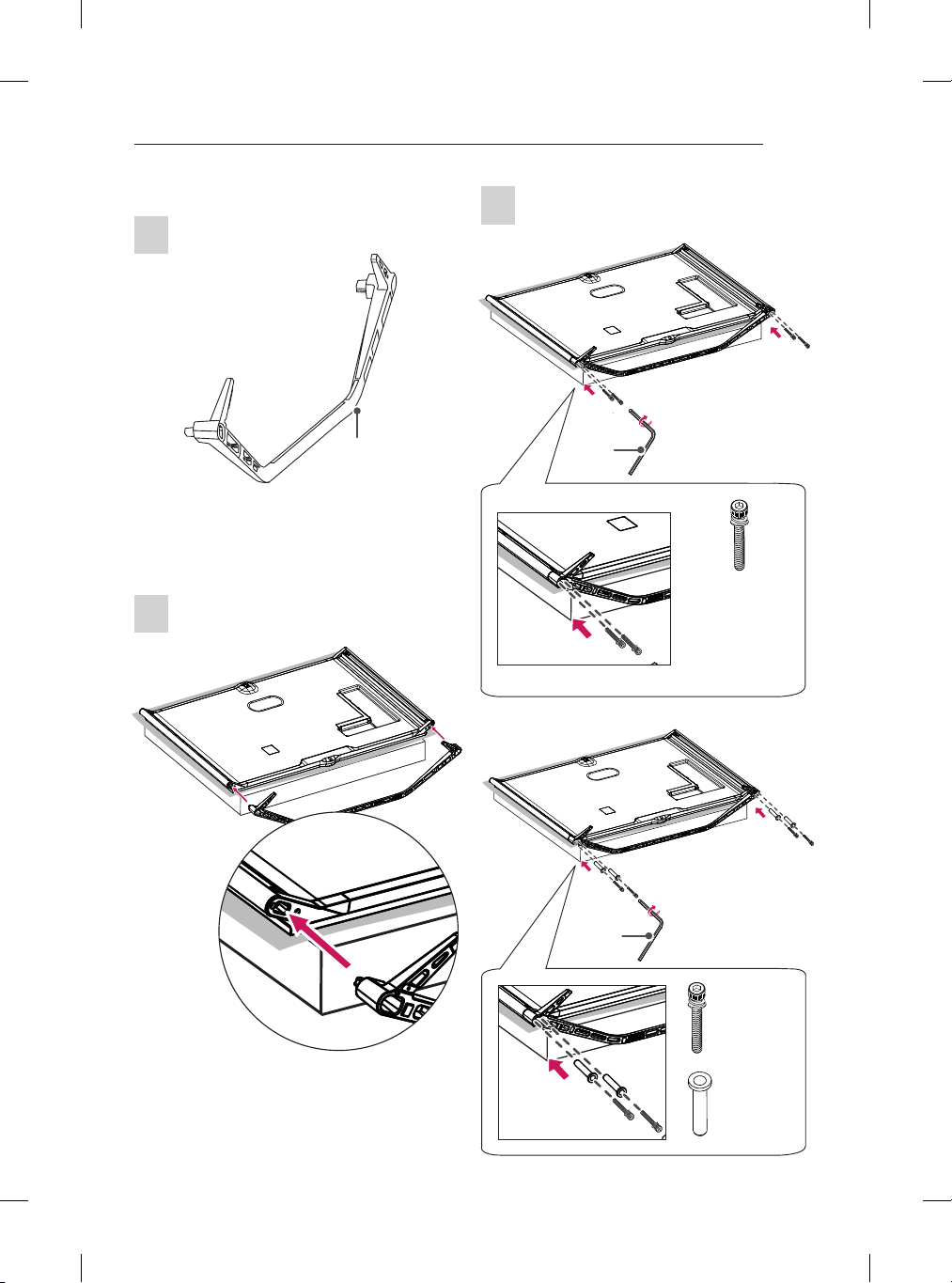

Stand Base

65/79/84UB98**

(Only 65/79UB98**)

Wrench

4EA

(Insulation

Holder)

(Only 84UB98**)

4EA

M6 x L47

(Only 65UB98**)

M6 x L52

(Only 79UB98**)

4EA

M6 x L52

A-6 SETTING UP THE TV

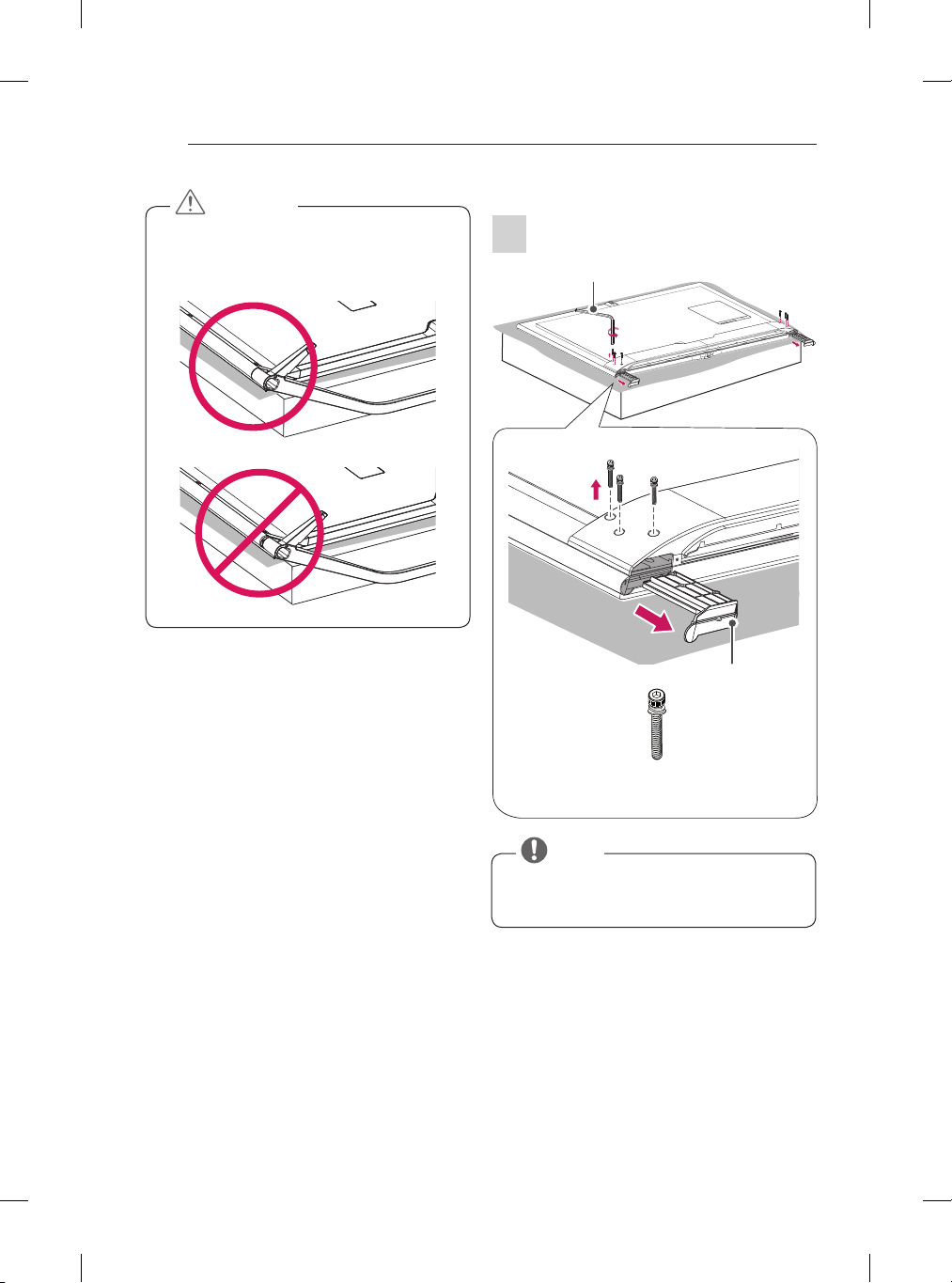

yMake sure that the screws are inserted correctly

andfastenedsecurely.(Iftheyarenotfastened

securely enough, the TV may tilt forward after

beinginstalled.)

CAUTION

98UB98**

M6 x L47

6EA

Mold

Wrench

yThe stand screws are already attached at the

backoftheTV.Pleaseusetheseattachedscrew

toassembletheTVandstand.(Only98UB98**)

NOTE

A-7

SETTING UP THE TV

Stand Base

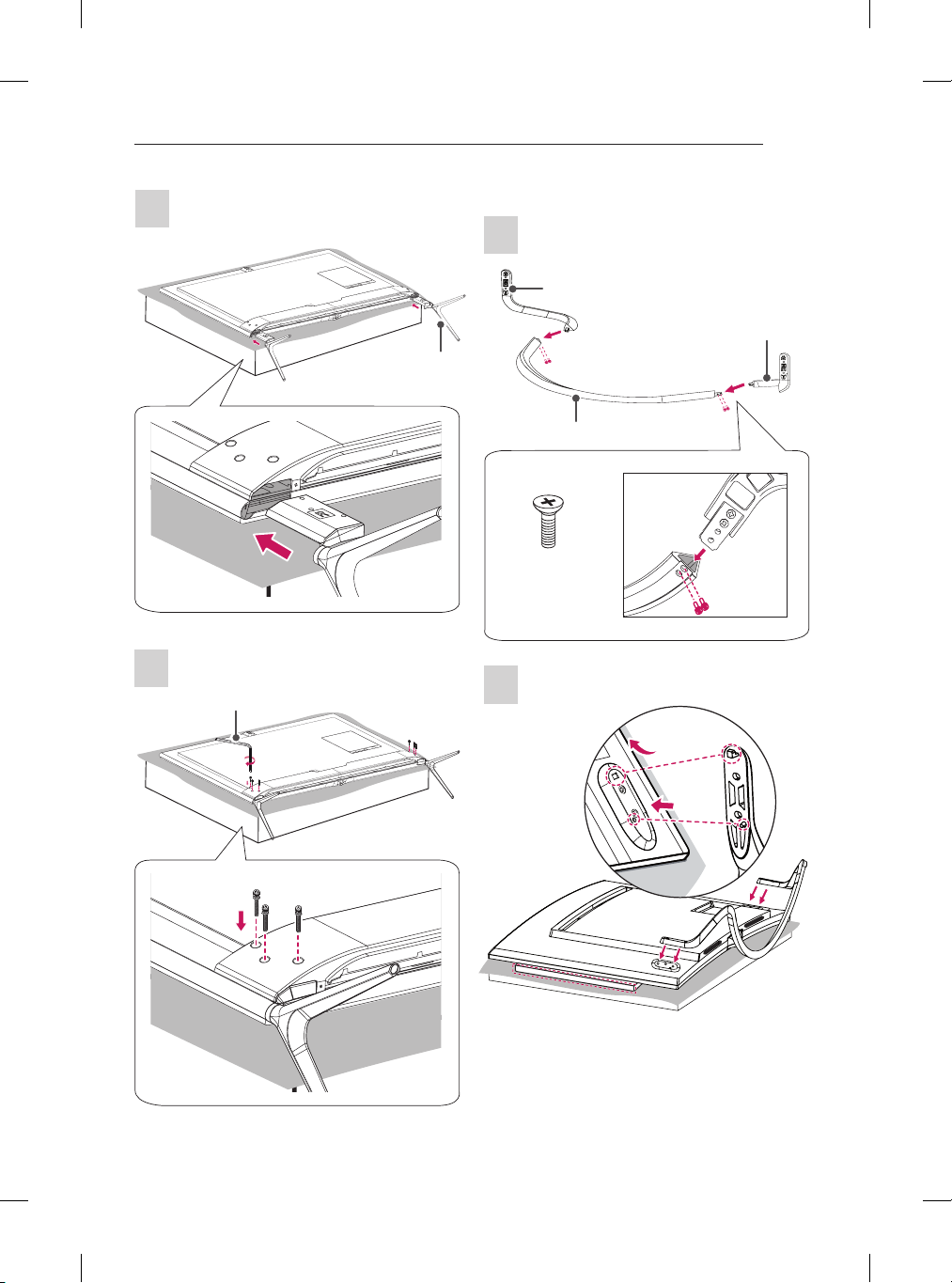

UC97**

Stand Body (L)

Stand Body (R)

Stand Base

M4 x L10

4EA

1 When assembling the stand, lay the front screen

protective package included in the product box on

a table or flat surface and then place the TV screen

facedownontheprotectivepackage.

2 Attach the stand to the TV using the upper mounting

holeonthebackoftheTV.

3 Attach the stand to the TV using the lower connection

onthebackoftheTV.

Wrench

A-8 SETTING UP THE TV

M4 x L20

4EA

79UG88**

Stand Base

Stand Body (R)

Stand Body (L)

M4 x L14

6EA

M4 x L10

2EA

1 When assembling the stand, lay the front screen

protective package included in the product box on

a table or flat surface and then place the TV screen

facedownontheprotectivepackage.

2 Attach the stand to the TV using the upper mounting

holeonthebackoftheTV.

3 Attach the stand to the TV using the lower

connectiononthebackoftheTV.

M4 x L14

4EA

A-9

SETTING UP THE TV

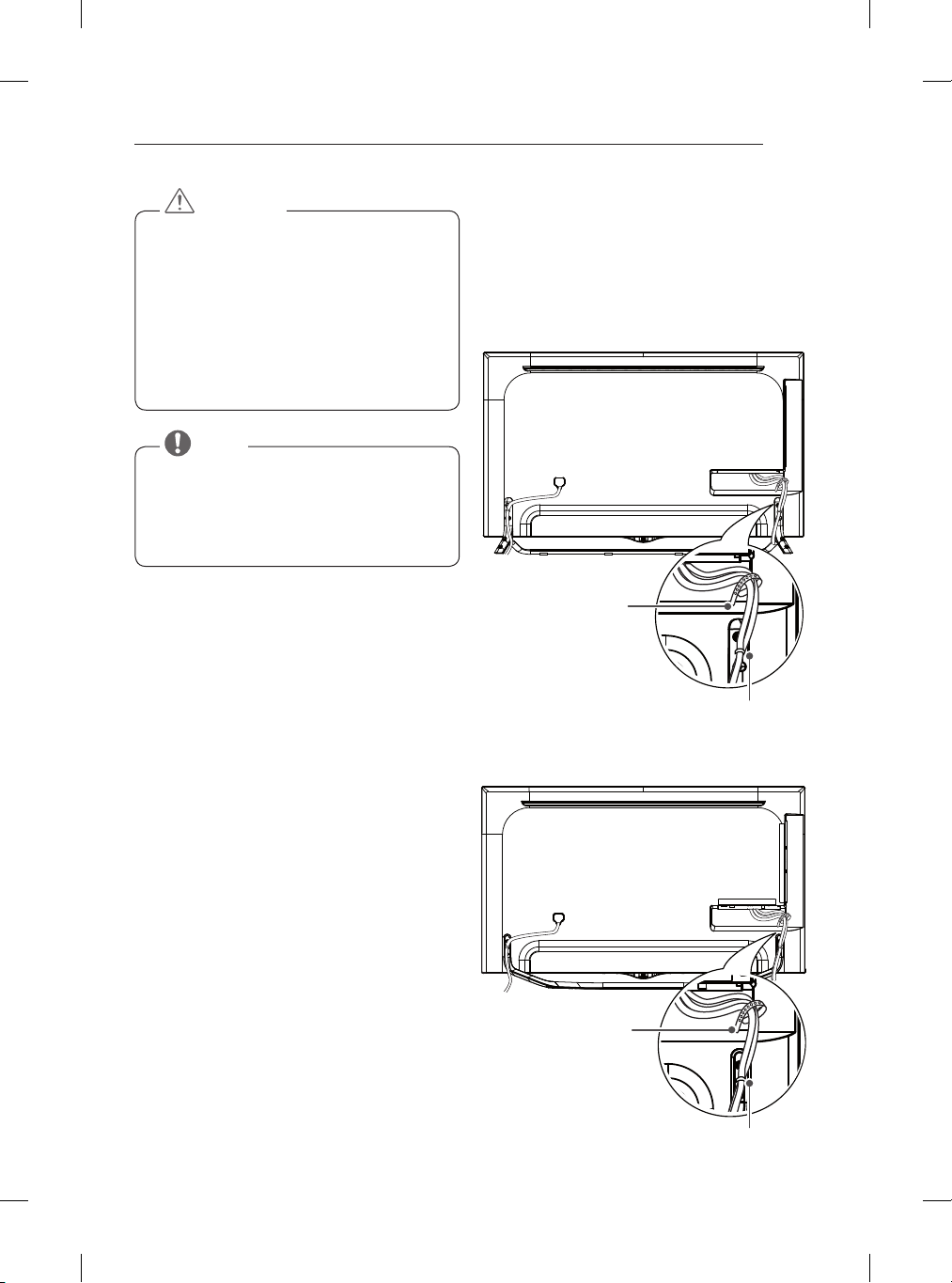

Tidying cables

ImageshownmaydifferfromyourTV.

1 Gather and bind the cables with the Cable Holder

andtheCableManagement.

2 FixtheCableManagementfirmlytotheTV.

(Only UB85**-ZA, UB93**, UB95**-ZA)

Cable Holder

Cable Management

(Only UB85**-ZD, UB95**-ZB)

Cable Holder

Cable Management

yWhen attaching the stand to the TV set, place the

screen facing down on a cushioned table or flat

surfacetoprotectthescreenfromscratches.(Only

UB85**, UB93**, UB95**, UB98**)

yMake sure that the screws are inserted correctly

andfastenedsecurely.(Iftheyarenotfastened

securely enough, the TV may tilt forward after

beinginstalled.)

Do not use too much force and over tighten the

screws; otherwise screw may be damaged and

nottightencorrectly.

CAUTION

yRemove the stand before installing the TV on a

wall mount by performing the stand attachment in

reverse.

yRemove the protective film from the stand base

andthenattachthestandbodytothestandbase.

(Only UC97**, UG88**)

NOTE

A-10

SETTING UP THE TV / MAKING CONNECTIONS

(Only 65/79/84UB98**)

Cable Holder

1 GatherandbindthecableswiththeCableHolder.

(Only UC97**, UG88**)

Cable Holder

Cable Management

yDo not move the TV by holding the cable holders,

as the cable holders may break, and injuries and

damagetotheTVmayoccur.

CAUTION

(Only 98UB98**)

Cable

Holder

Cable Management

Cable

management

(Only UC9*)

Cable Management

1 FixtheCableManagementfirmlytotheTV.
