LG 42PJ350 Bedienungsanleitung

PLASMA TV

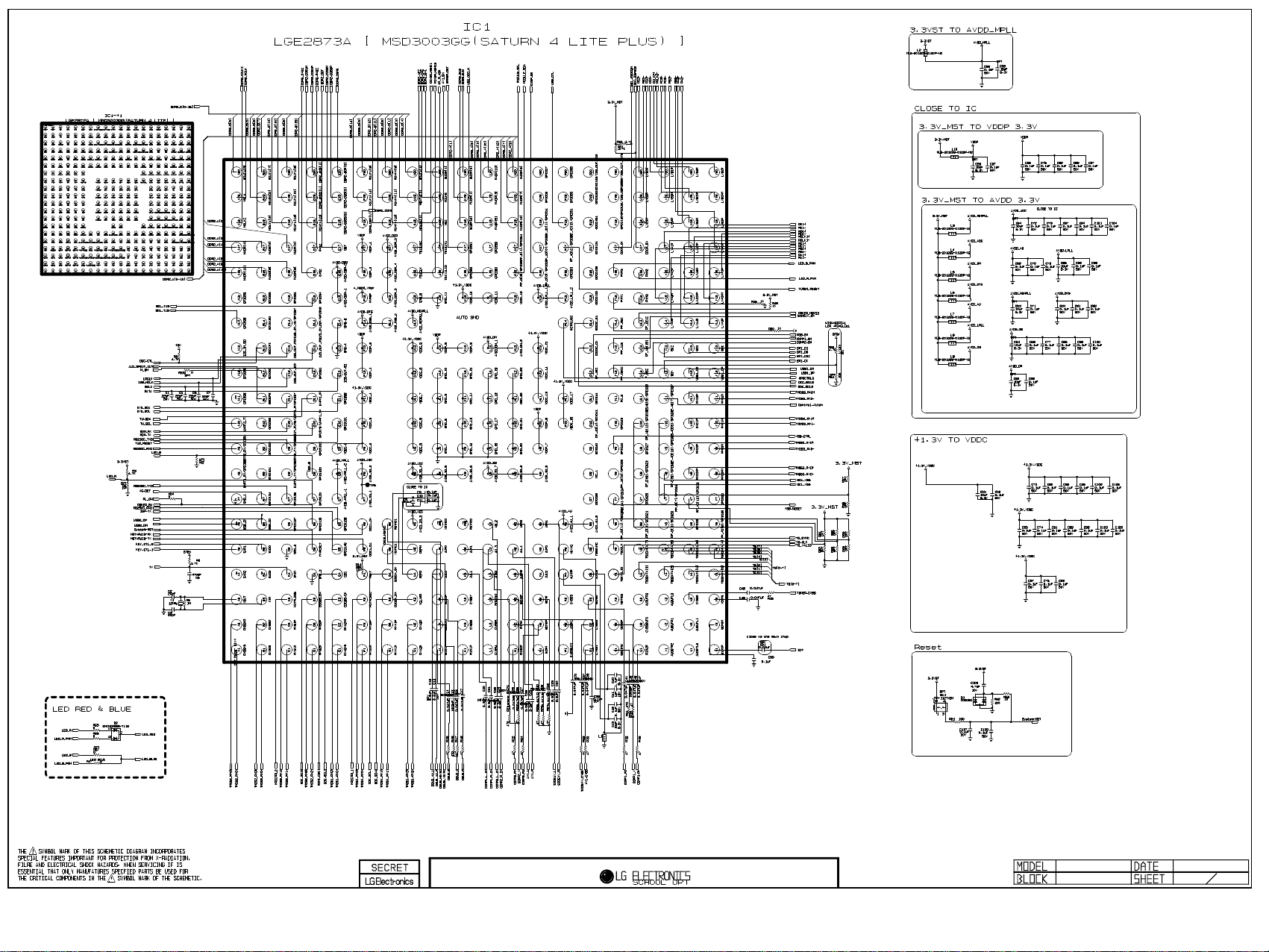

EXPLODED VIEW and SCHEMATICS

CAUTION

BEFORE SERVICING THE CHASSIS,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

CHASSIS : PU01A

MODEL : 42PJ350 42PJ350-UB

North/Latin A erica http://aic.lgservice.co

Europe/Africa http://eic.lgservice.co

Asia/Oceania http://biz.lgservice.co

P/NO : MFL62881502 (1003-REV01) Printed in Korea

- 47 - LGE Internal Use Only

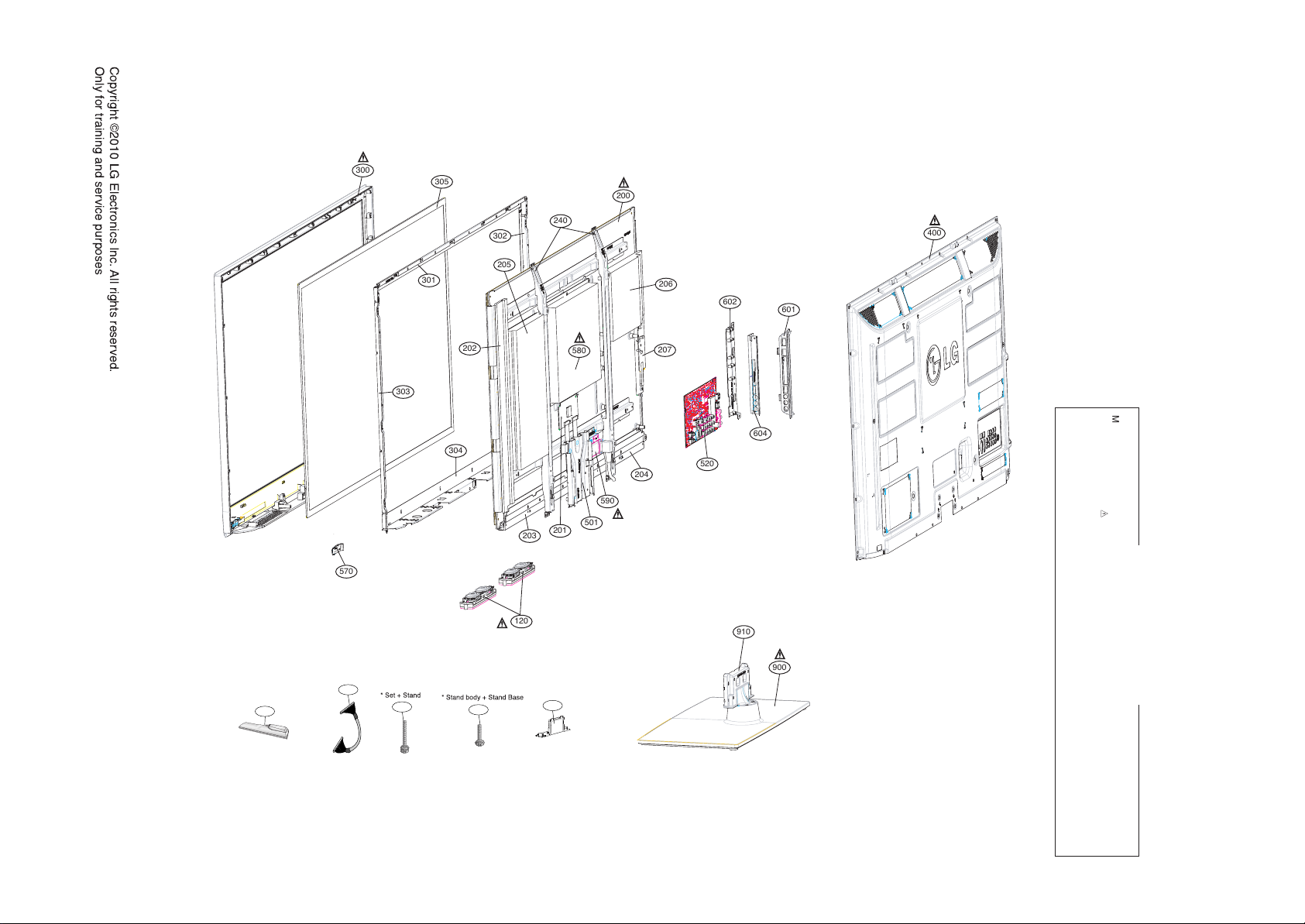

EXPLODED VIEW

Only for training and service purposes

200

120

305

300

400

580

301

302

303

304

202

240

520

207

206

204

203 201 501

590

570

602 601

604

900

205

910

Many electrical and mec anical parts in t is c assis ave special safety-related c aracteristics. T ese

parts are identified by in t e Sc ematic Diagram and EXPLODED VIEW.

It is essential t at t ese special safety parts s ould be replaced wit t e same components as

recommended in t is manual to prevent X-RADIATION, S ock, Fire, or ot er Hazards.

Do not modify t e original design wit out permission of manufacturer.

IMPORTANT SAFETY NOTICE

A2 A10 A9

LV1

A12

42PJ350 EXPLODED VIEW PARTS LIST

ITEM PART No DESCRIPTION

120 EAB60962801 10W 8OHM 81DB 120HZ 169X32X27

200 EAJ60716204 PDP42T10000.ADLGB XGA 42INCH 1024X768 16/9 LG

200 EAJ60716215 PDP42T10000.ASLGB LOCAL, LGERS XGA 42INCH 1024X768 16/9 LG

201 EBR63632301 Control (Logic) board

202 EBR63633601 Y-Drive (Upper)

203 EBR63628801 X-Board (Left)

204 EBR63628701 X-Board (Right)

205 EBR63038301 Y-SUS Board

206 EBR63038801 Z-SUS Board

207 EBR63634601 Z-SUB Board

240 AJJ72916203 Vertical Supporters

300 ABJ72921612 Cabinet Assembly (Front Frame)

301 AJJ72915805 Supp. Filter Assy Top 42PJ2/3/5

302 AJJ72916005 Supp. Filter Assy Right 42PJ2/3/5

303 AJJ72916105 Supp. Filter Assy Left 42PJ2/3/5

304 AJJ72915905 Supp. Filter Assy Bottom 42PJ2/3/5

305 MDJ62065302 Cutting Glass FIlter 42PJ(3/5)

305 MDJ62166501 Cutting Glass FIlter 42PJ(3/5)

400 ACQ74728115 Back Cover Assembly

501 AJJ72916302 Supp. Stand Guide Assy 42PJ2/3/5

520 EBT60953602 Main Board Assembly

570 EBR65007704 IR and Intelligent Sensor Board Assembly

580 EAY60912401 Power Supply Board Assembly (SMPS)

590 EAM60352509 AC Line Filter

601 ABA72940719 Side A/V Bracket

602 MGJ61965303 Side A/V Shield

604 MGJ61965208 Side A/V Decorative Cover (Plate)

900 AAN72941006 Stand

910 MJH61875002 Stand Supporter

A2 AKB72914201 Remote Control

A9 FAB30016602 Screw Stand Body/Base D5.0 L14.0 Washer 2 (D:8.5 , T:1.3)

A10 FAB30016432 Screw (Set and Stand) D5.0 L14.0 Washer 2 (D:7.0 , T:1.0)

LV1 EAD42463811 LVDS Cable

Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
IR

Only for training and service purposes

LGE Internal Use Only

Only for training and service purposes

LGE Internal Use Only

Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

Only for training and service purposes

LGE Internal Use Only

Only for training and service purposes

LGE Internal Use Only

Copyright © 2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
