Colour Television

OWNER’S MANUAL

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number, serial number and manufactured

of the set.

See the label attached on the back cover and quote this

information to your dealer when you require service.

SALES MODEL: 21FD1RG / 21FB5RG/21FC1RG/21FC2RG

Model number : 21FD1RG-TH / 21FB5RG-TH/21FC1RG-TH

21FC2RG-TH

Serial number :

Manufactured :

For informations of Guarantee and Service Center / Parts,

please refer to your Warranty Card.

Contents

Installation 3

Location and function of controls 4

Remote control handset

Battery installation / Front panel

Basic operation 8

On and off / Programme selection

Volume adjustment / Quick view

Mute function

On screen language selection (option)

On screen menus 9

Menu selection

Setting up TV stations 10

Auto programme tuning

Manual programme tuning

Programme edit

Favourite programme

Calling the programme table

Picture adjustment 16

PSM (Picture Status Memory)

CSM (Colour Status Memory)

Picture adjustment / Eye (option)

Turbo picture selection (option)

Sound adjustment (option) 18

SSM (Sound Status Memory) / Sound adjustment

X-WAVE (Wireless Sound) (option)

Turbo sound selection (option)

Sound output selection (option)

Stereo/Dual reception (option)

NICAM reception (option)

Time setting 21

Setting the clock

Setting the On/Off timer

Auto off

Other functions 22

TV and AV modes / Auto AV switching (option)

Child lock / Blue back (option)

Games (option) / Sleep timer

Connection of external equipment 25

Aerial socket

Audio/Video in/out sockets (option)

Euro scart socket (option)

S-video/Audio in sockets (S-AV) (option)

Component in sockets (option)

Headphone socket (option)

Troubleshooting check list 27

Installation

Power

This set operates on an AC mains supply, the voltage is as indicat-

ed on the label on the back cover. Never apply DC power to the set.

In the event of thunderstorms or powercuts, please pull out the aer-

ial and mains plugs.

Warning

To prevent fire or shock hazard, do not expose the set to rain or

moisture.

Do not place anything containing liquid on top of the set, this may

cause a fire or could give an electric shock.

Service

Never remove the back cover of the set as this can expose you to

very high voltage and other hazards. If the set does not operate

properly, unplug it and call your dealer.

Aerial

Connect the aerial cable to the socket marked +75 Ωon the back

cover. For the best reception an outdoor aerial should be used.

Location

Position your set so that no bright light or sunlight falls directly onto

the screen. Care should be taken not to expose the set to any

unnecessary vibration, moisture, dust or heat. Also ensure that the

set is placed in a position to allow a free flow of air. Do not cover

the ventilation openings on the back cover.

All the functions can be controlled with the remote control handset.

Some functions can also be adjusted with the buttons on the front

panel of the set.

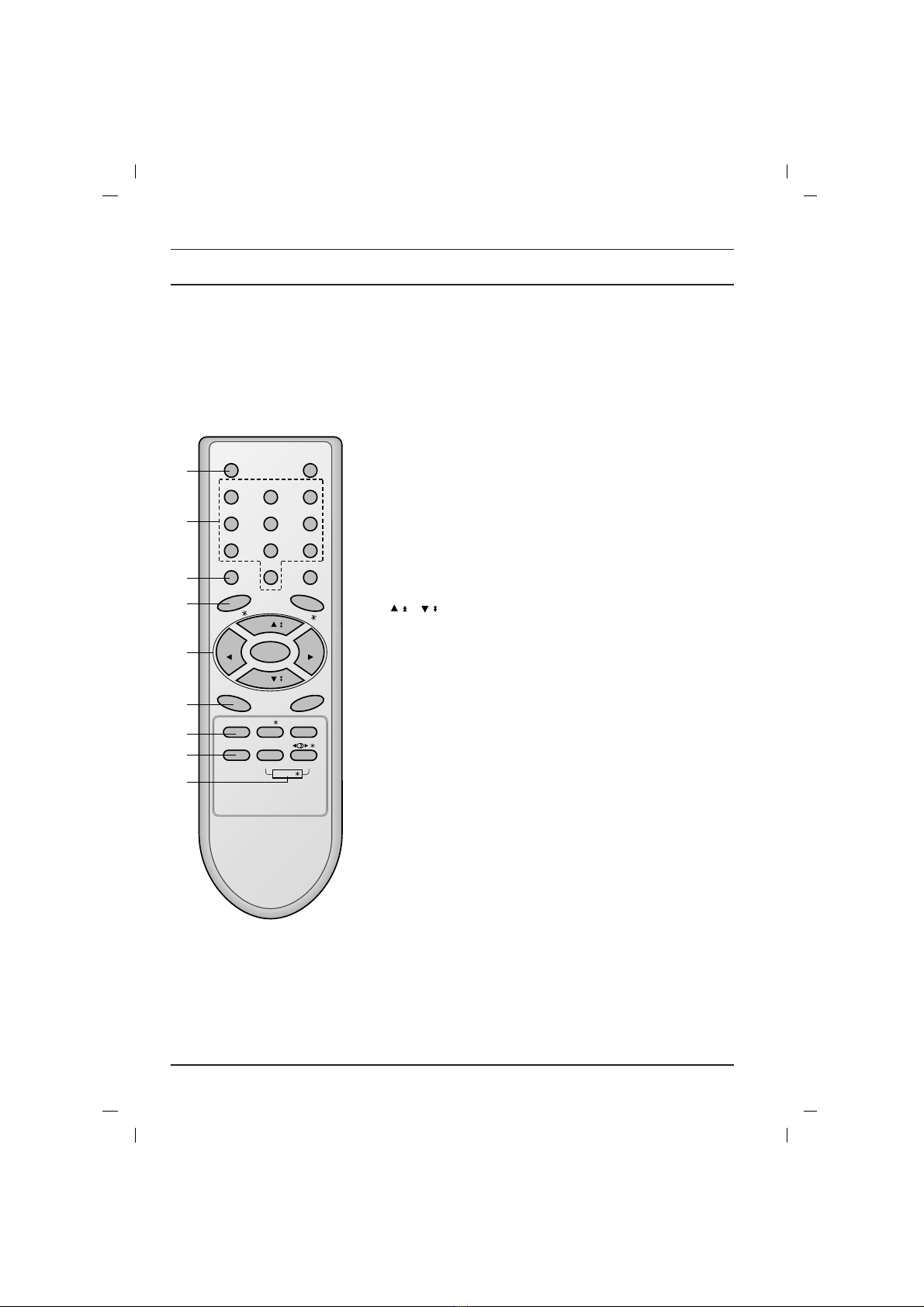

Remote control handset

Before you use the remote control handset, please install the bat-

teries. See the next page.

1. POWER

switches the set on from standby or off to standby.

2. NUMBER BUTTONS

switches the set on from standby or directly select a number.

3. MENU

selects a menu.

4. EYE/*(option)

switches the eye function on or off.

5. / (Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

scans programmes automatically.

FF / GG (Volume Up/Down)

adjusts the volume.

adjusts menu settings.

accepts your selection or displays the current mode.

6. Q.VIEW

returns to the previously viewed programme.

7. PSM (Picture Status Memory)

recalls your preferred picture setting.

8. FAVOURITE

selects a favorite programme.

9. TURBO PICTURE / SOUND BUTTON (option)

selects Turbo picture and sound.

Location and function of controls

( )

POWER MUTE

123

456

789

TV/AV

EYE/

Q.VIEW

LIST

I / II /

( )

OK VOLVOL

PSM SSM/ SLEEP

PICTURE SOUND

TURBO/

FAVOURITE

Location and function of controls

10. MUTE

switches the sound on or off.

11. TV/AV

selects TV or AV mode.

switches the set on from standby.

12. I/II/*(option)

selects the language during dual language broadcast. (option)

selects the sound output.

13. LIST

displays the programme table.

14. SLEEP

sets the sleep timer.

15. SSM/*(Sound Status Memory) (option)

recalls your preferred sound setting.

16. SURROUND (ºº/*) (option)

selects surround sound.

*: No function

COLOURED BUTTONS : These buttons are used for teletext (only

TELETEXT models) or programme edit.

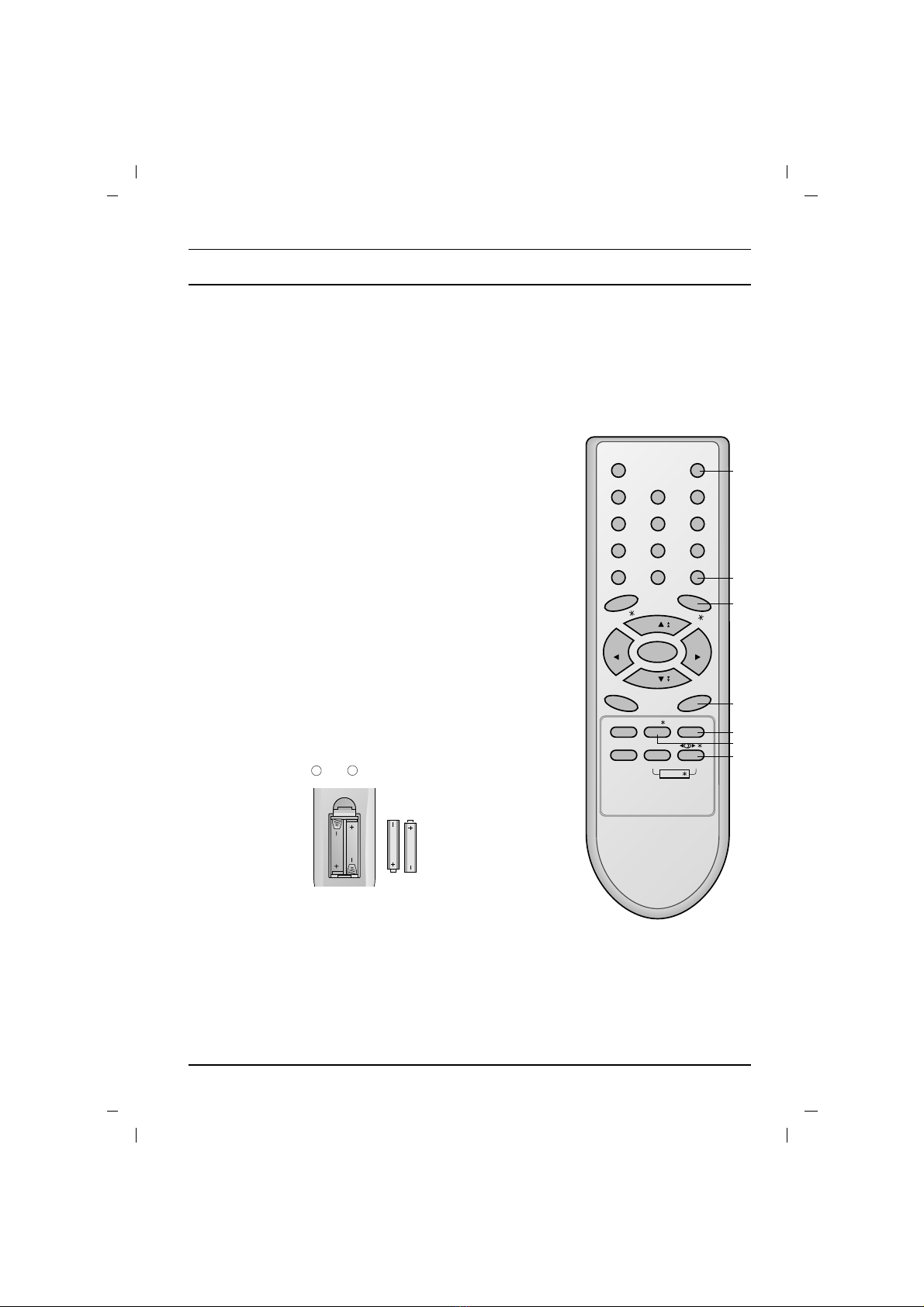

Battery installation

The remote control handset is powered by two AAA type batteries.

To load the batteries, turn the remote control handset over and

open the battery compartment. Install two batteries as indicated by

the polarity symbols ( and ) marked inside the compartment.

Note : To avoid damage from possible battery leakage, remove the

batteries if you do not plan to use the remote control handset for an

extended period of time.

POWER MUTE

123

456

789

TV/AV

EYE/

Q.VIEW

LIST

I / II /

( )

OK VOLVOL

PSM SSM/ SLEEP

PICTURE SOUND

TURBO/

FAVOURITE

Location and function of controls

Front panel

VIDEO

L/MONO

AUDIO

AV2

VIDEO

L/MONO

AUDIO

21FB3 series

ON/OFF MENU OK

VOL PR

VIDEO AUDIO

L/MONO

AV3

1 2 3 4 7 765 6

1 2 3 4 85

21FX4 series

21FD1/4 series

MENU OK VOL PR

1 2 3 4 5

VIDEOAUDIO

617/21FB7 series

1 2 3 4 5

VIDEO

L/MONO

RAUDIO

AV2

ON/OFF

MENU OK VOL PR

VIDEO

AUDIO

21FB5 series

2 3 4 75

17/21FX5 series

2 3 54

VOL

ON/OFF

VOL

21FC9/21FD6 series

ON/OFF

VOL

21FB2 series

1 2 3 4 85

VIDEO L/MONO RAUDIO

AV2

21FX6 series

1 4 5

15/21FC2 series

24 53

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e

@@@@@@@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@

@@g

@@@@@@@@

21FG1 series

24 53

@@@@@@@@e?

@@h?

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e

@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@

@@@@@@@@

?@@

?@@@@@@@@

?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@

@@g

@@@@@@@@

Location and function of controls

Front panel

17/21FA3 series

ON/OFF

MENU OK VOL PR

L/MONO

13 4 567

ON/OFF

VOL SOUND

PR PICTURE

TURBO

15/21Q9 series

123 5 9 8

VIDEO L/MONO RAUDIO

AV2

VIDEO AUDIO

21FE6 series

1235

VIDEO

L/MONO

AUDIO

AV2

21FC1 series

MENU OK VOL PR

1 2 3 4 5

1. MAIN POWER (ON/OFF)

switches the set on or off.

2. POWER/STANDBY INDICATOR

illuminates brightly when the set is in

standby mode.

dims when the set is switched on.

3. REMOTE CONTROL SENSOR

Note : Only use the supplied remote

control handset. (When you use oth-

ers, they’ll be not able to function.)

4. MENU (option)

selects a menu.

5. OK (option)

accepts your selection or displays the

current mode.

FF/ GG(Volume Up/Down) (option)

adjusts the volume.

adjusts menu settings.

DD/ EE(Programme Up/Down) (option)

selects a programme or a menu item.

switches the set on from standby.

6. AUDIO (or AUDIO-L/R)/VIDEO IN

SOCKETS (AV or AV2) (option)

Connect the audio/video out sockets of

external equipment to these sockets.

7. HEADPHONE SOCKET (option)

Connect the headphone plug to this

socket.

8. EYE (option)

adjusts picture according to the sur-

rounding conditions.

9. TURBO SOUND / PICTURE (option)

switches Turbo sound or Turbo picture

function on or off.

10. TV/AV (option)

selects TV or AV mode.

clears the menu from the screen.

switches the set on from standby.

11. (Function) (option)

selects volume, EYE (option), picture

items or brief auto programme while

the menus not display.

12. + / - (DD/ EE) (option)

adjusts the function or selects a programme.

switches the set on from standby.

Note : Shown is a simplified representa-

tion of front or side panel. Here shown

may be somewhat different from your set.

TV/AV (VOL)PR VIDEO AUDIO

AV2

L/MONO

( ) ( )

ON/OFF

21Q6 series

12 3 10 11 678

ON/OFF

MENU O K

VOL VOL

21Q4 series

142 3 8

VIDEO AUDIO

AV2

Basic operation

On and off

1. Press the main power button to switch the set on.

2. If the set is in standby mode, press the POWER, DD / EE, TV/AV

or NUMBER buttons on the remote control handset to switch it

on fully.

3. Press the POWER button on the remote control handset.

The set reverts to standby mode.

4. Press the main power button again to switch the set off.

Note : If, while the set is switched on, the mains plug is discon-

nected the set will switch to standby or power on when the mains

plug is replaced in the mains power socket.

Programme selection

You can select a programme number with the DD / EE or NUMBER

buttons.

Volume adjustment

Press the FF / GG button to adjust the volume.

Quick view

Press the Q.VIEW button to view the previous programme you

were watching.

Mute function

Press the MUTE button. The sound is switched off and the display

>appears.

You can cancel it by pressing the MUTE, FF / GG, SSM/*, I/II/*,

TURBO SOUND button.

On screen language selection (option)

The menu can be displayed on the screen in desired language.

First select your language.

1. Press the MENU button and then DD / EE button to select the

Special menu.

2. Press the GGbutton to select Language.

3. Press the GGbutton and then DD / EEbutton to select your desired

language.

All the on screen displays will appear in the selected language.

Press the OK or FF button to select the Special menu.

4. Repeatedly press the MENU button to return to normal TV

viewing.

POWER MUTE

123

456

789

TV/AV

Q.VIEW

I / II /

( )

OK VOLVOL

SSM/

SOUND

TURBO/

The dialogue between you and your set takes place on screen with

an operator menu. The buttons required for the operating steps are

also displayed.

Menu selection

1. Press the MENU button and then DD / EE button to display each menu.

2. Press the GGbutton and then DD / EE button to select a menu item.

3. Press the GGbutton to display the sub menu or the pull-down menu.

4. Change the setting of an item in the sub or pull-down menu with

FF / GGor DD / EE.

You can move to the higher level menu with OK or FFbutton and

to move to the lower level menu press the GGbutton.

Note :

a. In mono models, the Sound menu does not appear.

b. In some models, Turbo Pic. will not display in the Picture menu.

c. In some models, Turbo.Snd., AV L , Balance, Woofer, X-WAVE

or Treble, Bass will not display in the Sound menu.

d. In some models, Language, Blue back, Game,Booster

will not display in the Special menu.

On screen menus

( )

OK VOLVOL

TV programme

Auto

prog. {

Manual {

Prog.

edit {

Favourite

{

)O}i{OOKOMENU

System {

Storage {

Normal {

urbo {

DeleteOOOCopy

MoveOOOOOSkip

Station menu

Storage {

System {

Channel {

Fine {

Search {

Name {

System {

Storage {

()O}i{OOKOMENU

(

)O}i{OOKOMENU

(

)O}i{OOKOMENU

(

PSM {

urbo

Pic. {

CSM {

Contrast {

Brightness {

Colour

{

Sharpness

{

)O}i{OOKOMENU

Picture menu

(

SSM {

urbo

Snd. {

AVL {

Balance {

Woofer {

reble {

Bass {

X-WAVE

{

)O}i{OOKOMENU

Sound menu

(

Clock {

Off

time {

Auto

off {

)O}i{OOKOMENU

Time menu

(

Language {

Input {

Blue

back {

Child

lock {

)O}i{OOKOMENU

Special menu

(

OOOO

Setting up TV stations

Up to 100 TV stations can be stored by programme numbers (0 to 99).

Once you have preset the stations, you will be able to use the DD / EE

or NUMBER buttons to scan the stations you programmed.

Stations can be tuned using automatic or manual modes.

Note : In some models up to 200 TV stations can be stored.

Auto programme tuning

All stations that can be received are stored by this method. It is rec-

ommended that you use auto programme during installation of this set.

1. Press the MENU button to select the Station menu.

2. Press the

GGbutton and then DD / EE button to select Auto prog..

3. Press the GGbutton to display the Auto prog. menu.

4. Press the

GGbutton. Select a TV system with the DD / EEbutton

on the System pull-down menu;

BG : (Asia/New Zealand/M.East/Africa/Australia)

I: (Hong Kong/South Africa)

DK : (East Europe/China/Africa/CIS)

M : (USA/Korea/Philippines) (option)

5. Press the OK or FF button.

6. Press the DD / EE button to select Storage.

Press the GGbutton. Select the beginning programme number

with the FF / GG button or NUMBER buttons on the Storage

from pull-down menu. Any number under 10 is entered with a

numeric ‘0’(or

‘00’

) in front of it, i.e. ‘05’(or

‘005’

) for 5.

8. Press the OK button.

9. Press the

DD / EE button to select Normal or Turbo.

Option: In some models, you can only select Start.

Note :

a. Turbo is faster than ormal and in some models, these

searches will automatically store all receivable stations.

b. If the programmed station has poor quality sound, select the

system again in the Manual menu.

10. Press the GGbutton to begin auto programming.

All receivable stations are stored.

To stop auto programming, press the MENU button.

When auto programming is completed, the Prog. e it menu

appears on the screen. See the ‘Programme edit’ section to edit

the stored programme.

11. Repeatedly press the MENU button to return to normal TV

viewing.

123

456

789

( )

OK VOLVOL

(Normal search) (Turbo search)

Auto

prog. {

Manual {

Prog.

edit {

Favourite

{

)O}i{OOKOMENU

(

System {

Storage {

Normal {

urbo {

System { BG

)O}i{OOKOMENU

(

System {

Storage {

Normal {

urbo { 00C0010(BG)

OO7OOO36%

System {

Storage {

Normal {

urbo { 00C0010(BG)

OO7OOO36%

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere LG Fernseher Handbücher

LG 55EA8800 Bedienungsanleitung

LG 21FK2RL Bedienungsanleitung

LG UQ80 Series Bedienungsanleitung

LG LED LCD TV / LCD TV / PLASMA TV Bedienungsanleitung

LG 21FS2CLX Bedienungsanleitung

LG RT-32FZ60RB Bedienungsanleitung

LG Centric 37LT777H Bedienungsanleitung

LG 14FU7RB Bedienungsanleitung

LG RT-29FC90RB Bedienungsanleitung

LG 42LX330C Series Bedienungsanleitung

LG RE-28FZ30RQ Bedienungsanleitung

LG 47LH90 Series Bedienungsanleitung

LG LF63 Series Bedienungsanleitung

LG 14CA8RB Bedienungsanleitung

LG 42LN570V Bedienungsanleitung

LG Zenith H20J54DT Bedienungs- und Wartungshandbuch

LG RT-29FD15R Bedienungsanleitung

LG CT-29K36ET Bedienungsanleitung

LG 55UV970H Bedienungsanleitung

LG PT-43 Bedienungsanleitung

LG 37LC5DC Bedienungsanleitung

LG 32MN500M Bedienungsanleitung

LG M2262A Bedienungsanleitung

LG 26LH1DC3 Installationsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
