LG 29FU8 Series Bedienungsanleitung

OWNER'S MANUAL

Colour Television

information to your dealer when you require service.

See the label attached on the back cover and quote this

Record model number and serial number of the set.

Retain it for future reference.

Please read this manual carefully before operating your set.

P/NO : 3828VA0464A(VERSION 08)

Chassis MC-049A/B/C:

Contents

Important Precautions 3

Safety/Installation

Location and function of controls 5

Remote control handset

Front panel

Basic operation 8

On and off / Programme selection

Volume adjustment / Quick view

Mute function / Auto Demonstration

On screen language selection (option)

On screen menus 9

Menu selection

Setting upTV stations 10

Auto programme tuning / Auto programme scan/

Manual programme tuning / FineTuning / Assigning a station name /

Booster (Option) Programme edit / Deleting a programme /

Copying programme/Moving a programme/ Skipping a programme number /

Favourite programme/Calling the programme/

Selecting a programme in the programme table/

Paging through programme table

Picture adjustment 15

Picture adjustment / Eye (option) / Picture format

Turbo picture selection (option)

Sound adjustment 17

Sound adjustment / Woofer volume (option) / FMTransmitter (option)

Turbo sound selection (option) / Stereo / Dual reception (option)

NICAM reception (option) / Sound output selection

Timing setting 19

Time setting / On/off time / off time / On time

On programme number / Auto sleep

Other functions 20

On screen language selection (option) / TV and AV modes /

Auto AV switching (option) / Child lock / Blue back / Tilt (option) /

Degaussing (option) / Sleep timer (option) / LG game (option) / LG Reach (option) /

Jumble numbers (option) / Brainvita (option) / Jumble character (option) /

Space fighter (option) / Remote control for above game (option) /

Game Pack (option) / Remote control for game (option)

PIP operation (option) 24

On and off / Input mode selection for sub picture

Swapping between main and sub pictures

Programme selection for sub pictures (option)

Sub picture size / Sub picture freeze

Sub picture position change / 9 or 4 sub picture

Connection of external equipment 25

Aerial socket / Audio / Video in/out sockets (option)

Euro scart socket (option)

S-Video / Audio in sockets S-AV (option)

Component in sockets (option)

Headphone socket (option)

Troubleshooting check list 27

Important Precautions

This unit has been engineered and manufactured to assure your personal safety, however

improperusemayresultinpotentialelectricalshockorfirehazards.Inordertoallowtheproper

operation of all safeguards incorporated in thisTV set, observe the following basic rules for its

installation,useandservicing.Keepitinanaccessibleplaceforfuturereference.

On Safety

Do not Open theTV set

There are no user serviceable components inside.

There are Dangerous High Voltages inside, even when the power is OFF.

Contact your dealer if theTV is not operating properly.

To Avoid Personal Injury :

Do not place the TV set on a sloping shelf unless properly secured.

Use only fixed wooden stand.The TV shall be positioned 5cm behind the front

edge of an open fronted with 1cm free space along the sides top and 5cm

depth behind the TV.

Do not try to roll a stand with small casters across thresholds or deep pile

carpets.

To Prevent Fire or Hazards:

Always turn the TV set OFF if you leave the room for more than a short period

of time.Never leave the TV set ON when leaving the house.

Keep children from dropping or pushing objects into the TV cabinet

openings.Some internal parts carry hazardous voltages.

Do not add accessories that have not been designed for thisTV set.

During a lighting storm or when the TV set is to be left unattended for an

extended period of time, unplug it from the wall outlet and extreme socket.

Do not bring magnetic devices such as magnets or motors near the picture tube.

Operate the TV set only from a power source indicated in the specifications of this manual or

listed on the TV set. If you are not sure what type of power supply you have in your home,

consult with your dealer.

Overloaded AC outlets and extension cords are dangerous.So are frayed power cords and

broken plugs.They may result in a shock or fire hazard.Call your service technician for

replacement.

The power supply cord is used as the main disconnect device.Ensure that the socket-outlet

is easily accessible after installation.

Hands must be dry when holding the power plug to avoid an electric shock.

Do not damage the power cord by disassembling, bending, pulling or heating up,it can cause

fire or electric shock.

Make sure to completely insert the power plug. Insecure connections can cause fire.

Important Precautions

Power

This set operates on an AC mains supply, the voltage is as indicated on the label on the back

cover.Never apply DC power to the set. In the event of thunderstorms or powercuts, please

Service

pullouttheaerialandmainsplugs.

Aerial

Location

Connecttheaerialcabletothesocketmarked 75 onthebackcover.Forthebestreception

anoutdoor aerialshould beused.

Theventilationshouldnotbeimpededbycoveringtheventilationopeningswithitemssuchas

NonakedflamesourcesuchaslightedcandlesshouldbeplacedontheTV.

Never placetheTVset inabuilt-inenclosureunlessproperventilationisprovided.

NeverplacetheTVsetnearoroveraradiatororheatsource.

Positionyoursetsothatnobrightlightorsunlightfallsdirectlyontothescreen.

newspaper,tablecloths,curtains,etc.

On Installation

Do not allow anything to rest upon or roll over the power cord, and do not place theTV set

where the power cord is subject to damage.

Do not attempt to service the TV set yourself, as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Do not use this TV near water such as near bathtub, washbowl, kitchen sink, laundary tub,

in a wet basement, or near a swimming pool.

TV set are provided with ventilation openings in the cabinet to allow the release of heat

generated during operation. If these openings are blocked, built-up heat can cause failures

which may result in a fire hazard.There fore,

OnCleaning

OnRepacking

UnplugtheTVsetbeforecleaningthefaceoftheTVscreen.

Donotthrowawaythecartonandpackingmaterials.Theymakeanidealcontainerinwhichto

Useaslightlydamp(notwet)cloth.DonotuseanaerosoldirectlyontheTVscreenbecause

transporttheunit.Whenshippingtheunittoanotherlocation,repackitinitsoriginalmaterial.

overspraymaycauseelectricshock.

Caution: Please do not use stabilizer with TV set as this set has inbuilt voltage

stabilizer.Use of Inferiorqualitystabilizermaydamage theset.

Batteryinstallation

TheremotecontrolhandsetispoweredbytwoAA/AAAtypebatteries.Toloadthebatteries,turntheremote

control handset over and open the battery compartment. Install two batteries as indicated by the polarity

symbols(+ and -)markedinsidethecompartment.

Note: To avoid damage from possible battery leakage, remove the batteries if you do not plan to use the

remotecontrolhandsetforanexternalperiodoftime.

Allthe functionscanbe controlledwiththe remotecontrolhandset.

Somefunctionscanalsobeadjustedwiththebuttonsonthefront

paneloftheset.

Remote control handset

Before you use the remote control handset, please install the

batteries. See on the page No4.

1. POWER

switches the set On from standby or Off to standby.

2. NUMBER BUTTONS

switches the set On from standby or directly select a number.

3. ARC (Aspect Ratio Control)

Changes the picture format.

4. TURBO PICTURE / SOUND BUTTON

selects Turbo picture / sound.

5. / (Programme Up/Down)

selects a programme or a menu item.

switches the set On from standby.

scans programmes automatically.

/ (Volume Up/Down)

adjusts the volume.

adjusts menu settings.

6. VCR BUTTONS (option)

control a LG video cassette recorder.

7. SSM (Sound Status Memory)

recalls your preferred sound setting.

8. I/II (option)

selects the language during dual language broadcast (option).

selects the sound output.

9. PSM (Picture Status Memory)

recalls your preferred picture setting.

10. MUTE

switches the sound On or Off.

11.TV/AV

selects TV or AV mode.

switches the set On from standby.

12. MENU

selects a menu.

EYE/

Location and function of controls

POWER MUTE

TV/AVARC

SOUND

PICTURE MENU

T U R B O

REW PLAY FF

P/STILL STOP REC

I/II SSM LIST

PSM SLEEP

Q.VIEW

1 2 3

4 5 6

7 8

SIZE

POSITION

9/4 PIP

PR- PR+ SWAP INPUT

STILL

VOL VOL

5PR

(Without TELETEXT / With PIP)

FAVOURITE

VOL

VOL VOL

SOUND

Q-VIEW

FAVOURITE

ARC/*


TURBO

l/ll

LIST

PSM

SSM

POWER

VOL

MUTE

SLEEP MENU

TV/AV EYE/*

Location and function of controls

13. OK

acceptsyourselectionordisplaythecurrentmode.

14. LIST

displaysprogrammetable.

15. EYE/ (option)

switchtheeyefunctionOn orOff.

16. SLEEP

setsthesleeptimer.

17. Q.VIEW

returnstothepreviouslyviewprogramme.

18. PIPBUTTON(option)

for single tuner PIP models, the sub picture in RF mode will be

sameasmainpicture.

PIP

switchesthesubpicture.

PR+/-

selectaprogrammeforthesubpicture.

SWAP

alternatesbetweenmainandsubpicture.

SIZE

adjustthesubpicturesize.

STILL

freezemotionofthesubpicture.

POSITION

relocatesthesubpictureinclockwisedirection.

9/4PIP

switchesOnorOffthe9or4subpicture.

INPUT

presstheinputbuttontoselectthemodeofsubpicture.

19. FAVOURITE

pressing each time this button will select a stored favourite

programme.

COLOURED BUTTONS

Thesebuttonareusedforteletext(onlyTELETEXTmodels)or

programmeedit.

Remarks:

1. Some keys in remote can be non-functional, these keys are use in

othermodels.

2. Keysmarked*arenonfunctional.

(Without TELETEXT/ PIP)Without

21FD5 SERIES

VOL

Location and function of controls

1. MAIN POWER

switches the set On or Off.

2. POWER/STANDBYINDICATOR

illuminates brightly when the set is in

standbymode.

dimswhenthesetisswitchedOn.

3. MENU

selects a menu.

4. OK

accepts your selection or displays the

current mode.

5 (Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

(Volume Down/Up)

adjusts the volume.

adjusts menu settings.

6. REMOTE CONTROL SENSOR

Note : Only use the supplied remote

control handset. (When you use other,

they'll be not able to function).

7. HEADPHONE SOCKET (option)

Connect the headphone plug to this

socket.

8. AUDIO/VIDEO IN SOCKETS (AV2/AV3)

(Option)

Connect the audio/video out sockets of

External equipment to these sockets.

9. S-VIDEO/AUDIO IN SOCKETS (S-AV)

(option)

Connect the video out socket of an S

VIDEO VCR to the S-VIDEO socket.

Connect the audio out sockets of the

S-VIDEO VCR to the audio sockets as

in AV3.

10. EYE (option)

adjusts picture according to the Surroun-

ding conditions.

Note : Do not place any heavy objects on

the TV set.

FRONT PANEL / SIDE PANEL

Shown below is a simplified representation of front or side panel, here shown may be somewhat different from your set.

ON/OFF MENU OK VOL PR

1 2 3 46 5

21/29FC8 series

S VIDEO L/MONOVIDEO AUDIO R

7AV3

ON/OFF

S VIDEO L/MONOVIDEO AUDIO R

AV3

LVIDEO AUDIO R

AV2

ON/OFF

21FE4 series

5 2 10

VOL

S VIDEO L/MONOVIDEO AUDIO R

7AV3

610

29FD7 series/29FU8

S VIDEO L/MONOVIDEO AUDIO R

7AV3

9ON/OFF MENU OK VOL PR

1 2 3 4 56 10

ON/OFF

29FD5 series

5 2 106

VOL

S VIDEO L/MONOVIDEO AUDIO R

AV3

12610

21FD7 series

2610

21FU8 series 3

Basic operation

OnandOff

1. PressthemainpowerbuttontoswitchthesetOn.

2. If the set is in standby mode press the POWER,,TV/AV or

NUMBER buttons on the remote control handset to switch it On

fully.

3. PressthePOWERbuttonontheremotecontrolhandset.

Thesetrevertstostandbymode.

4. PressthemainpowerbuttonagaintoswitchthesetOff.

Programmeselection

You can select a programme number with the or NUMBER

buttons.

Volumeadjustment

Pressthe buttontoadjust thevolume.

Quickview

Press the Q.VIEW button to view the last programme you were

watching.

PresstheMUTE button.ThesoundisswitchedOff.Youcancancelit

bypressingtheMUTE, , SSM,TURBOSOUND.

AutoDemonstration

Toreview allthe menusprogrammedintheset, pressthe OKbutton

of the front panel control for about 10 seconds. To stop auto

demonstration, press any button of the front panel control or

POWERbuttonoftheremotecontrol.

Onscreenlanguageselection(option)

Themenucan bedisplayedon thescreenindesired language.First

selectyourlanguage.

1. Press the MENU button and then button to select the

Specialmenu.

2. Press the button twice and then the button to select

Language.

3. PresstheOKbutton.

Alltheonscreendisplayswillappearintheselectedlanguage

4. Repeatedly press the MENU or button to return to normal TV

viewing.

Mute function

VOL

SOUND

Q-VIEW

FAVOURITE

ARC/*


TURBO

l/ll

LIST

PSM

SSM

POWER

VOL

MUTE

TV/AV

SLEEP MENU

EYE/*

On screen menus

The dialogue between you and your set takes place on screen with

an operator menu.The buttons required for the operatingsteps are

alsodisplayed.

Menuselection

1. Press the MENU button and then button to display each

menu.

2. Pressthe buttonandthen buttontoselectamenuitem.

Theselectedmenuitemchangesfromwhitetoblue.

3. Press the button to change the setting of a menu item or OK

buttontodisplaythesubmenu.

Note:

a. Intheteletextmodemenusarenotdisplayed.

b. Insomemodels,theNormal/Turbosearchwillnotdisplay,

onlytheStartwilldisplayintheAutoProgrammemenu.

c. In some models, Tilt,Game,FM transmitter, Booster,DBS,

WoofervolumeorColourdegauss willnotdisplay.

d. Insomemodels,theLanguage will notdisplay.

e) Insomemodels,FMTransmitterwillbedisplayedasX-wave.

VOL

SOUND

Q-VIEW

FAVOURITE

ARC/*

TV/AV


TURBO

l/ll

LIST

SLEEP

PSM

SSM

POWER

VOL

EYE/*

MUTE

OK Picture

Sound

Time

Special

Programme

O.5 1.5 10 KHz

5.0O.1

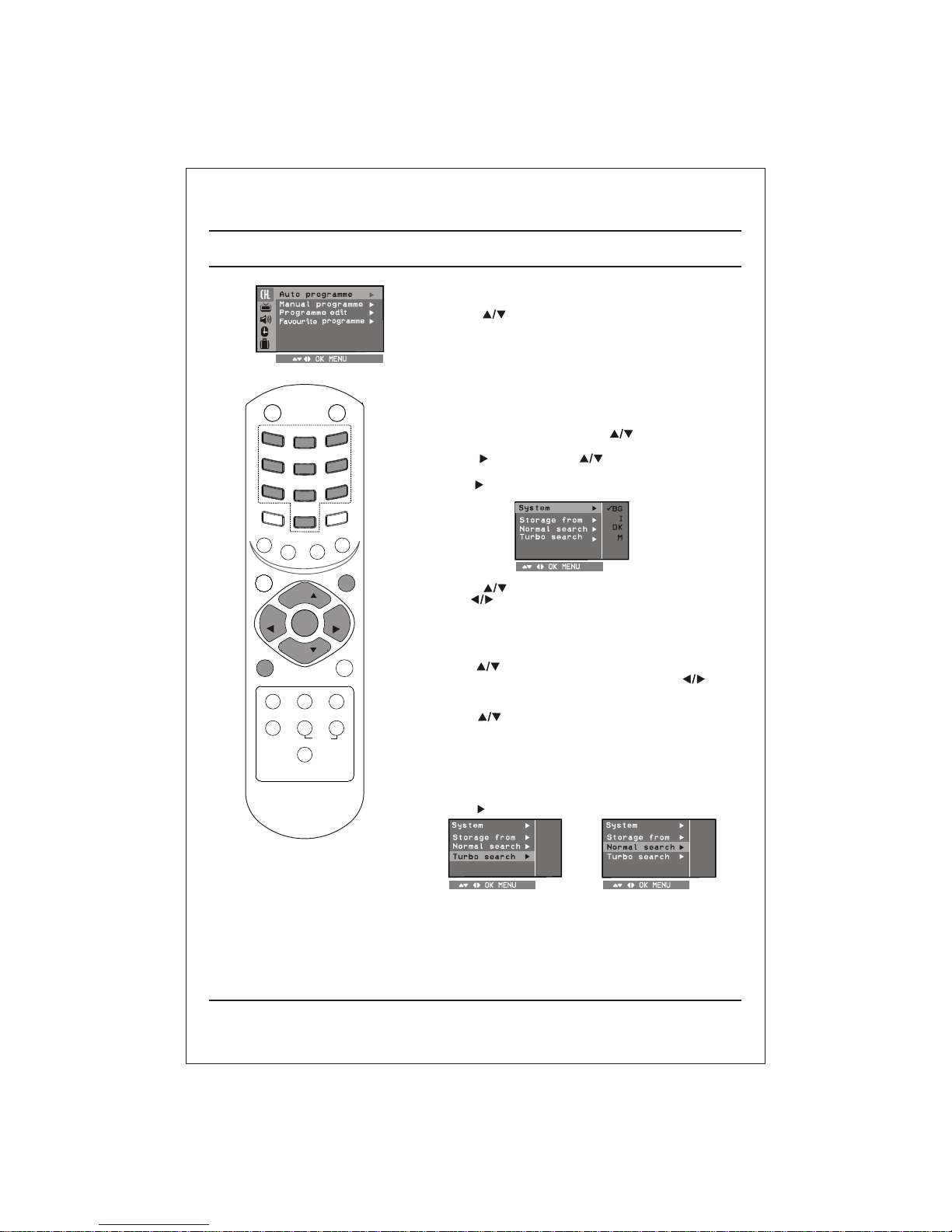

Up to 200 TV stations can be stored in this set by programme

numbers (0 to199). Once you have preset the stations, you will be

able to use the or NUMBER buttons to scan the stations you

programmed. Stations can be tuned using automatic or manual

modes.

Note:Insomemodelsup to100TV stationscanbe stored.

All stations that can be received are stored by this method. It is

recommended that you use auto programme during installation of

thisset.

1. Press the MENU button and then button to select the

Programmemenu.

2. Press the button and then button to select Auto pro-

gramme.

3. Pressthe buttontodisplaytheAutoProgramme menu.

4. Press the button to select System.Select aTV system

withthe button;

: (Asia/NewZealand/M.East/Africa/Australia)

I: (HongKong/SouthAfrica)

DK : (EastEurope/China/Africa/CIS)

M: (USA/Korea/Philippines)(option)

5. Pressthe buttontoselectStoragefrom.

6. Select the beginning programme number with the button

or NUMBER buttons.Any number under 10 is entered with a

numeric‘0’(or‘00’)infrontofiti.e.‘05’or(‘005’)for5.

7. Pressthe buttontoselectionNormalorTurbosearch.

Option : Insomemodels,OnlycanselectStart.

Note:

a. Turbo search is further faster than Normal search and in

some models, these searches will automatically store all

receivablestations.

b. lf the programmed station has poor quality sound, select the

systemagainintheManualProgramme menu.

8. Pressthe buttontobeginautoprogramming.

Allreceivablestationsarestored.

TostopautoprogrammingpresstheMENUbutton.

When auto programming is completed, the Programme edit

menu appears on the screen. See the 'Programme edit'

sectiontoeditthestoredprogramme.

9. RepeatedlypresstheMENUtoreturntonormalTV viewing.

Setting upTV stations

Turbo Search

Auto programme tuning

Normal Search

To Start

Programme

VOL

SOUND

Q-VIEW

FAVOURITE

ARC/*

TV/AV


TURBO

l/ll

LIST

SLEEP

PSM

SSM

POWER

VOL

EYE/*

MUTE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere LG Fernseher Handbücher

LG MFL68702211 Bedienungsanleitung

LG MFL68702414 Stücklistenhandbuch

LG RT-44NZ23RB Bedienungsanleitung

LG GOLD STAR CI21Q20ET Bedienungsanleitung

LG LCD Colour Television Bedienungsanleitung

LG EC93 Bedienungsanleitung

LG LB70 Bedienungsanleitung

LG 32MN500M Bedienungsanleitung

LG 42PG69 Series Bedienungsanleitung

LG RP-29FA40-M Bedienungsanleitung

LG 21FB7RB/RG Bedienungsanleitung

LG LG24V55 Produktinformationsblatt

LG RT-29FD40RX Bedienungsanleitung

LG 29FS4RK Bedienungsanleitung

LG LM63 Series Bedienungsanleitung

LG RT-21FB55M Bedienungsanleitung

LG 26LH1DC1 Installationsanleitung

LG CE-29Q46ET Bedienungsanleitung

LG CT-25M60RE Bedienungsanleitung

LG LCD Colour Television Bedienungsanleitung

LG 50PC3D - - 50" Plasma TV Bedienungsanleitung

LG DI-28Z12 Bedienungsanleitung

LG 42LC7D Series Bedienungsanleitung

LG 26LH1DC3 Installationsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
