1) Download the Software File.
Generic Plasma USB Automatic Software Download InstructionsGeneric Plasma USB Automatic Software Download Instructions
Currently Installed Version
Software Version found on
the USB Flash Drive
File found on the USB
Flash Drive
2) Copy new software (xxx.bin) into the root of the
Jump Drive. Make sure you have the correct
software file.
3
)
With TV turned on
,
insert USB flash drive.
Highlight Start Press Select
),

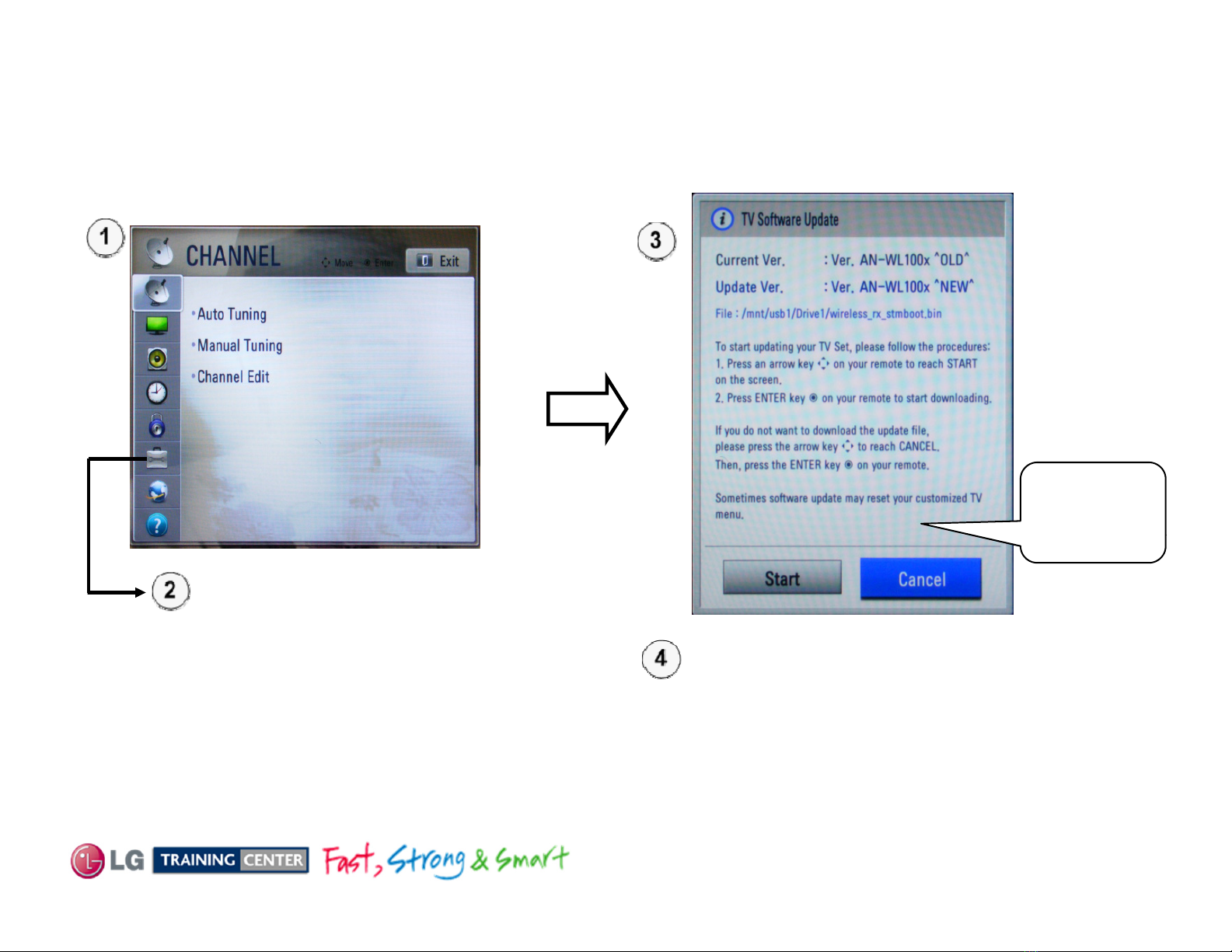

4) You can see the message
“TV Software Upgrade” (See figure on right)
5) Cursor left and highlight "START" Button and
push “Enter” button using the remote control.
6) You can see the download progress Bar
Highlight
Start
Press
Select
6)
You
can
see
the
download
progress
Bar
.
7) Do not unplug until unit has automatically
restarted.
8) When download is completed, you will see
“COMPLETE”.
* CAUTION:
Do not remove AC power or the USB Flash Drive.
Do not turn off Power, during the upgrade
process.
May 2011 50PV450 Plasma
16
9) Your TV will be restarted automatically. Software Files are now available from
LGTechassist.com
Manual Software Download:Manual Software Download:
Prepare the Jump Drive as described in the “USB Automatic Download” section and insert it into the USB port.
Bring up the Customer’s Menu and scroll to “OPTIONS”, (Nothing should be highlighted on the right side).
Press the
“
FAV
”
key 7
times to bring up the first screen for Manual Download Screen (Expert Mode)
Press
the
FAV
key
7
times
to
bring
up
the
first
screen
for
Manual
Download
Screen
(Expert
Mode)
.
Press the “FAV”
key 7 times
Location of
files found
On the Jump
Highlight the Software update file the
Scroll down and highlight “Options”
Drive
highlight “Start” and press “SELECT” to
begin the download process.
WARNING:
Use extreme Caution when using the Manual “Forced” Download Menu. Any file can be
May 2011 50PV450 Plasma
17
downloaded when selected and may cause the Main board to become inoperative if the
incorrect file was selected.
Accessing the Host DiagnosticAccessing the Host Diagnostic ScreenScreen
1
)
Place Television on the di
g
ital channel that

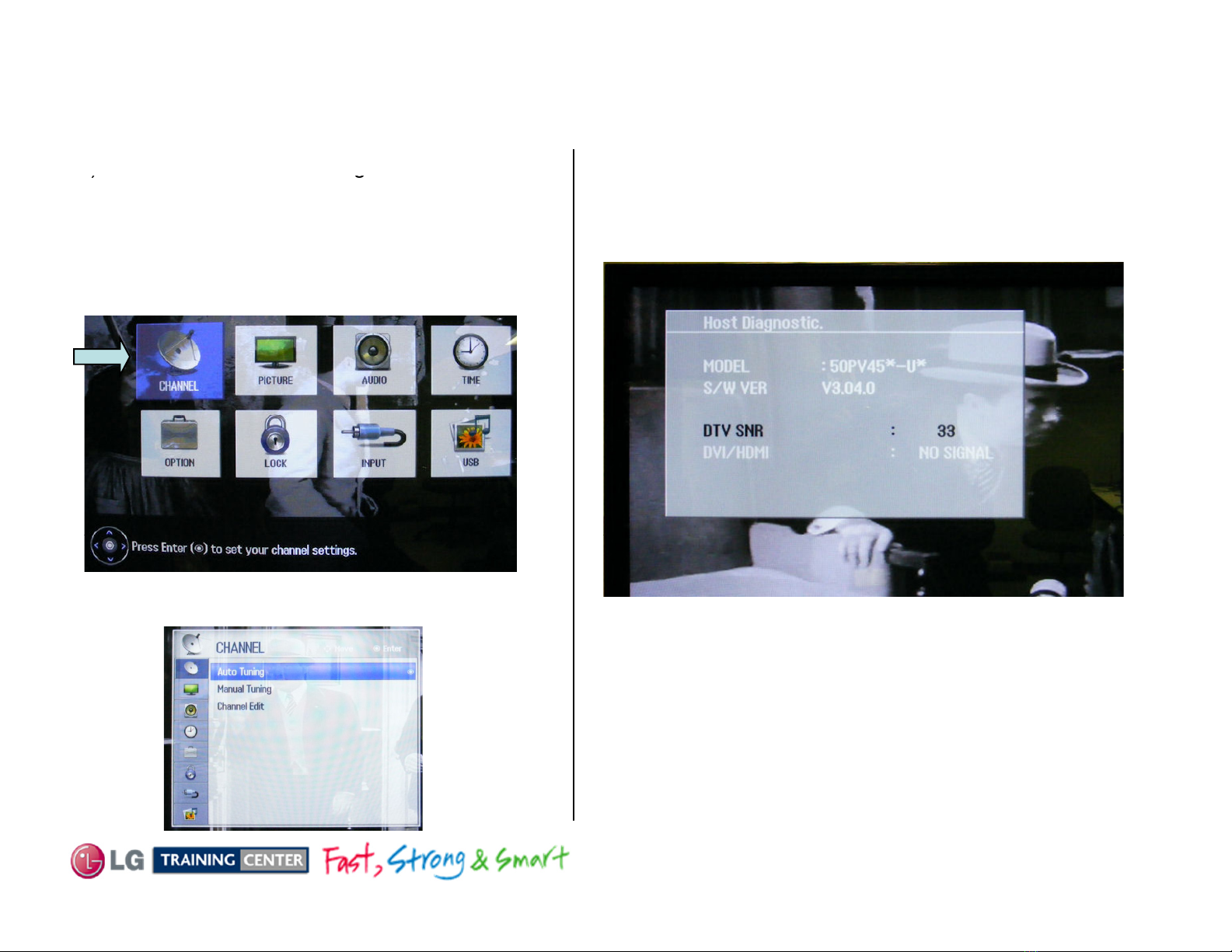

Use the Host Diagnostic screen to investigate the signal quality of a problem channel.
2) Bring up the Customer’s Menu. Highlight
“CHANNEL”. Press “ENTER” on the remote.
4) Press the (1) Key 5 to 8 times.
The Host Diagnostics screen appears.
)
g
may be showing problems.
3) The “CHANNEL” Menu appears.
DTV SNR: Digital Television Signal to Noise Ratio
Over the Air: 8VSB (Above 20 is good)
Over
the
Air:
8VSB
(Above
20
is
good)
Cable Digital: QAM 64 (Above 24 is good)
Cable Digital: QAM 256 (Above 30 is good)
May 2011 50PV450 Plasma
18
Accessing the Service MenuAccessing the Service Menu
To access the Service Menu.
1
)

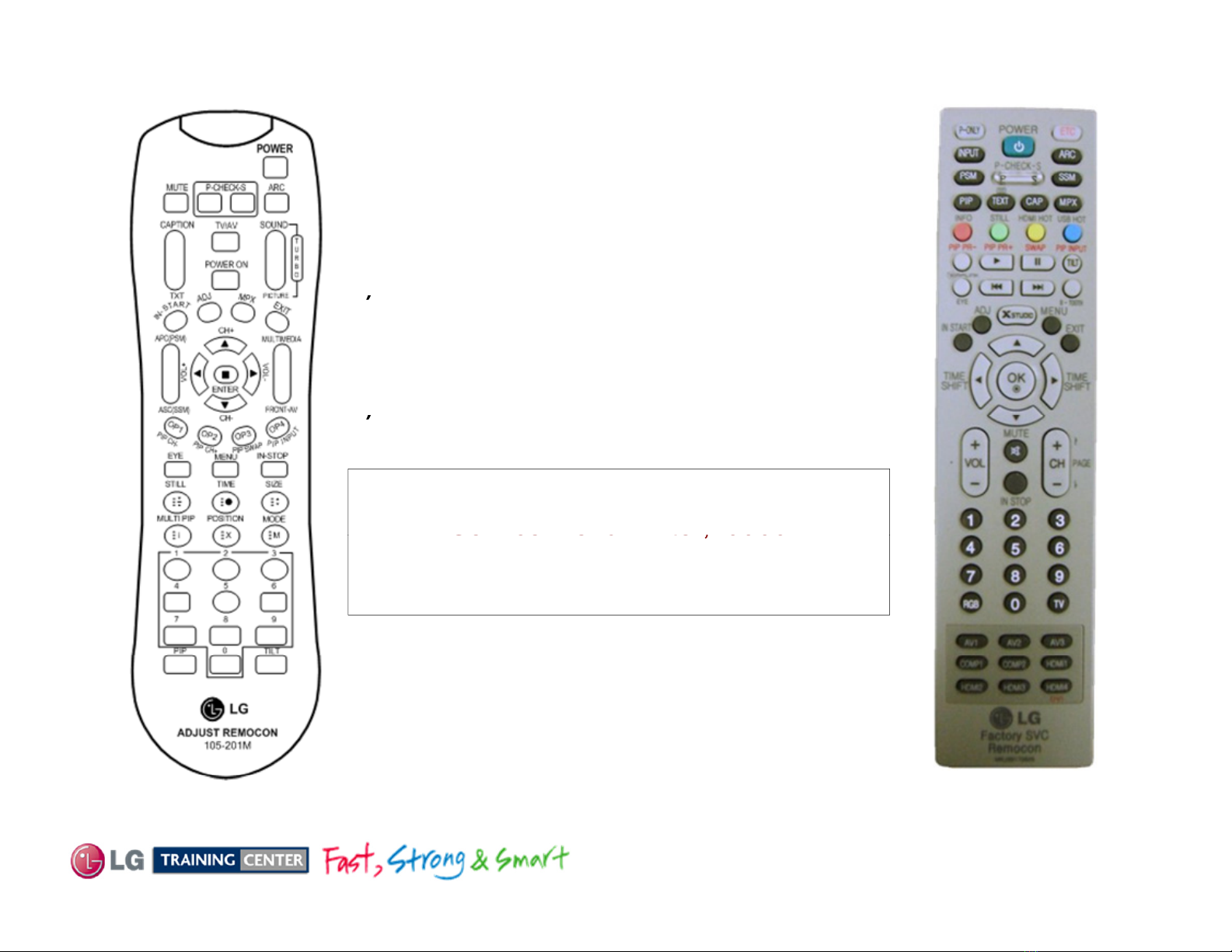

You must have either Service Remote.
)
p/n 105-201M or p/n MKJ39170828
2) Press “In-Start”
3) A Password screen appears.
4
)
Enter the Password.
)
Note: A Password is required to enter the
Se
rvi
ce
M
e
n
u
. En
te
r
;
0000
Se ce e u te ;
0000
Note: If 0000 does not work use 0413.
May 2011 50PV450 Plasma
MKJ39170828
105-201M
50PV450 Service Menu First Page
50PV450 Service Menu First Page
20 May 2011 50PV450 Plasma
Bring up the Service Menu using the Service Remote
And pressing “In-Start” enter password 0413.
MODEL
S/W VER
UTT
ADC CAL.
EDID : RGB(OK) HDMI(1:0K 2:0K 3:OK)
: 50PV45*-U*
V3.04.0 Sensor V0.05(0x05)
: 2
RGB : OK
YPbPr(SD) : OK
YPbPr(HD) : OK
0. TOOL OPTION
1. AREA OPTION
2. EPA
3. POWER OFF HISTORY
4. AUTO TEST
5. BAUD RATE
6. AUDIO EQ
7. Bass EQ
8. CHANNEL MUTE
9. SYNC LEVEL
10. DTV SNR
11. POWER ERROR HISTORY
:6
:USA
:ON
9600
ON
ON
ON
Country Group
Software Version
Unit’s Total Time
To Reset press “In Stop” Intelligent Sensor
Software Version
50PV450 Power Off History
50PV450 Power Off History
LAST HISTORY1
LAST HISTORY2
LAST HISTORY3
LAST HISTORY4
LAST HISTORY5
RCU OFF
KEY OFF
2HOUR OFF
NO SIGNAL OFF
AC DEC OFF
5VMNT OFF
TVLINK OFF
CLEAR ALL
POWER OFF HISTORY
AC DET OFF
NO SIGNAL OFF
NO SIGNAL OFF
-------------
-------------
:0
:0
:0
:2
:1
:0
:0
MODEL
S/W VER
UTT
ADC CAL.
EDID : RGB(OK) HDMI(1:0K 2:0K 3:OK)
: 50PV45*-U*
V3.04.0 Sensor V0.05(0x05)
: 2
RGB : OK
YPbPr(SD) : OK
YPbPr(HD) : OK
0. TOOL OPTION
1. AREA OPTION
2. EPA
3. POWER OFF HISTORY
4. AUTO TEST
5. BAUD RATE
6. AUDIO EQ
7. Bass EQ
8. CHANNEL MUTE
9. SYNC LEVEL
10. DTV SNR
11. POWER ERROR HISTORY
:6
:USA
:ON
9600
ON
ON
ON
21 May 2011 50PV450 Plasma
MODEL
S/W VER
UTT
ADC CAL.
EDID : RGB(OK) HDMI(1:0K 2:0K 3:OK)
: 50PV45*-U*
V3.04.0 Sensor V0.05(0x05)
: 2
RGB : OK
YPbPr(SD) : OK
YPbPr(HD) : OK
0. TOOL OPTION
1. AREA OPTION
2. EPA
3. POWER OFF HISTORY
4. AUTO TEST
5. BAUD RATE
6. AUDIO EQ
7. Bass EQ
8. CHANNEL MUTE
9. SYNC LEVEL
10. DTV SNR
11. POWER ERROR HISTORY
:6
:USA
:ON
9600
ON
ON
ON
Highlight and
Cursor Right
DTV SNR
DTV SNR : 33
Signal to Noise Ratio
8VSB (Above 20 is good)
QAM 64 (Above 24 is good)
QAM 256 (Above 30 is good)
50PV450 DTV SNR Screen
50PV450 DTV SNR Screen
22 May 2011 50PV450 Plasma
50PV450 Power Error History
50PV450 Power Error History
LAST HISTORY1
LAST HISTORY2
LAST HISTORY3
PFC_DET Error
5V OVP
5V UVP
17V OVP
17V UVP
M5V OVP
M5V UVP
VS OCP
VS OVP
VS UVP
VA OCP
VA OVP
VA UVP
CLEAR ALL
POWER ERROR HISTORY
VA UVP
VS OCP
-------------
0
0
0
0
0
0
0
1
0
0
0
0
1
MODEL
S/W VER
UTT
ADC CAL.
EDID : RGB(OK) HDMI(1:0K 2:0K 3:OK)
: 50PV45*-U*
V3.04.0 Sensor V0.05(0x05)
: 2
RGB : OK
YPbPr(SD) : OK
YPbPr(HD) : OK
0. TOOL OPTION
1. AREA OPTION
2. EPA
3. POWER OFF HISTORY
4. AUTO TEST
5. BAUD RATE
6. AUDIO EQ
7. Bass EQ
8. CHANNEL MUTE
9. SYNC LEVEL
10. DTV SNR
11. POWER ERROR HISTORY
:6
:USA
:ON
9600
ON
ON
ON
23 May 2011 50PV450 Plasma
50PV450 Adjust Menu: Downloading EDID Data
50PV450 Adjust Menu: Downloading EDID Data
EDID D/L
HDMI1 OK
HDMI2 OK
HDMI3 OK
HDMI4 OK
RGB OK
START
0. ADC CALIBRATION
1. ADC ADJUST
2. SUB B/V ADJUST
3. 2/B ADJUST
4. EDID D/L
5. 2HOUR OFF
6. UART DOWNLOAD
7. MODULE CONTROL
8. DEBUG MODE
9. 15Min Forced Off
10. Phase Noise Control
11. 1MIN TIMER CONTROL
12. Lip Sync Adjust(DTV)
13. DVI/HDMI Switch
14. PLL Tracking Speed
15. Touch Sensitivity Setting
16. Over Modulation Control
17. Atten RF Signal
: ON
: OFF
: ON
: OFF
: OFF
: 20
: OFF
: 0
: 1
: OFF
1) Press “ADJ” key. Password is required
2) Scroll down and select item 4 EDID D/L
3) In the EDID D/L screen, press the Cursor Right key.
EDID data is downloaded.
24 May 2011 50PV450 Plasma
50PV450 Adjust Menu: Module Control Shows Control Board Information
50PV450 Adjust Menu: Module Control Shows Control Board Information
0. ADC CALIBRATION
1. ADC ADJUST
2. SUB B/V ADJUST
3. 2/B ADJUST
4. EDID D/L
5. 2HOUR OFF
6. UART DOWNLOAD
7. MODULE CONTROL
8. DEBUG MODE
9. 15Min Forced Off
10. Phase Noise Control
11. 1MIN TIMER CONTROL
12. Lip Sync Adjust(DTV)
13. DVI/HDMI Switch
14. PLL Tracking Speed
15. Touch Sensitivity Setting
16. Over Modulation Control
17. Atten RF Signal
: ON
: OFF
: ON
: OFF
: OFF
: 20
: OFF
: 0
: 1
: OFF
Module Temp.
Module Name
Module Rom Ver.
0. AV PC Mode
1. ISM Control
2. Gama
3. PS Mode
4. DPS Control
5. Rom Download
35.5 Celsius
50R3
50R3_3DA1E0
: AV
: AUTO
: 0
: 13
: OFF
: OFF
MODULE CONTROL
AUTO, PC
ON, OFF
1, 2, 3
Fixed
ON
ON
Temperature
of the Panel
Software
Version
Must leave Adj. Menu and
return to update Temp.
ROM Download when changed to ON blacks
out the screen. Press the right cursor key once
and 5 seconds later the pix appears.
Press the “ADJ” key on the service remote to bring
up the Adjust Menu then enter the password.
Item 7 is the Module Control, highlight and cursor right.
25 May 2011 50PV450 Plasma
