Contents

Installation 3

Location and function of controls 4

Remote control handset

Battery installation

Front panel / Side panel

Basic operation 7

On and off / Programme selection

Volume adjustment / Quick view

Mute function

On screen language selection (option)

On screen menus 8

Menu selection

Setting up TV stations 9

Auto programme tuning

Manual programme tuning / Fine Tuning

Programme edit / Favourite programme

Calling the programme table

Picture adjustment 15

PSM (Picture Status Memory) /

Eye (option) / Picture adjustment

Sound adjustment 17

SSM (Sound Status Memory) / Sound adjustment

X-WAVE (Wireless Sound) (option)

Turbo sound selection

Sound output selection / Stereo/Dual reception

NICAM reception (option)

Time setting 20

Setting the clock / Setting the On/Off timer

Auto sleep

Other functions 21

TV and AV modes / Auto AV switching (option)

Child lock / Blue back (option) / Tilt (option)

Degaussing /

Games (option) /

Sleep timer

PIP operation (option) 24

On and off / Input mode selection for sub picture

Swapping between main and sub pictures

Programme selection for sub picture

Sub picture size / Sub picture freeze

Sub picture position change /

9 or 4 sub picture

Teletext (option) 25

Switch on/off

SIMPLE text / TOP text (option)

FASTEXT / Special teletext functions

Connection of external equipment 28

Aerial socket

Audio/Video in/out sockets (option)

Euro scart socket (option)

Component in sockets (option)

Troubleshooting check list 30

Installation

Power

This set operates on an AC mains supply, the voltage is as indicat-

ed on the label on the back cover. Never apply DC power to the set.

In the event of thunderstorms or powercuts, please pull out the aer-

ial and mains plugs.

Warning

To prevent fire or shock hazard, do not expose the set to rain or

moisture.

Do not place anything containing liquid on top of the set, this may

cause a fire or could give an electric shock.

Service

Never remove the back cover of the set as this can expose you to

very high voltage and other hazards. If the set does not operate

properly, unplug it and call your dealer.

Aerial

Connect the aerial cable to the socket marked +75 Ωon the back

cover. For the best reception an outdoor aerial should be used.

Location

Position your set so that no bright light or sunlight falls directly onto

the screen. Care should be taken not to expose the set to any

unnecessary vibration, moisture, dust or heat. Also ensure that the

set is placed in a position to allow a free flow of air. Do not cover

the ventilation openings on the back cover.

All the functions can be controlled with the remote control handset.

Some functions can also be adjusted with the buttons on the front

panel of the set.

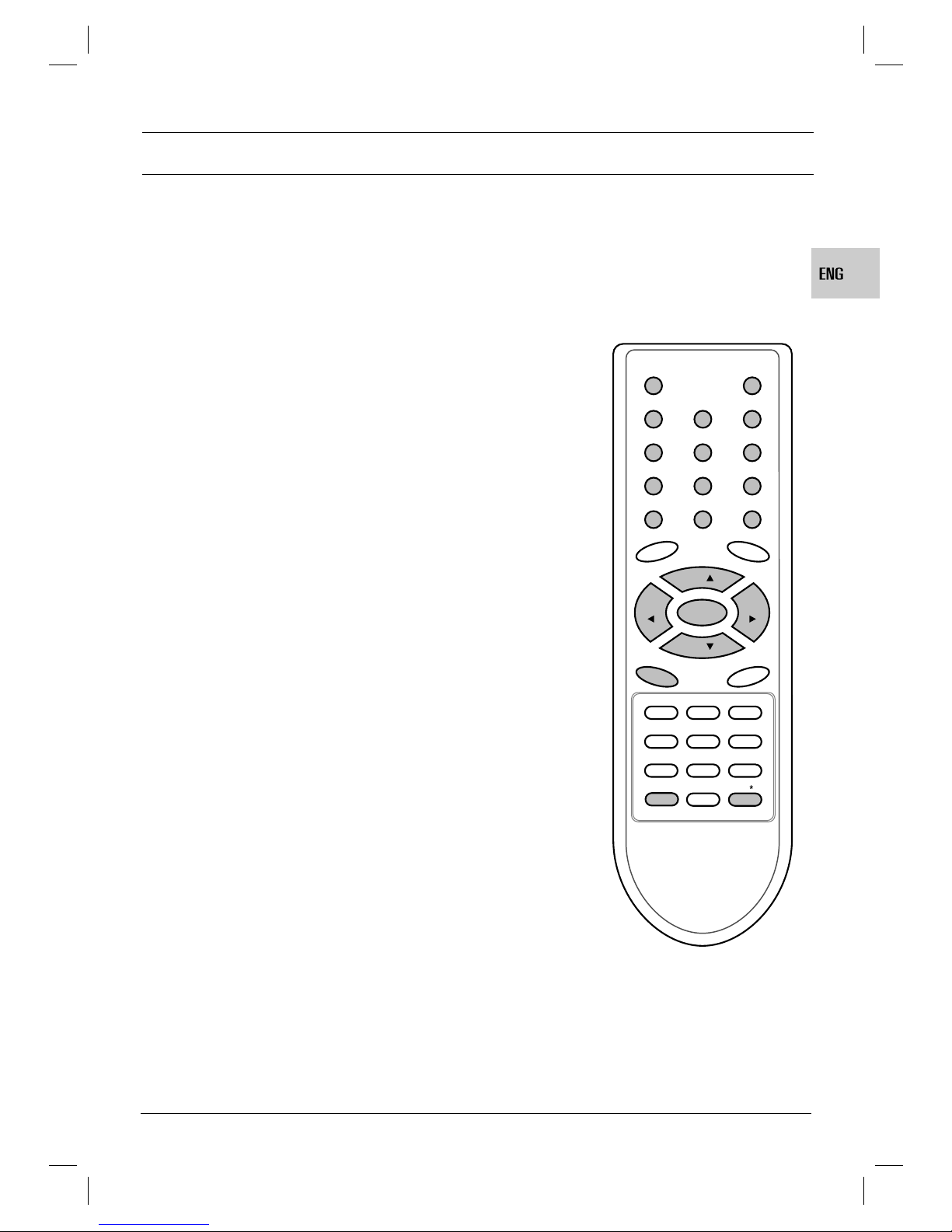

Remote control handset

Before you use the remote control handset, please install the bat-

teries. See the next page.

1. POWER

switches the set on from standby or off to standby.

2. NUMBER BUTTONS

switches the set on from standby or directly select a number.

3. MENU

selects a menu.

4. D /E(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

scans programmes automatically.

F /G (Volume Up/Down)

adjusts the volume.

adjusts menu settings.

accepts your selection or displays the current mode.

5. TELETEXT BUTTONS (option)

These buttons are used for teletext.

For further details, see the ‘Teletext’ section.

SLEEP

sets the sleep timer.

7. PIP BUTTONS (option)

PIP

switches the sub picture on or off.

PR +/-

selects a programme for the sub picture.

SWAP

alternates between main and sub picture.

INPUT

selects the input mode for the sub picture.

SIZE

adjusts the sub picture size.

STILL

freezes motion of the sub picture.

POSITION

relocates the sub picture in clockwise direction.

9/4 PIP

switches on or off the 9 or 4 sub pictures.

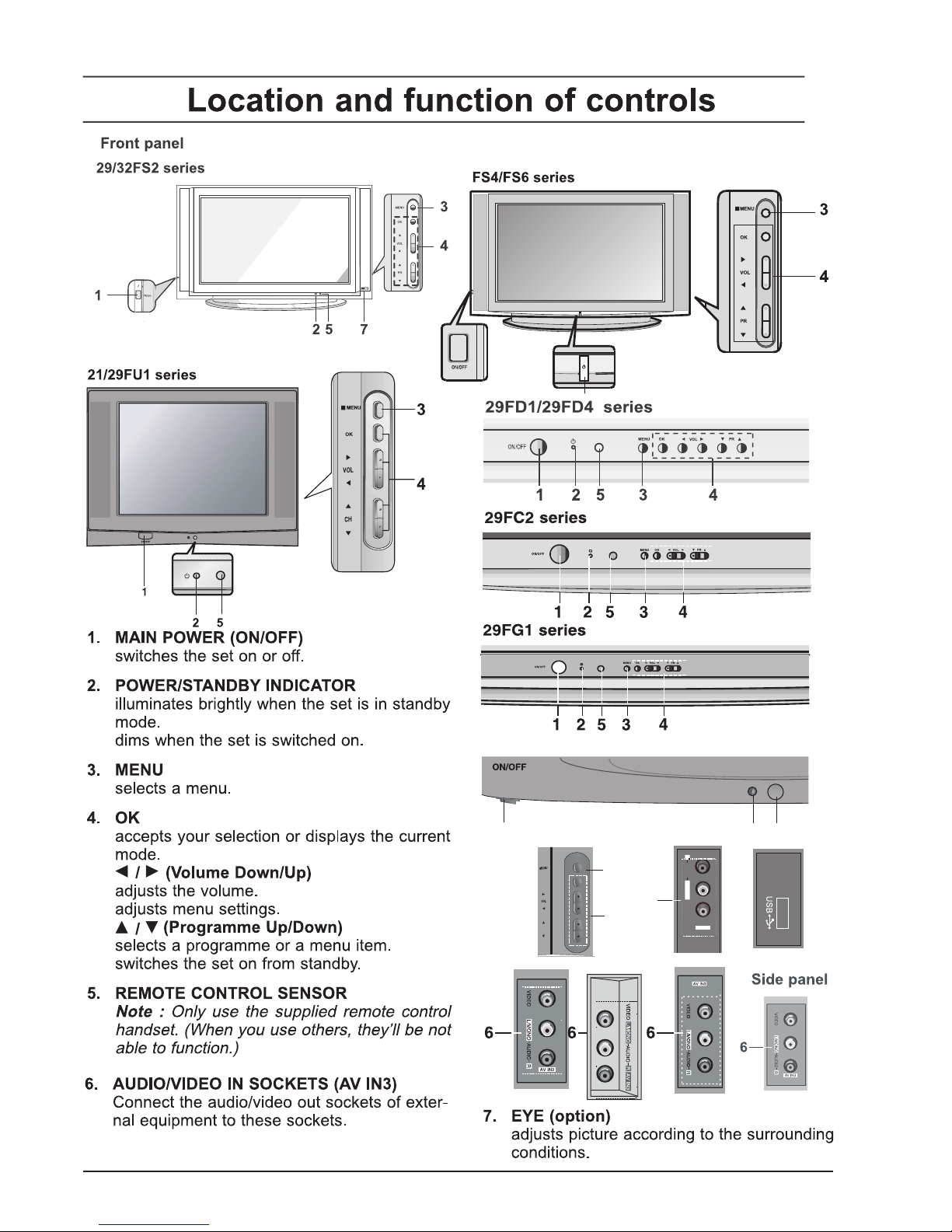

Location and function of controls

(With TELETEXT / PIP)

POWER MUTE

123

456

789

TV/AV

OK VOLVOL

SWAP

INPUT

PR+

PR-

TEXT/MIX/

SIZE/

PIP 9/4PIP i

POSITION/

STILL/

REVEAL/

SLEEPMODE/

EYE

TIME/

FAVOURITE

I/II/

TEXT/MIX/

SIZE/

INDEX/ i

UPDATE/

HOLD/

REVEAL/

SLEEPMODE/

TIME/

FAVOURITE

EYE/

I/II/

Q.VIEW

LIST

(With TELETEXT / Without PIP)

Location and function of controls

8. FAVOURITE

selects a favorite programme.

EYE/*(option)

switches the eye function on or off.

10. MUTE

switches the sound on or off.

11. TV/AV

selects TV or AV mode.

switches the set on from standby.

exits the Teletext mode.

12.

I/II/*

selects the language during dual language broadcast.

selects the sound output (option).

13. Q.VIEW (or YELLOW)

returns to the previously viewed programme.

14.

LIST (or BLUE)

displays the programme table.

*: No function

COLOURED BUTTONS : These buttons are used for teletext (only

TELETEXT models) or programme edit.

Battery installation

The remote control handset is powered by two AAA type batteries.

To load the batteries, turn the remote control handset over and

open the battery compartment. Install two batteries as indicated by

the polarity symbols ( and ) marked inside the compartment.

Note : To avoid damage from possible battery leakage, remove the

batteries if you do not plan to use the remote control handset for an

extended period of time.

(Without TELETEXT / PIP)

OK VOLVOL

SWAP INPUT

PR+PR-

SLEEP

FAVOURITE

POSITION

9/4PIP

STILL

PIP

SIZE

EYE/ I/II/

(With PIP / Without TELETEXT)

POWER MUTE

123

456

789

TV/AV

OK VOLVOL

SLEEP

FAVOURITE

EYE/ I/II/

Q.VIEW

LIST

29FU3/29FU5 series

123

VIDEO

L/MONOR AUDIO

AV IN3

Basic operation

On and off

1. Press the main power button to switch the set on.

2. If the set is in standby mode, press the POWER,D /E,TV/AV

or NUMBER buttons on the remote control handset to switch it

on fully.

3. Press the POWER button on the remote control handset.

The set reverts to standby mode.

4. Press the main power button again to switch the set off.

Note : If, while the set is switched on, the mains plug is discon-

nected the set will switch to standby or power on when the mains

plug is replaced in the mains power socket.

Programme selection

You can select a programme number with the D /E or NUMBER

buttons.

Volume adjustment

Press the F /G button to adjust the volume.

Q.VIEW (or YELLOW)

Press the Q.View (or YELLOW) button to view the last programme

you were watching.

Mute function

Press the MUTE button. The sound is switched off and the display

Wappears.

You can cancel it by pressing the MUTE,F /G,I/II/

(option), button.

On screen language selection

The menu can be displayed on the screen in desired language.

First select your language.

1. Press the MENU button and then D /E button to select the

Special menu.

2. Press the Gbutton to select Language.

3. Press the GGbutton and then D /Ebutton to select your desired

language.

All the on screen displays will appear in the selected language.

Press the OK or F button to select the Special menu.

4. Repeatedly press the MENU button to return to normal TV

viewing.

POWER MUTE

123

456

789

TV/AV

OK VOLVOL

SWAP INPUT

PR+PR-

TEXT/MIX/

SIZE/

PIPPIP 9/4PIP/i9/4PIP/i

POSITION/POSITION/

STILL/STILL/

REVEAL/

SLEEPMODE/SLEEPMODE/


TIME/

FAVOURITE

I/II/

The dialogue between you and your set takes place on screen with

an operator menu. The buttons required for the operating steps are

also displayed.

Menu selection

1. Press the MENU button and then D /E button to display each

menu.

2. Press the Gbutton and then D /E button to select a menu item.

3. Press the Gbutton to display the sub menu or the pull-down

menu.

4. Change the setting of an item in the sub or pull-down menu with

F /Gor D /E.

You can move to the higher level menu with OK or Fbutton and

to move to the lower level menu press the Gbutton.

Note :

a. In the teletext mode, menus are not displayed.

b. In some models, the

Normal

Turbo search

will not display,

only the

Start

will display in the

Auto programme

menu.

c. In some models,

Tilt

Game

Booster

Degauss

will not dis-

play.

d. On some models, the

Language

X-WAVE

will not display.

On screen menus

OK VOLVOL

TV programme

Auto

programme {

Manual

programme {

Programme

edit {

FavouriteOprogramme

{

()O}{OOKOMENU

System {

StorageOfrom {

NormalOsearch {

TurboOsearch {

0OOARO1DOOO5OOSO69

O1OOCO03OOO6OOSO17

O2OOCO12OOO7OOSO22

O3OOSO66OOO8OOCO09

O4OOSO67OOO9OOCO11

DeleteOOOOCopy

MoveOOOOOOSkip

O0OOCO03

Picture menu

Station menu

PSM {

XD {

Contrast {

Brightness {

Colour {

Sharpness {

()O}{OOKOMENU

Sound menu

()O}{OOKOMENU

Special menu

()O}{OOKOMENU

Time menu

()O}{OOKOMENU

Storage {

System {

Channel {

Fine {

Search {

Name {

()O}{OOKOMENU

()}{OOKOMENU

System {

Storage {

Station


Sound

Time

Special

Auto programme

Manual programme

Programme edit

SSM {

TurbooSound {

AVL {

Balance {

Clock {

Offotime {

Onotime {

Autoosleep {

Language {

Input {

Childolock {

Degauss {

Andere Handbücher für CW62A

Inhaltsverzeichnis

Andere LG Fernseher Handbücher

LG 22LQ630H Bedienungsanleitung

LG MC-059C Bedienungsanleitung

LG RT-29FD60R Bedienungsanleitung

LG 32LF580B Bedienungsanleitung

LG 50PG20 Series Bedienungsanleitung

LG 32LN5400 Bedienungsanleitung

LG 21FB7RB/RG Bedienungsanleitung

LG LB45 series Bedienungsanleitung

LG LCD Colour Television Bedienungsanleitung

LG 37LG30 Series Bedienungsanleitung

LG 60LN6150 Bedienungsanleitung

LG RT-29CC25R Bedienungsanleitung

LG LF51 SERIES Bedienungsanleitung

LG LB63 Series Bedienungsanleitung

LG Flatron M237WD Bedienungsanleitung

LG RT-44NZ21RB Bedienungsanleitung

LG 50LF652V.AEK Bedienungsanleitung

LG RU-50PZ61 Bedienungsanleitung

LG RT-25/29FB30R/V/VX Bedienungsanleitung

LG PF-43A20 Bedienungsanleitung

LG 32LE5500 Bedienungsanleitung

LG UK65 Series Bedienungsanleitung

LG CT-25/29M60E/T Bedienungsanleitung

LG 29FS4RK Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
