LG LCD Colour Television Bedienungsanleitung

Colour Television

OWNER’S MANUAL

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the back cover and quote this infor-

mation to your dealer when you require service.

Model number :

Serial number :

BZ03

Contents

Installation 3

Location and function of controls 4

Remote control handset

Battery installation

Front panel / Side panel

Basic operation 8

On and off / Programme selection

Volume adjustment / Quick view

Mute function

On screen language selection (option)

On screen menus 9

Menu selection

Setting up TV stations 10

Auto programme tuning

Manual programme tuning / Fine Tuning

Programme edit / Favourite programme

Calling the programme table

Picture adjustment 16

PSM (Picture Status Memory) /

Eye (option) / Picture adjustment

Sound adjustment 18

SSM (Sound Status Memory) / Turbo sound selection

Sound adjustment

X-WAVE (Wireless Sound) (option)

Sound output selection / Stereo/Dual reception

NICAM reception (option)

Time setting 21

Setting the clock / Setting the On/Off timer

Auto sleep

Other functions 22

TV and AV modes / Auto AV switching (option)

Child lock / Blue back (option) / Tilt (option)

Degaussing / Sleep timer

PIP operation (option) 25

On and off / Input mode selection for sub picture

Swapping between main and sub pictures

Programme selection for sub picture

Sub picture size / Sub picture freeze

Sub picture position change

Teletext (option) 26

Switch on/off

SIMPLE text / TOP text (option)

FASTEXT / Special teletext functions

Connection of external equipment 29

Aerial socket

Euro scart socket

Audio/Video in/out sockets (option)

Audio out sockets (AUDIO OUT)

Troubleshooting check list 31

Installation

Power

This set operates on an AC mains supply, the voltage is as indicat-

ed on the label on the back cover. Never apply DC power to the set.

In the event of thunderstorms or powercuts, please pull out the aer-

ial and mains plugs.

Warning

To prevent fire or shock hazard, do not expose the set to rain or

moisture.

Do not place anything containing liquid on top of the set, this may

cause a fire or could give an electric shock.

The working life of this set is 7 years since the date of delivery to

consumer.

Service

Never remove the back cover of the set as this can expose you to

very high voltage and other hazards. If the set does not operate

properly, unplug it and call your dealer.

Aerial

Connect the aerial cable to the socket marked on the back

cover. For the best reception an outdoor aerial should be used.

Location

Position your set so that no bright light or sunlight falls directly onto

the screen. Care should be taken not to expose the set to any

unnecessary vibration, moisture, dust or heat. Also ensure that the

set is placed in a position to allow a free flow of air. Do not cover

the ventilation openings on the back cover.

All the functions can be controlled with the remote control handset.

Some functions can also be adjusted with the buttons on the front

panel of the set.

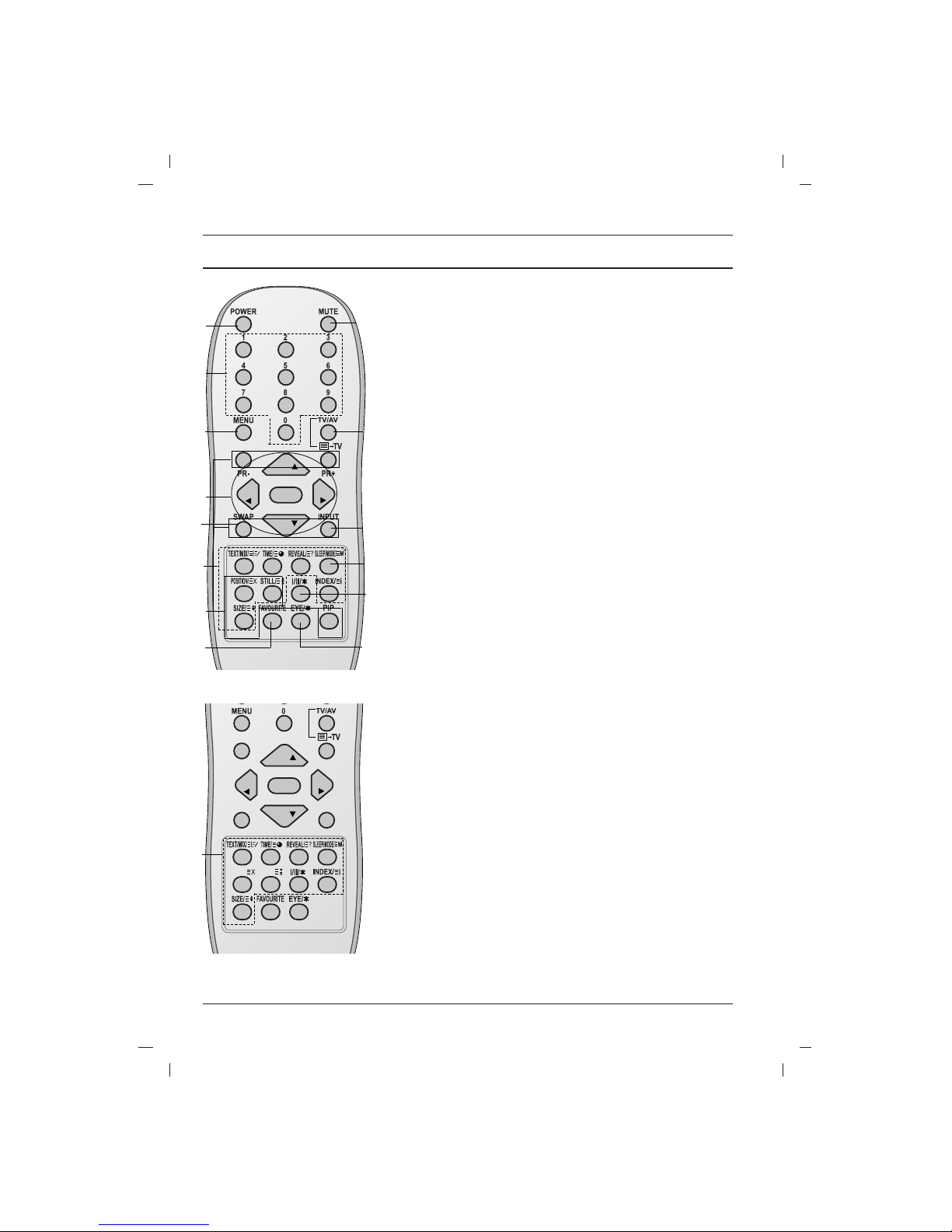

Remote control handset

Before you use the remote control handset, please install the bat-

teries. See the next page.

1. POWER

switches the set on from standby or off to standby.

2. NUMBER BUTTONS

Switches the set on from standby or directly select a number.

3. MENU

selects a menu.

4. DD/ EE(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

scans programmes automatically.

FF/ GG(Volume Up/Down)

adjusts the volume.

adjusts menu settings.

accepts your selection or displays the current mode.

5. TELETEXT BUTTONS (option)

These buttons are used for teletext.

For further details, see the ‘Teletext’ section.

SLEEP

sets the sleep timer.

7. PIP BUTTONS (option)

PIP

switches the sub picture on or off.

PR +/-

selects a programme for the sub picture.

SWAP

alternates between main and sub picture.

INPUT

selects the input mode for the sub picture.

SIZE

adjusts the sub picture size.

STILL

freezes motion of the sub picture.

POSITION

relocates the sub picture in clockwise direction.

Location and function of controls

(With TELETEXT / PIP)

VOL VOL

Q.VIEW LIST

UPDATE/

HOLD/

(With TELETEXT / Without PIP)

Location and function of controls

8. FAVOURITE

selects a favorite programme.

EYE/*(option)

switches the eye function on or off.

10. MUTE

switches the sound on or off.

11. TV/AV

selects TV or AV mode.

switches the set on from standby.

exits the Teletext mode.

12.

I/II/*

selects the language during dual language broadcast.

selects the sound output (option).

13. Q.VIEW (or YELLOW)

returns to the previously viewed programme.

14.

LIST (or BLUE)

displays the programme table.

*: No function

COLOURED BUTTONS : These buttons are used for teletext (only

TELETEXT models) or programme edit.

Battery installation

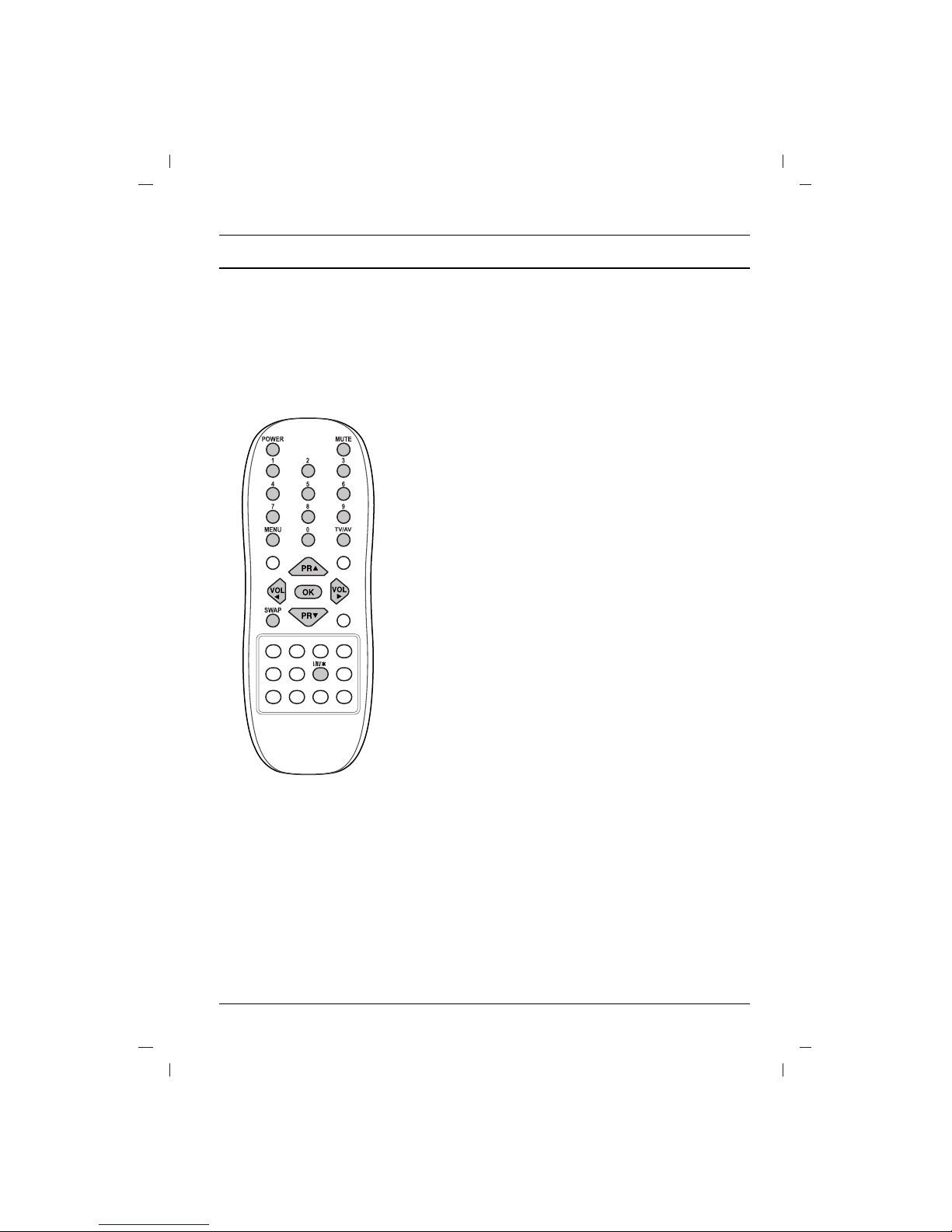

The remote control handset is powered by two AAA type batteries.

To load the batteries, turn the remote control handset over and

open the battery compartment. Install two batteries as indicated by

the polarity symbols ( and ) marked inside the compartment.

Note : To avoid damage from possible battery leakage, remove the

batteries if you do not plan to use the remote control handset for an

extended period of time.

(Without TELETEXT / PIP)

VOL VOL

(With PIP / Without TELETEXT)

VOL VOL

Q.VIEW LIST

Location and function of controls

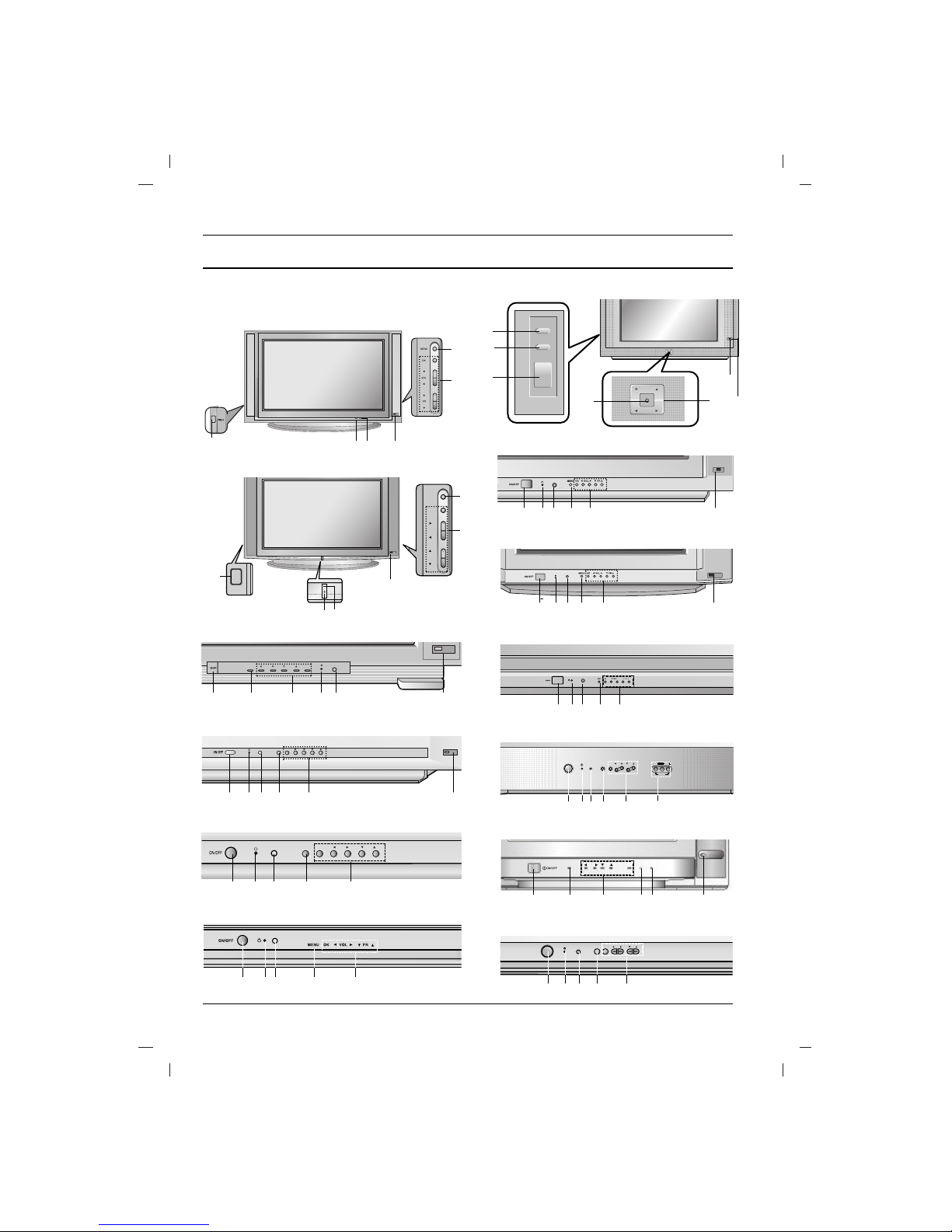

Front panel

29FS2 series

(Visible Size : 68cm)

32FS2 series

(Visible Size : 76cm)

ON/OFFON/OFF

FD1/4 series (Visible Size : 59cm)

FD1/4 series (Visible Size : 68cm)

MENU OK VOL PR

1 2 5 3 4

25FB7 series

(Visible Size : 59cm)

29FB7 series

(Visible Size : 68cm)

1 2 5 3 4

VOL

ON/OFF

VOL

FD6

series

(Visible Size : 59cm)

FD6

series

(Visible Size : 68cm)

1 2 5 3 74

25FX4 series

(Visible Size : 59cm)

29FX4 series

(Visible Size : 68cm)

ON/OFF

VOL

29FS4 series

(Visible Size : 68cm)

32FS4 series

(Visible Size : 76cm)

25FX5 series

(Visible Size : 59cm)

29FX5 series

(Visible Size : 68cm)

1 2 5 3 74

25FA6

series (Visible Size : 59cm)

29FA6 series

(Visible Size : 68cm)

MENU OK

VOL PR

1 2 5 73 4

25FC1 series

(Visible Size : 59cm)

29FC1 series

(Visible Size : 68cm)

MENU OK VOL PR

1 3 4 72 5

25FE6 series

(Visible Size : 59cm)

29FE6 series

(Visible Size : 68cm)

1 2 3 45

MENU OK VOL

ON/OFF

VIDEO AUDIO

L/MONO

AVIN3

25FB3 series (Visible Size : 59cm)

29FB3 series (Visible Size : 68cm)

125 3 4 6

MENU OK

VOL PR

25FA5 series (Visible Size : 59cm)

29FA5 series (Visible Size : 68cm)

ON/OFF

VOLMENU OK PR

25CC2 series (Visible Size : 59cm)

29CC2 series (Visible Size : 68cm)

1 2 5 3 4

Location and function of controls

1. MAIN POWER (ON/OFF)

switches the set on or off.

2. POWER/STANDBY INDICATOR

illuminates brightly when the set is in standby mode.

dims when the set is switched on.

3. MENU

selects a menu.

4. OK

accepts your selection or displays the current

mode.

/ G

(Volume Down/Up)

adjusts the volume.

adjusts menu settings.

/ E(Programme Up/Down)

selects a programme or a menu item.

switches the set on from standby.

5. REMOTE CONTROL SENSOR

Note : Only use the supplied remote control hand-

set. (When you use others, they will not be able to

function.)

6. AUDIO/VIDEO IN SOCKETS (AV IN3)

Connect the audio/video out sockets of external

equipment to these sockets.

7. EYE (option)

adjusts picture according to the surrounding

conditions.

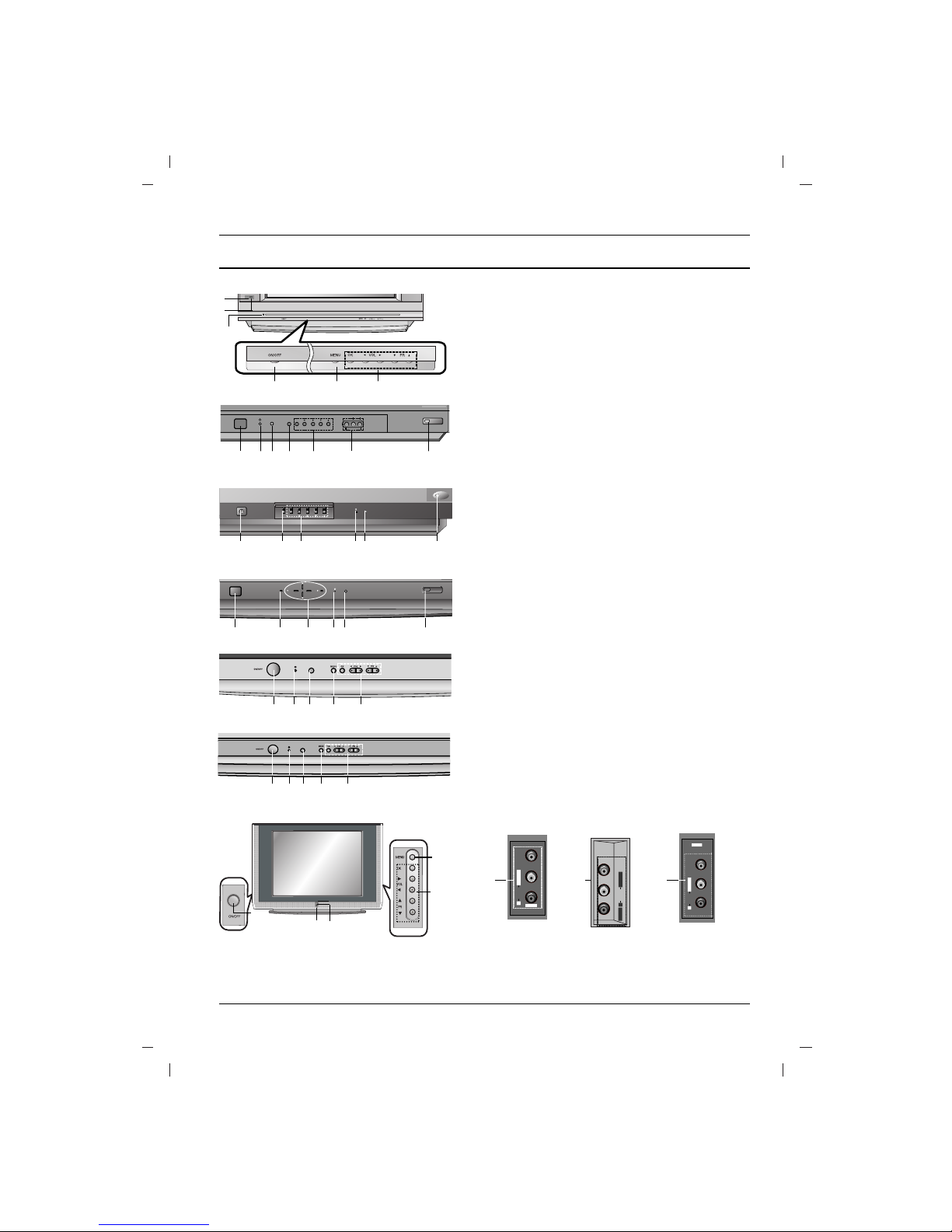

Side panel

VIDEO L/MONO RAUDIO

AV IN3

6 6

VIDEO L/MONO RAUDIO

AV IN3

VIDEO L/MONO AV IN3

AUDIO

25FX6 series

(Visible Size : 59cm)

29FX6 series

(Visible Size : 68cm)

1 3 4

ON/OFF

MENU OK VOL PR

VIDEO

AUDIO

AVIN3

29FB5 series

(Visible Size : 68cm)

2 5 3 4

ON/OFF

MENU OK VOL PR

25Q2 series (Visible Size : 59cm)

29Q2 series (Visible Size : 68cm)

1342 5 7

ON/OFF

MENU O K

VOL VOL

25Q4 series (Visible Size : 59cm)

29Q4 series (Visible Size : 68cm)

132 5

29FC2 series (Visible Size : 68cm)

23 45

29FG1 series (Visible Size : 68cm)

23 45

29FS6 series (Visible Size : 68cm)

Basic operation

On and off

1. Press the main power button to switch the set on.

2. If the set is in standby mode, press the POWER, DD/ EE, TV/AV

or NUMBER buttons on the remote control handset to switch it

on fully.

3. Press the POWER button on the remote control handset.

The set reverts to standby mode.

4. Press the main power button again to switch the set off.

Note : If, while the set is switched on, the mains plug is discon-

nected the set will switch to standby or power on when the mains

plug is replaced in the mains power socket.

Programme selection

You can select a programme number with the DD/ EEor NUMBER

buttons.

Volume adjustment

Press the FF/ GGbutton to adjust the volume.

Q.VIEW (or YELLOW)

Press the Q.View (or YELLOW) button to view the last programme

you were watching.

Mute function

Press the MUTE button. The sound is switched off and the display

Wappears.

You can cancel it by pressing the MUTE, FF/ GG, I/II/

(option), button.

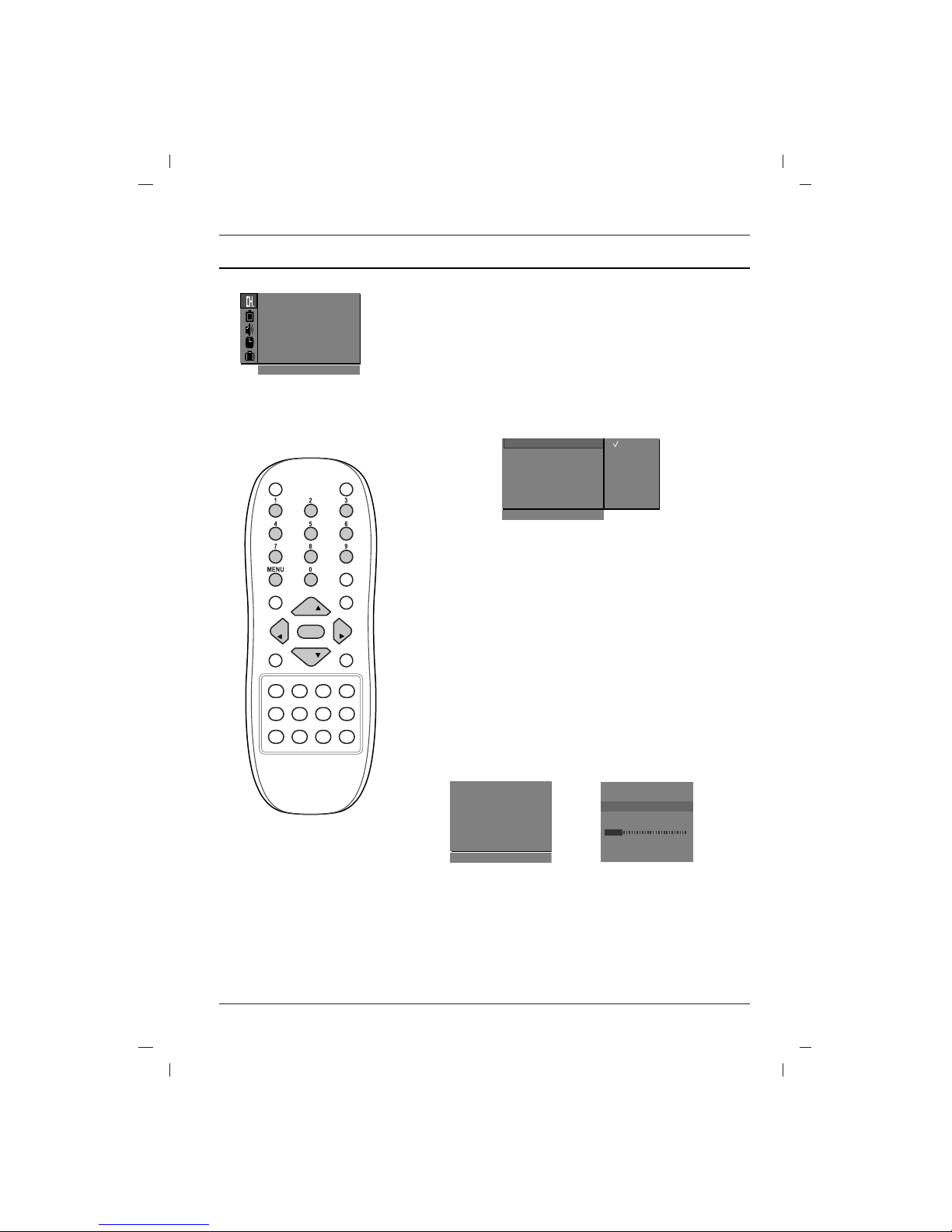

On screen language selection

The menu can be displayed on the screen in desired language.

First select your language.

1. Press the MENU button and then DD/ EEbutton to select the

Special menu.

2. Press the GGbutton to select Language.

3. Press the GGbutton and then DD/ EEbutton to select your desired

language.

All the on screen displays will appear in the selected language.

Press the OK or FFbutton to select the Special menu.

4. Repeatedly press the MENU button to return to normal TV

viewing.

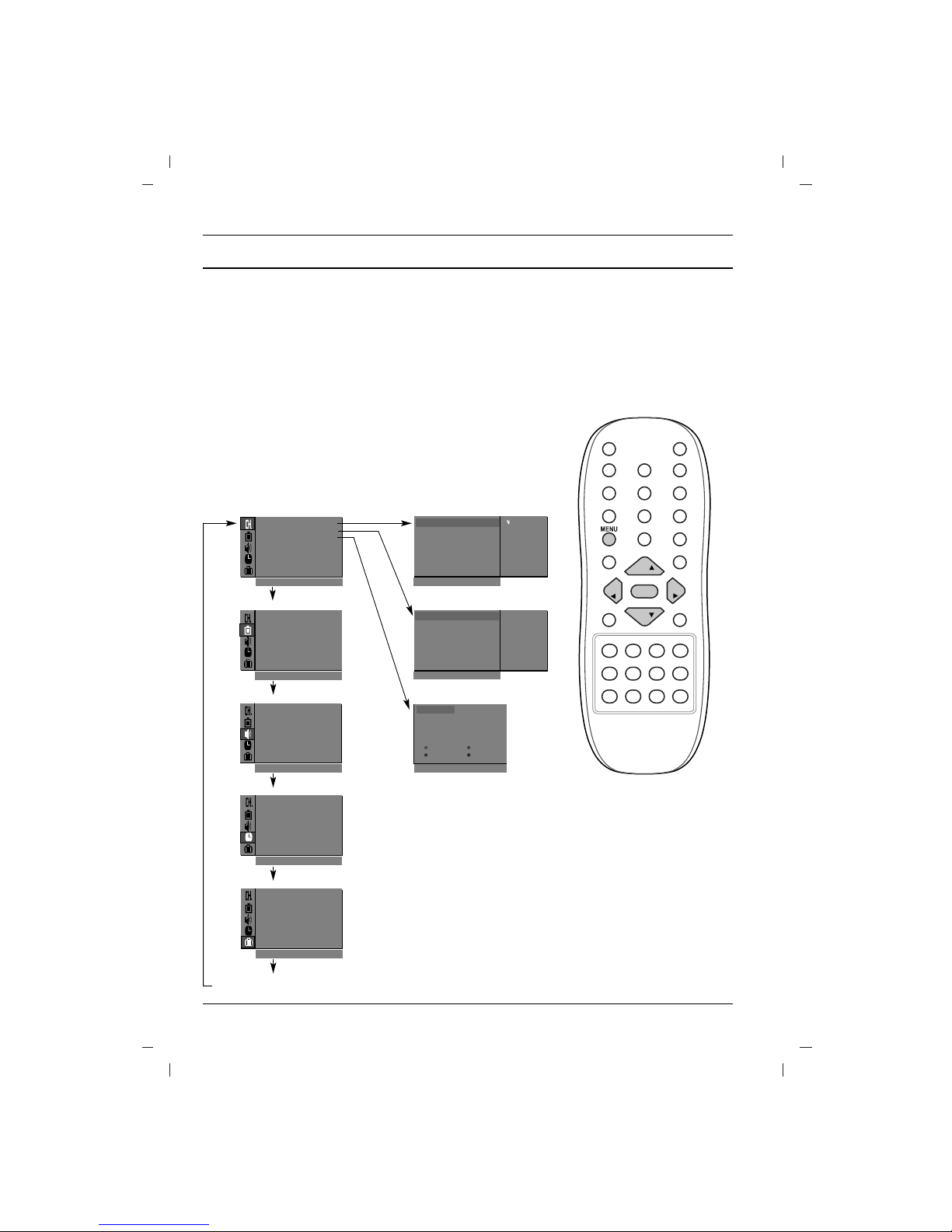

The dialogue between you and your set takes place on screen with

an operator menu. The buttons required for the operating steps are

also displayed.

Menu selection

1. Press the MENU button and then DD/ EEbutton to display each

menu.

2. Press the GGbutton and then DD/ EEbutton to select a menu item.

3. Press the GGbutton to display the sub menu or the pull-down

menu.

4. Change the setting of an item in the sub or pull-down menu with

the FF/ GGor DD/ EE.

You can move to the higher level menu with the OK or FFbut-

ton and to move to the lower level menu press the GGbutton.

Note :

a. In the teletext mode, menus are not displayed.

b. In some models, the Normal/Turbo search will not display,

only the Start will display in the Auto programme menu.

c. In some models, Tilt, Booster or Degauss will not display.

d. On some models, the Language, X-WAVE will not display.

On screen menus

VOL VOL

TV programme

Auto

programme {

Manual

programme {

Programme

edit {

FavouriteOprogramme

{

()O}{OOKOMENU

System {

StorageOfrom {

NormalOsearch {

TurboOsearch {

0OOARO1DOOO5OOSO69

O1OOCO03OOO6OOSO17

O2OOCO12OOO7OOSO22

O3OOSO66OOO8OOCO09

O4OOSO67OOO9OOCO11

DeleteOOOOCopy

MoveOOOOOOSkip

O0OOCO03

Picture menu

Station menu

PSM {

XD {

Contrast {

Brightness {

Colour {

Sharpness {

()O}{OOKOMENU

Sound menu

()O}{OOKOMENU

Special menu

()O}{OOKOMENU

Time menu

()O}{OOKOMENU

Storage {

System {

Channel {

Fine {

Search {

Name {

()O}{OOKOMENU

()}{OOKOMENU

System {

Storage {

Station


Sound

Time

Special

Auto programme

Manual programme

Programme edit

SSM {

TurbooSound {

AVL {

Balance {

X-WAVE {

Clock {

Offotime {

Onotime {

Autoosleep {

Language {

Input {

Childolock {

Degauss {

Setting up TV stations

Up to 100 TV stations can be stored by programme numbers (0 to 99).

Once you have preset the stations, you will be able to use the DD/ EE

or NUMBER buttons to scan the stations you programmed.

Stations can be tuned using automatic or manual modes.

Auto programme tuning

All stations that can be received are stored by this method. It is rec-

ommended that you use auto programme during installation of this set.

1. Press the MENU button to select the Station menu.

2. Press the

GGbutton and then DD/ EEbutton to select Auto pro-

gramme.

3. Press the GGbutton to display the Auto programme menu.

4. Press the

GGbutton. Select a TV system with the DD/ EEbutton

on the System pull-down menu;

BG : PAL B/G, SECAM B/G (Europe/East Europe)

I: PAL I/II (U.K./Ireland)

DK : PAL D/K, SECAM D/K (East Europe)

L: SECAM L/L’ (France)

5. Press the FFbutton.

6. Press the DD/ EEbutton to select Storage from.

7. Press the GGbutton. Select the beginning programme number

with the FF/ GGbutton or NUMBER buttons on the Storage

from pull-down menu. Any number under 10 is entered with a

numeric ‘0’in front of it, i.e. ‘05’for 5.

8. Press the OK button.

9. Press the

DD/ EEbutton to select Normal or Turbo search.

Option: In some models, you can only select Start.

Note :

a. Turbo search is faster than Normal search and in some mod-

els, these searches will automatically store all receivable stations.

b. If the programmed station has poor quality and sound, select

the system again in the Manual programme menu.

10. Press the GGbutton to begin auto programming.

All receivable stations are stored. The station name is stored for

stations which broadcast VPS (Video Programme Service),

PDC (Programme Delivery Control) or TELETEXT data. If no

station name can be assigned to a station, the channel number

is assigned and stored as C(V/UHF 01-69) or S(Cable 01-47),

followed by a number.

To stop auto programming, press the MENU button.

When auto programming is completed, the Programme edit

menu appears on the screen. See the ‘Programme edit’ section

to edit the stored programme.

11. Repeatedly press the MENU button to return to normal TV viewing.

VOL VOL

Auto

programme {

Manual

programme {

Programme

edit {

FavouriteOprogramme {

()O}{OOKOMENU

System

{

StorageOfrom

{

NormalOsearch

{

TurboOsearch

{

System

{

()O}{OOKOMENU

Station

Auto programme

System {

System

{

StorageOfrom

{

NormalOsearch

{

TurboOsearch

{

Auto programme

OOCO01O(BG)

736%

Normal search

Andere Handbücher für LCD Colour Television

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere LG Fernseher Handbücher

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
