LG UB85 Series Bedienungsanleitung

Please read this manual carefully before operating your set

and retain it for future reference.

OWNER S MANUAL

LED TV*

Click! User Guide

P/NO : MFL68066603 (1408-REV03)

Printed in Korea

*MFL68066603* www.lg.com

* LG LED TVs are LCD TVs with

LED backlighting.

UB85** UB98**

UB93** UC97**

UB95**

A-2 TABLE OF CONTENTS

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand

A-8 Tidying cables

A-10 Assembling the AV cover

A-10 MAKING CONNECTIONS

A-10 Antenna Connection

A-11 Satellite dish Connection

A-12 HDMI Connection

A-13 - ARC (Audio Return Channel)

A-13 DVI to HDMI Connection

A-14 Component Connection

A-15 Composite Connection

A-16 MHL Connection

A-17 Audio Connection

A-18 - Digital optical audio Connection

A-18 Headphone Connection

A-19 USB Connection

A-20 CI module Connection

A-21 Euro Scart Connection

LANGUAGE LIST

English

Italiano

B-1 SPECIFICATIONS

COMMON

LANGUAGE

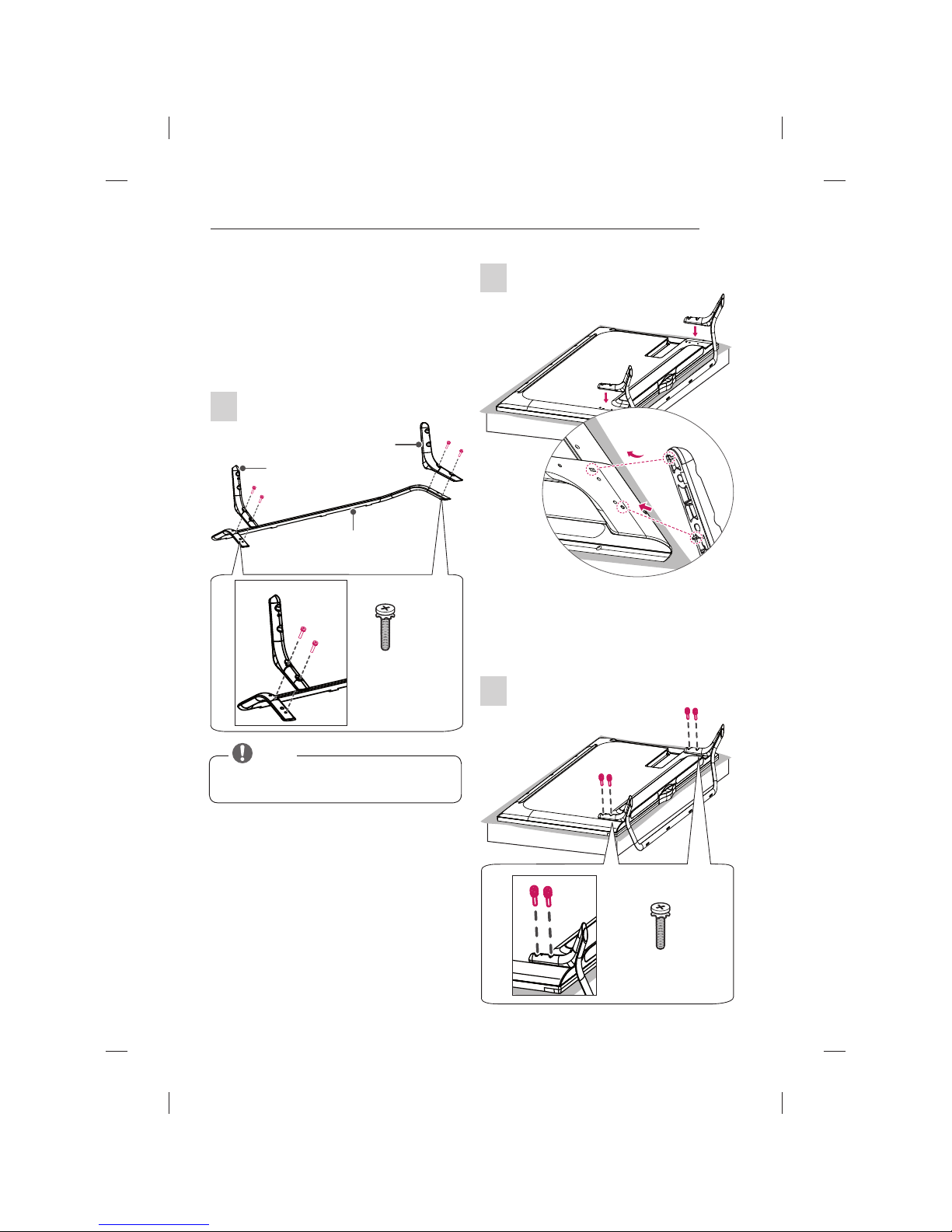

A-3

SETTING UP THE TV

Image shown may differ from your TV.

Attaching the stand

Stand Base

Stand Body (R)

Stand Body (L)

M4 x L20

4EA

UB85**-ZA, UB93**, UB95**-ZA

yBe sure to check the Stand Body (L), (R), when

installing on the stand base.

NOTE

1 Attach the stand to the TV using the upper mounting

hole on the back of the TV.

2 Attach the stand to the TV using the lower

connection on the back of the TV.

M4 x L20

4EA

A-4 SETTING UP THE TV

1 Attach the stand to the TV using the upper mounting

hole on the back of the TV.

2 Attach the stand to the TV using the lower

connection on the back of the TV.

M4 x L20

4EA

UB85**-ZD, UB95**-ZB

yBe sure to check the Stand Body (L), (R), when

installing on the stand base.

NOTE

Stand Body (L)

Stand Body (R)

Stand Base

4EA

M4 x L10

A-5

SETTING UP THE TV

Stand Base

65/79/84UB98**

(Only 65/79UB98**)

Wrench

14EA

(Insulation

Holder)

(Only 84UB98**)

4EA

M6 x L47

(Only 65UB98**)

M6 x L52

(Only 79UB98**)

4EA

M6 x L52

A-6 SETTING UP THE TV

yMake sure that the screws are inserted correctly

and fastened securely. (If they are not fastened

securely enough, the TV may tilt forward after

being installed.)

CAUTION

98UB98**

M6 x L47

6EA

Mold

Wrench

yThe stand screws are already attached at the

back of the TV. Please use these attached screw

to assemble the TV and stand. (Only 98UB98**)

NOTE

A-7

SETTING UP THE TV

Stand Base

UC97**

Stand Body (L)

Stand Body (R)

Stand Base

M4 x L10

4EA

1 When assembling the stand, lay the front screen

protective package included in the product box on

a table or flat surface and then place the TV screen

face down on the protective package.

2 Attach the stand to the TV using the upper mounting

hole on the back of the TV.

3 Attach the stand to the TV using the lower connection

on the back of the TV.

Wrench

A-8 SETTING UP THE TV

Tidying cables

Image shown may differ from your TV.

1 Gather and bind the cables with the Cable Holder

and the Cable Management.

2 Fix the Cable Management firmly to the TV.

(Only UB85**-ZA, UB93**, UB95**-ZA)

Cable Holder

Cable management

(Only UB85**-ZD, UB95**-ZB)

Cable Holder

Cable management

M4 x L20

4EA

yWhen attaching the stand to the TV set, place

the screen facing down on a cushioned table or

flat surface to protect the screen from scratches.

(Only UB85**, UB93**, UB95**, UB98**)

yMake sure that the screws are inserted correctly

and fastened securely. (If they are not fastened

securely enough, the TV may tilt forward after

being installed.)

Do not use too much force and over tighten the

screws; otherwise screw may be damaged and

not tighten correctly.

CAUTION

yRemove the stand before installing the TV on a

wall mount by performing the stand attachment in

reverse.

yRemove the protective film from the stand base

and then attach the stand body to the stand

base. (Only UC97**)

NOTE

A-9

SETTING UP THE TV

(Only 65/79/84UB98**)

Cable Holder

1 Gather and bind the cables with the Cable Holder.

(Only UC97**)

Cable Holder

Cable management

yDo not move the TV by holding the cable holders,

as the cable holders may break, and injuries and

damage to the TV may occur.

CAUTION

(Only 98UB98**)

Cable

Holder

Cable management

Cable

management

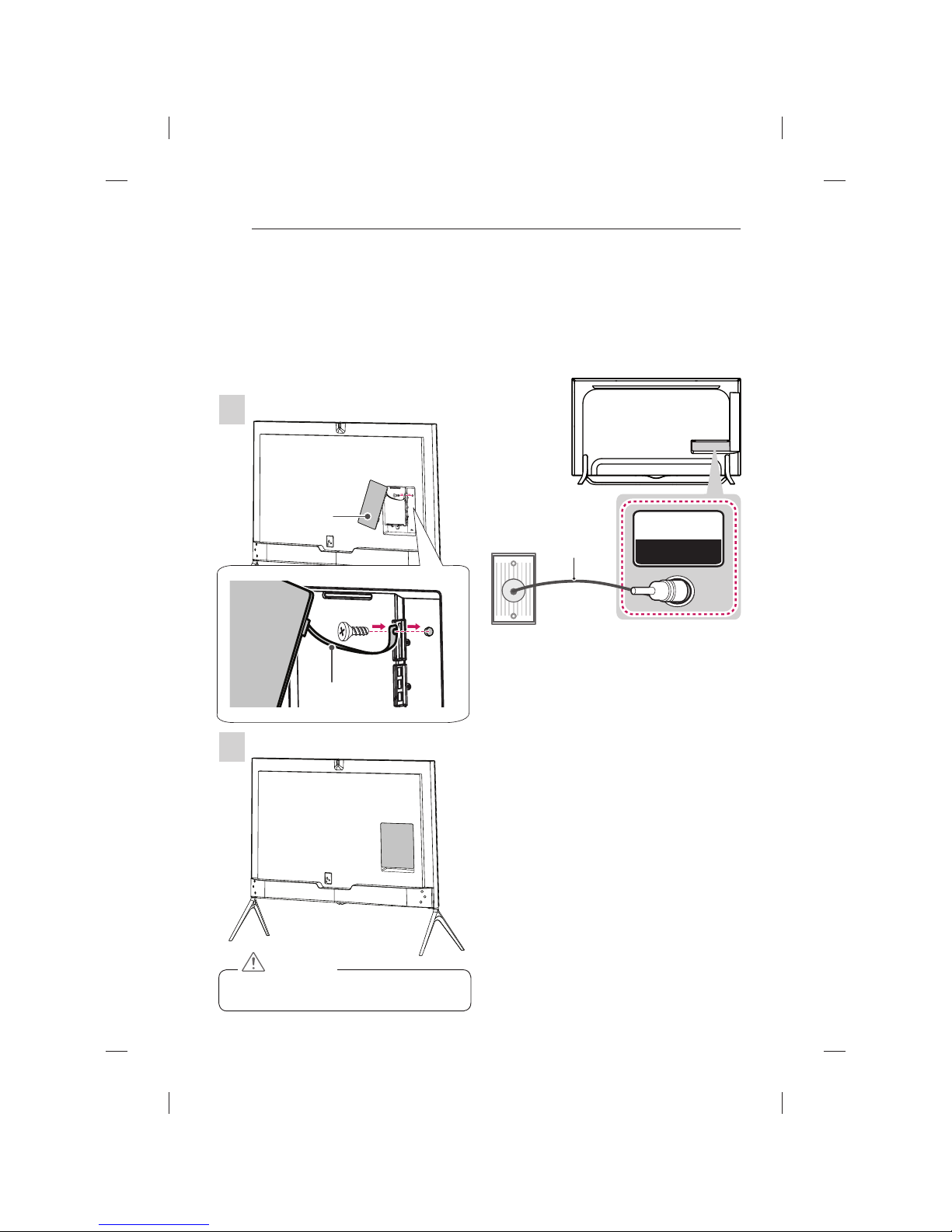

A-10 SETTING UP THE TV / MAKING CONNECTIONS

MAKING CONNECTIONS

This section on MAKING CONNECTIONS mainly uses

diagrams for the UB85** models.

Antenna Connection

Wall Antenna Socket

ANTENNA / CABLE

(*Not Provided)

Assembling the AV cover

(Only 98UB98**)

1 Insert the cover holder attached to the AV port cover

into the hole of the main body of the product as

illustrated.

2 Attach the port cover onto the AV port part. (The

cover remains attached through the use of a

magnet.)

yIf you do not attach the cover holder, the cover

may fall off and cause injury.

CAUTION

AV Port Cover

Cover Holder
