OWNER'S MANUAL

WASHER-

DRYER

Before beginning installation, read these instructions carefully. This will simplify

installation and ensure that the product is installed correctly and safely. Leave

these instructions near the product after installation for future reference.

EN ENGLISH

FV1410D4W

FV1409D4W

MFL71670324

Rev.00_092719

มอก.1389-2559

มอก.1463-2556

TABLE OF CONTENTS This manual may contain images or content

different from the model you purchased.

This manual is subject to revision by the

manufacturer.

IMPORTANT SAFETY INSTRUCTIONS ........................................3

READ ALL INSTRUCTIONS BEFORE USE.....................................................3

WARNING.........................................................................................................3

INSTALLATION...............................................................................9

Parts and Specifications....................................................................................9

Installation Place Requirements...................................................................... 11

Unpacking the Appliance.................................................................................12

Levelling the Appliance ...................................................................................13

Connecting the Water Inlet Hose ....................................................................14

Installing the Drain Hose.................................................................................16

OPERATION .................................................................................17

Operation Overview ........................................................................................17

Preparing the Wash Load ...............................................................................17

Adding Detergents and Softeners...................................................................18

Control Panel ..................................................................................................21

Programme Table............................................................................................22

Extra Options and Functions...........................................................................26

SMART FUNCTIONS....................................................................29

Using LG SmartThinQ Application ..................................................................29

Using Smart Diagnosis....................................................................................31

MAINTENANCE............................................................................33

Cleaning After Every Wash .............................................................................33

Cleaning the Appliance Periodically................................................................33

TROUBLESHOOTING..................................................................36

Before Calling for Service ...............................................................................36

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

The following safety guidelines are intended to prevent unforeseen risks

or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as

described below.

Safety Messages

This symbol is displayed to indicate matters and operations

that can cause risk. Read the part with this symbol carefully

and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause

serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the

minor injury or damage to the product.

WARNING

To reduce the risk of explosion, fire, death, electric shock,

injury or scalding to persons when using this product, follow

basic precautions, including the following:

Technical Safety

•This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person

responsible for their safety.

•Children should be supervised to ensure that they do not play with

the appliance.

•If the power cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order

to avoid a hazard.

•Use a new hose or hose-set supplied with the appliance. Reusing old

hoses can cause a water leak and subsequent property damage.

•Ventilation openings must not be obstructed by a carpet.

•This appliance is intended to be used in household only and not in

applications such as:

−Staff kitchen areas in shops, offices and other working

environments;

−Farm houses;

−By clients in hotels, motels and other residential type environments;

−Bed and breakfast type environments;

−Areas for communal use in blocks of flats or in launderettes

•The inlet water pressure must be between 100 and 1000 kPa.

•The maximum capacity in some cycles for dry clothes to be washed

is:

FV1409D4W FV1410D4W

9 kg (Wash) / 6 kg (Dry) 10.5 kg (Wash) / 7 kg (Dry)

Installation

•Never attempt to operate the appliance if it is damaged,

malfunctioning, partially disassembled, or has missing or broken

parts, including a damaged cord or plug.

•This appliance should only be transported by two or more people

holding the appliance securely.

•Do not install the appliance in a damp and dusty place. Do not install

or store the appliance in any outdoor area, or any area that is subject

to weathering conditions such as direct sunlight, wind, or rain or

temperatures below freezing.

•Tighten the drain hose to avoid separation.

•If the power cord is damaged or the hole of the socket outlet is loose,

do not use the power cord and contact an authorized service centre.

•Do not plug multiple socket outlets, an extension power cable or

adapter with this appliance.

•This appliance must not be installed behind a lockable door, a

sliding door or a door with a hinge on the opposite side to that of the

appliance, in such a way that a full opening of the appliance door is

restricted.

•This appliance must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock by

providing a path of least resistance for electric current.

•This appliance is equipped with a power cord having an equipment

grounding conductor and a grounding power plug. The power plug

must be plugged into an appropriate socket outlet that is installed and

grounded in accordance with all local codes and ordinances.

•Improper connection of the equipment-grounding conductor can

result in risk of electric shock. Check with a qualified electrician or

service personnel if you are in doubt as to whether the appliance is

properly grounded.

•Do not modify the power plug provided with the appliance. If it

does not fit the outlet, have a proper outlet installed by a qualified

electrician.

Operation

•Do not attempt to separate any panels or disassemble the appliance.

•Do not apply any sharp objects to the control panel in order to

operate the appliance.

•Do not repair or replace any part of the appliance. All repairs

and servicing must be performed by qualified service personnel

unless specifically recommended in this Owner’s Manual. Use only

authorized factory parts.

•Do not put animals, such as pets into the appliance.

•Keep the area underneath and around the appliance free of

combustible materials such as lint, paper, rags, chemicals, etc.

•Do not leave the appliance door open. Children may hang on the

door or crawl inside the appliance, causing damage or injury.

•Use new hose or hose-set supplied with the appliance. Reusing old

hoses can cause a water leak and subsequent property damage.

•Do not put in, wash or dry articles that have been cleaned in, washed

in, soaked in, or spotted with combustible or explosive substances

(such as waxes, wax removers, oil, paint, gasoline, degreasers,

drycleaning solvents, kerosene, petrol, spot removers, turpentine,

vegetable oil, cooking oil, acetone, alcohol, etc.). Improper use can

cause fire or explosion.

•Never reach into the appliance while it is operating. Wait until the

drum has completely stopped.

•In case of flood, disconnect the power plug and contact the LG

Electronics customer information centre.

•Do not push down the door excessively, when the appliance door is

open.

•Do not touch the door during a high temperature programme.

•Do not use flammable gas and combustible substances (benzene,

gasoline, thinner, petroleum, alcohol, etc.) near the appliance.

•If the drain hose or inlet hose is frozen during winter, use it only after

thawing.

•Keep all washing detergents, softener and bleach away from children.

•Do not touch the power plug or the appliance controls with wet hands.

•Do not bend the power cable excessively or place a heavy object on

it.

•Do not wash rugs, mats, shoes or pet blankets, or any other items

other than clothes or sheets, in this machine.

•This appliance must only be used for domestic household purposes

and should not be used in mobile applications.

•If there is a gas leakage (isobutane, propane, natural gas, etc.),

do not touch the appliance or power plug and ventilate the area

immediately.

Technical Safety for Using the Dryer

•Do not dry unwashed items in the appliance.

•Items that have been soiled with substances such as cooking oil,

vegetable oil, acetone, alcohol, petroleum, kerosene, spot removers,

turpentine, waxes and wax removers should be washed in hot water

with an extra amount of detergent before being dried in the appliance.

•Never stop the appliance before the end of the drying cycle unless

all items are quickly removed and spread out so that the heat is

dissipated.

•Items such as foam rubber (latex foam), shower caps, waterproof

textiles, rubber backed articles and clothes or pillows fitted with foam

rubber pads should not be dried in the appliance.

•Fabric softeners, or similar products, should be used as specified by

the fabric softener instructions.

•Remove all objects from pockets such as lighters and matches.

•The appliance is not to be used if industrial chemicals have been

used for cleaning.

Maintenance

•Securely plug the power plug in the socket outlet after completely

removing any moisture and dust.

•Disconnect the appliance from the power supply before cleaning the

appliance. Setting the controls to the OFF or stand by position does

not disconnect this appliance from the power supply.

•Do not spray water inside or outside the appliance to clean it.

•Never unplug the appliance by pulling on the power cable. Always

grip the power plug firmly and pull straight out from the socket outlet.

Disposal

•Before discarding an old appliance, unplug it. Cut off the cable

directly behind the appliance to prevent misuse.

•Dispose of all packaging materials (such as plastic bags and

styrofoam) away from children. The packaging materials can cause

suffocation.

•Remove the door before disposing of or discarding this appliance to

avoid the danger of children or small animals getting trapped inside.

INSTALLATION

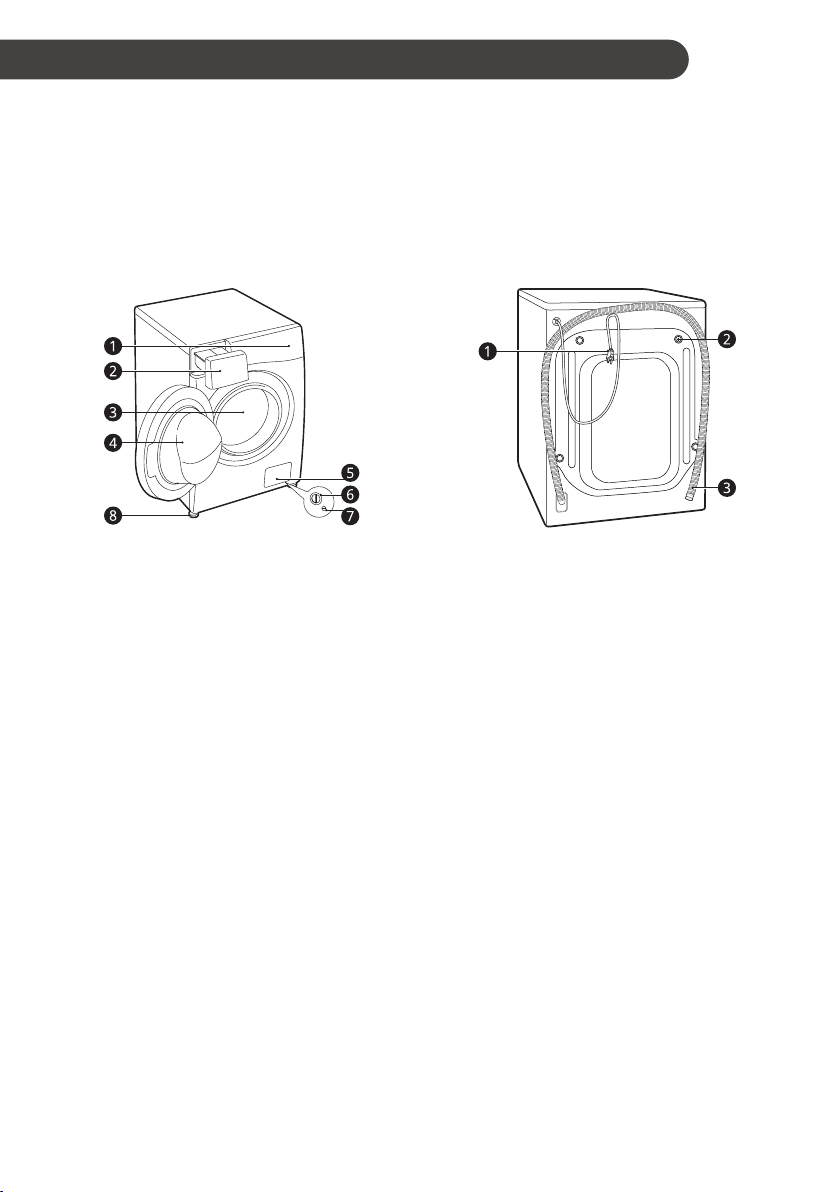

Front View

a Control Panel

b Detergent dispenser drawer

c Drum

d Door

e Cover cap

f Drain pump filter

g Drain plug

h Adjustable feet

Rear View

a Power plug

b Transit bolts

c Drain hose

Parts and Specifications

NOTE

•Appearance and specifications may change without notice to improve the quality of the appliance.

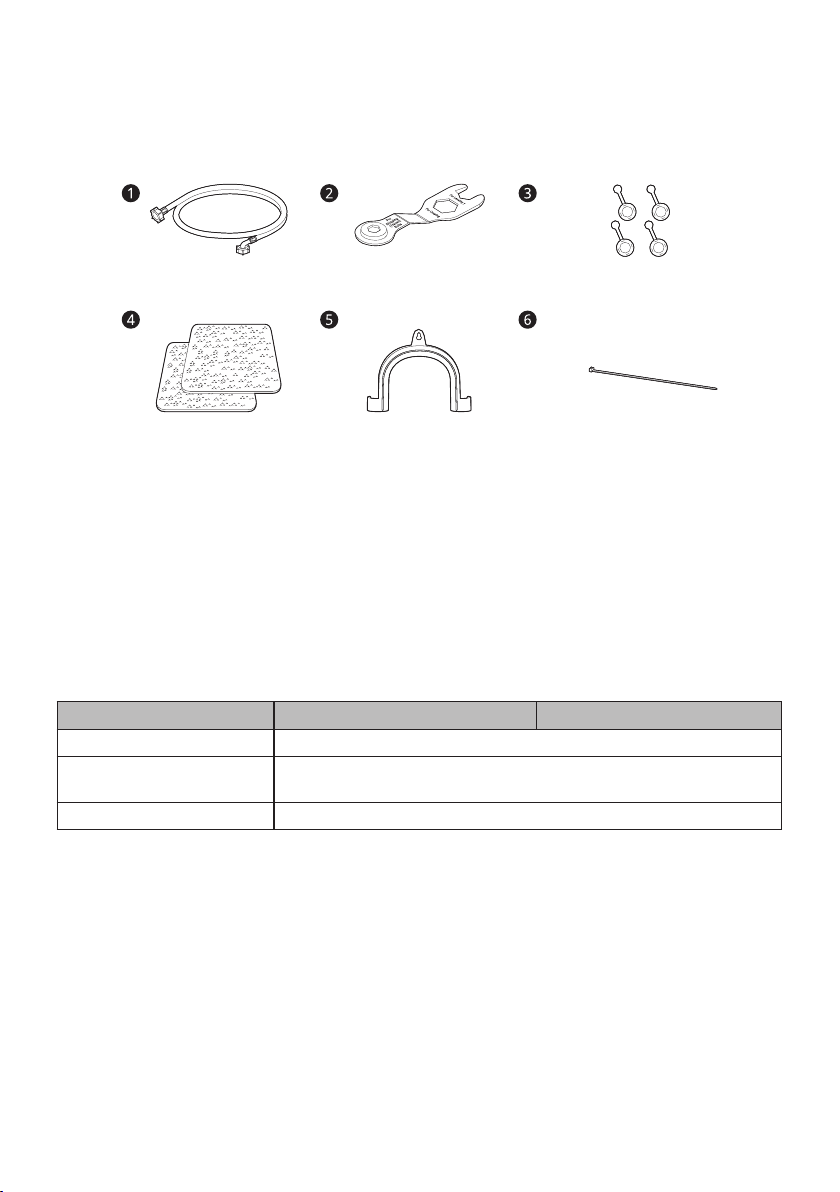

Accessories

* This feature is only available on some models.

a Cold water inlet hose*

b Spanner

c Caps for covering transit bolt holes*

d Anti-slip sheets*

e Elbow bracket for securing drain hose*

f Tie strap*

Specifications

Model FV1409D4W FV1410D4W

Power Supply 220 - 240 V~, 50 Hz

Dimension (Width x Depth x

Height) 600 mm X 560 mm X 850 mm

Product Weight 73 kg

•No further backflow protection required for connection to the water inlet.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere LG Waschmaschine Trockner Handbücher

LG FV141 H2BA Series Bedienungsanleitung

LG WS1308 T Series Bedienungsanleitung

LG WKEX200H A Series Bedienungsanleitung

LG WVC5-1409W Bedienungsanleitung

LG FWV1117BTSA Bedienungsanleitung

LG WVC5-1410W Bedienungsanleitung

LG WM3988HWA Bedienungsanleitung

LG FV1408H4 Series Bedienungsanleitung

LG WM3477HW Bedienungsanleitung

LG WDV5142SRP Bedienungsanleitung

LG FV1411H2B Bedienungsanleitung

LG WDV2102WRV Bedienungsanleitung

LG FHD0905SWS Bedienungsanleitung

LG WS1408XMT Bedienungsanleitung

LG F4V9VCP Series Bedienungsanleitung

LG F2V5PGP Series Bedienungsanleitung

LG F4V7VCP Series Bedienungsanleitung

LG FWV685WSE Bedienungsanleitung

LG DLE8377NM Bedienungsanleitung

LG 3828ER4001V Bedienungsanleitung

LG F4V9RCP Series Bedienungsanleitung

LG WDV9142 RP Series Bedienungsanleitung

LG V3-S107DXTE Bedienungsanleitung

LG F-C12085V2B Bedienungsanleitung

Beliebte Waschmaschine Trockner Handbücher anderer Marken

Whirlpool

Whirlpool WFC8090GX Bedienungsanleitung

Whirlpool

Whirlpool LTE5243DQ6 Bedienungsanleitung

Bosch

Bosch XQG100-WDU285H00W Bedienungsanleitung

montpellier

montpellier MWD7512S Bedienungsanleitung

Midea

Midea MF200D85B Bedienungsanleitung

Maytag

Maytag MGT3800XW Bedienungsanleitung

Siemens

Siemens WD15G440TR Technisches Datenblatt

Equator

Equator Clothes Processor EZ1500 Bedienungsanleitung

Splendide

Splendide WDC7100XCP Bedienungsanleitung

John Lewis

John Lewis JLWD 1408 Bedienungsanleitung

Ariston

Ariston A1200WD Bedienungsanleitung

Whirlpool

Whirlpool YLTE5243DQ5 Bedienungsanleitung

Whirlpool

Whirlpool WFCR 75230 Installationsanleitung

ATT

ATT Hammer Jet v1 Bedienungsanleitung

AEG

AEG LAVAMAT 63742 VI Bedienungsanleitung

Electrolux

Electrolux EWW8024P5WB Bedienungsanleitung

GE GTD42EASJWH Bedienungsanleitung

Indesit

Indesit XWDE 751480 Bedienungsanleitung
