LIEBERT MP™ ADVANCED POWER STRIPS

QUICK-START GUIDE: OPENCOMMS EM OR MP ADVANCED ACCESS SERVER

WHAT’SINCLUDED

Make sure you have all the items that should be included with your Liebert MP Advanced Power Strip. If

any item is missing or damaged in shipping, file a damage claim immediately—see the user manual for

details.

• RJ-45 to RJ-45 configuration cable, 5 ft. (1.5m)

• RJ-45 to DB9 adapter for configuration cable

• 2 mounting brackets and 4 screws

• Quick-start guide

CONFIGURATION WITH OPENCOMMS EM

1. Connect power to the DCN port on the OpenComms EM and to your MP Advanced Power Strip.

2. Connect the six-wire end of the serial cable provided with the OpenComms EM to the EIA-232 port of

your MP Advanced Power Strip.

3. Connect the other end (eight-wire) of the serial cable to either Serial 1 or Serial 2 of the

OpenComms EM.

4. Connect a straight-through CAT5 Ethernet cable from your network to the Ethernet port on the back

of the OpenComms EM.

ASSIGN AN IP ADDRESS

If your network uses static IP addresses and your computer has a Windows operating system, follow the

steps below. Otherwise, consult the OpenComms EM user manual (SL-28210).

1. Obtain an IP address for the OpenComms EM from your network administrator.

2. Insert the OpenComms EM CD in your computer’s CD drive.

3. Click on the Start button, then on Run, then Browse to the file IPSET.exe on the CD and click

Open.

NOTE

These steps must be done on the same network segment where the OpenComms EM is connected.

POWER 1

EIA-232

Sensor

Serial

ModemDCN Ethernet

Liebert MP

Advanced

Power Strip

(MP-C5120) EIA-232 Port

Ethernet

Port

Serial Ports - Connect either

to Power Strip EIA-232 Port

Liebert OpenComms EM

(EM PDU Controller)

DCN Power Port

Mounting

Bracket on

either side

4. Click OK to open the IPSet window (at right).

5. In the Target area:

a. Enter the OpenComms EM IP address

b. Enter your network’s Subnet Mask

c. Enter your router’s IP address in the Default

box.

d. Enter the MAC address found on the bottom

of your OpenComms EM.

6. Apply the changes. If the device identification is

successful, the message “Successfully set IP

address” appears in the Status box. (If not, the

message “No response from target” appears in

the Status box.)

7. Click on the Close button.

OPEN THE WEB INTERFACE AND LOG IN

• Open an Internet browser and enter the unit’s IP address or hostname into the browser’s address bar

and press the Enter key. The Login window appears.

• Enter the default user name—liebert— in the User Name box (case-sensitive).

• Leave the Password box blank (the default liebert user account has no password).

•ClickOK. If the login is successful, a message appears. Click OK.

When ready to exit the user interface, click on the Summary tab at the top of the Web interface, then

click on the Log Out button in the left side of the window.

Enter a

unique

IP address

Enter the unit’s

MAC address

(look on

bottom of unit) Apply button

Subnet

mask

Default

gateway

address

window

Address

bar

User Name

default = “liebert”

Password

default = no password

CONFIGURATION WITH LIEBERT MP ADVANCED ACCESS SERVER

MAKE CONNECTIONS

1. Connect power to the Liebert MP Advanced Access Server and turn the unit On (the On/Off switch is

on the rear of the unit; some units do not have this switch; they are energized whenever their power

cord is plugged into a power source).

2. Attach the adapter (RS-232 to RJ-45) to one end of a silver configuration cable (included) and connect

that end of the cable to a COM port on a computer. Connect the other end of the cable to the EIA-232

port of the MP-DS62 card on your MP Advanced Access Server.

3. Plug one end of the second silver RJ-45 cable into any of the ports in the MP-DS74 module in your

Liebert MP Advanced Access Server; plug the other end of the cable into the EIA-232 port on your MP

Advanced Power Strip.

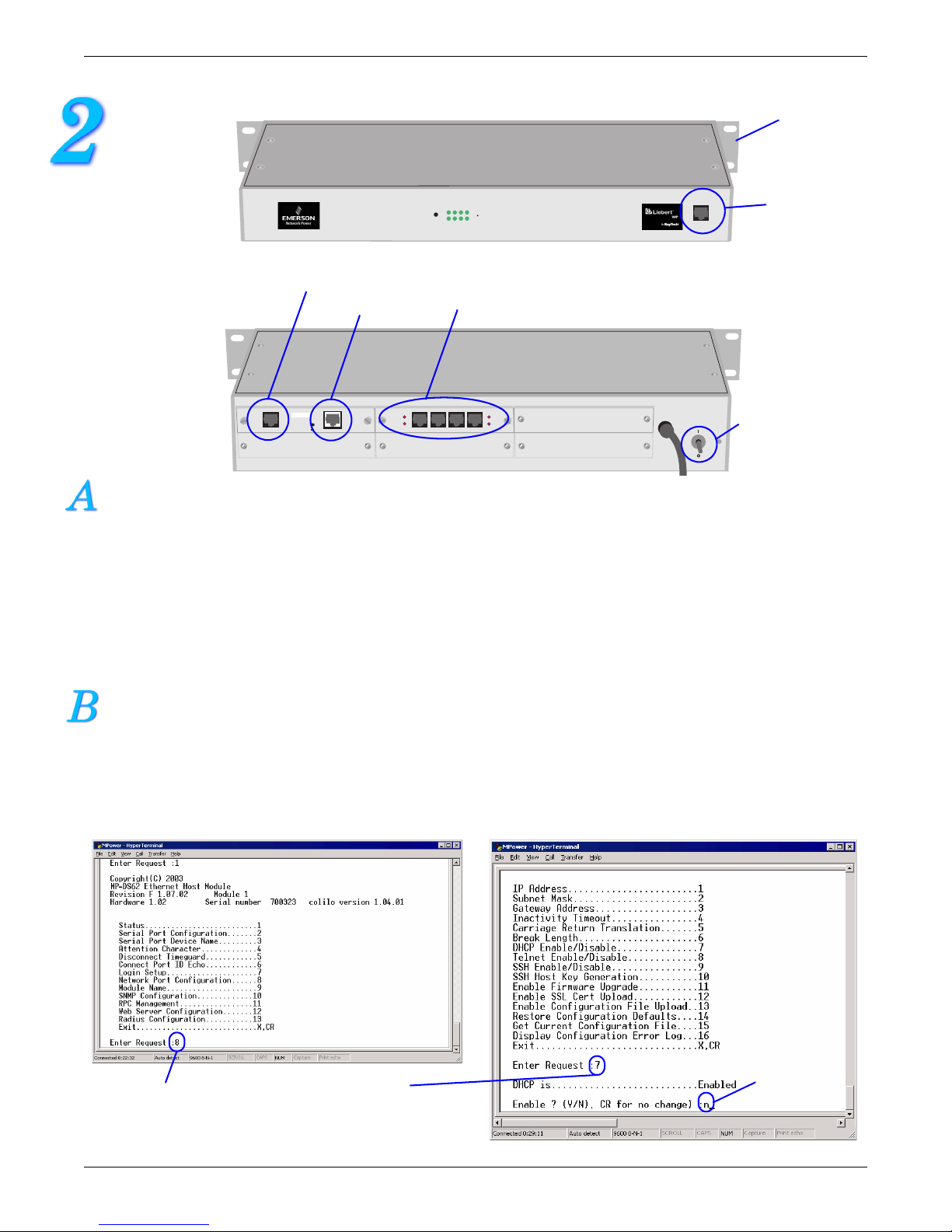

ESTABLISH COMMUNICATION WITH CARD

1. Use terminal emulation software, such as HyperTerminal™, to open a

direct connection to the MP-DS62 card. Use the settings at right. Press

Enter for the Main Menu, choose “C” and then “1” to configure the

MP-DS62 port.

2. Enter “8” for Network Port Configuration (below left), then “7,” then “N”

to disable DHCP (below right).

CX3 CX4

EIA-232

I/0 MODULE

NETWORK

INTERFACE

ETHERNET

ROUTE LINE

DS74

MADE IN USA

100-240VAC

??????????

0.21-0.12AMPS

DS62

CX1 CX2

POWER 1

EIA-232

On/Off Switch

(not on all

Access Servers)

EIA-232 Port - Connect

to Power Strip EIA-232 Port

Ethernet Port

MP-DS74 Card With

Configurable

Communication Ports

Liebert MP Advanced

Power Strip

(MP-C5120)

Liebert MP Advanced

Access Server

(MP-S5138)

EIA-232 Port

Mounting

Bracket on

either side

Baud Rate: 9600

Data Bits: 8

Parity: None

Stop Bits: 1

Flow Control: N/A

HYPERTERMINAL

SETTINGS

Enter “N”

to disable

DHCP

Enter “7”

to change

DHCP setting

Choose “8” to change

Network Port

Configuration

to change without notice.

® Liebert and the Liebert logo are registered trademarks of

Liebert Corporation. All names referred to are trademarks or

registered trademarks of their respective owners.

SL-20812 (01/05) Rev. 1

Liebert Corporation

1050 Dearborn Drive

P.O. Box 29186

Columbus, OH 43229

Telephone: 1-800-877-9222

Facsimile: 1-614-841-6022

www.liebert.com

SET THE IP ADDRESS

1. Select “1” to set the IP Address for Module 1. Enter an IP address (below). The address must be

unique on your system (obtain this from your network administrator).

2. Press Enter to return to the Network Port Configuration menu.

3. Choose “2” to set the Subnet Mask for your system (obtain this from your network administrator).

SET THE GATEWAY ADDRESS

1. Return to the Network Port Configuration menu and choose “3” to set the Gateway Address (the IP

address of your network router). Follow the prompts to exit HyperTerminal and save your changes.

2. Verify that your settings are correct and were saved by using a command prompt to ping the

MP-C/MP-S unit: Start>Run>CMD.

3. At the command prompt enter:

ping [IP address]

4. Press “Enter.”

Enter IP address
