OWNERS INSTALLATION AND OPERATING MANUAL

Model: LS-ENTCOMBO-FP

Safety Notice

Please read this entire Installation and Operating Manual BEFORE installing and using your

new Infrared Fireplace Heater. Failure to fully understand and follow instructions may result in

property damage, bodily injury, or even death.

If your Infrared fireplace heater is not used properly, a house fire may result. For everyone’s

safety, FOLLOW all Installation and Operating Directions. Infrared fireplace heaters have been

designed for use in the US and are suitable for mobile homes.

Save These Instructions

TABLE OF CONTENTS

Topic Page(s)

Introduction 3

Specifications 4

Safety Information 5-6

Getting Started/Items In the Box 7

Know Your Product 8-9

Assembly Instructions 10-14

Fireplace Placement 15

Fireplace Operation 16

Troubleshooting and Fireplace Maintenance 17

Warranty 18-19

Warranty Claim Contact Information 20

INTRODUCTION

Thank you for choosing Lifesmart as your preferred Infrared Heater provider.

Esteemed Customer. . .Until now you have shopped around. You have seen

many Infrared Heaters and Infrared Heater fireplaces. You have seen the

infrared fireplace heaters: 1) without a mantle 2) with an added mantle only 3)

with a media center mantle only 4) And you have even seen the fireplace

heaters used as a luxurious corner furniture addition (with an un-removable

corner piece).

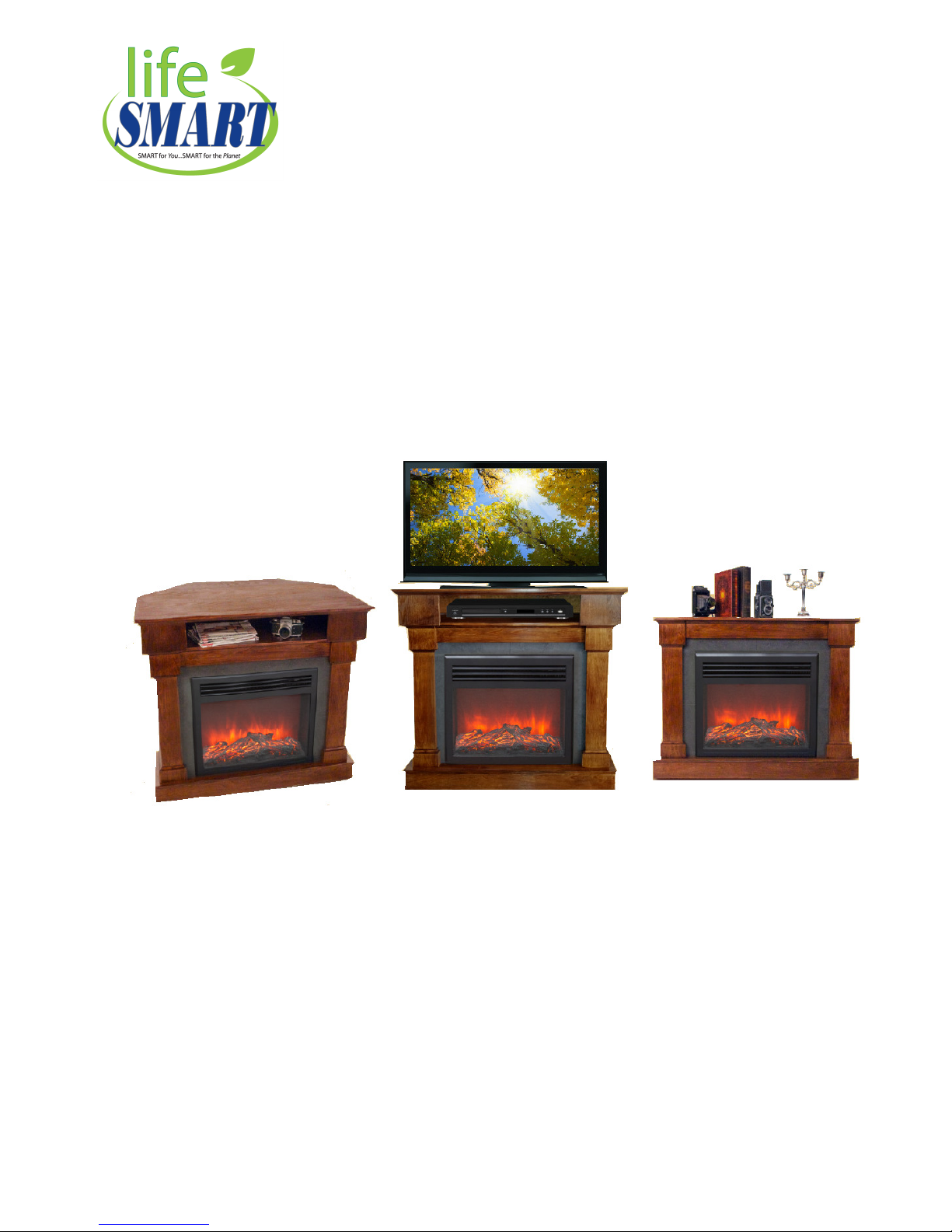

LIFESMART PRODUCTS NOW BRINGS YOU ALL OF THOSE OPTIONS IN

THIS ONE-OF-A-KIND COMBINATION PACKAGE!

You have just purchased one of the most unique, versatile, and best infrared

fireplace heaters available in the market today. This Lifesmart product gives you

the beauty and heat of a simple cozy log fire (heating up to a 1500 square foot

room!), along with the option to add a beautiful functional mantle (that may be

used as an entertainment console). If that wasn’t enough, you are also able to

impress all who visit by displaying the luxurious fireplace in a corner of the room,

with a few minor assembly steps. It is not only fancy, but the conversion and

assembly is as easy as 1-2-3. By using this infrared fireplace heater you can

efficiently.

Stay Warm and Enjoy!!

Note that this fireplace heater is NOT intended to replace your home furnace; rather it is

designed to be a supplement to it. It is not an instant heater – it can take up to 24 hours for a

room to reach the desired temperature. Our Infrared fireplace heaters have been tested and

listed for installation in residential and mobile homes by UL:

SPECIFICATIONS:

Electrical:

Voltage: 120V~60Hz

Power consumption: 1000-1500 Watts

Digital Thermostat range: 50-90 Fahrenheit

Coverage:

Up to 1,500 Square Foot Room Maximum

Dimensions:

37.5”Tall x 42.2”Wide x 30.1”Deep, 98 lbs

Safety Features:

Safety Overheat Shut Off Switch

Features:

Remote Control

Vivid Log/ Flame Effect

Removable Mantle Piece/Entertainment Console

Removable Corner Piece Attachment

Eco Friendly Wood

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THE

HEATER

WARNING

! POTENTIAL FOR ELECTRICAL HAZARD!

When using electrical appliances, basic precautions should always be followed to reduce the

risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before using this heater.

2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot

surfaces. If provided, use handles when moving this heater. Keep combustible

materials, such as furniture, pillows, bedding, papers, clothes, and curtains at

least 3 feet, from the front of the heater and keep them away from the sides and

rear.

3. Extreme caution is necessary when any heater is used by or near children or

invalids and whenever the heater is left operating and unattended.

4. Always unplug heater when not in use.

5. Do not operate any heater with a damaged cord or plug or after the heater

malfunctions, has been dropped or damaged in any manner. Return heater to

authorized service facility for examination, electrical or mechanical adjustment, or

repair.

6. Do not use outdoors.

7. This heater is not intended for use in bathrooms, laundry areas and similar indoor

locations. Never locate heater where it may fall into a bathtub or other water

container.

8. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or

similar coverings. Arrange cord away from traffic area and where it will not be

tripped over.

9. To disconnect heater, turn controls to off, then remove plug from outlet.

10.Connect to properly grounded outlets only.

11.Do not insert or allow foreign objects to enter any ventilation or exhaust opening

as this may cause an electric shock or fire, or damage the heater.

12.To prevent a possible fire, do not block air intakes or exhaust in any manner. Do

not use on soft surfaces, like a bed, where openings may become blocked.

13.A heater has hot and arcing or sparking parts inside. Do not use it in areas where

gasoline, paint, or flammable liquids are used or stored.

14.Use this heater only as described in this manual. Any other use not recommended

by the manufacturer may cause fire, electric shock, or injury to persons.

15. Always plug heaters directly into a wall outlet/receptacle. Never use with an

extension cord or re-locatable power tap (outlet/power strip).

This heater has a self – protection function. If the heater does not operate

normally, check cord and heater placement, then UNPLUG IT FROM THE

OUTLET & PLUG IT BACK TO OUTLET TO RESET.

Grou di g

This heater is for use on 120 volts. The cord has a plug with three blades for proper

grounding. DO NOT attempt to modify the plug in any way or use adaptors to defeat the

purpose of the grounding feature. Plug ONLY into a receptacle that accepts three-blade plug.

GETTING STARTED

Please check to make sure you have all items included in the box prior to choosing a

permanent heater location or starting the installation process.

(

(14 individual items total)

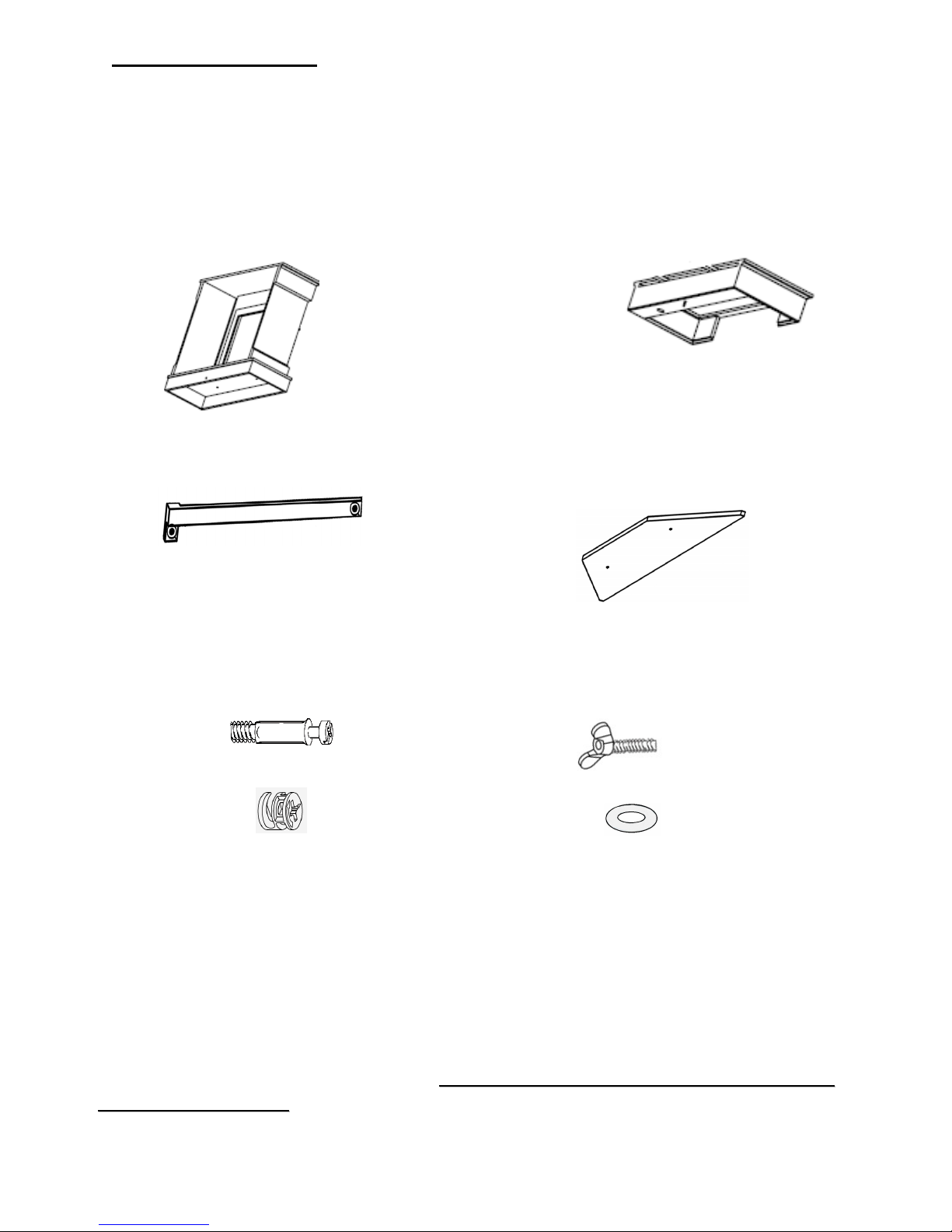

1. Infrared Fireplace Heater (Qty 1)

2. Removable Mantle/Media Insert (Qty 1)

3. Mantle Support “L” Bracket (Qty 1)

4. Corner Piece Attachment (Qty 1)

Hardware Pack

A. Hardware Pack includes the following:

a. Cam Screws (Qty 2)

b. Cam Locks (Qty 2)

c. Wing Nut Fasteners (Qty 2)

d. Flat Washers (Qty 2)

Instruction Manual

Remote Control (2 AAA Batteries Sold Separately)

Tools/Items Recommended For Assembly

1. Medium Phillips Screwdriver or Flat Head Screwdriver

1. For aesthetic purposes, this version of the product may not come with transport wheels.

Although is not very heavy, moving it back and forth may become tiresome. For your

safety, and to prevent unnecessary damage, please select a placement location for

your heater prior to assembly. It is recommended you place the main fireplace

body in the location or as close to the selected location as possible. This way, any

moving of the fireplace after assembly is kept to a minimum.

2. The studs (in the wood items) that will support the cam screws are precision

threaded. To avoid unnecessary damage and stripping of the studs, please make

sure you do not cross-thread (screw in at an angle) the cam screws into the studs.

These will be difficult to replace or repair if done so.

3. Although the studs (in the wood) are durable, it is recommended that a

screwdriver be used to tighten the cam screws and to lock the cam locks. A drill

can derail and cause cross-threading, lock jams, stripped screws, and damaged

cam locks. Wing nut fasteners should be hand tightened only.

4. Although the assembly of this product is a simple 3-step process (1. Install mantle

2. Install Support “L” Bracket 3. Install Corner Piece Attachment), unforeseen

issues may occur. If you have trouble assembling the product, reading the

assembly instructions, or accidentally damage something along the way, please

stop immediately and call Technical Support. We are here to help!

Know Your Product

This section is for reference, and outlines the main components of your fireplace

heater and their locations. Please study it carefully prior to the actual assembly so

you become familiar with the parts terminology and the shows you how the

assembled product will look like when complete.

Reference

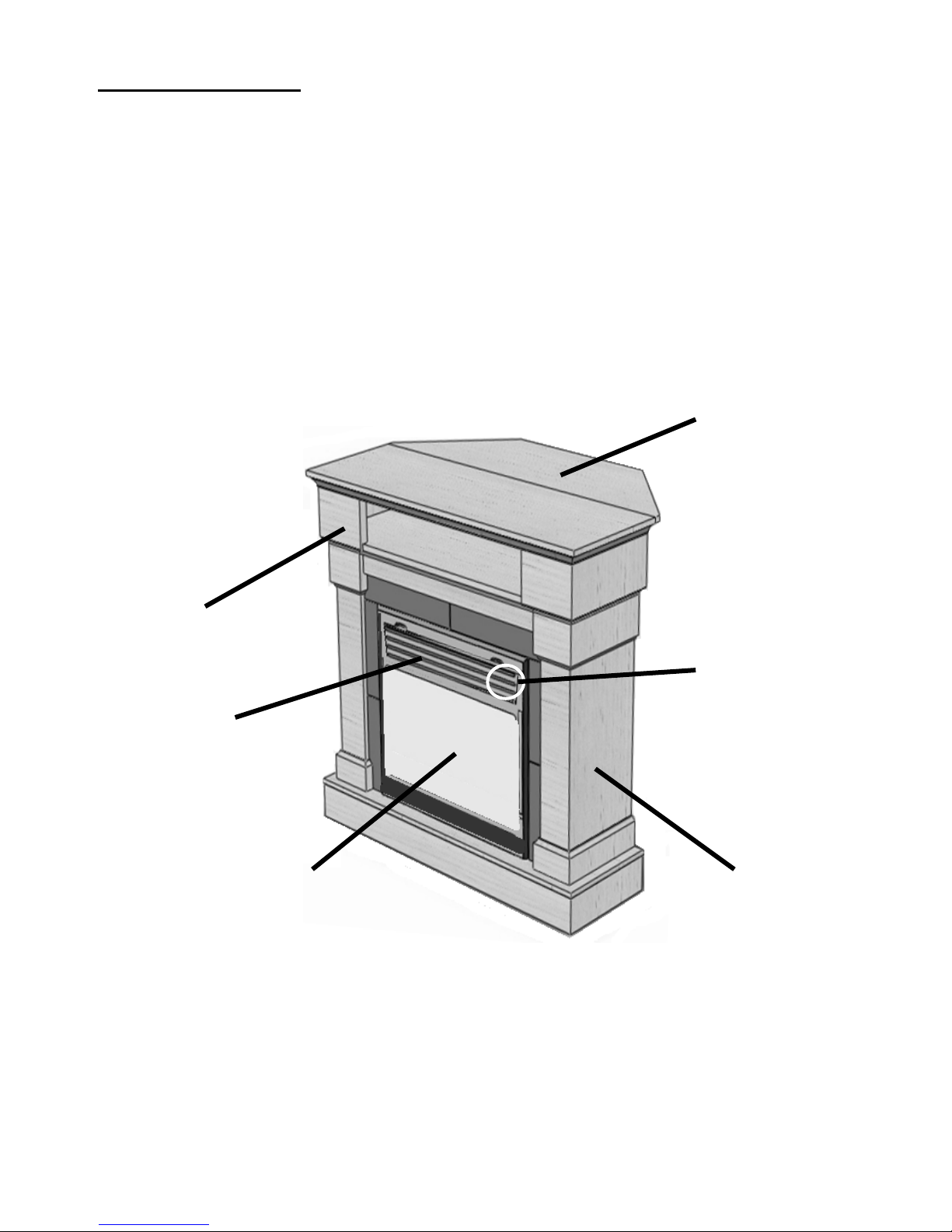

Removable Mantle/

Media Piece

Flame Effe

Control Panel

Access Door

Removable Corner

Piece Attachment

Control Panel

(Inside Access

Door)

Infrared Fireplace

Heater ody

This next section shows you the steps it takes to assemble your product. Although

the instructions walk you through the full assembly (from standard fireplaceto

fireplace with mantleto mantle fireplace with corner piece attachment), you may

assemble the fireplace only as far as you choose.

When you first unpack your product, the Infrared Fireplace Heater Body will come

pre-assembled right out of the box. This includes the fireplace wood case and the

Infrared chamber and electronics (reference below).

REAR VIEW:

INTERNAL

COMPONENTS

OMITTED FOR

REFERENCE

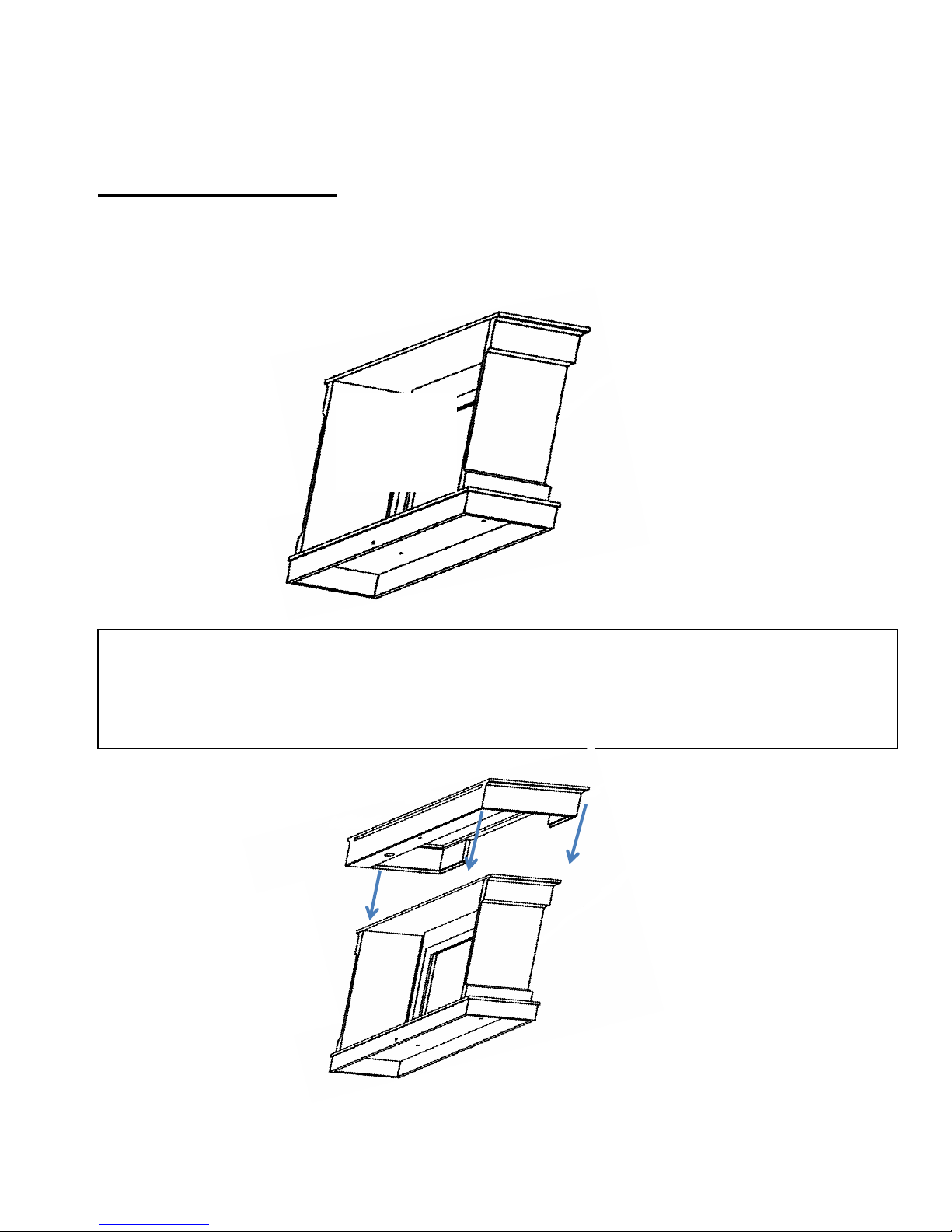

Step 1: Mount the mantle (media piece) to the fireplace heater body. Make sure the

mantle sits flush to the fireplace. The mantle will be slightly larger in diameter than

the fireplace top. It does not sit on top of the fireplace. Rather the mantle encases the

top of the fireplace.
