Lightolier Calculite ProSpec PA1M1675 Bedienungsanleitung

911

12 131 4

10 3/8" L X 10" W

5" L X 5" W Opening

83/4"

Depth

13"

13 1/8"

17" 5"

810

1 3/4"

Top View

Ceiling Cutout: 6 3/16"L x 6 3/16"W

Ordering Information: MR 16 Series A

Cat. No. Lamp Ceiling Trim Aperture Finish

PA1M167EBL (1) 75W MR 16* Overlap Black with White Flange

PA1M167EWL (1) 75W MR 16* Overlap White with White Flange

PA1M167EBTL (1) 75W MR 16* Trimless Black

PA1M167EWTL (1) 75W MR 16* Trimless White

*50W max. lamping when using accessories

PA1M167EBL = (Flanged) Black/White

PA1M167EWL = (Flanged) White

PA1M167EBTL = (Trimless) Black

PA1M167EWTL = (Trimless) White

Flanged Trimless



Calculite®ProSpec®Linear Downlight PA1M1675

Page 1 of 2 1 Light MR 16 Series A

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Media Cartridge: Allows convenient loading and removal of up to two

accessories (including lamp cover glass; lamp cover glass may be replaced

with solid glass accessory). Easily installed and removed for lamping with a

simple twisting motion. Constructed of die-cast aluminum.

3. Cross Blade Louver: Extruded aluminum. 1" deep, provides additional

shielding and can be easily removed.

4. Ad ustable Ring: Allows 360 horizontal and 35 (on width) and 45 (on

diagonal) vertical adjustment.

5. Tortiontite Spring: For easy installation of aperture frame.

6. Housing: Die-formed 22 ga. steel. Finish: Black.

7. Mounting Brackets: Adjustable vertically from outside of housing.

8. Thermal Protector: Meets NEC, UL & CSA requirements.

9. Lampholder: Steatite for GX/GY 5.3 Bi-Pin lamps. 250 C Teflon®leads.

10.Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from

below.

11.Lamp and Accessory Support: .032" steel, flared for easy entry of

Media Cartridge.

12.Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.

13.Lamp Guard: Heat resistant clear glass. Lamp manufacturers requirement.

14.Transformer Housing: Die-formed 18 ga. steel.

Electrical

Electronic Transformers: Offer reliable operation and are accessible from

below for servicing. 12V Secondary 75 VA. each lamp.

Dimming Controls: Use only dimmers specifically designed for use with

electronic transformers. Low Voltage fixtures may produce audible sound when

used with dimmers, which may be objectionable in acoustically critical areas.

UL/cUL listed for through branch circuit wiring with maximum of

(8) no. 12 AWG, 90 C.

Finish

All painted finishes are powder coated baked enamel.

Options and Accessories

Accessories: 2 1/2" dia. series, filters, lenses, screens and louvers, (2)

accessories maximum, including lamp cover glass. Lamp guard glass may be

replaced with solid glass accessory.

Labels

UL/cUL (Suitable for Damp Location), I.B.E.W.

Teflon®is a registered trademark of E.I. DuPont.

Add a “1” for 120v or “2” for 277v at the end of the catalog number for voltage

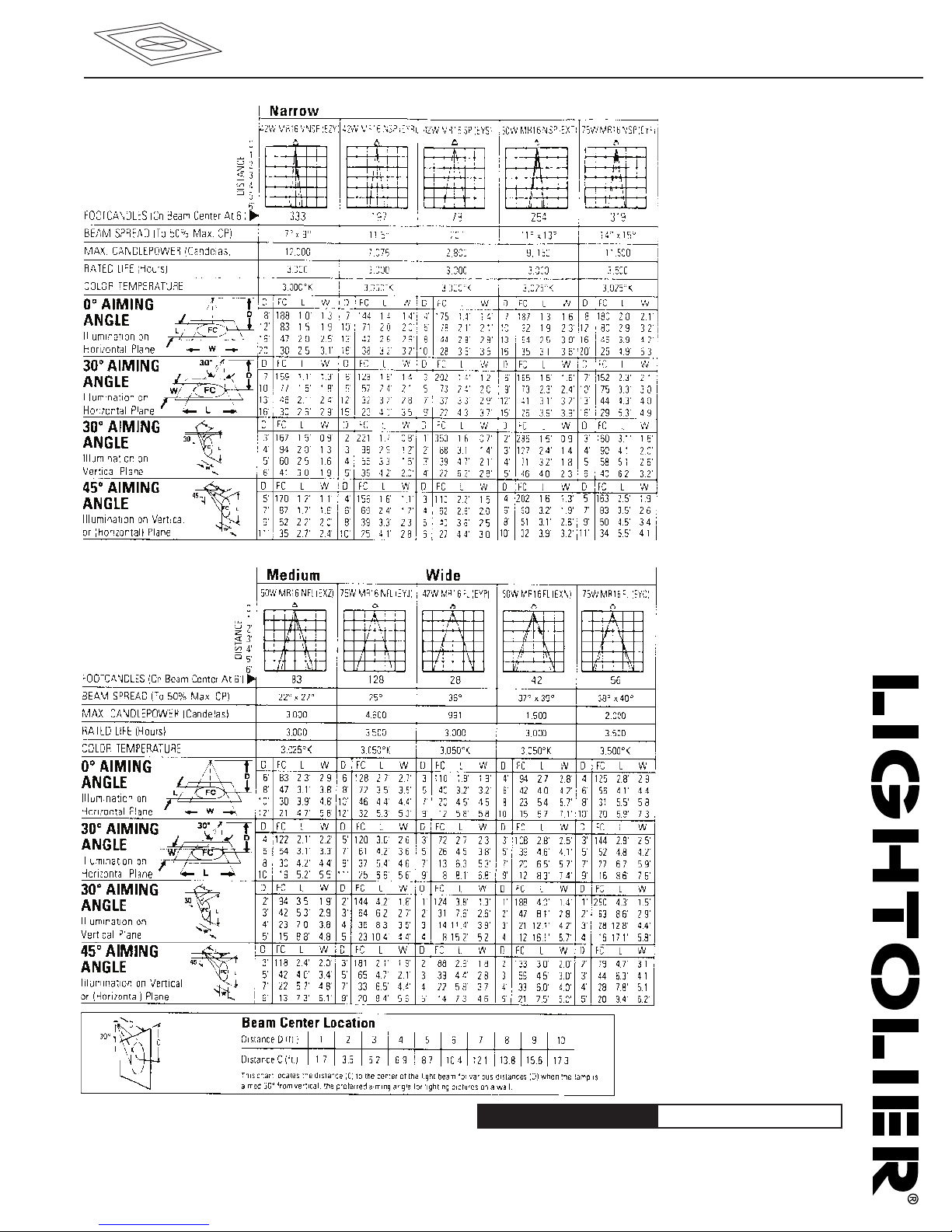

Data are based on bare lamp

photometrics. Dashed lines in beam

spreads indicate narrow axes of oval

shaped beams.

FC is initial footcandles at center of

beam. Land Ware to the point that

the candlepower drops 50% of

maximum.

Calculite®ProSpec®Linear Downlight PA1M1675

Page 2 of 2 1 Light MR 16 Series A

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lighting

Performance Data
