Lightolier Lytecaster 1101IE Bedienungsanleitung

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

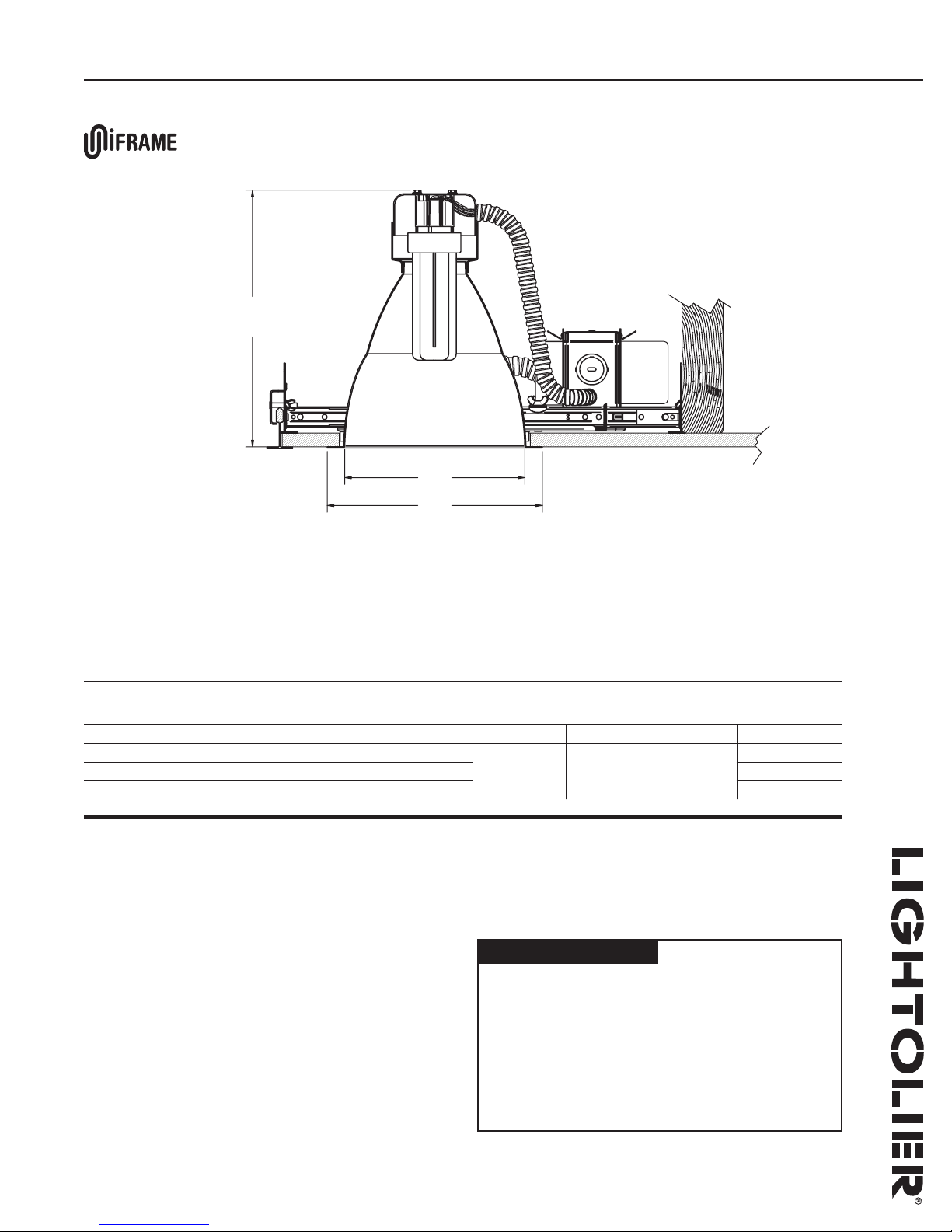

Lytecaster®Performance Recessed CFL Downlighting 1101IE

Page 1 of 2 6 ¾" Aperture Vertical Open Downlight, Compact Fluorescent, Performance Series,

Integrated Emergency, Reflector Trim

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.

Uniframe™Compact Fluorescent

Performance Series Reﬂector Trims

Compatible Frame In Kits

(See Individual Frame-In Kit Speciﬁcation Sheets)

Catalog No. Description Catalog No. Installation Type Lamping

1101CLIE 6 ¾" Open Downlight - Integrated Emergency - Specular Clear 1101F2642UEL Uniframe™ Non-IC High-Lumen

Emergency 120/277V

26W Quad/Triple

1101CDIE 6 ¾" Open Downlight - Integrated Emergency - Clear Diffuse 32W Triple

42W Triple

Features

1. Reflector: Formed aluminum. Matte White flange.

2. Finishes: CL = Specular Clear (Iridescent Free coating)

CD = Clear Diffuse

3. Performance Data: 60° Cutoff angle.

See attached photometric reports for distribution and efficiency data.

Go to www.lightolier.com for .IES files.

7 7/8"

6 1/2"

9 3/8" 42w & 18/26w QUAD

8 1/2" 32w & 18/26w TRIPLE

Labels

cULus Listed. Suitable for Damp Locations. I.B.E.W.

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytecaster®Performance Recessed CFL Downlighting 1101IE

Page 2 of 2 6 ¾" Aperture Vertical Open Downlight, Compact Fluorescent, Performance Series,

Integrated Emergency, Reflector Trim

42W G.E. 4 PIN TRIPLE BIAX, LUMEN RATING = 3200 LMS, CL FINISH TRIM

32W G.E. 4 PIN TRIPLE BIAX, LUMEN RATING = 2200 LMS, CL FINISH TRIM

26W G.E. 4 PIN TRIPLE BIAX, LUMEN RATING = 1710 LMS, CL FINISH TRIM

181

363

544

725

400

800

1200

1600

60˚

30˚

ZONAL LUMENS AND PERCENTAGES

Zone Lumens %Lamp %Fixt

0-30 1043.18 32.6 49.1

0-40 1579.97 49.4 74.3

0-60 2119.92 66.2 99.7

0-90 2125.77 66.4 100

90-120 0 0 0

90-130 0 0 0

90-150 0 0

90-180 2125.77 66.4 100

** Efficiency = 66.4% **

COEFFICIENTS OF UTILIZATION

Ceiling 80% 70% 50% 30%

Wall 70 50 30 10 50 10 50 10 50 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0 79 79 79 79 77 77 74 74 71 71 66

1 75 73 71 69 71 68 69 66 66 64 61

2 70 67 63 61 65 60 63 59 61 57 55

3 66 61 57 54 60 53 58 53 56 52 50

4 62 56 51 48 55 48 53 47 52 47 45

5 58 51 47 43 51 43 49 43 48 42 41

6 54 47 43 39 47 39 46 39 41 38 37

7 51 44 39 36 43 36 42 35 41 35 34

8 48 40 36 33 40 33 39 32 38 32 31

36 45 38 33 30 37 30 37 30 36 30 29

10 42 35 31 28 35 28 34 28 34 27 26

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 44

ZONAL LUMEN SUMMARY

Zone Lumens

0-10 143.51

10-20 379.14

20-30 520.52

30-40 536.79

40-50 411.63

50-60 128.32

60-70 4.54

70-80 1.31

80-90 0

90-100 0

100-110 0

110-120 0

120-130 0

130-140 0

140-150 0

150-160 0

160-170 0

170-180 0

CANDLEPOWER SUMMARY

Angle 0˚ CP

0 1482

5 1521

10 1468

15 1354

20 1226

25 1137

30 1017

35 864

40 699

45 538

50 363

55 112

60 13

65 3

70 2

75 1

80 0

85 0

90 0

SC = 1.1

CERTIFIED TEST REPORT NO. 3278FR

COMPUTED BY LSI PROGRAM

**TEST-LITE**

ZONAL LUMENS AND PERCENTAGES

Zone Lumens %Lamp %Fixt

0-30 590.62 26.8 40.7

0-40 962.92 43.8 66.4

0-60 1441.31 65.5 99.3

0-90 1450.77 65.9 100

90-120 0 0 0

90-130 0 0 0

90-150 0 0

90-180 1450.77 65.9 100

** Efficiency = 65.9 % **

COEFFICIENTS OF UTILIZATION

Ceiling 80% 70% 50% 30%

Wall 70 50 30 10 50 10 50 10 50 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0 79 79 79 79 77 77 73 73 70 70 66

1 74 72 70 68 70 67 68 65 65 63 60

2 69 65 62 59 64 58 62 57 60 56 53

3 64 59 55 51 58 51 56 50 54 49 47

4 60 53 49 45 53 45 51 44 50 44 42

5 56 49 44 40 48 40 47 40 45 39 38

6 52 44 39 36 44 36 43 35 42 35 34

7 48 41 36 32 40 32 39 32 38 32 30

8 45 37 32 29 37 29 36 29 35 29 27

36 42 34 30 26 34 26 33 26 33 26 25

10 40 32 27 24 32 24 31 24 30 24 23

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 33

ZONAL LUMEN SUMMARY

Zone Lumens

0-10 68. 98

10-20 200.27

20-30 321.37

30-40 372.3

40-50 313.27

50-60 165.12

60-70 8.4

70-80 1.05

80-90 0

90-100 0

100-110 0

110-120 0

120-130 0

130-140 0

140-150 0

150-160 0

160-170 0

170-180 0

CANDLEPOWER SUMMARY

Angle 0˚ CP

0 686

5 719

10 729

15 706

20 697

25 702

30 671

35 601

40 508

45 408

50 306

55 197

60 37

65 4

70 2

75 1

80 0

85 0

90 0

181

363

544

725

200

400

600

800

60˚

30˚

SC = 1.3

CERTIFIED TEST REPORT NO. 3280FR

COMPUTED BY LSI PROGRAM

**TEST-LITE**

200

400

600

800

60˚

30˚

SC = 1.3

CERTIFIED TEST REPORT NO. 3282FR

COMPUTED BY LSI PROGRAM

**TEST-LITE**

ZONAL LUMENS AND PERCENTAGES

Zone Lumens %Lamp %Fixt

0-30 530.36 31 47.5

0-40 842.82 49.3 75.4

0-60 1115.14 65.2 99.8

0-90 1117.5 65.4 100

90-120 120 0 0

90-130 0 0 0

90-150 0 0

90-180 1117.5 65.4 100

** Efficiency = 65.4 % **

COEFFICIENTS OF UTILIZATION

Ceiling 80% 70% 50% 30%

Wall 70 50 30 10 50 10 50 10 50 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0 78 78 78 78 76 76 73 73 70 70 65

1 74 71 70 68 70 67 67 65 65 63 60

2 69 65 62 60 64 59 62 58 60 56 54

3 65 60 56 53 59 52 57 52 55 51 49

4 61 55 50 47 54 47 52 46 51 46 44

5 57 50 46 42 50 42 48 42 47 41 40

6 53 46 42 38 46 38 45 38 44 37 36

7 50 43 38 35 42 35 41 34 40 34 33

8 47 39 35 32 39 31 38 31 37 31 30

36 44 36 32 29 36 29 35 29 35 29 27

10 41 34 29 27 41 29 34 27 33 26 25

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 28

ZONAL LUMEN SUMMARY

Zone Lumens

0-10 63.18

10-20 181.85

20-30 285.32

30-40 312.46

40-50 214.19

50-60 58.13

60-70 1.96

70-80 .39

80-90 0

90-100 0

100-110 0

110-120 0

120-130 0

130-140 0

140-150 0

150-160 0

160-170 0

170-180 0

CANDLEPOWER SUMMARY

Angle 0˚ CP

0 632

5 660

10 666

15 642

20 628

25 625

30 585

35 507

40 403

45 281

50 153

55 57

60 5

65 2

70 1

75 0

80 0

85 0

90 0
